Introduction

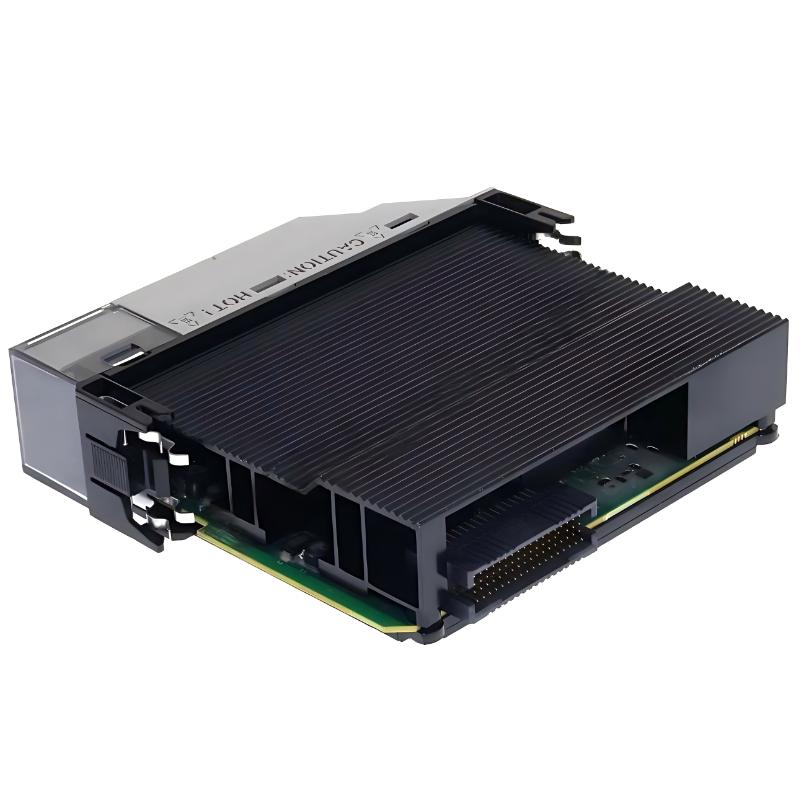

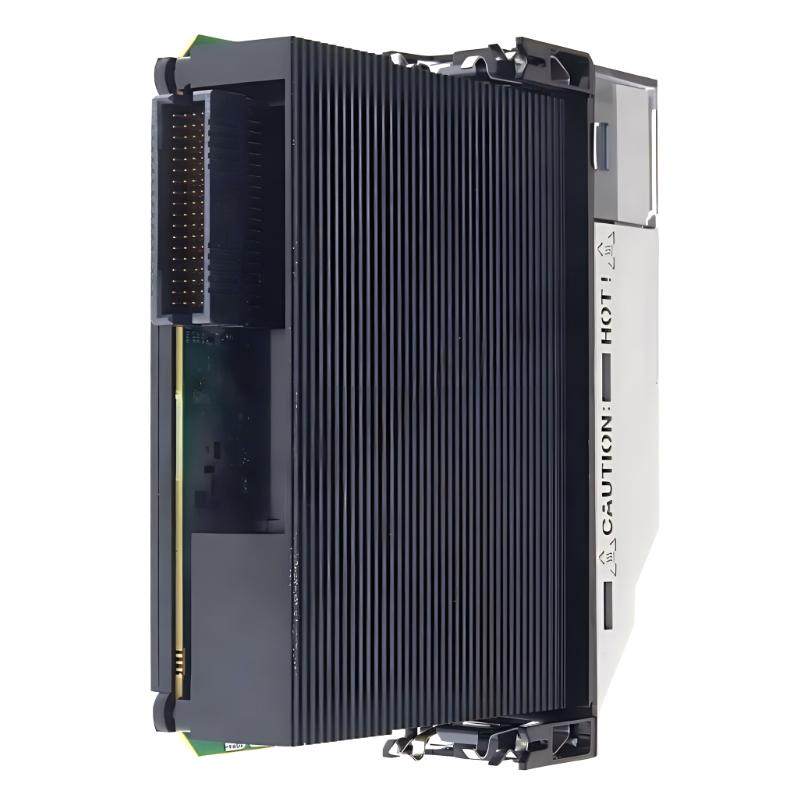

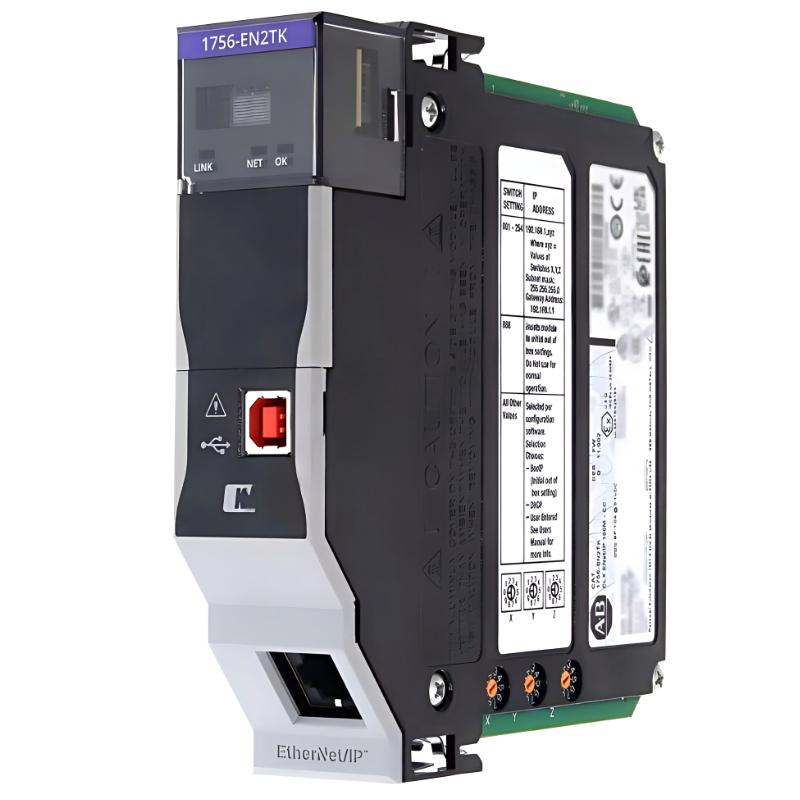

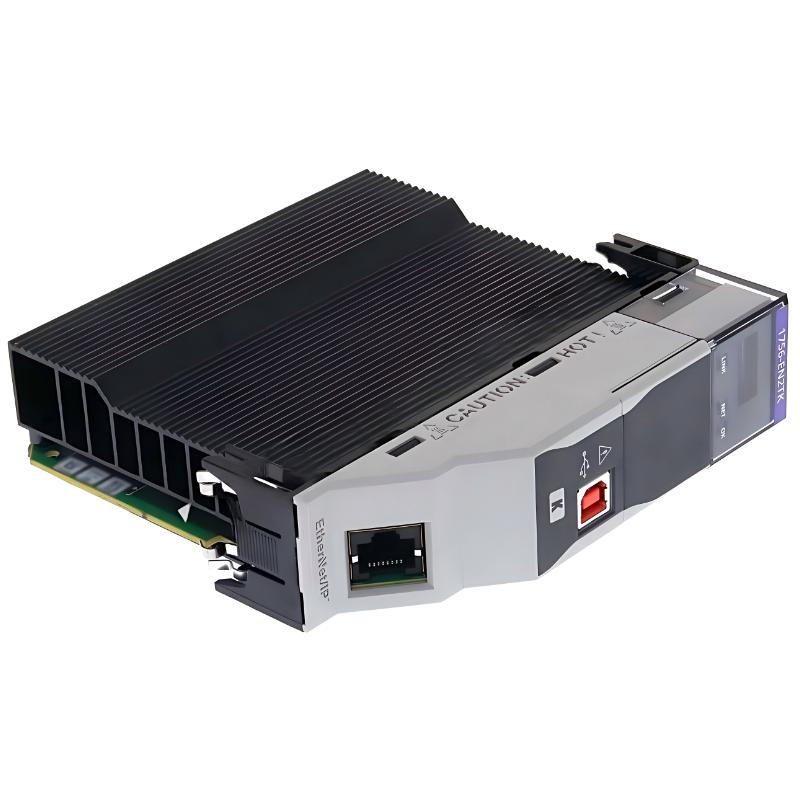

The Allen Bradley 1756-EN2TK ControlLogix EtherNet/IP Bridging Module provides high-speed, reliable communication between ControlLogix controllers and EtherNet/IP networks. Its compact, industrial-grade design ensures seamless integration with distributed I/O, drives, and other field devices. Ideal for large-scale industrial automation, this module enhances operational efficiency, enables deterministic communication, and supports scalable and fault-tolerant network architectures.

Technical Specifications

Feature	Specification
Module Type	EtherNet/IP Bridging Module
Function	Provides EtherNet/IP bridging for ControlLogix systems
Compatibility	ControlLogix controllers and EtherNet/IP networks
Protection	EMI-resistant, vibration-resistant
Operating Temperature	-20°C to 60°C
Dimensions (L × W × H)	144.5 × 34.6 × 130.18 mm
Weight	0.48 kg (1.058 lb)

Applications

The Allen Bradley 1756-EN2TK ControlLogix EtherNet/IP Bridging Module delivers high-performance network connectivity for industrial automation systems. Typical applications include:

Connecting ControlLogix controllers to EtherNet/IP networks for real-time control
Facilitating communication between distributed I/O, drives, and other field devices
Supporting SCADA and DCS monitoring in manufacturing, chemical, and power plants
Enabling seamless bridging between EtherNet/IP and ControlLogix backplanes
Providing reliable, high-speed communication for complex industrial networks

Its design ensures consistent, deterministic performance even in electrically noisy or high-demand environments.

Advantages

High-Speed EtherNet/IP Communication: Ensures fast and reliable data exchange across industrial networks.
Bridge Functionality: Connects multiple EtherNet/IP devices with ControlLogix systems for seamless integration.
Industrial-Grade Reliability: Resistant to vibration, EMI, and temperature fluctuations.
Compact and Space-Saving: Fits easily into ControlLogix chassis while maintaining full network functionality.
Scalable Network Architecture: Supports multi-node networking and complex automation topologies.

Technical FAQs

Q: What is the primary function of this module?
A: Provides EtherNet/IP bridging for ControlLogix controllers and networked devices.
Q: Is it compatible with all ControlLogix controllers?
A: It is compatible with ControlLogix controllers that support EtherNet/IP networking.
Q: Can it operate in high-vibration industrial environments?
A: Yes, engineered for reliable performance under industrial vibration conditions.
Q: What is the operating temperature range?
A: -20°C to 60°C, suitable for industrial environments.
Q: Can multiple bridging modules be used on the same network?
A: Yes, it supports multiple nodes for scalable network configurations.
Q: Does it provide deterministic communication?
A: Yes, ensures predictable, high-speed data transfer for control applications.
Q: How is the module installed?
A: Mounts easily in the ControlLogix chassis and connects to the EtherNet/IP network.
Q: Does it require additional configuration software?
A: Yes, network setup and bridging configuration are managed via Rockwell Automation software.
Q: Can it be used in mission-critical applications?
A: Yes, designed for high reliability in industrial automation networks.
Q: What is the expected operational lifespan?
A: Over 10 years under standard industrial operating conditions.
