Introduction

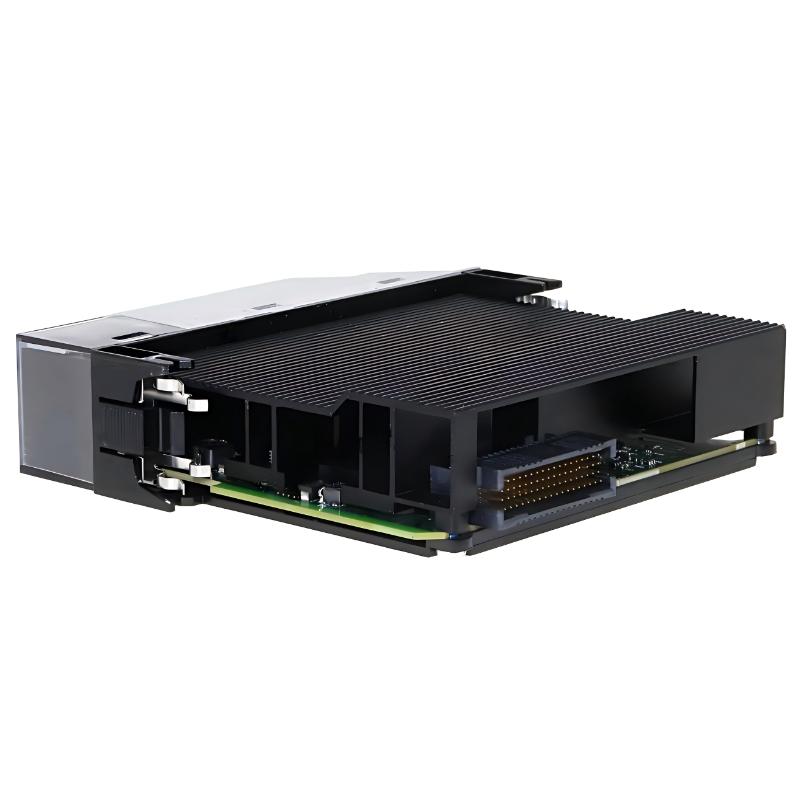

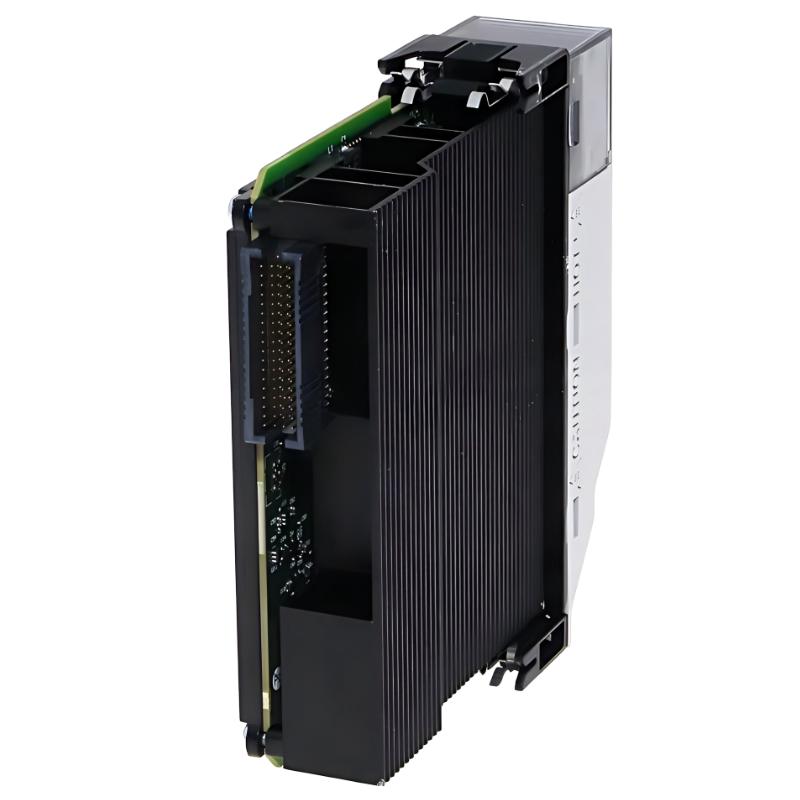

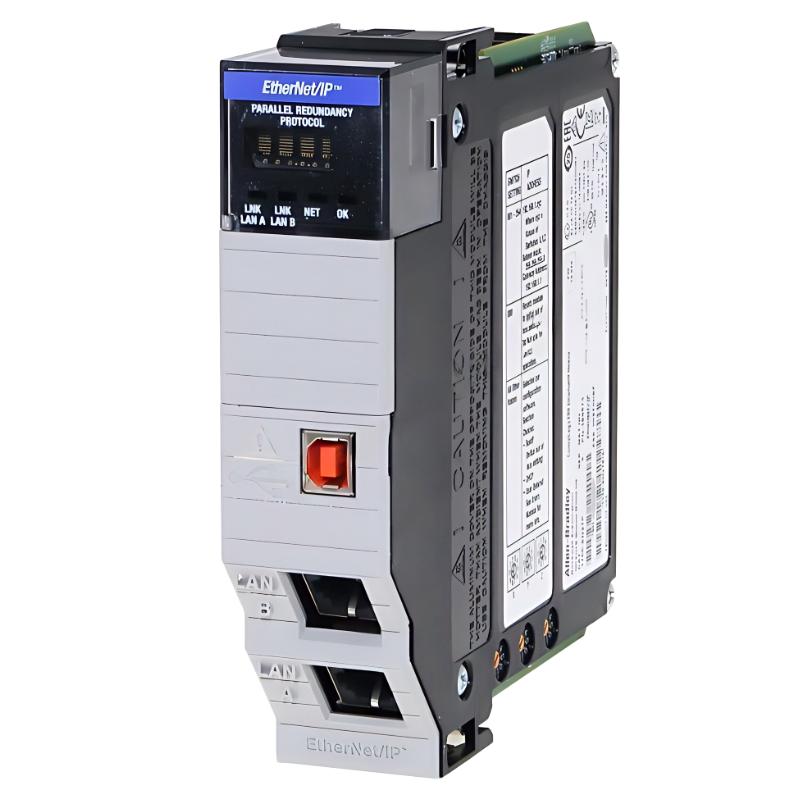

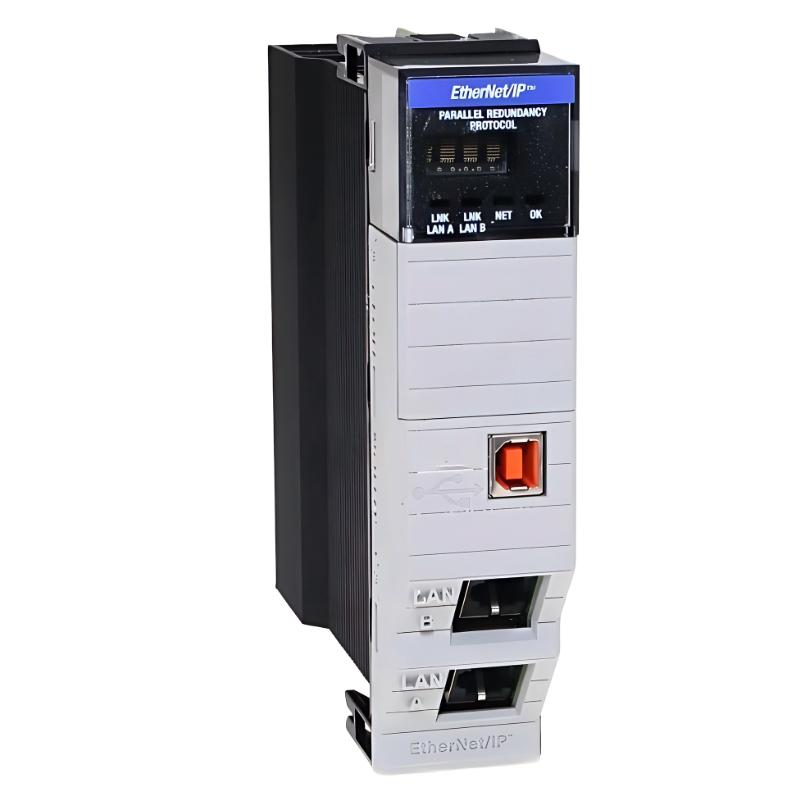

The Allen Bradley 1756-EN2TP ControlLogix EtherNet/IP Bridging Module provides fast, reliable communication between ControlLogix controllers and EtherNet/IP networks. Its industrial-grade, compact design ensures seamless integration with distributed I/O, drives, and other field devices. Ideal for mission-critical and scalable automation systems, this module enhances operational efficiency, provides deterministic network performance, and supports complex industrial network architectures.

Technical Specifications

Feature	Specification
Module Type	EtherNet/IP Bridging Module
Function	Provides EtherNet/IP bridging for ControlLogix systems
Compatibility	ControlLogix controllers and EtherNet/IP networks
Protection	EMI-resistant, vibration-resistant
Operating Temperature	-20°C to 60°C
Dimensions (L × W × H)	144.5 × 34.6 × 130.18 mm
Weight	0.45 kg (0.992 lb)

Applications

The Allen Bradley 1756-EN2TP ControlLogix EtherNet/IP Bridging Module is designed for high-performance industrial network communication. Typical applications include:

Bridging ControlLogix controllers to EtherNet/IP networks for real-time data exchange
Integrating distributed I/O, drives, and field devices into centralized control systems
Supporting SCADA and DCS monitoring in industrial environments like manufacturing, chemical, and power plants
Enabling deterministic, high-speed messaging across complex automation networks
Facilitating modular, scalable, and fault-tolerant industrial automation architectures

Its industrial-grade design ensures reliable performance even in high-noise and harsh environments.

Advantages

High-Speed Ethernet Communication: Enables fast, deterministic data exchange between controllers and network devices.
Bridge Functionality: Connects multiple EtherNet/IP devices with ControlLogix systems for seamless integration.
Durable Industrial Design: Resistant to vibration, EMI, and temperature extremes.
Compact Form Factor: Easily mounts in ControlLogix chassis without occupying excessive space.
Scalable Networking: Supports multi-node networks for complex and mission-critical automation applications.

Technical FAQs

Q: What is the primary function of this module?
A: Provides EtherNet/IP bridging for ControlLogix controllers and networked devices.
Q: Is it compatible with all ControlLogix controllers?
A: It is compatible with ControlLogix controllers that support EtherNet/IP networks.
Q: Can it operate in harsh industrial environments?
A: Yes, designed for high reliability under vibration, EMI, and temperature variations.
Q: What is the operating temperature range?
A: -20°C to 60°C, suitable for industrial use.
Q: Can multiple bridging modules be used in the same network?
A: Yes, supports multi-node and scalable network configurations.
Q: Does it provide deterministic communication?
A: Yes, ensures predictable, high-speed communication for control applications.
Q: How is the module installed?
A: Simply mounts into a ControlLogix chassis and connects to the EtherNet/IP network.
Q: Is software configuration required?
A: Yes, network and bridging setup is managed via Rockwell Automation software.
Q: Can it be used in mission-critical automation applications?
A: Yes, designed for high availability and continuous operation.
Q: What is the expected operational lifespan?
A: Over 10 years under standard industrial operating conditions.
