Introduction

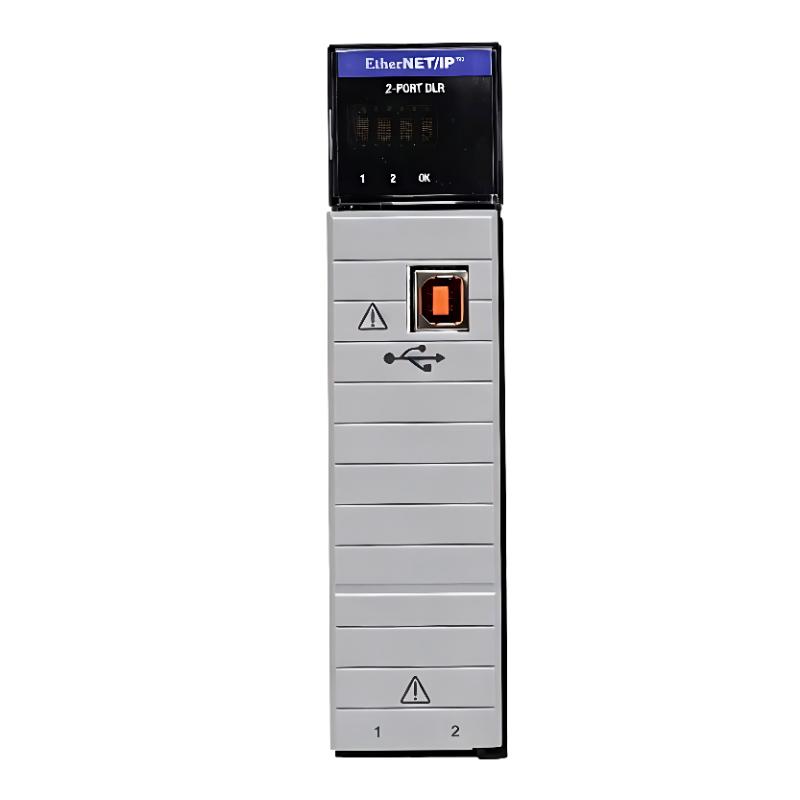

The Allen Bradley 1756-EN3TRK ControlLogix EtherNet/IP Bridging Module delivers fast, reliable, and fault-tolerant communication for industrial automation networks. Designed for high-demand applications, this module bridges ControlLogix controllers with EtherNet/IP networks, providing deterministic data transfer, network redundancy, and seamless integration with distributed I/O and field devices. Its compact and rugged design ensures consistent performance in challenging industrial environments.

Technical Specifications

Feature	Specification
Module Type	EtherNet/IP Bridging Module
Function	Provides EtherNet/IP bridging for ControlLogix systems
Compatibility	ControlLogix controllers and EtherNet/IP networks
Protection	EMI-resistant, vibration-resistant
Operating Temperature	-20°C to 60°C
Dimensions (L × W × H)	144.5 × 34.6 × 130.18 mm
Weight	0.45 kg (0.992 lb)

Applications

The Allen Bradley 1756-EN3TRK ControlLogix EtherNet/IP Bridging Module is engineered for robust industrial network communication with high reliability. Typical applications include:

Bridging ControlLogix controllers to EtherNet/IP networks in mission-critical automation systems
Enabling high-speed communication between distributed I/O, drives, and field devices
Supporting SCADA and DCS systems for continuous industrial monitoring
Providing network redundancy and fault-tolerant connections in large-scale automation architectures
Facilitating scalable, deterministic data exchange across multi-node industrial networks

Its rugged design ensures stable performance in harsh industrial environments, including high EMI and vibration conditions.

Advantages

High-Speed EtherNet/IP Communication: Ensures rapid, deterministic data transfer between controllers and networked devices.
Redundant Bridging Capability: Supports fault-tolerant network topologies for uninterrupted operation.
Industrial-Grade Design: Resistant to vibration, EMI, and extreme temperatures.
Compact Form Factor: Fits seamlessly into ControlLogix chassis without occupying excessive space.
Scalable and Flexible Networking: Enables integration of multiple nodes for complex automation systems.

Technical FAQs

Q: What is the main function of the 1756-EN3TRK module?
A: Provides EtherNet/IP bridging for ControlLogix controllers and connected devices.
Q: Is it compatible with all ControlLogix controllers?
A: Yes, it works with ControlLogix systems supporting EtherNet/IP networks.
Q: Can it operate in high-vibration industrial environments?
A: Yes, built to maintain reliable communication under vibration and harsh conditions.
Q: What is the operating temperature range?
A: -20°C to 60°C, suitable for industrial applications.
Q: Can it handle redundant network configurations?
A: Yes, it supports fault-tolerant EtherNet/IP bridging for uninterrupted operation.
Q: Does it provide deterministic communication?
A: Yes, it ensures predictable, high-speed data transfer for real-time control.
Q: How is the module installed?
A: Easily mounts into a ControlLogix chassis and connects to the EtherNet/IP network.
Q: Is software configuration required?
A: Yes, network setup and bridging are managed via Rockwell Automation software.
Q: Can it be used in mission-critical automation systems?
A: Yes, designed for high reliability in continuous-operation industrial networks.
Q: What is the expected operational lifespan?
A: Over 10 years under standard industrial operating conditions.
