Introduction

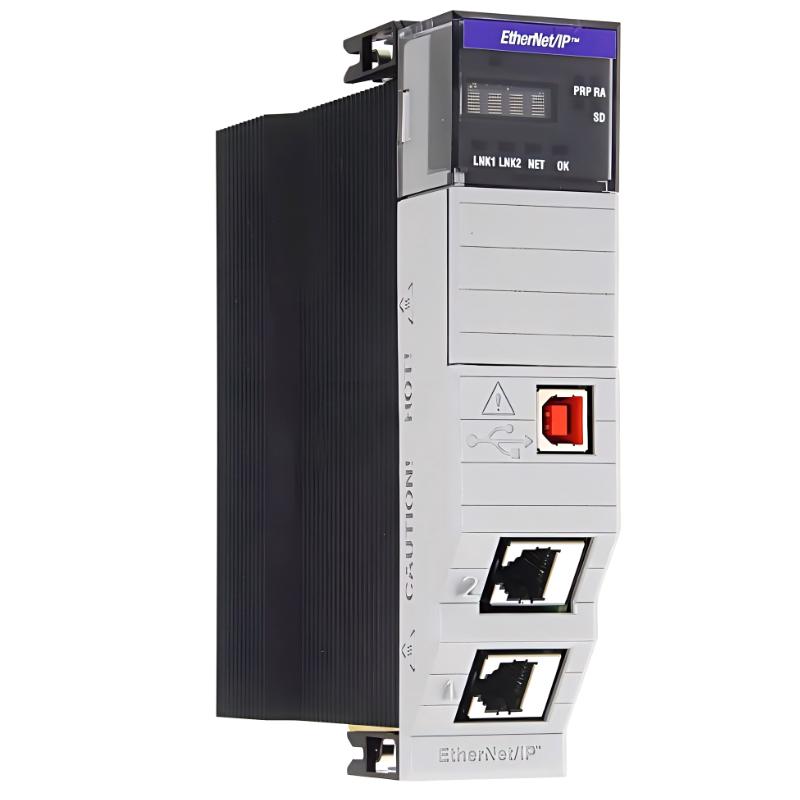

The Allen Bradley 1756-EN4TR ControlLogix EtherNet/IP Communication Module delivers reliable, high-speed network connectivity for industrial automation applications. It allows ControlLogix controllers to interface seamlessly with distributed I/O, drives, and other field devices. Engineered for industrial-grade performance, this module ensures deterministic communication, supports multi-node network configurations, and enhances overall operational efficiency.

Technical Specifications

Feature	Specification
Module Type	EtherNet/IP Communication Module
Function	Provides EtherNet/IP communication for ControlLogix systems
Compatibility	ControlLogix controllers and EtherNet/IP networks
Protection	EMI-resistant, vibration-resistant
Operating Temperature	-20°C to 60°C
Dimensions (L × W × H)	144.5 × 34.6 × 130.18 mm
Weight	0.31 kg (0.684 lb)

Applications

The Allen Bradley 1756-EN4TR ControlLogix EtherNet/IP Communication Module provides high-speed and reliable networking for industrial automation systems. Typical applications include:

Connecting ControlLogix controllers to EtherNet/IP networks for real-time data transfer
Enabling communication between distributed I/O, drives, and field devices
Supporting SCADA and DCS systems in manufacturing, energy, and process plants
Facilitating modular and scalable network architectures for large industrial systems
Providing high availability communication for mission-critical industrial operations

Its robust design ensures stable performance even in harsh environments with vibration, EMI, or temperature variations.

Advantages

High-Speed Communication: Ensures fast and deterministic data transfer across EtherNet/IP networks.
Seamless Integration: Connects ControlLogix controllers with multiple field devices effortlessly.
Industrial-Grade Reliability: Resistant to vibration, EMI, and temperature extremes.
Compact Form Factor: Fits efficiently within ControlLogix chassis without occupying excessive space.
Scalable Network Architecture: Supports multi-node network configurations for complex automation setups.

Technical FAQs

Q: What is the primary purpose of this module?
A: Provides EtherNet/IP communication for ControlLogix controllers to interface with networked devices.
Q: Is it compatible with all ControlLogix controllers?
A: Yes, it works with ControlLogix systems that support EtherNet/IP networks.
Q: Can it operate in high-vibration industrial environments?
A: Yes, it is designed to maintain stable communication in harsh industrial conditions.
Q: What is the operating temperature range?
A: -20°C to 60°C, suitable for standard industrial environments.
Q: Can it support multiple network nodes?
A: Yes, it supports multi-node EtherNet/IP network configurations.
Q: Does it provide deterministic communication?
A: Yes, ensures reliable and predictable data transfer for real-time control.
Q: How is the module installed?
A: It mounts easily into a ControlLogix chassis and connects to EtherNet/IP networks.
Q: Is configuration software required?
A: Yes, setup and network management are handled via Rockwell Automation software.
Q: Can it be used in mission-critical systems?
A: Yes, designed for high reliability and continuous operation.
Q: What is the expected operational lifespan?
A: Over 10 years under normal industrial operating conditions.
