Introduction

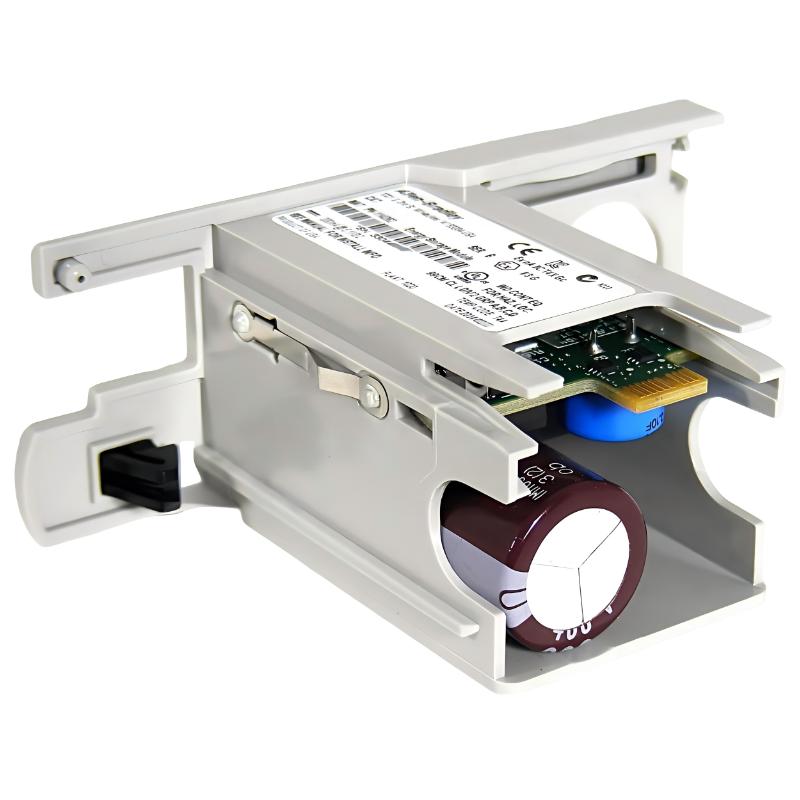

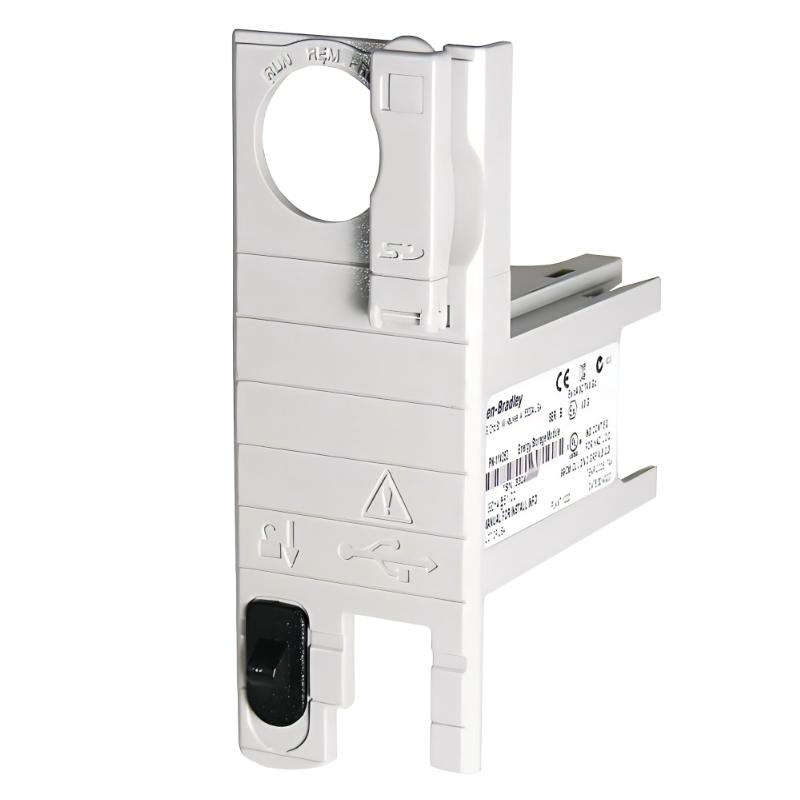

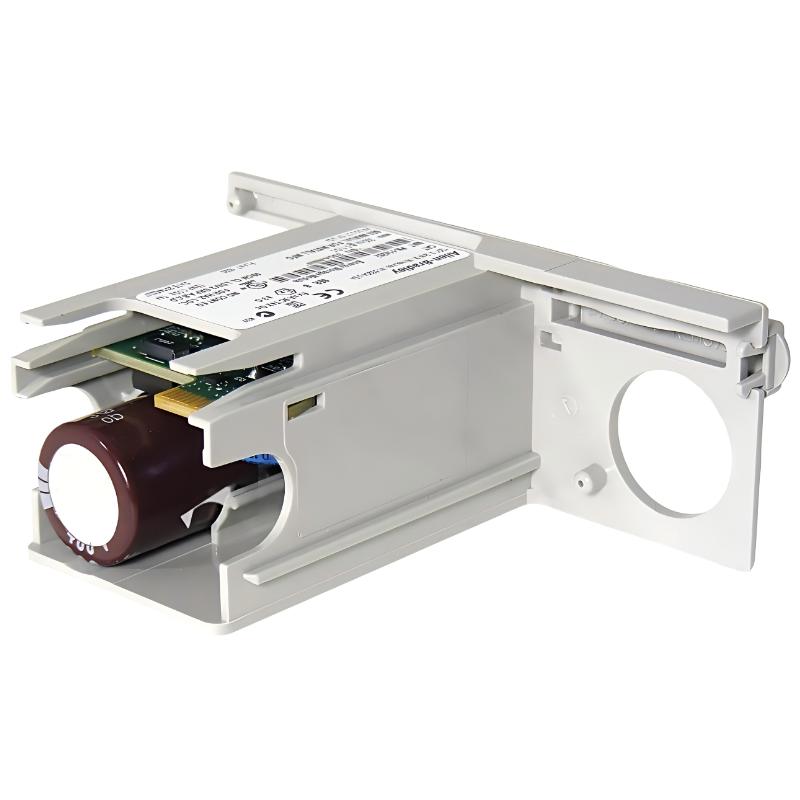

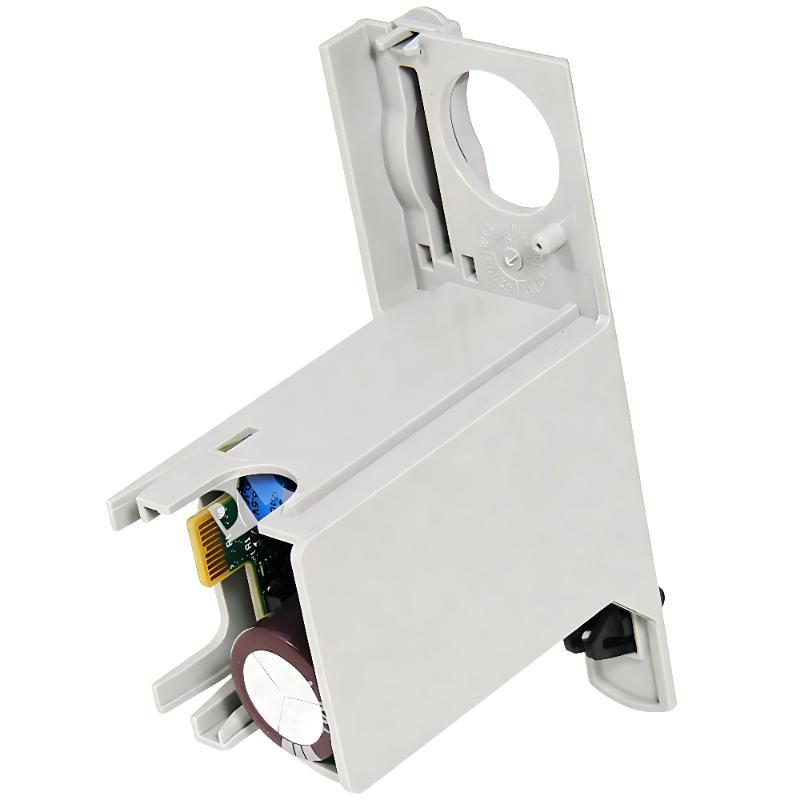

The Allen Bradley 1756-ESMCAP ControlLogix Energy Storage Module ensures reliable memory retention and protection of critical control programs in industrial automation systems. Its compact and durable design integrates seamlessly into ControlLogix racks, delivering energy storage that safeguards operations during unexpected power interruptions. Ideal for mission-critical industrial applications, this module helps maintain system integrity and uptime.

Technical Specifications

Feature	Specification
Module Type	Energy Storage Module
Function	Maintains memory and control program data during power loss
Compatibility	ControlLogix controllers
Protection	Vibration-resistant, EMI-resistant
Dimensions (L × W × H)	100 × 25 × 80 mm
Weight	0.1 kg (0.220 lb)

Applications

The Allen Bradley 1756-ESMCAP Energy Storage Modules provide dependable power backup for ControlLogix controllers and associated modules. Typical applications include:

Maintaining memory retention during power interruptions in industrial controllers
Supporting control programs and configuration data in ControlLogix systems
Protecting critical automation processes in manufacturing, energy, and process plants
Ensuring reliable operation during unexpected power fluctuations
Facilitating uninterrupted communication and data integrity in industrial networks

Its compact size allows seamless integration into ControlLogix chassis while delivering robust energy retention performance.

Advantages

Reliable Energy Storage: Ensures control programs and critical data remain safe during power loss.
Compact Design: Small form factor fits efficiently into ControlLogix racks without occupying extra space.
Long Lifespan: Designed for durable performance and extended operational life.
Low Maintenance: Requires minimal upkeep due to solid-state design.
Industrial-Grade Performance: Resistant to vibration, temperature variations, and typical industrial environments.

Technical FAQs

Q: What is the main purpose of the 1756-ESMCAP module?
A: Provides energy storage to maintain memory and control programs during power interruptions.
Q: Is it compatible with all ControlLogix controllers?
A: Yes, compatible with all ControlLogix systems that support energy storage modules.
Q: Can it operate in harsh industrial environments?
A: Yes, built to withstand vibration, EMI, and temperature variations.
Q: Does it require external power for operation?
A: No, it stores energy internally to maintain critical memory functions.
Q: How long can it retain memory during a power loss?
A: Typically, memory retention lasts for several hours depending on module usage.
Q: Can multiple ESMCAP modules be used in the same chassis?
A: Yes, multiple modules can be installed if additional energy storage is needed.
Q: How is the module installed?
A: Easily mounts into the ControlLogix chassis with a simple plug-in connection.
Q: Does it require maintenance or periodic replacement?
A: Minimal maintenance is required; replacement depends on usage and environmental conditions.
Q: Can it protect against total power failure?
A: Yes, it preserves critical memory and control programs during power outages.
Q: What is the expected operational lifespan?
A: Over 10 years under standard industrial operating conditions.
