Introduction

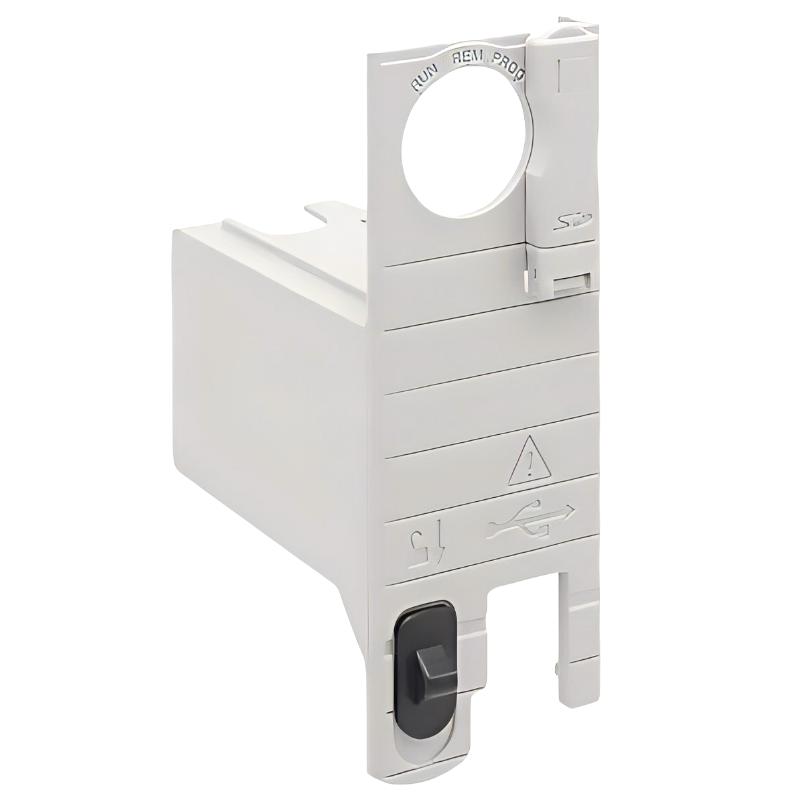

The Allen Bradley 1756-ESMCAP/B ControlLogix Energy Storage Module provides reliable, compact, and long-lasting energy retention for industrial controllers. It preserves memory, configuration, and control program data during power interruptions, ensuring smooth and uninterrupted operation. Perfect for mission-critical industrial applications, this module helps maintain system integrity and supports high-availability control systems.

Technical Specifications

Feature	Specification
Module Type	Energy Storage Module
Function	Maintains memory and control program data during power loss
Compatibility	ControlLogix controllers
Protection	Vibration-resistant, EMI-resistant
Operating Temperature	-20°C to 60°C
Dimensions (L × W × H)	100 × 25 × 80 mm
Weight	0.1 kg (0.220 lb)

Applications

The Allen Bradley 1756-ESMCAP/B ControlLogix Energy Storage Module ensures consistent memory retention and uninterrupted operation for industrial automation systems. Typical applications include:

Preserving critical control programs during power interruptions in ControlLogix systems
Supporting energy storage for distributed I/O and industrial control modules
Safeguarding SCADA and DCS applications in manufacturing, utilities, and process industries
Ensuring reliable performance in mission-critical automation systems
Reducing downtime and protecting data integrity during unexpected power fluctuations

Its small footprint allows seamless integration into ControlLogix chassis without compromising space or accessibility.

Advantages

Reliable Energy Retention: Maintains controller memory and configuration data during power loss.
Compact, Space-Efficient Design: Fits easily into ControlLogix racks without occupying additional space.
Durable and Long-Lasting: Engineered for extended service life under industrial conditions.
Low Maintenance: Solid-state design requires minimal upkeep.
Industrial-Grade Protection: Resists vibration, EMI, and temperature variations for stable performance.

Technical FAQs

Q: What is the primary function of the 1756-ESMCAP/B module?
A: Provides energy storage to preserve memory and control programs during power outages.
Q: Is it compatible with all ControlLogix controllers?
A: Yes, it works with ControlLogix systems that support energy storage modules.
Q: Can it operate in harsh industrial environments?
A: Yes, it is designed for reliable operation under vibration, EMI, and temperature extremes.
Q: Does it require external power?
A: No, the module stores energy internally to maintain memory and control programs.
Q: How long can it maintain memory during power loss?
A: Retention typically lasts several hours depending on usage and environmental conditions.
Q: Can multiple modules be installed in one chassis?
A: Yes, additional modules can be used for increased energy storage capacity.
Q: How is the module installed?
A: Easily mounts into a ControlLogix chassis with a plug-in interface.
Q: Does it require periodic maintenance?
A: Minimal maintenance is required; replacement depends on module usage and conditions.
Q: Can it protect data in mission-critical operations?
A: Yes, designed to safeguard critical programs and reduce downtime.
Q: What is the expected operational lifespan?
A: Over 10 years under standard industrial operating conditions.
