Introduction

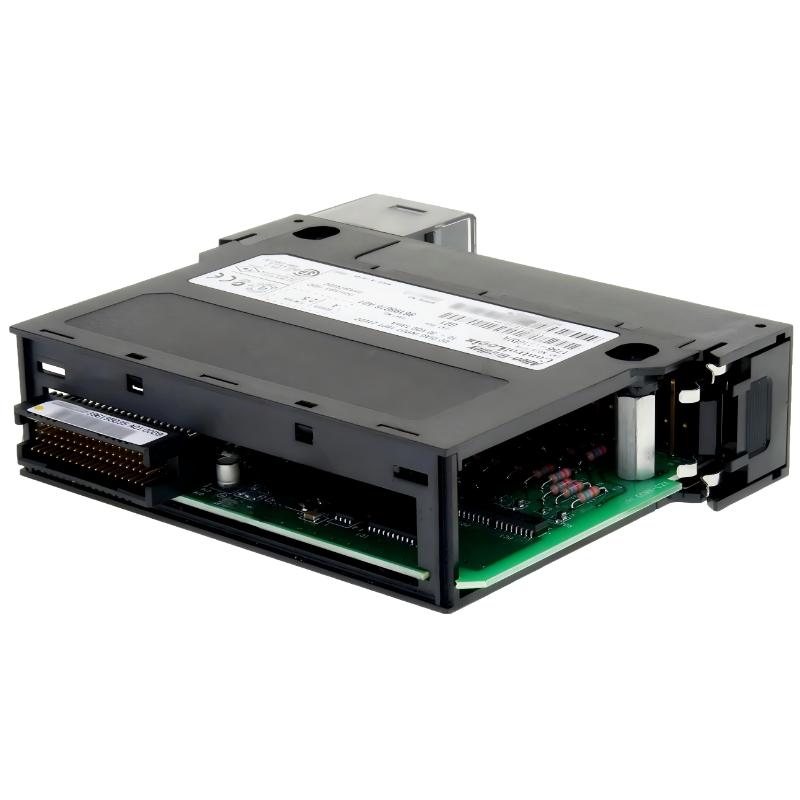

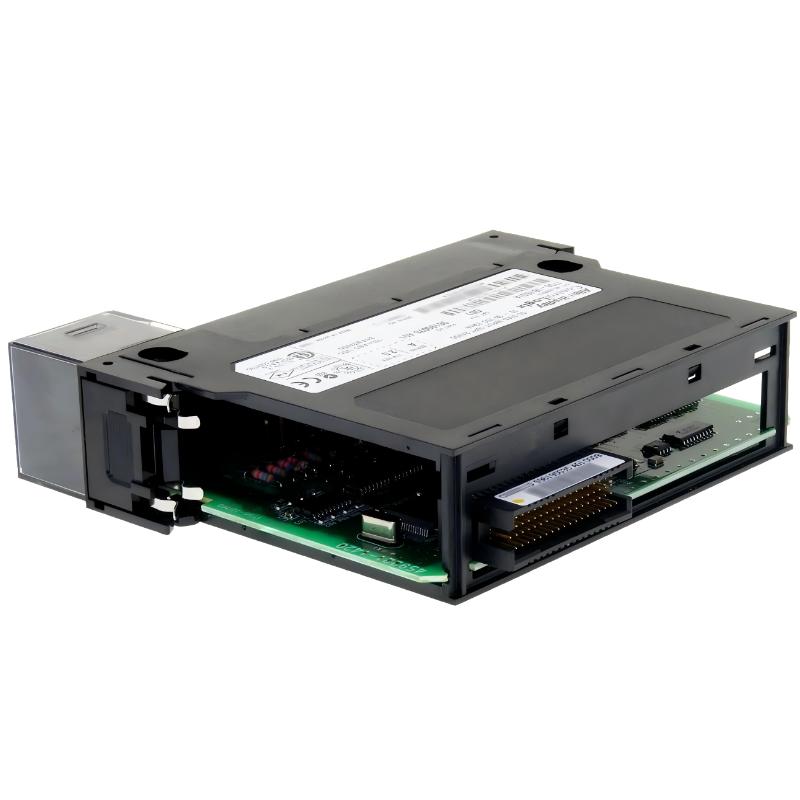

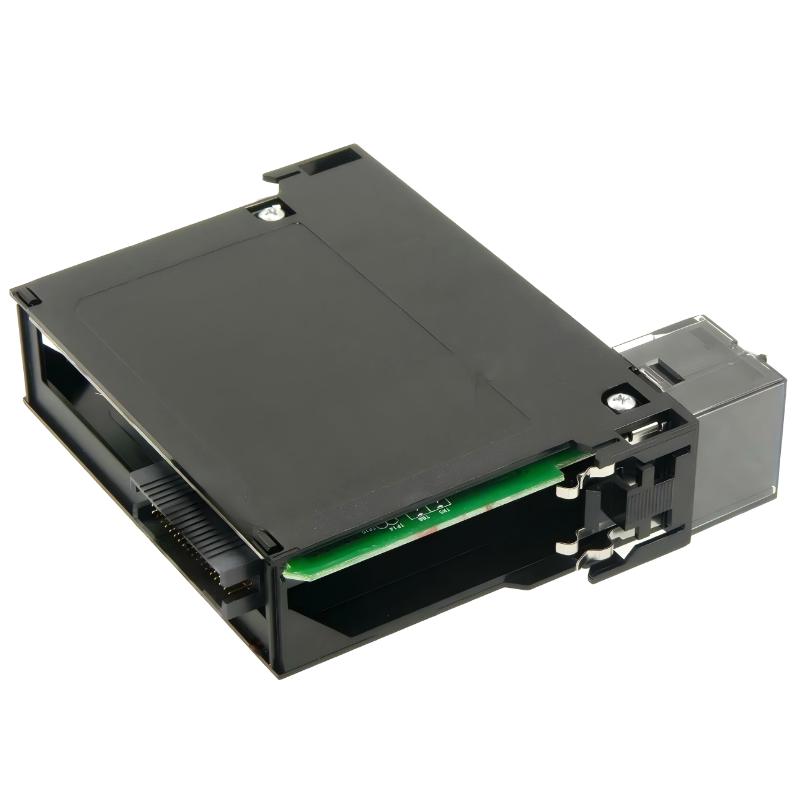

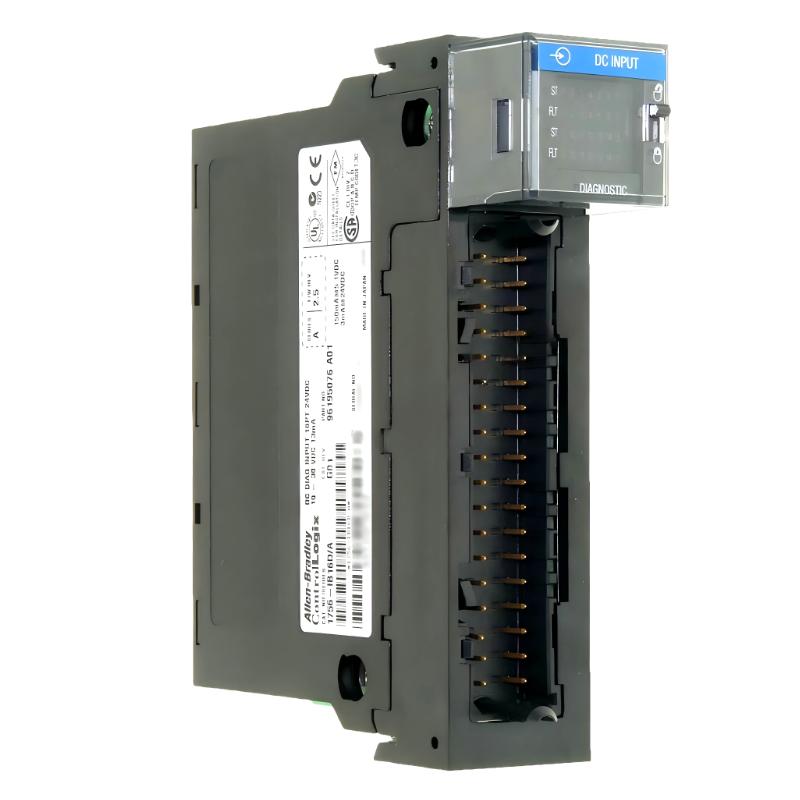

The Allen Bradley 1756-IB16D/A ControlLogix Diagnostic Input Module delivers reliable, high-speed acquisition of diagnostic signals in industrial automation systems. It enables real-time monitoring of critical inputs, supports predictive maintenance, and integrates seamlessly with ControlLogix controllers. Compact yet rugged, this module ensures accurate and timely data for mission-critical applications.

Technical Specifications

Feature	Specification
Module Type	Diagnostic Input Module
Function	Monitors and collects digital input signals for diagnostics in ControlLogix systems
Compatibility	ControlLogix controllers
Protection	EMI-resistant, vibration-resistant
Operating Temperature	-20°C to 60°C
Dimensions (L × W × H)	144.57 × 22 × 105.42 mm
Weight	0.15 kg (0.331 lb)

Applications

The Allen Bradley 1756-IB16D/A Diagnostic Input Module is designed for precise monitoring and acquisition of digital signals in ControlLogix systems. Typical applications include:

Collecting diagnostic signals from sensors, switches, and safety devices
Integrating into ControlLogix controllers for real-time system monitoring
Supporting predictive maintenance by detecting system faults or anomalies
Enhancing SCADA, HMI, and PLC systems with accurate diagnostic data
Enabling reliable input detection in mission-critical automation environments

Its compact design allows easy integration into ControlLogix chassis without sacrificing space or performance.

Advantages

Accurate Diagnostic Input: Provides high-fidelity signal acquisition for system monitoring.
Rapid Response: Detects and reports input changes quickly for timely system diagnostics.
Industrial-Grade Reliability: Resistant to EMI, vibration, and temperature variations.
Compact and Efficient: Minimal footprint allows for flexible system configurations.
Enhanced Maintenance: Supports predictive maintenance strategies by providing precise diagnostics.

Technical FAQs

Q: What is the primary function of the 1756-IB16D/A module?
A: Collects diagnostic input signals to monitor system performance in ControlLogix applications.
Q: Can it interface with standard industrial sensors?
A: Yes, compatible with digital sensors, switches, and diagnostic devices.
Q: Does it provide real-time input monitoring?
A: Yes, it ensures fast and reliable signal acquisition for system diagnostics.
Q: Can it operate in harsh industrial conditions?
A: Yes, it is designed to withstand vibration, EMI, and temperature extremes.
Q: How is the module installed?
A: Plug-in installation into a ControlLogix chassis.
Q: Can multiple modules be used in the same chassis?
A: Yes, modular design supports expansion within ControlLogix racks.
Q: Does it require configuration software?
A: Yes, setup and monitoring are managed via Rockwell Automation software.
Q: Is it suitable for mission-critical systems?
A: Yes, designed for high reliability in continuous operation environments.
Q: What is the expected lifespan of the module?
A: Over 10 years under normal industrial operating conditions.
Q: Can it enhance predictive maintenance programs?
A: Yes, by providing accurate diagnostic data for early detection of system anomalies.
