Introduction

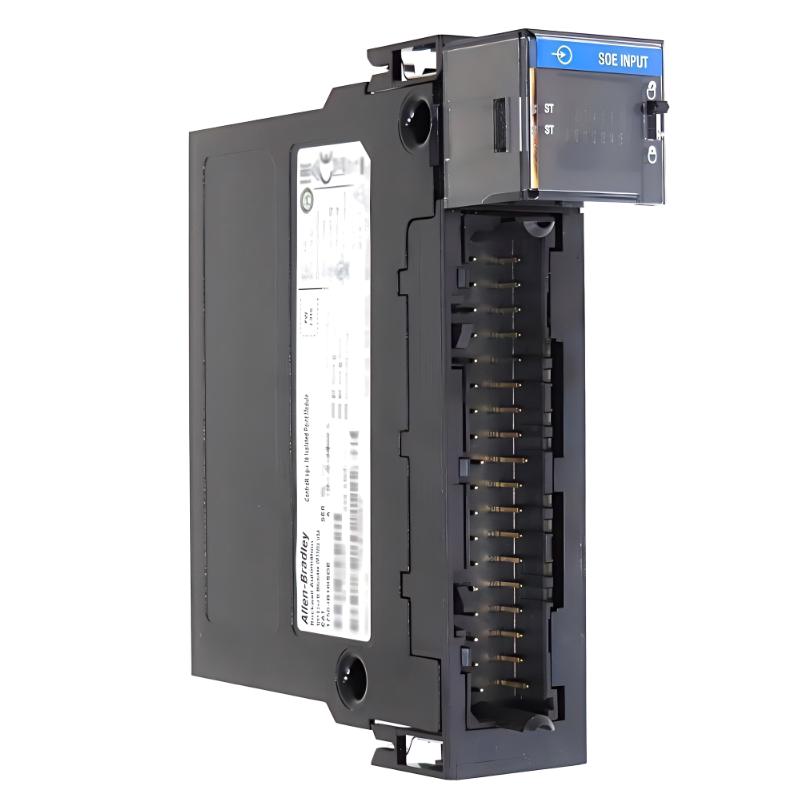

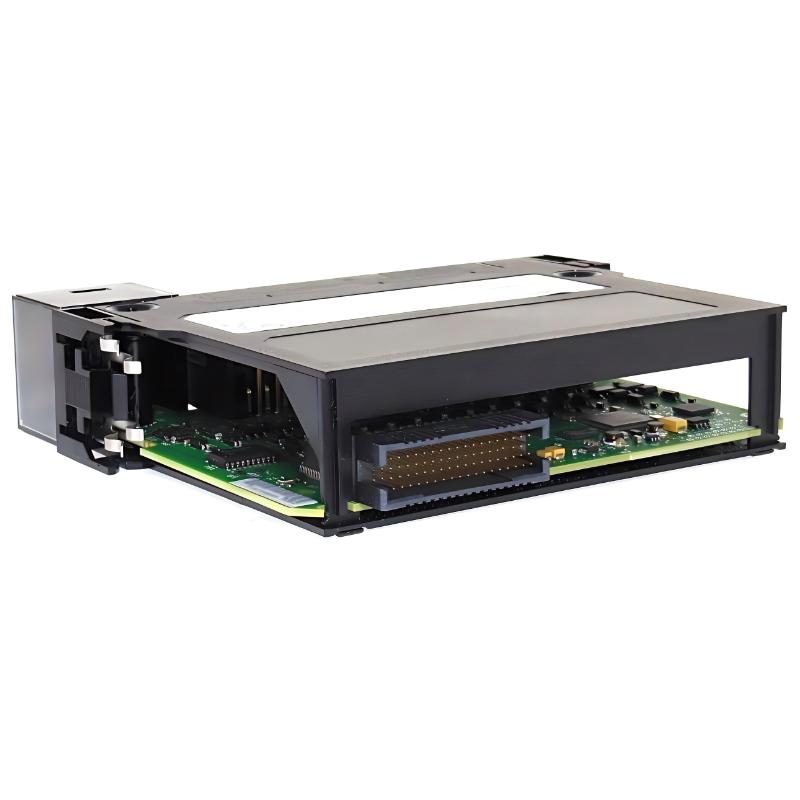

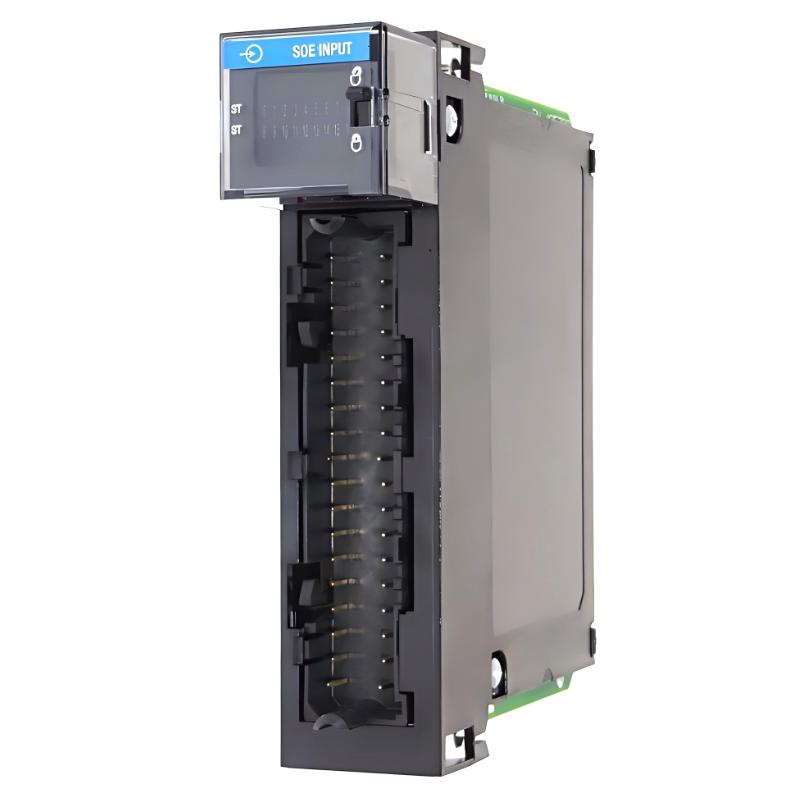

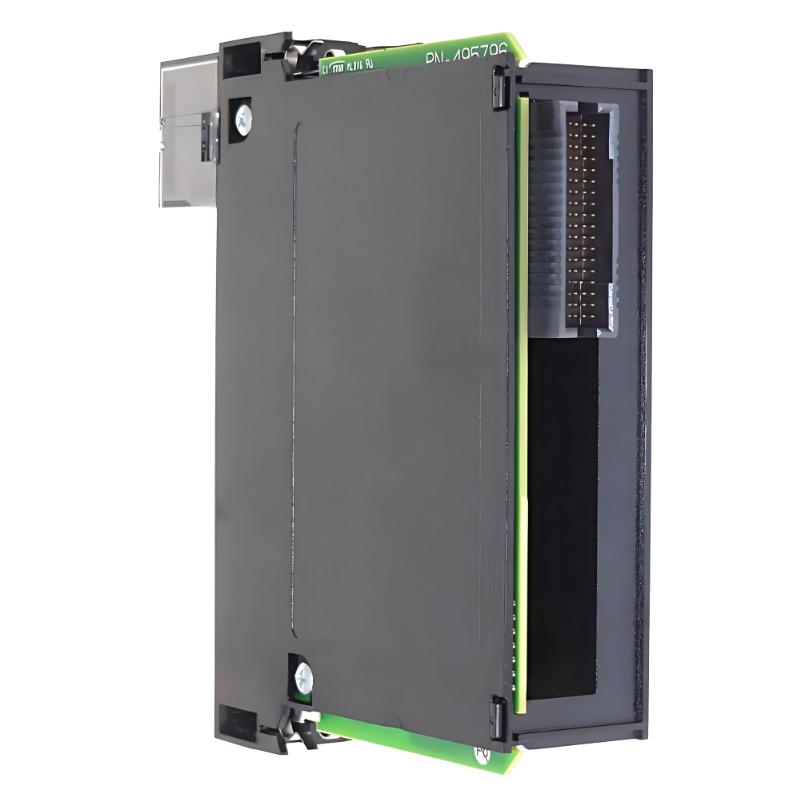

The Allen Bradley 1756-IB16ISOE ControlLogix Isolated Input Module delivers high-integrity signal acquisition for industrial automation systems. Its isolation capabilities protect controllers from electrical transients while providing accurate and reliable digital input detection. Compact, rugged, and suitable for harsh industrial environments, this module is ideal for mission-critical ControlLogix applications where safety and signal integrity are paramount.

Technical Specifications

Feature	Specification
Module Type	Isolated Input Module
Function	Provides isolated digital input detection for ControlLogix systems
Compatibility	ControlLogix controllers
Protection	EMI-resistant, vibration-resistant, isolation against voltage spikes
Operating Temperature	-20°C to 60°C
Dimensions (L × W × H)	144.57 × 22 × 105.42 mm
Weight	0.18 kg (0.397 lb)

Applications

The Allen Bradley 1756-IB16ISOE Isolated Input Module is designed to provide safe and reliable signal acquisition for ControlLogix systems. Typical applications include:

Isolated digital input detection for sensors, switches, and industrial devices
Protecting controllers from voltage spikes and ground loop disturbances
Integration with ControlLogix systems for mission-critical automation
Enabling high-reliability monitoring in manufacturing, process, and energy sectors
Supporting SCADA and HMI systems with clean and isolated digital signals

Its robust design ensures accurate performance even in challenging industrial environments with electrical noise or transient voltages.

Advantages

Signal Isolation: Prevents interference from voltage spikes and ground loops for enhanced system safety.
Reliable Input Detection: Provides precise and consistent monitoring of digital signals.
Industrial-Grade Design: Resistant to EMI, vibration, and harsh environmental conditions.
Compact Footprint: Efficiently fits into ControlLogix chassis for flexible system layout.
Enhanced Safety: Reduces risk of electrical damage to controller and other modules.

Technical FAQs

Q: What is the primary function of the 1756-IB16ISOE module?
A: Provides isolated digital input detection to protect ControlLogix systems from electrical disturbances.
Q: Can it interface with standard industrial digital sensors?
A: Yes, compatible with a wide range of DC and AC input devices.
Q: Does it prevent ground loop and voltage spike issues?
A: Yes, its isolation design ensures signal integrity and controller protection.
Q: Can it operate in high-vibration environments?
A: Yes, it is designed for reliable operation under vibration, EMI, and temperature variations.
Q: How is the module installed?
A: Simple plug-in installation into a ControlLogix chassis.
Q: Can multiple isolated input modules be used in the same chassis?
A: Yes, modular design supports flexible expansion.
Q: Does it require configuration software?
A: Yes, setup and monitoring are handled via Rockwell Automation software.
Q: Is it suitable for mission-critical applications?
A: Yes, designed for industrial-grade reliability and continuous operation.
Q: What is the expected lifespan?
A: Over 10 years under standard industrial operating conditions.
Q: How does it improve system safety?
A: By isolating inputs, it prevents electrical faults from affecting the controller and other modules.
