Introduction

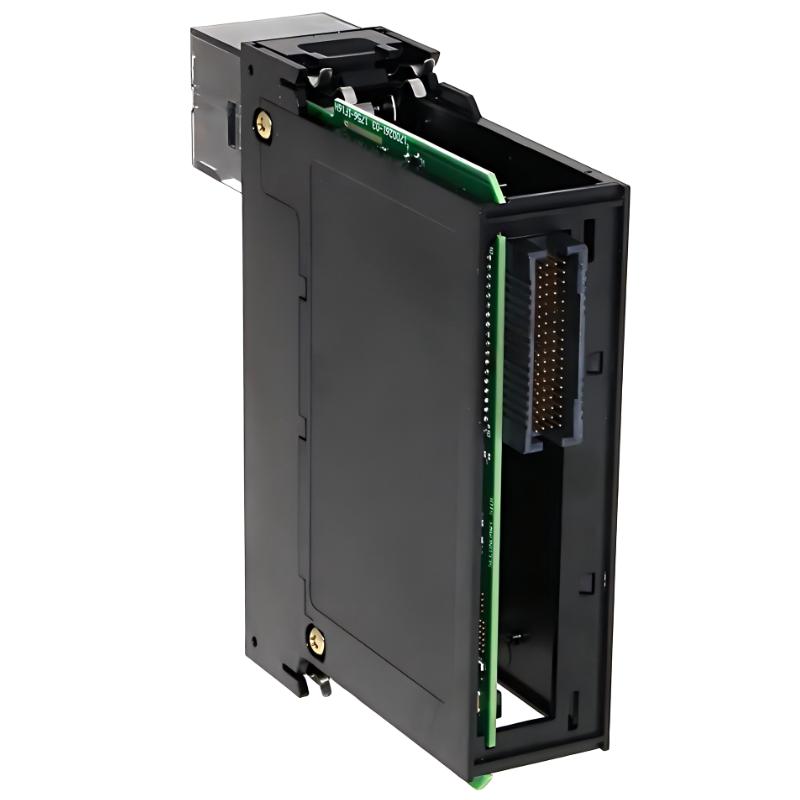

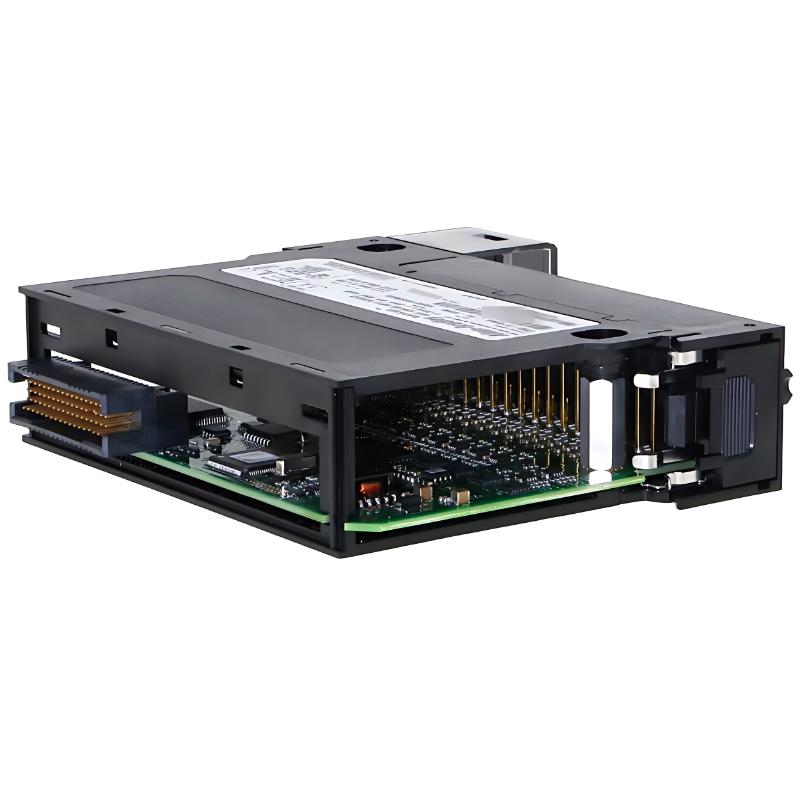

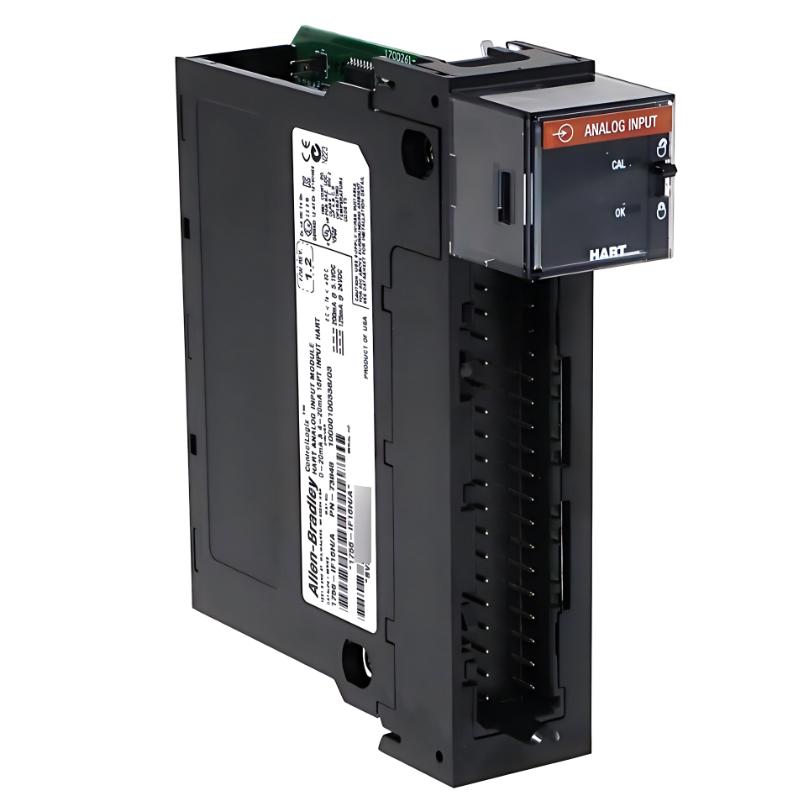

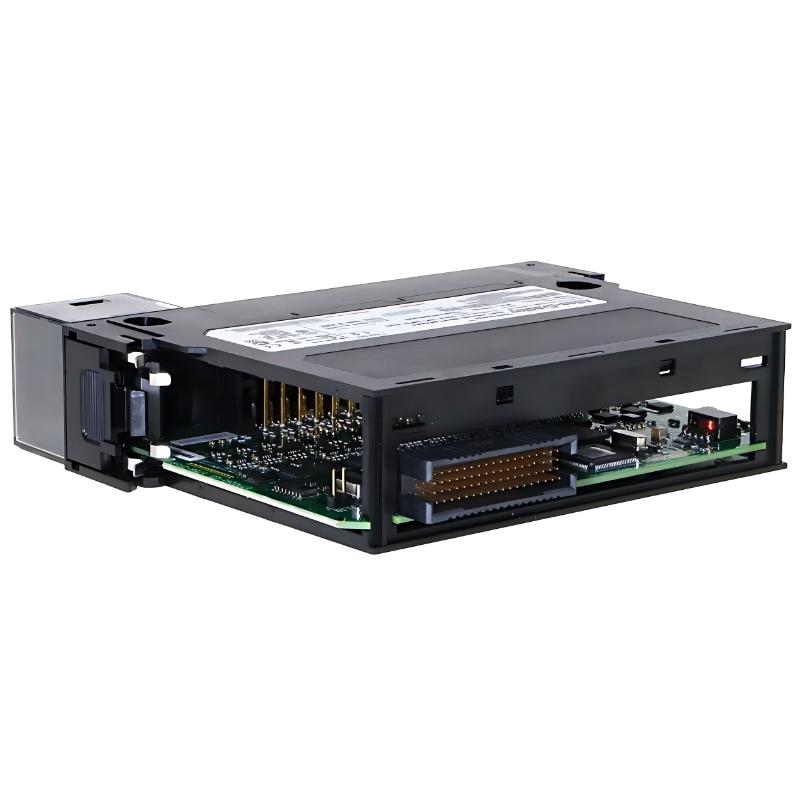

The Allen Bradley 1756-IF16H ControlLogix Analog Input Module delivers reliable, high-precision acquisition of analog signals for industrial automation systems. Compact yet rugged, it integrates seamlessly with ControlLogix controllers to support real-time process monitoring and control. Ideal for applications requiring accurate measurement of temperature, pressure, flow, and other process variables, this module enhances operational efficiency and system reliability.

Technical Specifications

Feature	Specification
Module Type	Analog Input Module
Function	Acquires analog signals for ControlLogix systems
Channels	16
Signal Types	Voltage (0–10V), Current (4–20mA)
Compatibility	ControlLogix controllers
Protection	EMI-resistant, vibration-resistant, channel isolation
Operating Temperature	-20°C to 60°C
Dimensions (L × W × H)	144.57 × 22 × 105.42 mm
Weight	0.32 kg (0.706 lb)

Applications

The Allen Bradley 1756-IF16H Analog Input Module is engineered to acquire high-precision analog signals from field devices and sensors. Typical applications include:

Monitoring process variables such as temperature, pressure, flow, and level
Integrating with ControlLogix controllers for real-time industrial automation
Supporting SCADA, DCS, and HMI systems with accurate analog data
Enabling precise control in manufacturing, energy, and process industries
Collecting critical data for process optimization and predictive maintenance

Its compact and rugged design ensures reliable performance even in challenging industrial environments.

Advantages

High-Precision Measurement: Provides accurate acquisition of analog signals for critical control.
Reliable Operation: Industrial-grade construction resists EMI, vibration, and temperature variations.
Seamless Integration: Easily mounts into ControlLogix chassis with straightforward configuration.
Compact Design: Efficient form factor for optimized chassis space utilization.
Enhanced Process Control: Supports high-resolution measurements to maintain system efficiency.

Technical FAQs

Q: What is the main function of the 1756-IF16H module?
A: Acquires analog input signals from sensors and devices for ControlLogix controllers.
Q: What types of signals can it measure?
A: Supports standard analog signals, including voltage and current inputs (0–10V, 4–20mA).
Q: Can it be used in high-vibration industrial environments?
A: Yes, designed for stable operation under vibration, EMI, and temperature fluctuations.
Q: How is the module installed?
A: Plug-in installation into a ControlLogix chassis.
Q: Does it support multiple channels?
A: Yes, the module provides 16 analog input channels for versatile signal acquisition.
Q: Does it require configuration software?
A: Yes, setup and calibration are managed through Rockwell Automation software.
Q: Can it operate in mission-critical systems?
A: Yes, engineered for industrial reliability and continuous operation.
Q: How does it improve process control?
A: By providing high-resolution, accurate analog data for precise automation and control.
Q: Is the module isolated?
A: Yes, input channels are isolated to prevent interference and ensure signal integrity.
Q: What is the expected lifespan of the module?
A: Over 10 years under normal industrial operating conditions.
