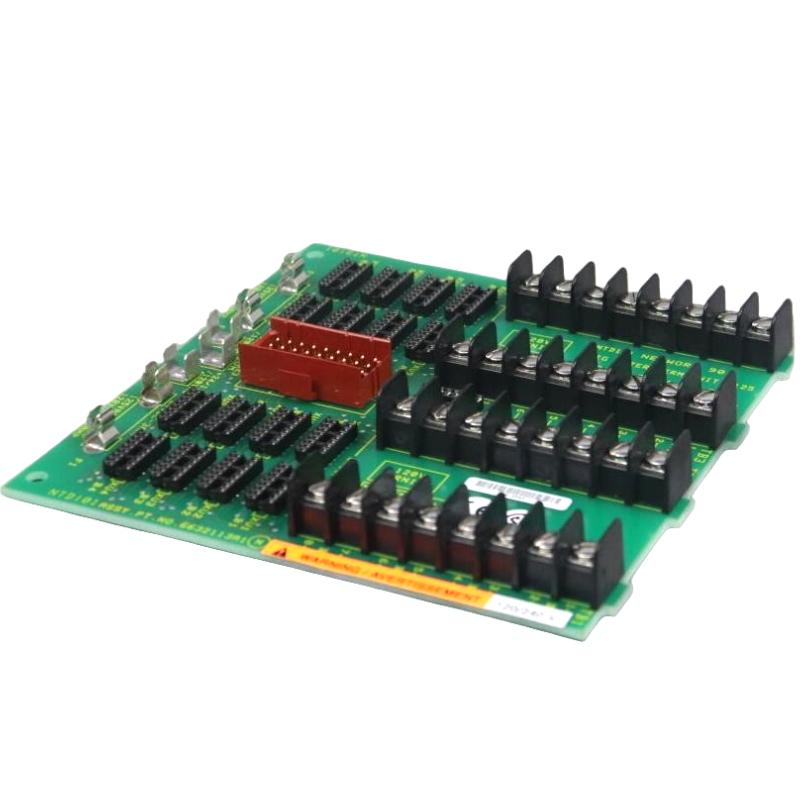

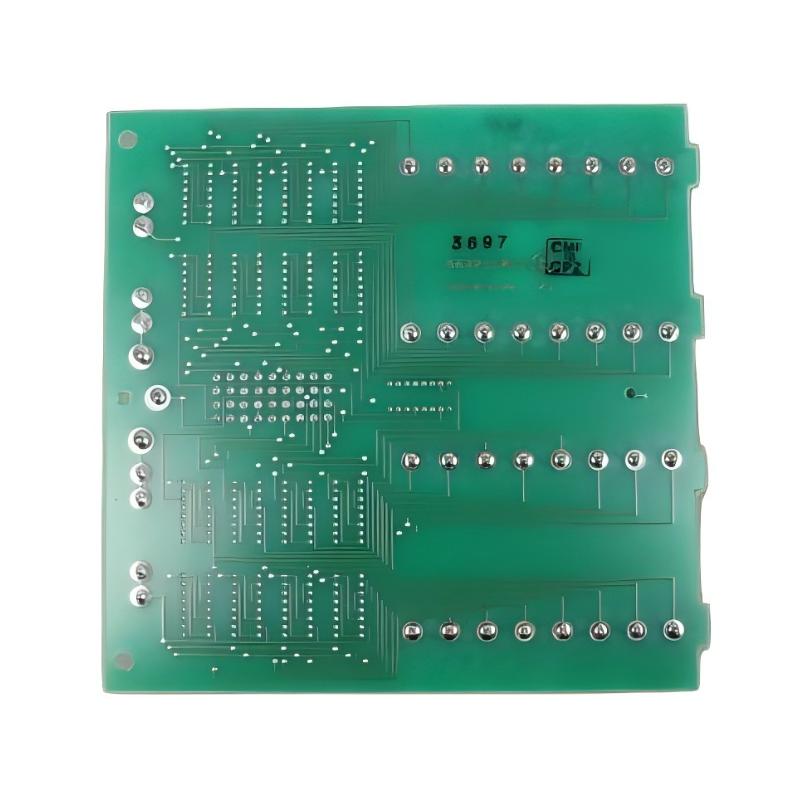

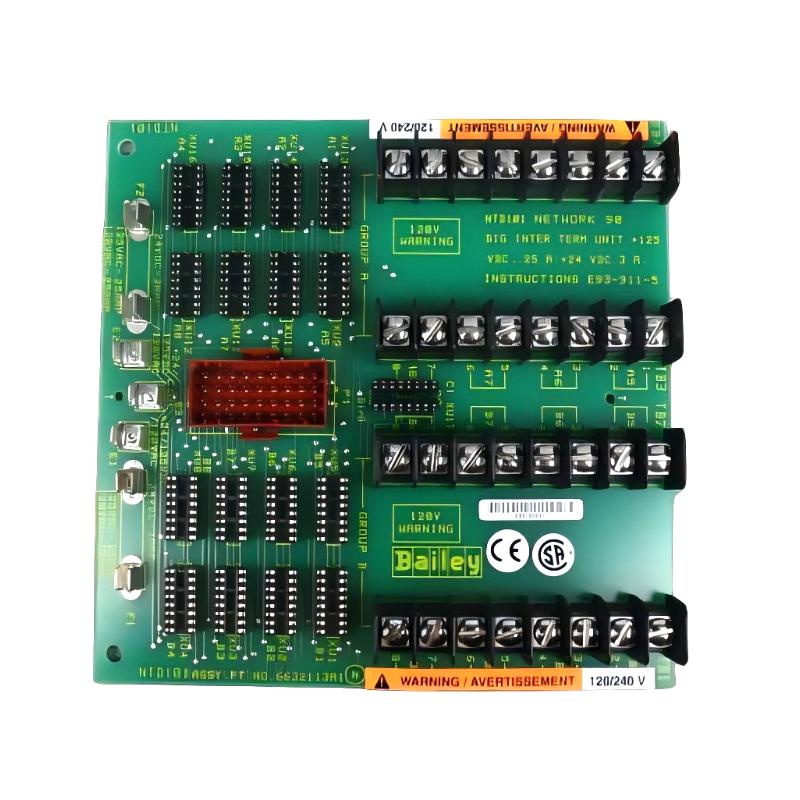

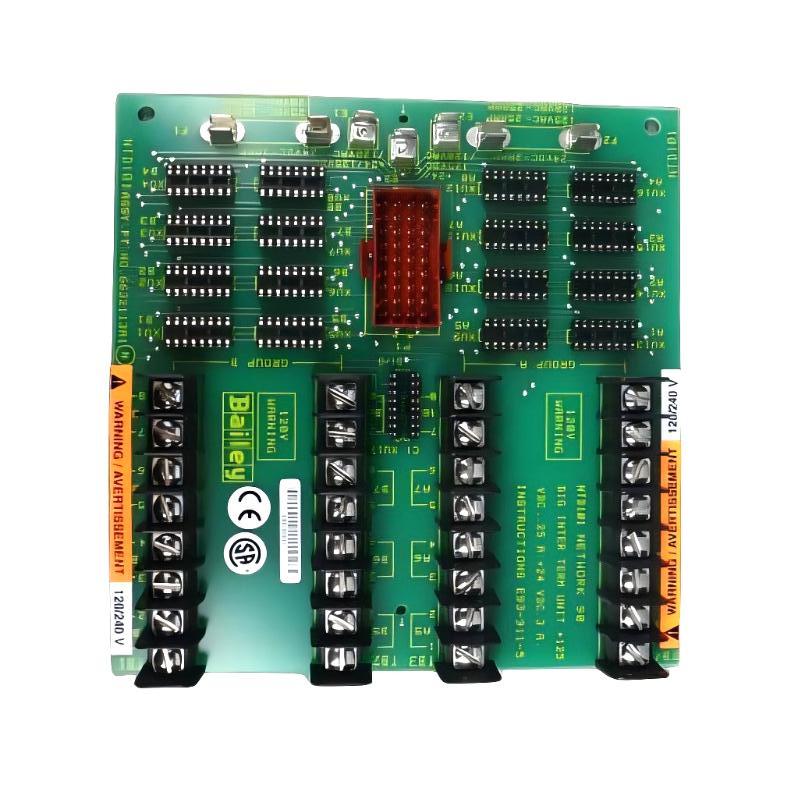

ABB Bailey NTDI01 6632113A1 Digital I/O Terminal Unit
ABB Bailey NTDI01 6632113A1 Digital I/O Terminal Unit
0.0
Points
Brand:ABB Bailey Item No.:NTDI01 Product Origin:Sweden (SE) Product Dimensions: Product Weight: Payment:T/T, Western Union, Credit Card Goods_stock:15 Shipping Port:Xiamen, China Lead Time:1-3 Days Condition:Brand New And Original Warranty:1 Year Certificate:COO
The ABB Bailey NTDI01 6632113A1 Digital I/O Terminal Unit is designed for dependable digital signal management in industrial automation environments. Built for high-performance control systems, this module delivers stable communication, fast response capability, and reliable integration within ABB Bailey platforms. Its rugged construction and efficient signal handling make it an excellent choice for demanding process control applications where operational continuity is essential.
Technical Specifications
Parameter
Specification
Product Model
NTDI01 6632113A1
Product Type
Digital I/O Terminal Unit
Manufacturer
ABB Bailey
Input Voltage
24 VDC
Digital Channels
16 Input / 16 Output
Signal Type
Digital DC Signals
Response Time
≤ 2 ms
Mounting Type
Rack / Panel Mount
Operating Temperature
0°C to 60°C
Storage Temperature
-40°C to 70°C
Protection Features
Noise Immunity & Diagnostic Monitoring
Dimensions
78.74 x 233.68 x 213.36 mm
Weight
0.3 kg
Recommended Related Models
Model Number
Product Name
IMDSI22
Digital Slave Input Module
IMASO11
Analog Output Module
IMMFP12
Multifunction Processor Module
INNIS21
Network Interface Slave Module
Popular Related Models
Model Number
Product Name
IMSED01
Sequence of Events Digital Module
IMDSO14
Digital Output Slave Module
IMASI23
Analog Input Module
SPNPM22
Network Processing Module
Applications
• Distributed control systems for process automation and monitoring.
• Power generation facilities requiring stable digital signal management.
• Chemical and petrochemical plants with critical process control requirements.
• Water treatment and wastewater automation systems.
• Industrial manufacturing lines for machine status communication.
• Turbine, compressor, and boiler control applications.
• Factory-wide digital monitoring and safety interlock systems.
• High-speed digital signal processing for real-time industrial control.
• Excellent compatibility with ABB Bailey INFI 90 automation platforms.
• Strong anti-interference capability for harsh electrical environments.
• Rugged industrial construction for long-term operational reliability.
• Compact modular design allowing easy installation and maintenance.
• Stable communication performance with reduced system downtime.
• Flexible integration for system upgrades and expansion projects.
• Designed to support demanding continuous-process industries.
Technical FAQs
Q1: Does the NTDI01 support isolated digital channels?
A1: Yes, the module is designed with channel isolation to improve operational safety and reduce signal interference.
Q2: Can this unit operate continuously in high-vibration environments?
A2: The industrial construction allows stable operation in vibration-prone installations when properly mounted.
Q3: Is the NTDI01 compatible with legacy ABB Bailey systems?
A3: Yes, it is widely used within ABB Bailey INFI 90 distributed control architectures.
Q4: What type of digital signals can the unit process?
A4: It supports standard industrial DC digital input and output signals used in automation systems.
Q5: Does the module include fault indication diagnostics?
A5: Integrated diagnostic capability allows operators to identify communication and signal abnormalities quickly.
Q6: Can the terminal unit reduce electrical noise interference?
A6: Yes, the design includes industrial noise suppression features for stable signal integrity.
Q7: Is hot replacement supported during maintenance?
A7: In properly configured systems, module replacement can be performed with minimal operational interruption.
Q8: What mounting methods are supported?
A8: The unit supports standard industrial rack and cabinet mounting configurations.
Q9: How does the NTDI01 improve control system reliability?
A9: Its fast signal response and stable communication enhance overall automation performance and operational consistency.
Q10: Is the module suitable for critical process industries?
A10: Yes, it is commonly deployed in mission-critical applications including energy, petrochemical, and heavy manufacturing sectors.
