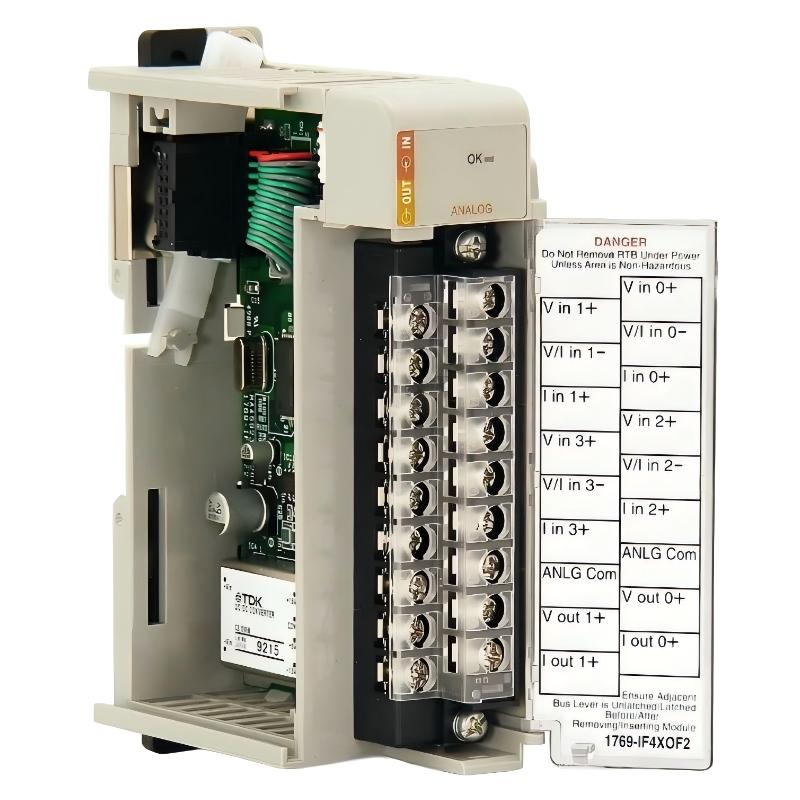

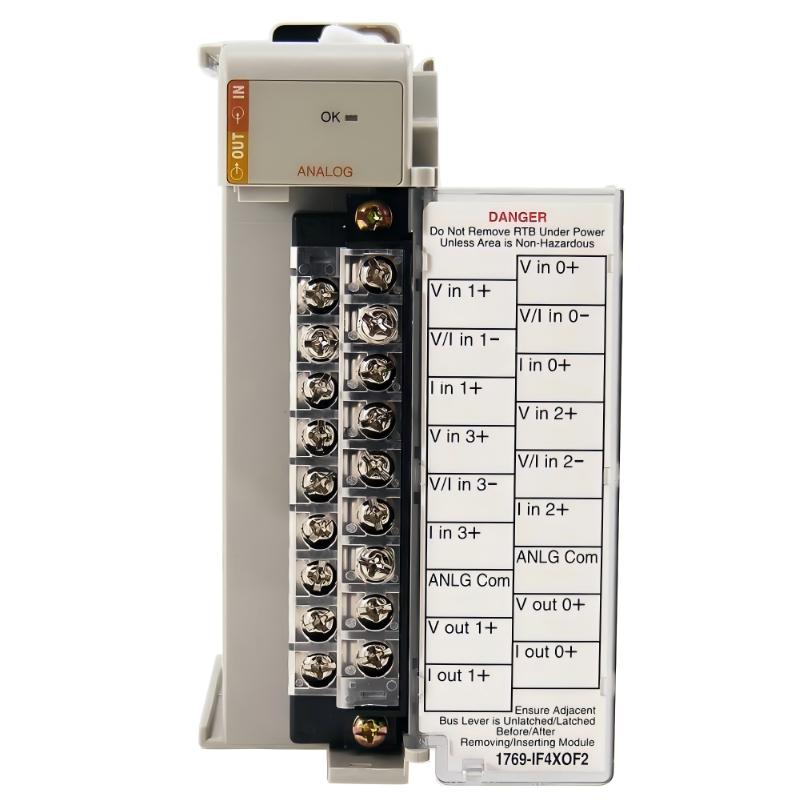

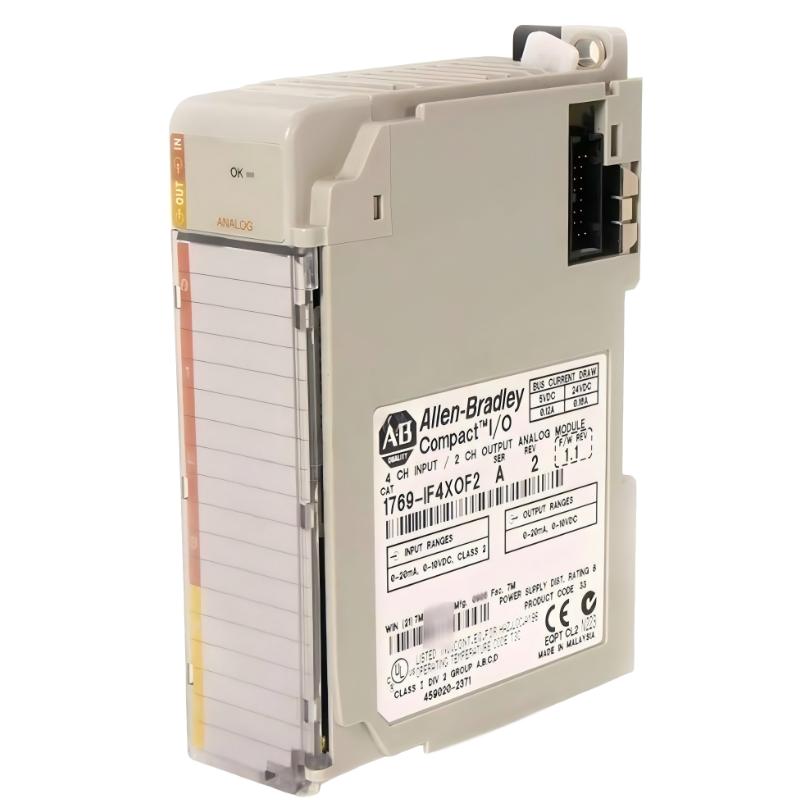

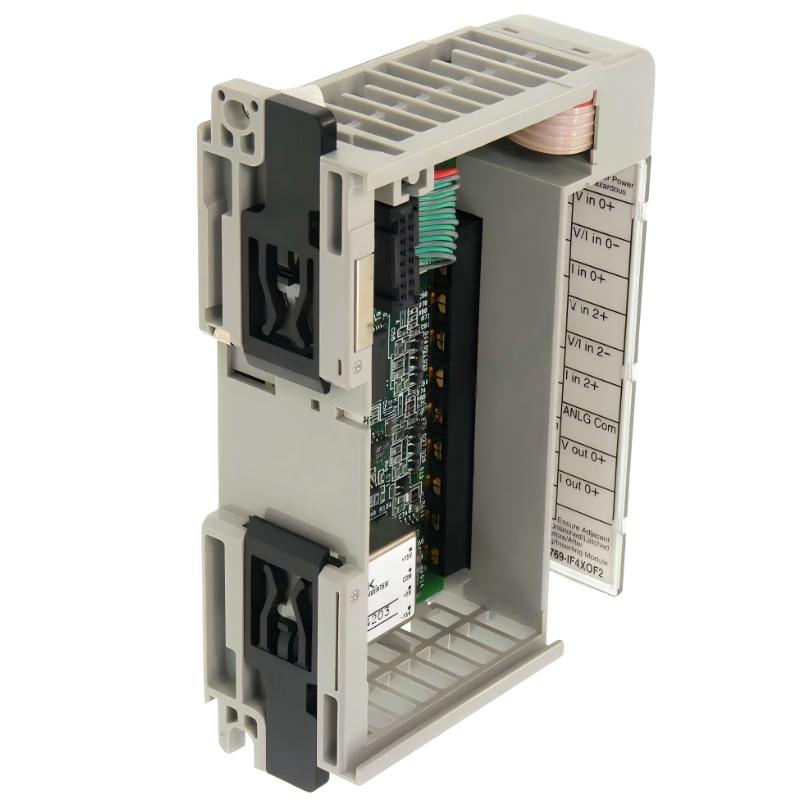

Allen Bradley 1769-IF4XOF2 Analog Combination Module
Allen Bradley 1769-IF4XOF2 Analog Combination Module
0.0
Points
Brand:Allen Bradley PLC Item No.:Allen Bradley 1769-IF4XOF2 Product Origin:USA Product Dimensions:118 × 35 × 87 mm Product Weight:0.30 kg Payment:T/T, Western Union, Credit Card Goods_stock:15 Shipping Port:Xiamen, China Lead Time:1-3 Days Condition:Brand New And Original Warranty:1 Year Certificate:COO
The Allen Bradley 1769-IF4XOF2 is a high-performance analog combination module designed for CompactLogix and MicroLogix automation systems that require both analog input monitoring and analog output control within a single compact device. Combining four analog inputs with two analog outputs, this module helps streamline control cabinet layouts while improving signal management efficiency in industrial environments.
Engineered for reliable industrial performance, the 1769-IF4XOF2 supports multiple voltage and current ranges, making it suitable for a wide variety of process instrumentation and closed-loop control applications. Its compact architecture and fast analog processing capability make it a preferred solution for OEM machinery, utilities, and process automation systems.
Technical Specifications
Specification Item
Details
Manufacturer
Allen Bradley (Rockwell Automation)
Model Number
1769-IF4XOF2
Product Type
Analog Combination I/O Module
Product Family
Compact I/O Series
Analog Inputs
4 Differential Analog Inputs
Analog Outputs
2 Analog Outputs
Input Signal Types
Voltage / Current
Output Signal Types
Voltage / Current
Input Voltage Ranges
±10V DC, 0–10V DC
Input Current Ranges
0–20 mA, 4–20 mA
Output Voltage Ranges
±10V DC
Output Current Ranges
0–20 mA, 4–20 mA
Input Resolution
16-bit
Output Resolution
14-bit
Converter Type
Delta-Sigma
Backplane Current Draw
Approx. 145 mA @ 5V DC
Power Dissipation
Approx. 4.6 W
Isolation
Channel-to-system isolation
Configuration
Software configurable per channel
Diagnostic Features
LED channel diagnostics
Operating Temperature
0°C to 60°C
Storage Temperature
-40°C to 85°C
Mounting Type
DIN rail / panel mount
Dimensions
Approx. 118 × 35 × 87 mm
Weight
Approx. 0.30 kg
Recommended Related Models
Related Model
Function
1769-IF4
Analog input module
1769-OF2
Analog output module
1769-IF4I
Isolated analog input module
1769-L33ER
CompactLogix controller
1768-ENBT
Ethernet communication module
1769-OB16
Digital output module
Popular Allen Bradley Automation Products
Model
Category
1756-L81E
ControlLogix processor
5069-IF8
Compact 5000 analog module
1734-IE4C
POINT I/O analog input module
2711P-T10C4D8
PanelView Plus HMI
1783-US8T
Industrial Ethernet switch
1606-XLE240E
Industrial power supply
Industrial Applications
The 1769-IF4XOF2 is commonly used in industrial systems where compact analog monitoring and output control are required within a scalable automation architecture.
Typical applications include:
Closed-loop process control systems
Temperature and pressure regulation
Flow and level monitoring applications
Chemical dosing systems
Water and wastewater treatment automation
HVAC and environmental control systems
OEM process equipment and skids
Industrial sensor and actuator integration
Its integrated analog I/O capability makes it especially useful for compact control panels and distributed automation systems.
Key Advantages
Combined Analog Input and Output Functionality
Integrates four analog inputs and two analog outputs into one module, reducing hardware complexity and installation costs.
High-Accuracy Signal Processing
Provides precise analog conversion for stable monitoring and reliable process control performance.
Flexible Signal Compatibility
Supports both voltage and current signals, enabling compatibility with a wide range of industrial sensors and actuators.
Compact Space-Efficient Design
The slim Compact I/O form factor helps optimize panel space in modern automation cabinets.
Reliable Industrial Operation
Designed for long-term use in demanding environments with strong resistance to electrical interference and industrial noise.
Technical FAQs
1. What is the 1769-IF4XOF2 used for?
It is an analog combination module used for industrial process monitoring and analog output control.
2. How many analog channels does it provide?
The module includes 4 analog inputs and 2 analog outputs.
3. What signal types are supported?
It supports voltage and current signals including ±10V and 4–20 mA.
4. Is the module compatible with CompactLogix systems?
Yes. It is designed for CompactLogix and compatible Compact I/O platforms.
5. What resolution does the module provide?
It provides 16-bit input resolution and 14-bit output resolution.
6. Can it support industrial 4–20 mA devices?
Yes. It fully supports standard industrial current-loop devices.
7. Does the module support channel configuration?
Yes. Each channel can be configured individually through software.
8. What mounting methods are supported?
The module supports DIN rail and panel mounting installations.
9. Is it suitable for process automation systems?
Yes. It is widely used in process control, utility automation, and industrial monitoring systems.
10. Why is the 1769-IF4XOF2 popular in industrial automation?
Because it combines analog input and output functionality, compact design, flexible signal support, and reliable integration into Allen Bradley CompactLogix systems.
