Brand:Allen Bradley PLC Item No.:Allen Bradley 1769-IM12 Product Origin:USA Product Dimensions:118 × 35 × 87 mm Product Weight:0.25 kg Payment:T/T, Western Union, Credit Card Goods_stock:15 Shipping Port:Xiamen, China Lead Time:1-3 Days Condition:Brand New And Original Warranty:1 Year Certificate:COO

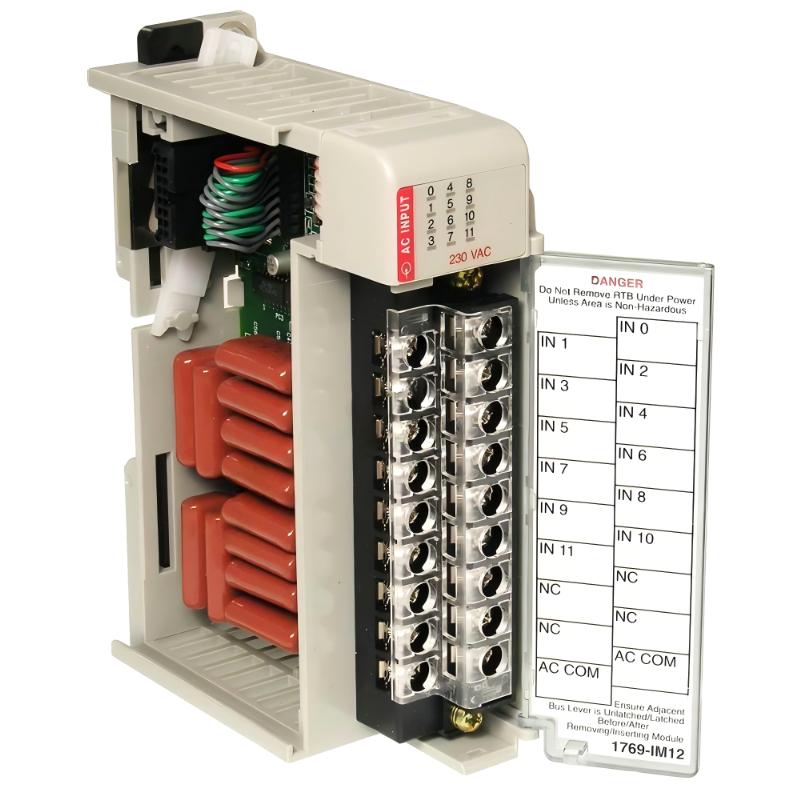

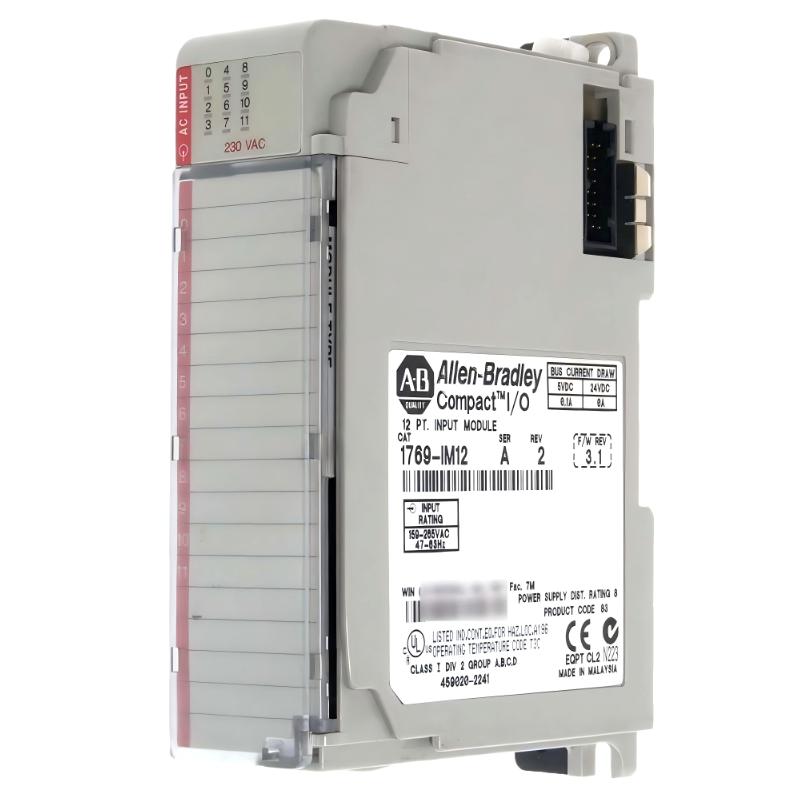

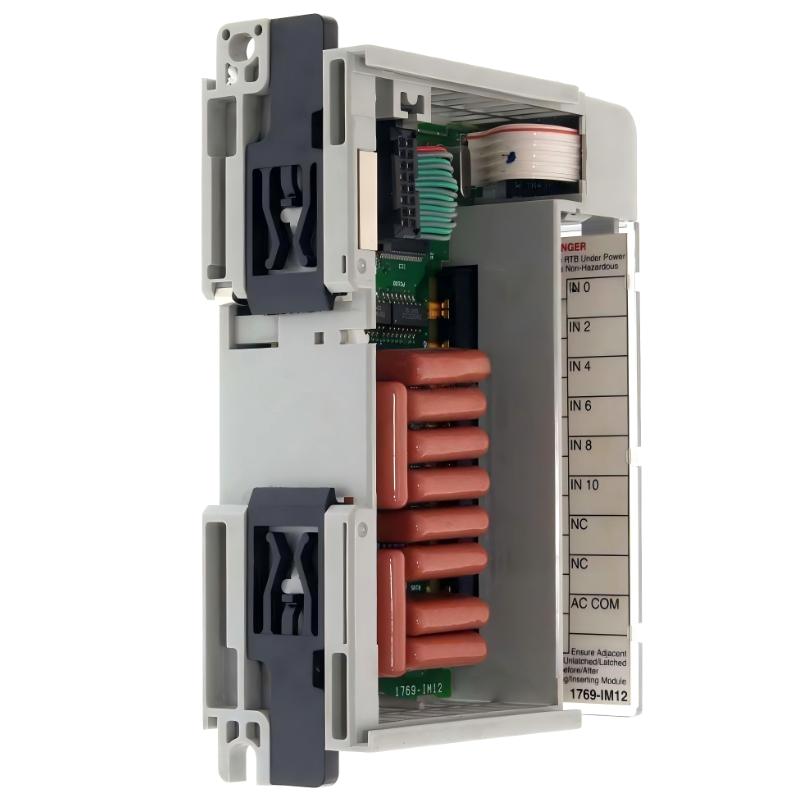

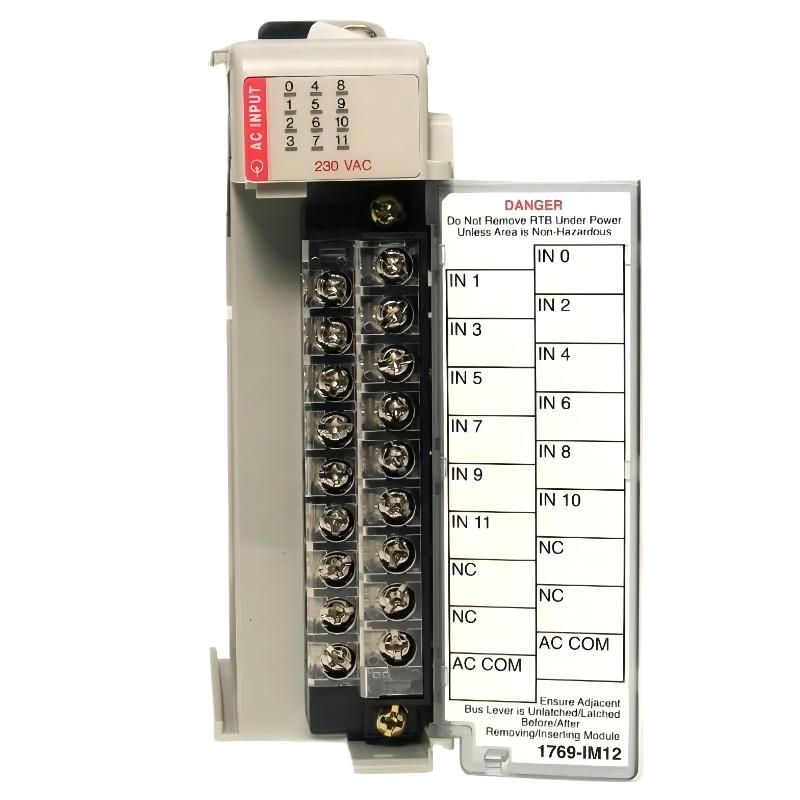

The Allen Bradley 1769-IM12 is a compact AC digital input module designed for CompactLogix and MicroLogix automation systems that require dependable monitoring of AC field signals in industrial environments. As part of the Compact I/O family, this module delivers stable input detection, efficient panel integration, and long-term reliability for machine control and process automation applications.
With twelve AC input channels in a space-saving design, the 1769-IM12 enables efficient connection of switches, relays, sensors, and other AC-operated field devices. Its industrial-grade construction and seamless compatibility with CompactLogix architectures make it a trusted solution for distributed control systems and OEM machine platforms.
Technical Specifications
Specification Item
Details
Manufacturer
Allen Bradley (Rockwell Automation)
Model Number
1769-IM12
Product Type
AC Digital Input Module
Product Family
Compact I/O Series
Number of Inputs
12 AC Inputs
Input Voltage Range
79–132V AC
Nominal Input Voltage
120V AC
Signal Type
AC digital input
Input Delay Time
Typical industrial AC filtering response
Operating Frequency
47–63 Hz
Backplane Current Draw
Approx. 100 mA @ 5V DC
Heat Dissipation
Approx. 2.5 W
Isolation Voltage
Verified isolation between field and system
Input Wiring
Sourcing AC input configuration
Status Indicators
Individual channel LED indicators
Module Diagnostics
Integrated status monitoring
Operating Temperature
0°C to 60°C
Storage Temperature
-40°C to 85°C
Mounting Type
DIN rail / panel mount
Dimensions
Approx. 118 × 35 × 87 mm
Weight
Approx. 0.25 kg
Recommended Related Models
Related Model
Function
1769-IA16
AC input module
1769-OW16
Relay output module
1769-IQ16
DC input module
1769-OB16
DC output module
1769-L33ER
CompactLogix controller
1768-ENBT
Ethernet communication module
Popular Allen Bradley Automation Products
Model
Category
1756-L81E
ControlLogix processor
5069-IB16
Compact 5000 input module
1734-IB8
POINT I/O digital input module
2711P-T10C4D8
PanelView Plus HMI
1783-US8T
Industrial Ethernet switch
1606-XLE240E
Industrial power supply
Industrial Applications
The 1769-IM12 is widely used in industrial automation systems that require stable AC signal monitoring and dependable machine input handling.
Typical applications include:
Conveyor and material handling systems
Packaging and assembly machinery
HVAC and building automation systems
Industrial motor starter monitoring
Production line control systems
OEM equipment integration
Utility and infrastructure automation
Relay and switch status monitoring systems
Its compact design and AC compatibility make it ideal for systems using traditional industrial AC control circuits.
Key Advantages
Reliable AC Signal Detection
Designed specifically for industrial AC input applications with stable signal processing and noise resistance.
Compact High-Density Design
Provides 12 AC input channels in a slim Compact I/O footprint, helping reduce control panel space requirements.
Easy System Integration
Integrates directly with CompactLogix and MicroLogix architectures for scalable distributed automation.
Industrial-Grade Durability
Built for continuous operation in harsh industrial environments with dependable long-term performance.
Simplified Diagnostics
LED status indicators provide fast troubleshooting and real-time input monitoring for maintenance efficiency.
Technical FAQs
1. What is the 1769-IM12 used for?
It is an AC digital input module used to monitor AC field devices in industrial automation systems.
2. How many input channels does the module provide?
The module provides 12 AC digital input channels.
3. What input voltage does it support?
It is designed for 120V AC nominal industrial input signals.
4. Is the module compatible with CompactLogix systems?
Yes. It is fully compatible with CompactLogix and Compact I/O platforms.
5. What types of devices can connect to this module?
Industrial switches, relays, AC sensors, push buttons, and other AC-operated field devices.
6. Does the module include status indicators?
Yes. Each input channel includes LED status indication.
7. What mounting methods are supported?
The module supports DIN rail and panel mounting.
8. Is it suitable for industrial environments?
Yes. It is engineered for reliable operation in demanding industrial conditions.
9. Can it be used in distributed I/O systems?
Yes. It is commonly used in distributed CompactLogix control architectures.
10. Why is the 1769-IM12 widely used in automation systems?
Because it provides reliable AC signal monitoring, compact installation, strong industrial durability, and seamless integration into Allen Bradley control platforms.
