Brand:Allen Bradley PLC Item No.:Allen Bradley 1769-IQ16 Product Origin:USA Product Dimensions:118 × 35 × 87 mm Product Weight:0.26 kg Payment:T/T, Western Union, Credit Card Goods_stock:15 Shipping Port:Xiamen, China Lead Time:1-3 Days Condition:Brand New And Original Warranty:1 Year Certificate:COO

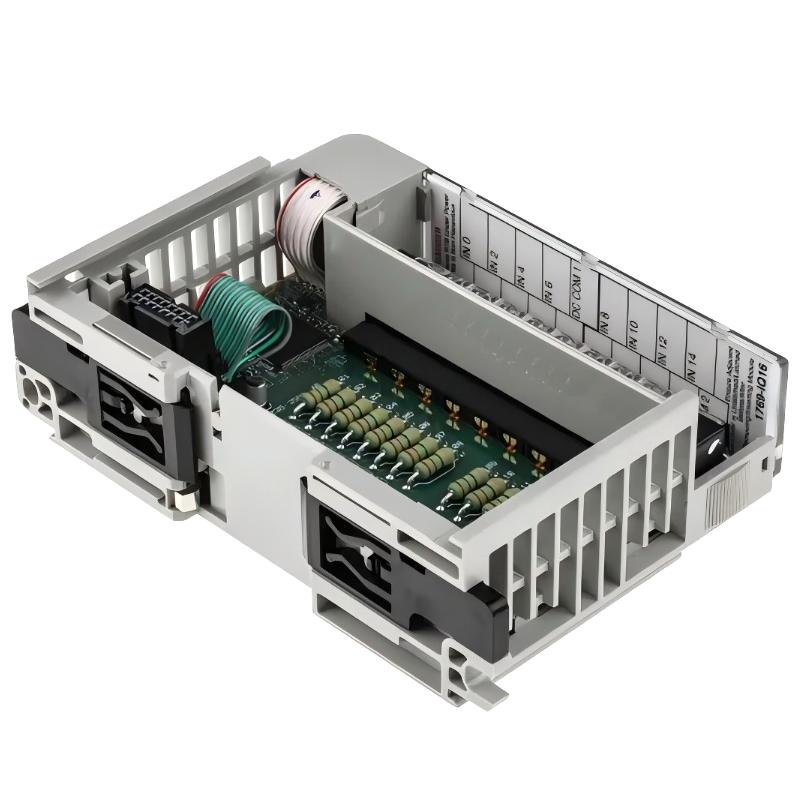

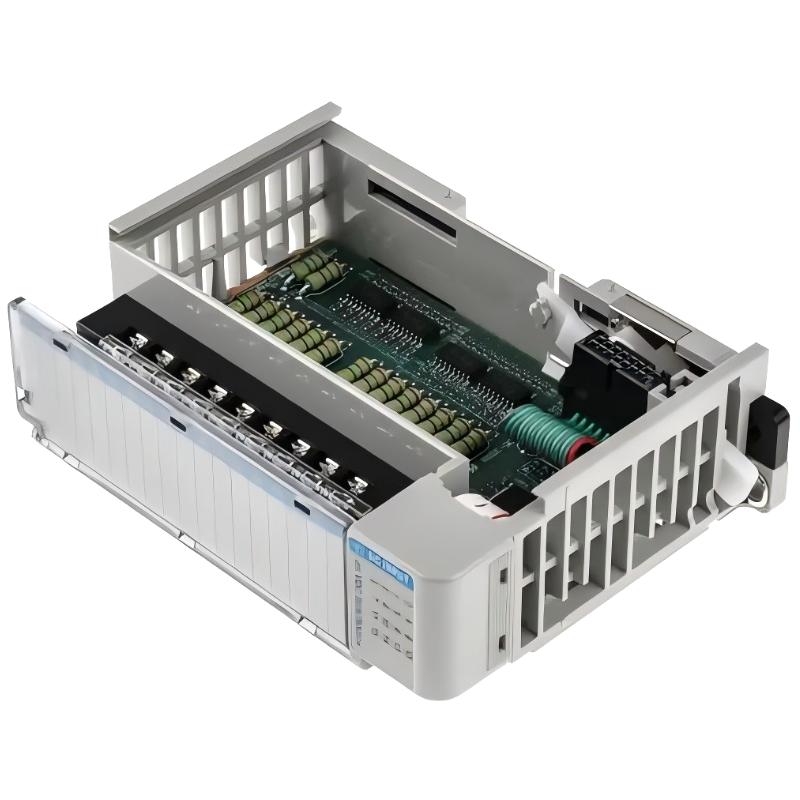

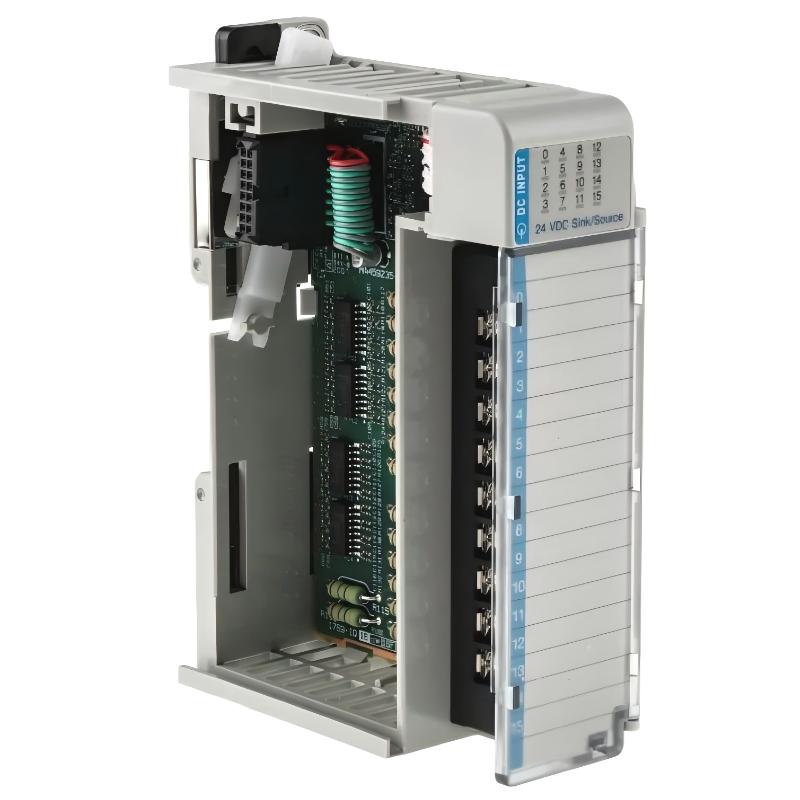

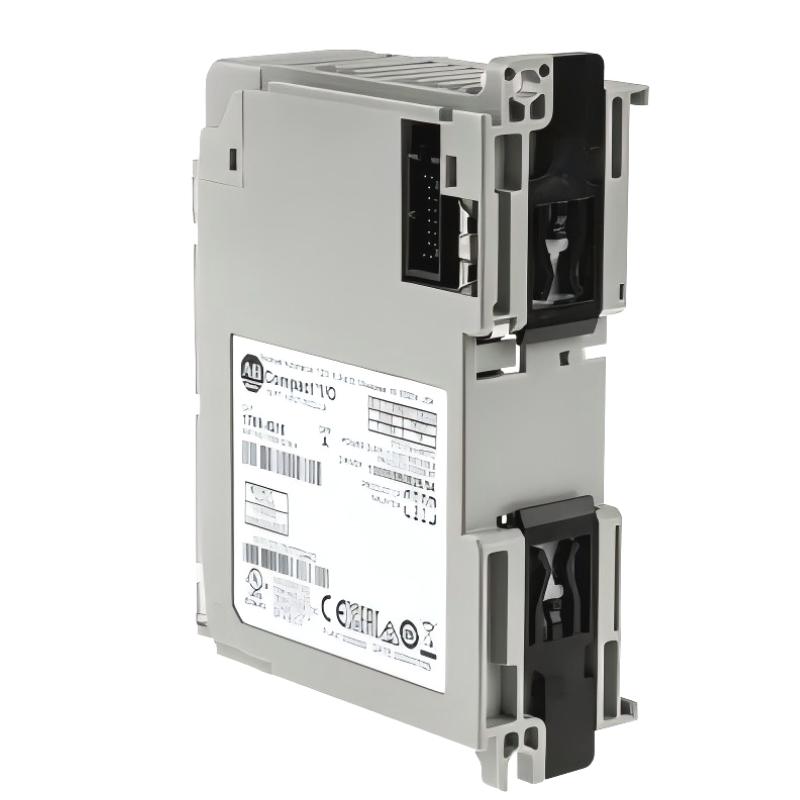

The Allen Bradley 1769-IQ16 is a compact 16-point DC digital input module designed for CompactLogix and MicroLogix control systems requiring fast, reliable signal monitoring in industrial automation environments. As part of the Compact I/O family, this module delivers dependable 24V DC input processing, efficient panel integration, and scalable expansion capability for machine control and distributed I/O architectures.
Engineered for demanding industrial applications, the 1769-IQ16 supports high-density input handling while maintaining stable performance under continuous operation. Its compact footprint, fast response characteristics, and seamless integration with Allen Bradley controllers make it a widely trusted solution for OEM machinery, production systems, and industrial process automation.
Technical Specifications
Specification Item
Details
Manufacturer
Allen Bradley (Rockwell Automation)
Model Number
1769-IQ16
Product Type
DC Digital Input Module
Product Family
Compact I/O Series
Number of Inputs
16 DC Inputs
Input Voltage Category
24V DC Sink/Source
Operating Voltage Range
10–30V DC
Nominal Input Voltage
24V DC
Signal Type
Digital DC input
Input Delay Time
Approx. 8 ms ON / 8 ms OFF
Current Draw
Approx. 120 mA @ 5V DC
Heat Dissipation
Approx. 3.5 W
Isolation Voltage
Verified isolation between field and system
Wiring Configuration
Sink/Source compatible
Status Indicators
Individual channel LED indicators
Module Diagnostics
Integrated status monitoring
Operating Temperature
0°C to 60°C
Storage Temperature
-40°C to 85°C
Mounting Type
DIN rail / panel mount
Dimensions
Approx. 118 × 35 × 87 mm
Weight
Approx. 0.26 kg
Recommended Related Models
Related Model
Function
1769-OB16
DC output module
1769-OW16
Relay output module
1769-IM12
AC input module
1769-IA16
AC input module
1769-L33ER
CompactLogix controller
1768-ENBT
Ethernet communication module
Popular Allen Bradley Automation Products
Model
Category
1756-L81E
ControlLogix processor
5069-IB16
Compact 5000 digital input module
1734-IB8
POINT I/O input module
2711P-T10C4D8
PanelView Plus HMI
1783-US8T
Industrial Ethernet switch
1606-XLE240E
Industrial power supply
Industrial Applications
The 1769-IQ16 is widely used in industrial automation systems that require reliable DC signal monitoring and high-density input capability.
Typical applications include:
Conveyor and material handling systems
Packaging and assembly machinery
Industrial machine automation
Sensor and proximity switch monitoring
Production line control systems
OEM equipment integration
Distributed I/O architectures
Motor control and auxiliary signal monitoring
Its compact high-density design makes it ideal for installations where cabinet space optimization is important.
Key Advantages
High-Density Digital Input Capacity
Provides 16 DC input channels in a compact module, helping reduce cabinet space and simplify wiring layouts.
Reliable 24V DC Signal Monitoring
Designed for stable detection of industrial DC control signals with strong noise immunity and dependable operation.
Seamless CompactLogix Integration
Fully compatible with CompactLogix and MicroLogix systems for scalable industrial automation architectures.
Fast Installation and Maintenance
LED channel indicators and modular wiring design simplify troubleshooting and system servicing.
Industrial-Grade Durability
Built for long-term operation in demanding manufacturing and process environments.
Technical FAQs
1. What is the 1769-IQ16 used for?
It is a DC digital input module used to monitor industrial field devices and control signals.
2. How many input channels does the module provide?
The module provides 16 digital DC input channels.
3. What input voltage does it support?
It supports 24V DC nominal industrial control signals.
4. Is the module compatible with CompactLogix systems?
Yes. It is designed for CompactLogix and Compact I/O automation platforms.
5. What types of devices can connect to this module?
Sensors, push buttons, proximity switches, relays, and other 24V DC field devices.
6. Does the module support sink/source wiring?
Yes. It supports sink/source compatible DC input configurations.
7. Does it include LED diagnostics?
Yes. Each channel includes LED status indicators for monitoring and troubleshooting.
8. What mounting methods are available?
The module supports DIN rail and panel mounting installations.
9. Is it suitable for harsh industrial environments?
Yes. It is designed for reliable operation in industrial environments with electrical noise resistance.
10. Why is the 1769-IQ16 widely used in industrial automation?
Because it combines high-density DC input capability, compact design, reliable performance, and seamless integration into Allen Bradley CompactLogix systems.
