Brand:Allen Bradley PLC Item No.:Allen Bradley 1769-IQ32 Product Origin:USA Product Dimensions:118 × 52.5 × 87 mm Product Weight:0.30 kg Payment:T/T, Western Union, Credit Card Goods_stock:15 Shipping Port:Xiamen, China Lead Time:1-3 Days Condition:Brand New And Original Warranty:1 Year Certificate:COO

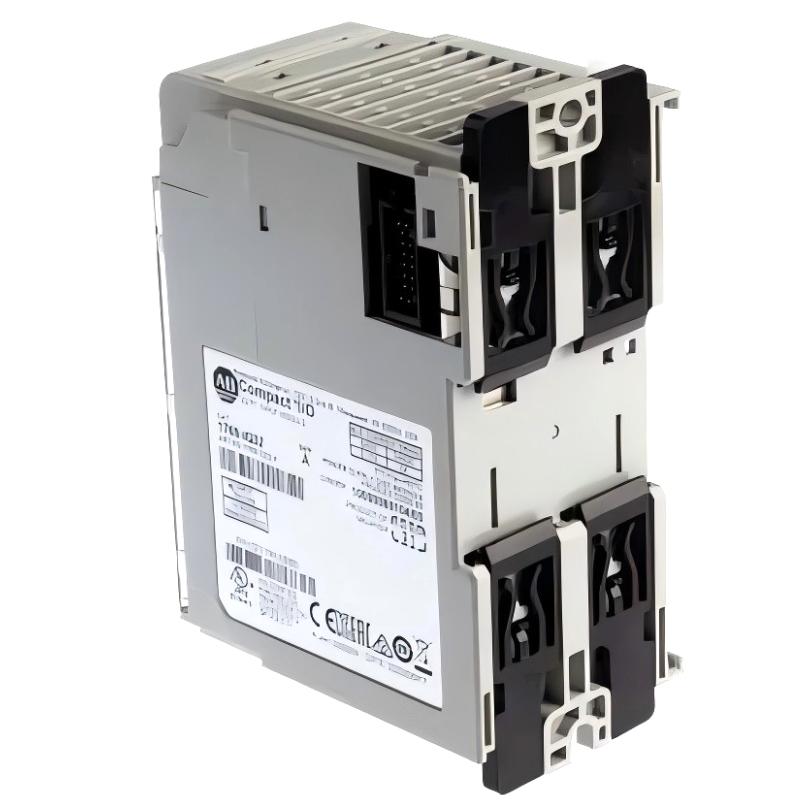

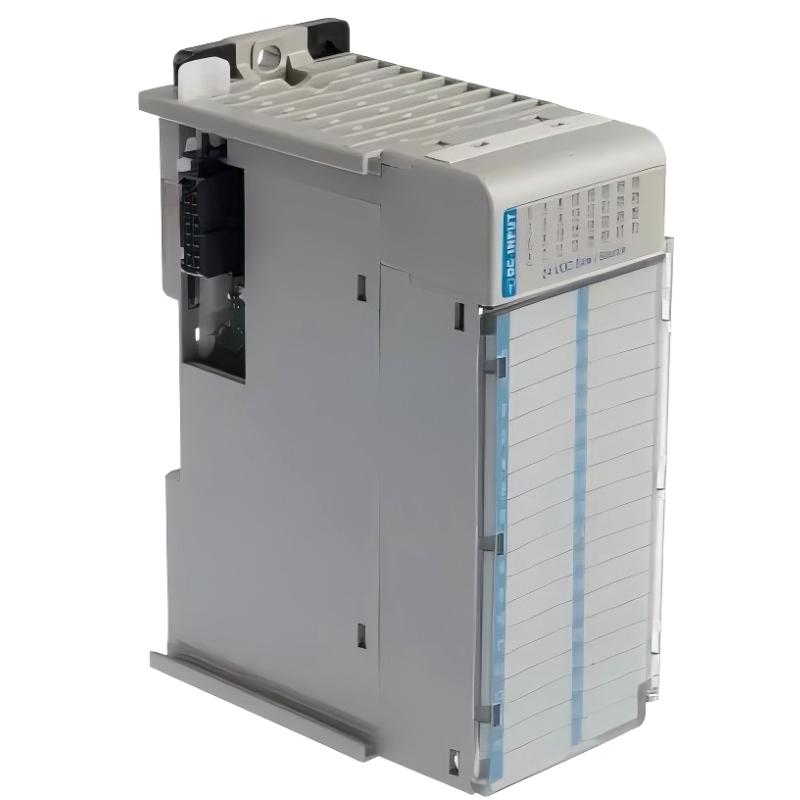

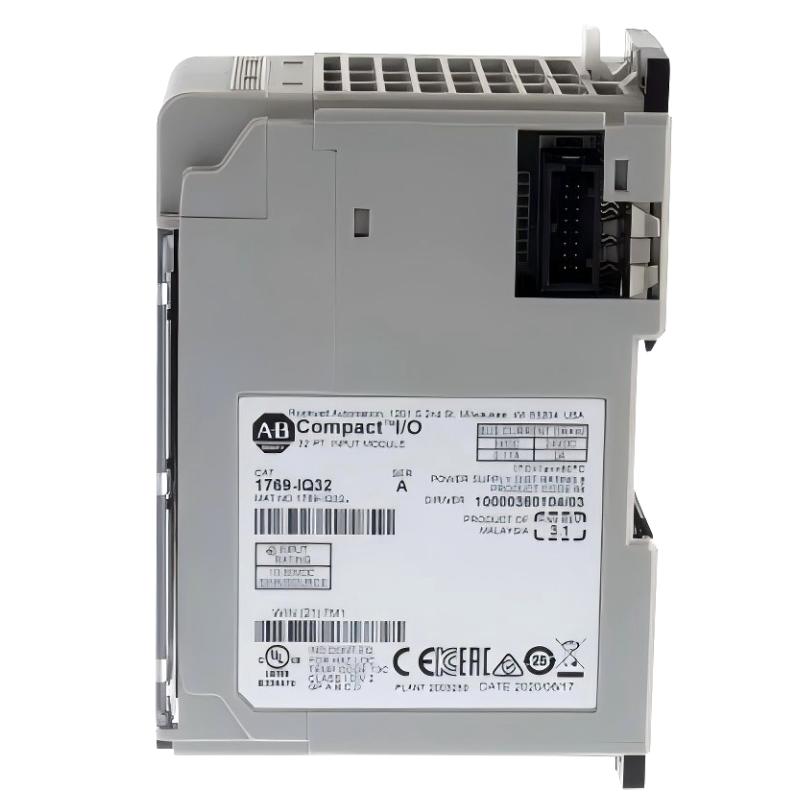

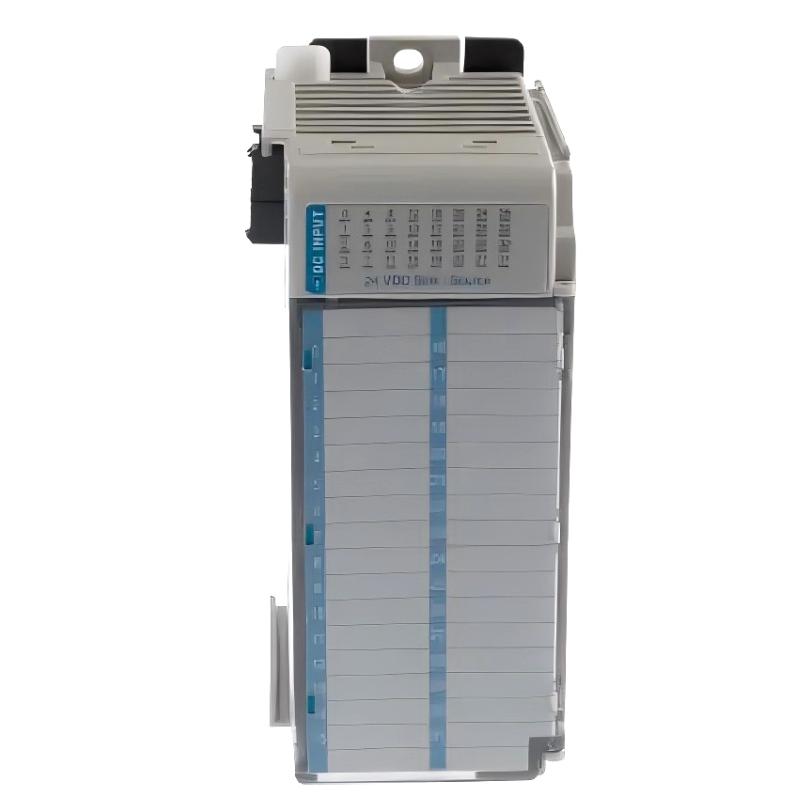

The Allen Bradley 1769-IQ32 is a high-density 32-point DC digital input module designed for CompactLogix and MicroLogix control systems that require efficient field signal monitoring within a compact industrial automation architecture. As part of the Compact I/O family, this module delivers reliable 24V DC input processing, streamlined panel integration, and scalable expansion capability for demanding industrial environments.
Built for modern machine control and distributed I/O applications, the 1769-IQ32 provides exceptional input density while maintaining stable signal detection and dependable long-term operation. Its compact footprint makes it an ideal solution for applications where cabinet space optimization and high I/O concentration are critical.
Technical Specifications
Specification Item
Details
Manufacturer
Allen Bradley (Rockwell Automation)
Model Number
1769-IQ32
Product Type
DC Digital Input Module
Product Family
Compact I/O Series
Number of Inputs
32 Digital Inputs
Input Voltage Category
24V DC Sink/Source
Operating Voltage Range
10–30V DC
Nominal Input Voltage
24V DC
Signal Type
DC digital input
Input Delay Time
Approx. 8 ms ON / 8 ms OFF
Backplane Current Draw
Approx. 170 mA @ 5V DC
Heat Dissipation
Approx. 5.5 W
Isolation Voltage
Verified field-to-backplane isolation
Wiring Configuration
Sink/Source compatible
Status Indicators
Individual LED status indicators
Diagnostics
Integrated module diagnostics
Operating Temperature
0°C to 60°C
Storage Temperature
-40°C to 85°C
Mounting Type
DIN rail / panel mount
Dimensions
Approx. 118 × 52.5 × 87 mm
Weight
Approx. 0.30 kg
Recommended Related Models
Related Model
Function
1769-OB32
32-point DC output module
1769-IQ16
16-point DC input module
1769-IQ16F
High-speed DC input module
1769-OW16
Relay output module
1769-L33ER
CompactLogix controller
1768-ENBT
Ethernet communication module
Popular Allen Bradley Automation Products
Model
Category
1756-L81E
ControlLogix processor
5069-IB32
Compact 5000 digital input module
1734-IB8
POINT I/O digital input module
2711P-T10C4D8
PanelView Plus HMI
1783-US8T
Industrial Ethernet switch
1606-XLE240E
Industrial power supply
Industrial Applications
The 1769-IQ32 is widely used in industrial automation systems requiring high-density DC signal monitoring and efficient distributed I/O integration.
Typical applications include:
High-density machine control panels
Conveyor and material handling systems
Packaging and assembly equipment
Automotive manufacturing systems
Industrial sensor monitoring networks
OEM automation machinery
Distributed production line control
Factory-wide digital input collection systems
Its 32-point design allows engineers to reduce module count while maximizing I/O capacity in compact cabinets.
Key Advantages
High-Density 32-Point Input Design
Provides a large number of digital input channels in a compact form factor, helping reduce panel space and installation costs.
Reliable 24V DC Signal Monitoring
Ensures stable and accurate detection of industrial field signals with strong immunity to electrical interference.
Simplified System Expansion
Integrates seamlessly into CompactLogix and MicroLogix architectures for scalable industrial automation systems.
Fast Maintenance and Diagnostics
Integrated LED indicators allow quick troubleshooting and simplified maintenance operations.
Rugged Industrial Construction
Designed for continuous operation in harsh manufacturing and process environments with dependable long-term reliability.
Technical FAQs
1. What is the 1769-IQ32 used for?
It is a 32-point DC digital input module used for monitoring industrial field devices and automation signals.
2. How many digital inputs does the module provide?
The module provides 32 DC digital input channels.
3. What voltage range does it support?
It supports 10–30V DC operating voltage with a nominal rating of 24V DC.
4. Is the module compatible with CompactLogix systems?
Yes. It is fully compatible with CompactLogix and Compact I/O automation platforms.
5. What types of devices can connect to this module?
Sensors, push buttons, relays, proximity switches, and other 24V DC field devices.
6. Does the module support sink/source wiring?
Yes. It supports both sink and source input configurations.
7. Are LED diagnostics included?
Yes. Each channel includes LED status indicators for monitoring and troubleshooting.
8. What mounting methods are supported?
The module supports DIN rail and panel mounting installations.
9. Is the 1769-IQ32 suitable for high-density control panels?
Yes. Its 32-point design is ideal for applications requiring maximum I/O concentration in limited cabinet space.
10. Why is the 1769-IQ32 widely used in industrial automation?
Because it combines high-density DC input capability, compact design, reliable industrial performance, and seamless integration into Allen Bradley CompactLogix systems.
