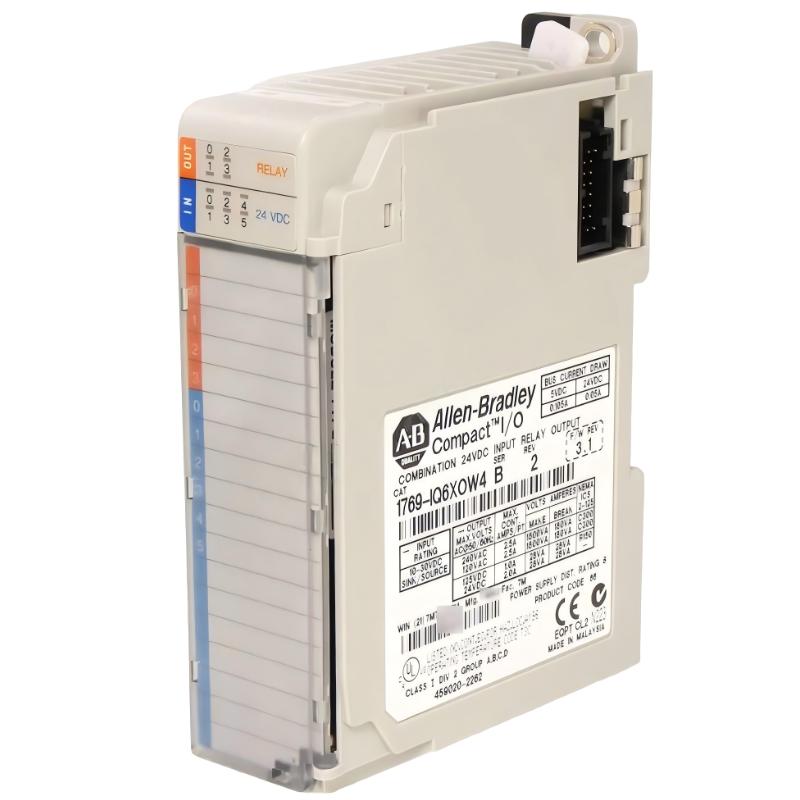

Allen Bradley 1769-IQ6XOW4 Digital Combination Module
Allen Bradley 1769-IQ6XOW4 Digital Combination Module
0.0
Points
Brand:Allen Bradley PLC Item No.:Allen Bradley 1769-IQ6XOW4 Product Origin:USA Product Dimensions:118 × 87 × 35 mm Product Weight:0.29 kg Payment:T/T, Western Union, Credit Card Goods_stock:15 Shipping Port:Xiamen, China Lead Time:1-3 Days Condition:Brand New And Original Warranty:1 Year Certificate:COO
The Allen Bradley 1769-IQ6XOW4 is a compact combination I/O module designed for CompactLogix systems that require both digital input monitoring and relay output switching in a single space-efficient device. It integrates 6 digital 24V DC inputs with 4 relay outputs, making it a versatile solution for mixed-signal control applications in industrial automation environments.
Engineered for flexibility and reliability, this module is widely used in OEM machinery, machine control panels, and process automation systems where both sensing and load switching must be handled within a compact footprint. Its relay outputs support a wide AC/DC switching range, making it suitable for controlling motors, alarms, solenoids, and general-purpose loads.
Technical Specifications
Specification Item
Details
Manufacturer
Allen Bradley (Rockwell Automation)
Model Number
1769-IQ6XOW4
Product Type
Digital Combination I/O Module
Product Family
Compact I/O Series
Digital Inputs
6 × 24V DC (Sink/Source)
Input Voltage Range
10–30V DC
Digital Outputs
4 × Relay Outputs (Normally Open)
Output Rating
5–265V AC / 5–125V DC
Output Current
Up to ~2.5 A per contact (typical relay rating)
Backplane Current Draw
Approx. 250 mA @ 5V DC
Power Dissipation
Approx. 5–6 W
Isolation
1200V AC field-to-backplane isolation
Input Response Time
~8 ms
Status Indicators
Individual LED indicators (input/output)
Wiring Type
Removable terminal block
Operating Temperature
0°C to 60°C
Storage Temperature
-40°C to 85°C
Mounting Type
DIN rail / panel mount
Dimensions
Approx. 118 × 87 × 35 mm
Weight
Approx. 0.29 kg
Recommended Related Models
Related Model
Function
1769-IQ16
Standard DC input module
1769-OB16
DC transistor output module
1769-OW16
Relay output module
1769-IQ16F
High-speed DC input module
1769-L33ER
CompactLogix controller
1769-IF8
Analog input module
Popular Allen Bradley Automation Products
Model
Category
1756-L81E
ControlLogix processor
5069-IB16
Compact 5000 digital input module
1734-OB8
POINT I/O output module
2711P-T10C4D8
PanelView Plus HMI
1783-US8T
Industrial Ethernet switch
1606-XLE240E
Industrial power supply
Industrial Applications
The 1769-IQ6XOW4 is commonly used in industrial automation systems where mixed digital input and relay output control is required in a compact configuration.
Typical applications include:
Machine automation and OEM control panels
Conveyor and material handling systems
Packaging machinery control systems
Motor starter and contactor switching
Alarm and signaling systems
HVAC and building automation control
Process equipment interlocking systems
Small-scale distributed I/O applications
Its relay output flexibility allows it to directly switch AC or DC loads without external contactors in many low-power applications.
Key Advantages
Integrated Input and Relay Output Design
Combines 6 DC inputs and 4 relay outputs into a single module, reducing hardware count and simplifying system architecture.
Wide Load Switching Capability
Relay outputs support both AC and DC loads, providing flexibility for industrial control applications.
Compact Space-Saving Construction
Reduces cabinet footprint while maintaining mixed I/O functionality in one module.
Strong Electrical Isolation
High isolation rating improves system safety and reduces electrical noise impact.
Easy System Integration
Designed for seamless compatibility with CompactLogix systems and modular Compact I/O expansion.
Technical FAQs
1. What is the 1769-IQ6XOW4 used for?
It is a combination I/O module used for both digital input monitoring and relay output control in industrial systems.
2. How many inputs and outputs does it have?
It provides 6 DC digital inputs and 4 relay outputs.
3. What type of outputs does it use?
It uses mechanical relay outputs capable of switching AC and DC loads.
4. What is the input voltage range?
The inputs operate at 10–30V DC with a nominal 24V DC rating.
5. What loads can the relay outputs control?
They can control AC loads up to 265V and DC loads up to 125V within rated current limits.
6. Is it compatible with CompactLogix systems?
Yes. It is designed for CompactLogix and Compact I/O platforms.
7. Does it provide electrical isolation?
Yes. It includes strong field-to-backplane isolation for industrial safety and stability.
8. What industries commonly use this module?
It is used in manufacturing, packaging, HVAC, and general machine automation systems.
9. Does it include diagnostics?
Yes. LED indicators provide real-time status for both inputs and outputs.
10. Why is the 1769-IQ6XOW4 widely used?
Because it combines flexible mixed I/O functionality, relay switching capability, compact design, and reliable integration into Allen Bradley CompactLogix architectures.
