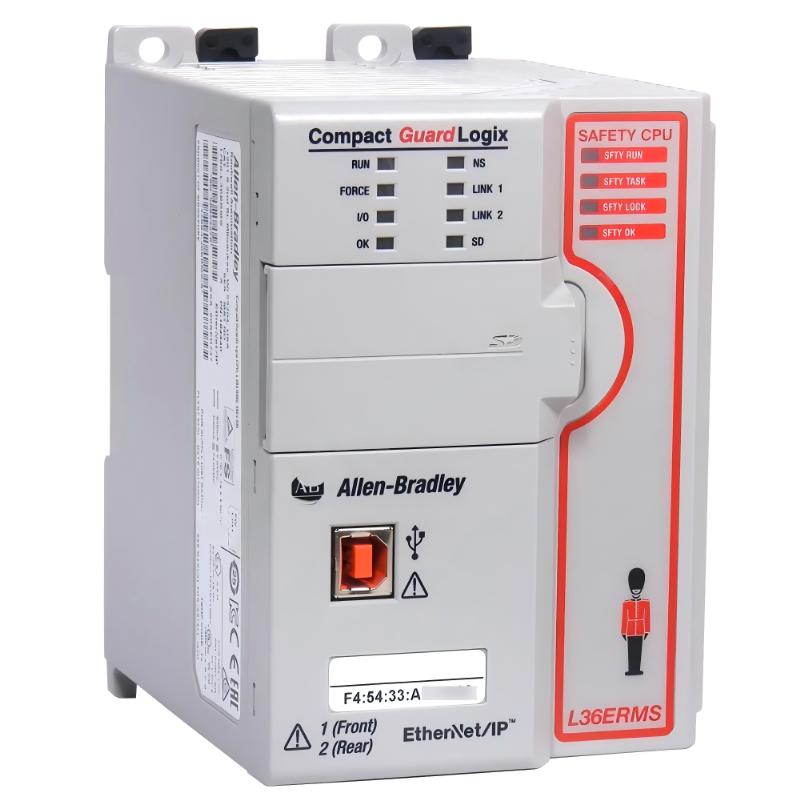

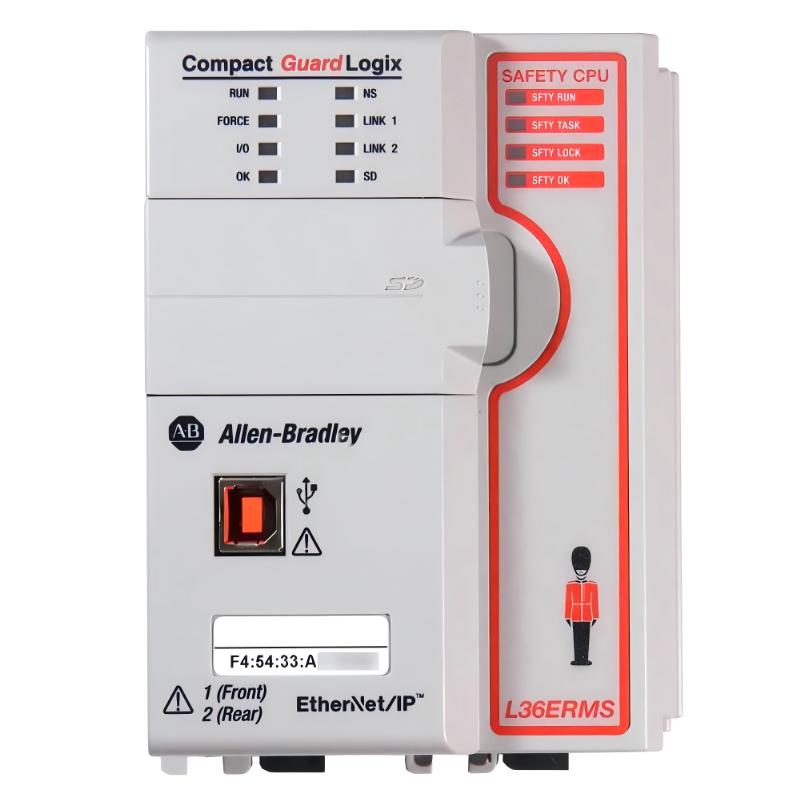

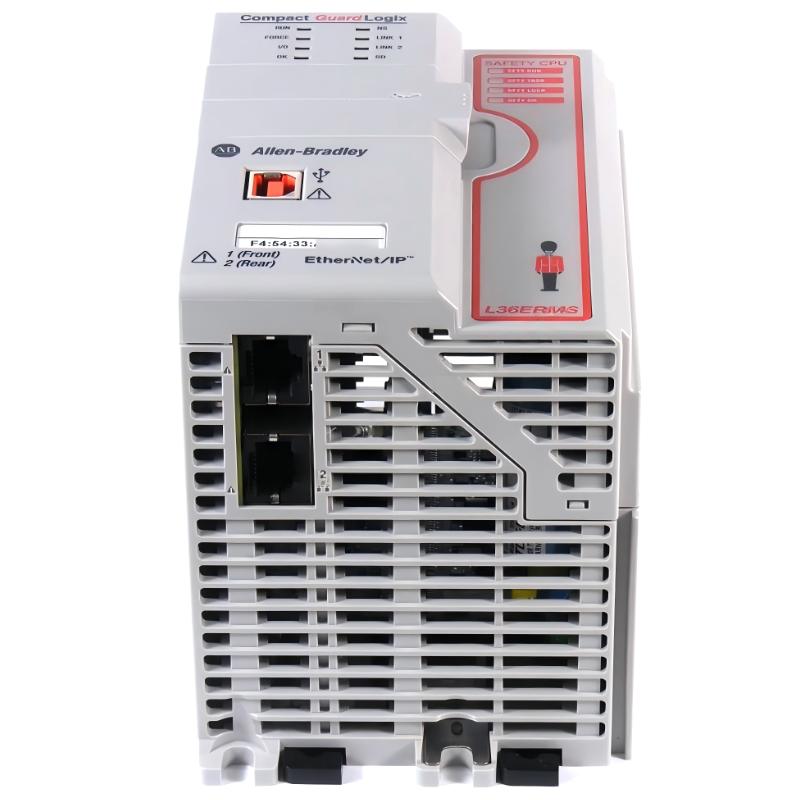

Allen Bradley 1769-L36ERMS Compact GuardLogix Safety Controller
Allen Bradley 1769-L36ERMS Compact GuardLogix Safety Controller
0.0
Points
Brand:Allen Bradley PLC Item No.:Allen Bradley 1769-L36ERMS Product Origin:USA Product Dimensions:145 × 118 × 87 mm Product Weight:1.0 kg Payment:T/T, Western Union, Credit Card Goods_stock:15 Shipping Port:Xiamen, China Lead Time:1-3 Days Condition:Brand New And Original Warranty:1 Year Certificate:COO
The Allen Bradley 1769-L36ERMS is a Compact GuardLogix 5370 safety controller engineered for high-performance industrial automation systems that require integrated functional safety, motion control, and high-speed EtherNet/IP communication. Designed for demanding machine automation environments, this controller combines standard automation control with certified safety processing in a single compact architecture.
With integrated CIP Safety, coordinated motion capability, and Device Level Ring (DLR) networking, the 1769-L36ERMS is widely used in advanced manufacturing systems where machine safety, synchronized motion, and operational reliability are critical.
Technical Specifications
Specification Item
Details
Manufacturer
Allen Bradley (Rockwell Automation)
Model Number
1769-L36ERMS
Product Family
Compact GuardLogix 5370
Controller Type
Safety Motion Programmable Automation Controller
Standard User Memory
3 MB
Safety Memory
1.5 MB
Motion Axes Supported
Up to 16 CIP Motion axes
Communication Ports
2 × EtherNet/IP ports, 1 × USB
Ethernet Features
Embedded switch with Device Level Ring (DLR)
Safety Protocol
CIP Safety over EtherNet/IP
Motion Protocol
CIP Motion
EtherNet/IP Nodes
Up to 48 nodes
TCP Connections
Up to 256
I/O Expansion Capacity
Up to 30 Compact I/O modules
Expansion Banks
Multiple bank support
Programming Software
Studio 5000 Logix Designer
Nonvolatile Memory
1 GB SD card included, supports up to 2 GB
Functional Safety Rating
SIL 3, PLe, Category 4
Servo Compatibility
Allen Bradley Kinetix servo systems
Power Supply Compatibility
1769-PA2, 1769-PB2, 1769-PA4, 1769-PB4
Operating Temperature
0°C to 60°C
Storage Temperature
-40°C to 85°C
Mounting Type

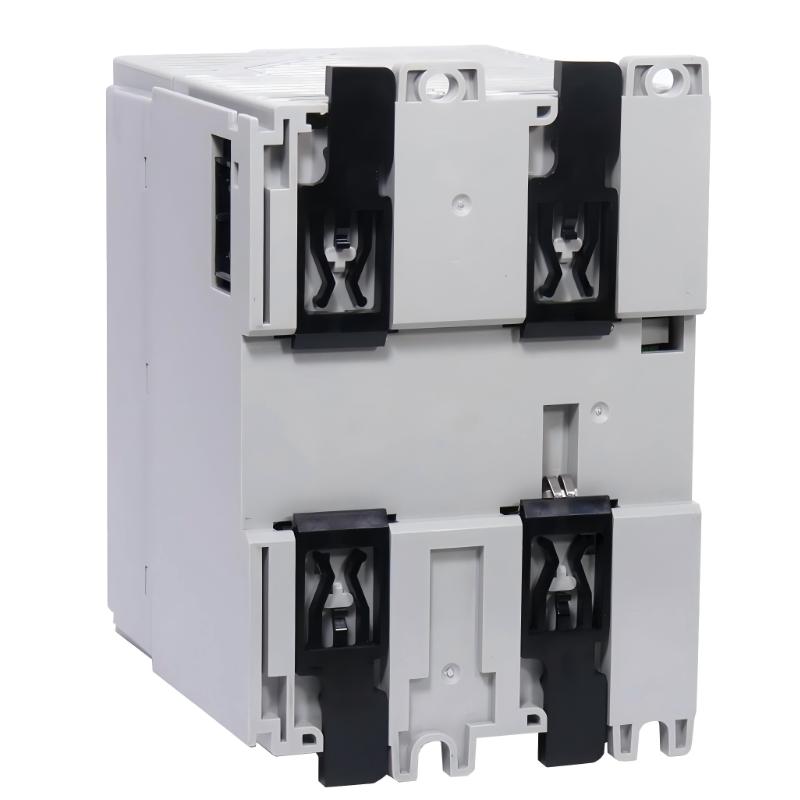

DIN rail / panel mount
Dimensions
Approx. 145 × 118 × 87 mm
Weight
Approx. 0.57–1.0 kg
Recommended Related Models
Related Model
Function
1769-L36ERM
Standard motion CompactLogix controller
1769-L33ERM
Mid-level motion controller
5069-L330ERMS3
Modern Compact GuardLogix replacement
Kinetix 5500
Integrated servo drive system
1769-IF8
Analog input module
1769-OB16
Digital output module
Popular Allen Bradley Automation Products
Model
Category
1756-L8SP
GuardLogix safety controller
5069 Compact 5000
Modern CompactLogix platform
Kinetix 5700
Advanced servo drives
1734 POINT I/O Safety
Distributed safety I/O
PanelView Plus 7
Industrial HMI
Stratix 5700
Industrial managed Ethernet switch
Industrial Applications
The 1769-L36ERMS is designed for sophisticated automation systems that require both machine safety and coordinated motion control within a unified platform.
Typical applications include:
Robotic manufacturing cells
High-speed packaging systems
Automated assembly machinery
Material handling systems with safety zones
Pharmaceutical production equipment
Automotive production lines
Multi-axis synchronized servo systems
Safety-critical OEM machine platforms
Its integrated safety and motion capability allows machine builders to simplify architecture while maintaining high operational performance.
Key Advantages
Integrated Functional Safety
Supports certified safety control up to SIL 3 / PLe Cat. 4, enabling machine safety and standard control within one controller platform.
Advanced Motion Performance
Handles up to 16 CIP Motion axes for precise synchronized motion and high-speed machine coordination.
Dual EtherNet/IP with DLR
Embedded Ethernet switching and Device Level Ring topology improve network resilience and simplify industrial networking.
High Memory Capacity
Provides 3 MB standard memory and 1.5 MB dedicated safety memory for complex automation and safety applications.
Scalable Compact Architecture
Supports up to 30 Compact I/O modules, making it ideal for flexible and expandable machine automation systems.
Technical FAQs
1. What is the 1769-L36ERMS used for?
It is used for industrial automation systems requiring integrated machine safety, motion control, and EtherNet/IP communication.
2. Does the controller support functional safety?
Yes. It supports integrated safety control up to SIL 3, PLe, and Category 4 standards.
3. How much memory does it provide?
It includes 3 MB standard memory and 1.5 MB dedicated safety memory.
4. How many motion axes are supported?
It supports up to 16 CIP Motion axes over EtherNet/IP.
5. What communication ports are included?
The controller includes dual EtherNet/IP ports and one USB programming port.
6. What software is required for programming?
It is programmed using Studio 5000 Logix Designer.
7. Does it support Device Level Ring (DLR)?
Yes. DLR support provides Ethernet network redundancy and improved communication reliability.
8. Can it integrate with Kinetix servo drives?
Yes. It is commonly paired with Allen Bradley Kinetix servo systems for integrated motion control.
9. How many Compact I/O modules can it support?
It supports up to 30 Compact I/O modules depending on system configuration.
10. Why is the 1769-L36ERMS widely used in advanced automation systems?
Because it combines certified functional safety, multi-axis motion control, dual EtherNet/IP networking, and scalable Compact I/O architecture into a powerful industrial automation platform.
