Introduction

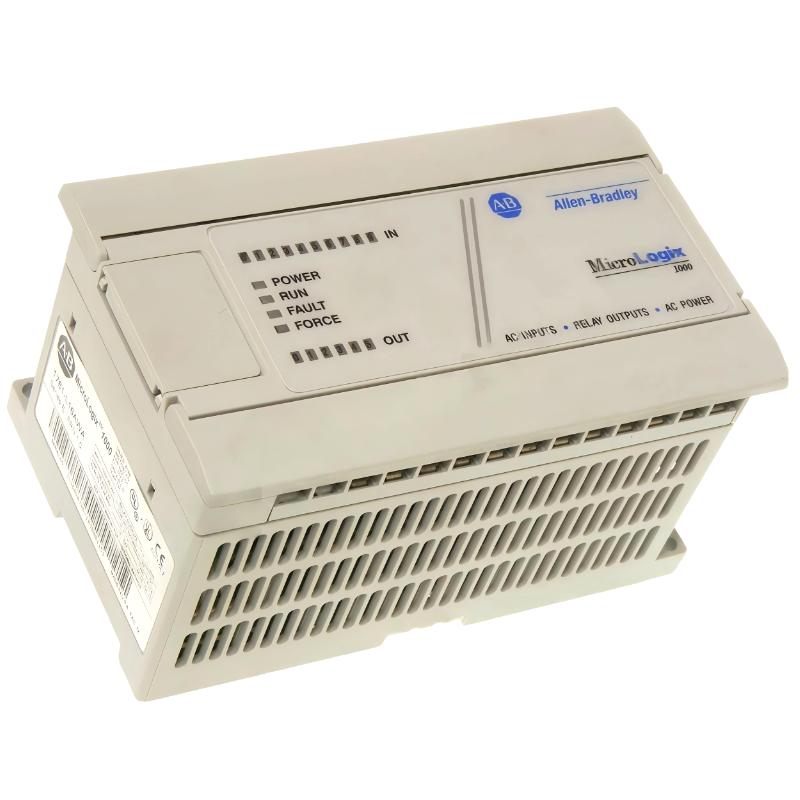

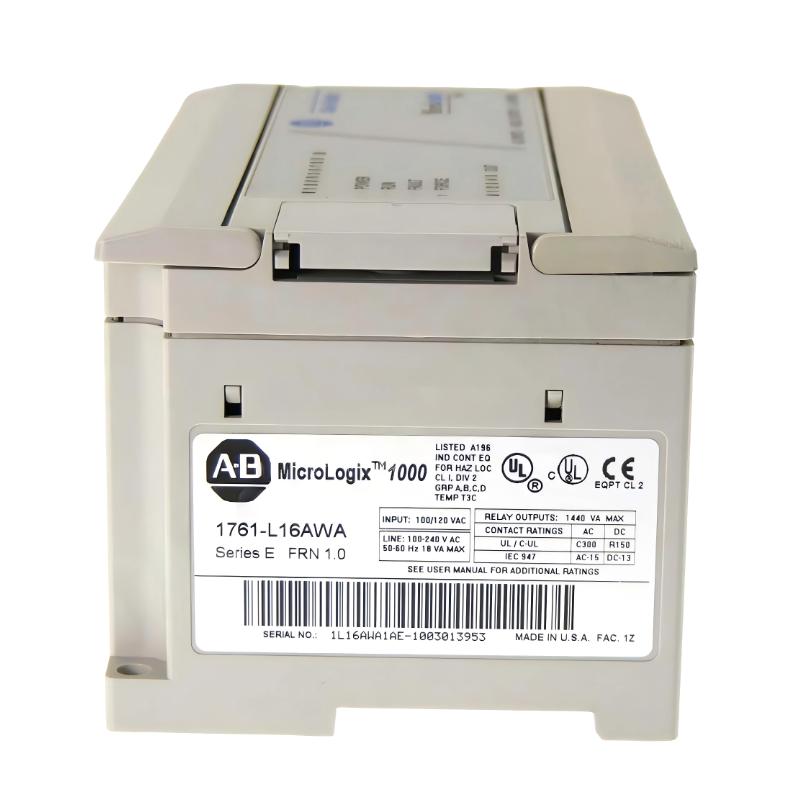

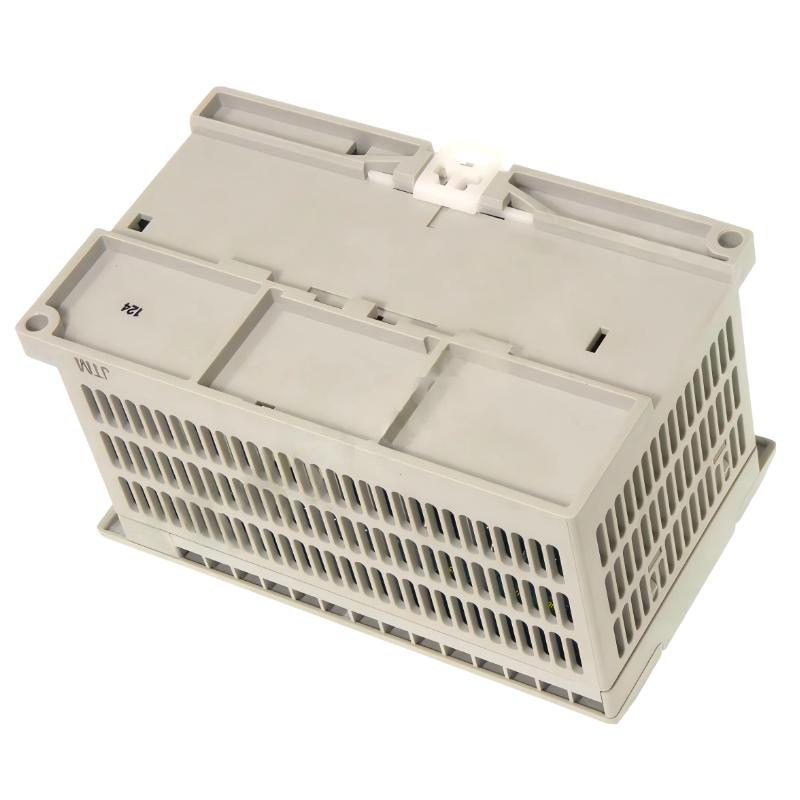

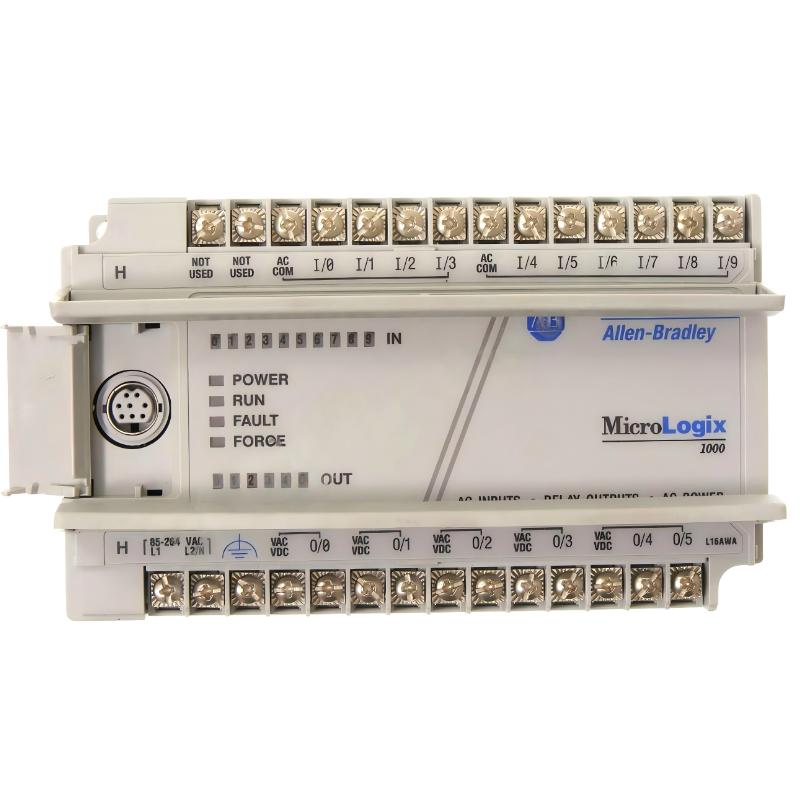

The Allen Bradley 1761-L16AWA MicroLogix 1000 Programmable Controller is a compact, high-performance solution for small-scale automation. Its lightweight design, robust industrial performance, and flexible programming options make it ideal for OEMs, machine builders, and industrial facilities seeking cost-effective programmable control solutions.

Technical Specifications

Feature	Specification
Module Type	Programmable Controller
Dimensions (L × W × H)	133 × 73 × 80 mm
Weight	0.386 kg (0.851 lb)
Function	Control digital and analog devices for small-scale automation
Compatibility	MicroLogix 1000 expansion modules and network interfaces
Protection	Industrial-grade durability
Operating Environment	Small to medium industrial automation systems

Applications

The Allen Bradley 1761-L16AWA MicroLogix 1000 Programmable Controller is a compact and versatile controller designed for small-scale automation tasks. Typical applications include:

Controlling conveyor systems, pumps, and motors in industrial environments
Automated process control in manufacturing and packaging lines
Small machine control and logic sequencing
Data acquisition and simple HMI (Human-Machine Interface) integration
Remote monitoring and diagnostics in distributed control systems

This controller provides reliable performance for small to medium automation projects.

Advantages

Compact and Lightweight: 133 × 73 × 80 mm size with only 0.386 kg (0.851 lb), ideal for space-constrained panels
Flexible Programming Options: Supports Ladder Logic programming for versatile automation solutions
Reliable Industrial Performance: Designed to withstand electrical noise and temperature fluctuations
Ease of Integration: Compatible with MicroLogix family expansion modules and network interfaces
Cost-Effective Automation: Provides programmable control without the complexity of larger PLCs

Technical FAQs

Q: What programming language does this controller support?
A: Ladder Logic for industrial automation and control tasks.
Q: Can it control both digital and analog devices?
A: Yes, it handles digital inputs/outputs and can interface with analog devices via expansion modules.
Q: What is the exact weight of this controller?
A: 0.386 kg (0.851 lb).
Q: Can this controller operate in high-noise industrial environments?
A: Yes, it is designed for industrial-grade electrical noise tolerance.
Q: Is it compatible with other Allen Bradley modules?
A: Yes, it integrates with MicroLogix expansion I/O and network modules.
Q: Does it support remote monitoring?
A: Yes, it can interface with compatible HMI and SCADA systems.
Q: What is the power requirement?
A: Typically 24 VDC power supply (check specifications for exact voltage range).
Q: How is it mounted?
A: Can be DIN rail or panel mounted using standard hardware.
Q: Can it handle small machine automation?
A: Yes, ideal for conveyors, pumps, and smaller industrial machinery.
Q: What is the expected lifespan of this controller?
A: Over 10 years in standard industrial conditions with proper installation.
