Brand:Allen Bradley PLC Item No.:Allen Bradley 1769-OA16 Product Origin:USA Product Dimensions:118 × 35 × 87 mm Product Weight:0.32 kg Payment:T/T, Western Union, Credit Card Goods_stock:15 Shipping Port:Xiamen, China Lead Time:1-3 Days Condition:Brand New And Original Warranty:1 Year Certificate:COO

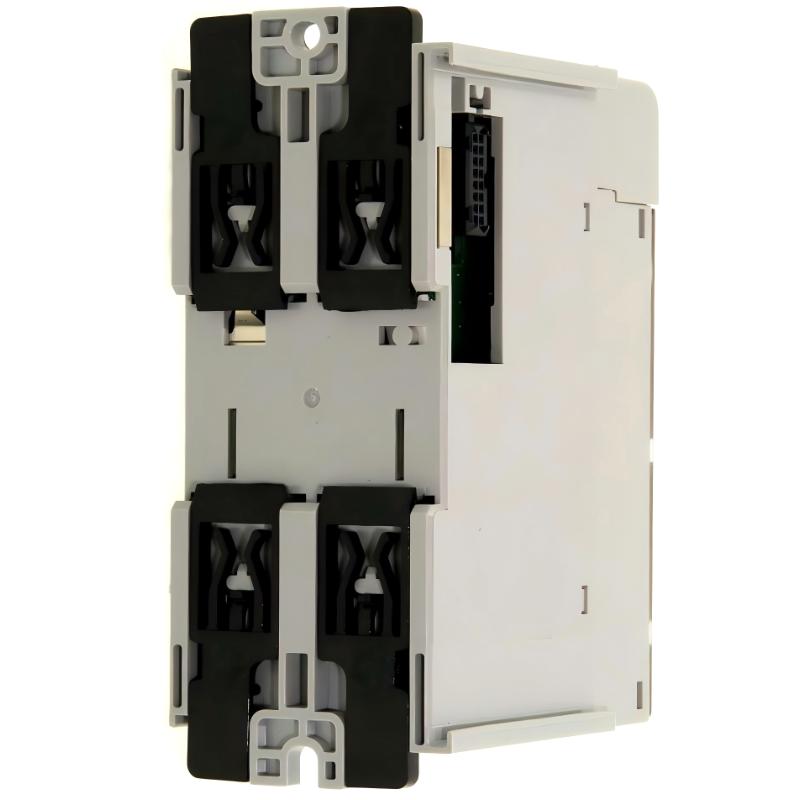

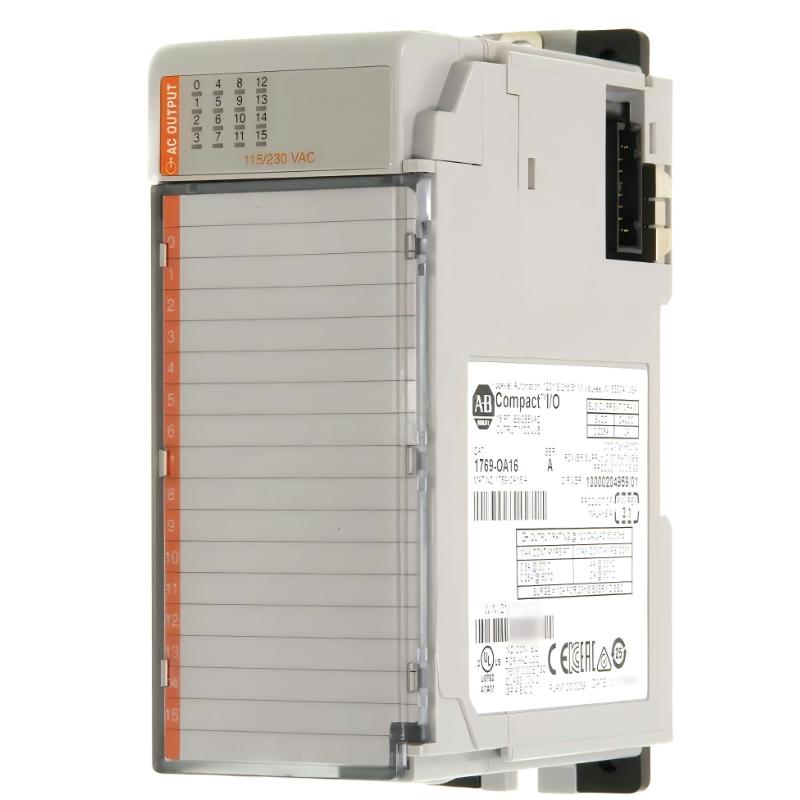

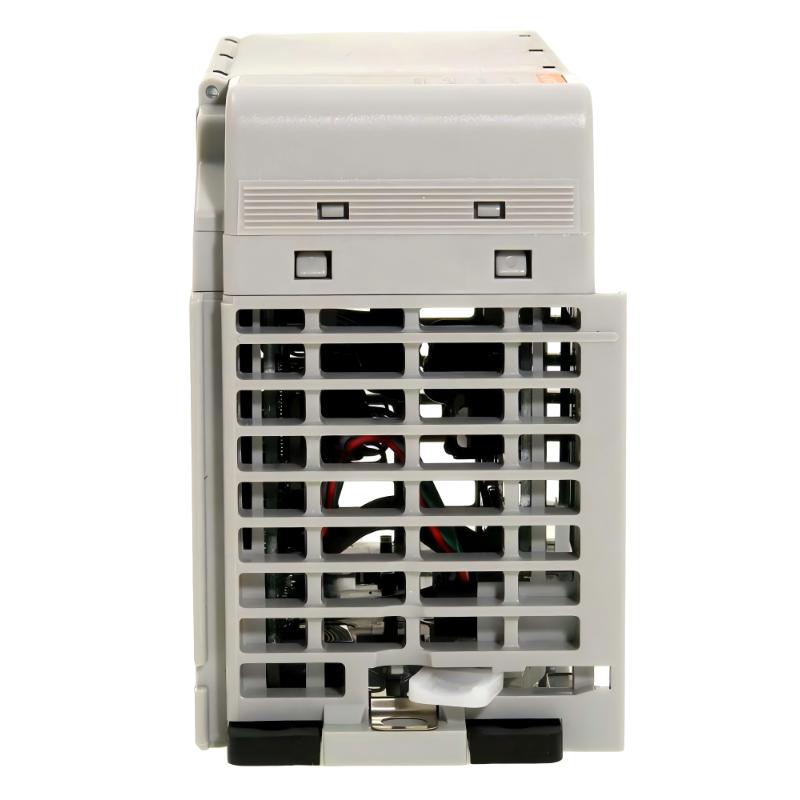

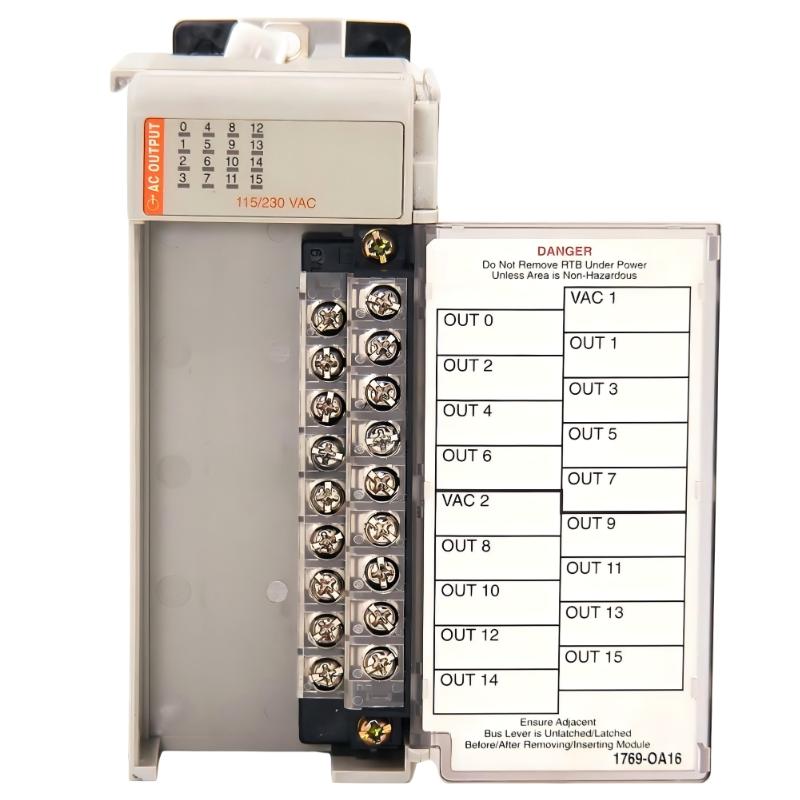

The Allen Bradley 1769-OA16 is a 16-point AC digital output module designed for the CompactLogix and MicroLogix 1500 automation platforms. Engineered for dependable switching performance and stable industrial operation, this module is commonly used to control AC-powered field devices such as relays, contactors, pilot lights, alarms, and solenoids.
With its compact footprint and flexible integration capability, the 1769-OA16 provides an efficient solution for industrial systems requiring high-density AC output control within Compact I/O architectures.
Technical Specifications
Specification Item
Details
Manufacturer
Allen Bradley (Rockwell Automation)
Model Number
1769-OA16
Module Type
AC Digital Output Module
Product Family
Compact I/O 1769 Series
Number of Outputs
16 outputs
Output Voltage Range
74–132V AC
Nominal Output Voltage
120V AC
Output Configuration
Sourcing AC outputs
Outputs per Group
8 points per group
Isolation Voltage
1200V AC between groups and backplane
Continuous Current per Point
0.25 A
Maximum Current per Module
4 A
Surge Current
5 A for 25 ms
Signal Delay ON
Approx. 1 ms
Signal Delay OFF
Approx. 9 ms
Heat Dissipation
Approx. 6.3 W
Backplane Current Draw
Approx. 220 mA @ 5V DC
Wiring Category
AC output wiring
Compatible Controllers
CompactLogix, MicroLogix 1500
Mounting Type
DIN rail / panel mount
Operating Temperature
0°C to 60°C
Storage Temperature
-40°C to 85°C
Dimensions
Approx. 118 × 35 × 87 mm
Weight
Approx. 0.32 kg
Recommended Related Models
Related Model
Function
1769-OW16
Relay output module
1769-OB16
DC output module
1769-IQ16
Digital input module
1769-IF4
Analog input module
1769-L30ER
CompactLogix Ethernet controller
1769-L33ER
High-performance CompactLogix PLC
Popular Allen Bradley Models
Model
Category
1756-OB16E
ControlLogix output module
1734-OA2
POINT I/O AC output module
5069-OB16
Compact 5000 digital output module
PanelView Plus 7
Industrial HMI
Kinetix 5500
Servo drive system
Stratix 5700
Industrial Ethernet switch
Applications
The 1769-OA16 is widely used in industrial automation systems that require reliable AC load switching and compact modular I/O expansion.
Typical applications include:
Motor starter control systems
Conveyor automation
Industrial alarm systems
HVAC equipment control
Packaging machinery
Factory lighting and signaling systems
Material handling equipment
OEM machine automation
Its AC output capability makes it particularly suitable for industrial environments using standard 120V AC control devices.
Advantages
High-Density AC Output Design
Provides 16 AC outputs within a compact module footprint, helping reduce cabinet space requirements.
Stable Industrial Switching Performance
Designed for reliable operation in demanding industrial control environments with fast response characteristics.
Flexible Compact I/O Integration
Seamlessly integrates with CompactLogix and MicroLogix platforms for scalable automation architectures.
Robust Electrical Isolation
1200V isolation enhances system protection and improves operational reliability.
Efficient Installation and Maintenance
DIN rail mounting and removable terminal blocks simplify installation, wiring, and maintenance procedures.
Technical FAQs
1. What is the 1769-OA16 used for?
It is used to control AC-powered industrial devices such as relays, contactors, and pilot lights.
2. How many outputs does the module provide?
The module provides 16 AC digital outputs.
3. What voltage does the module support?
It supports output voltages from 74 to 132V AC, with 120V AC nominal operation.
4. Is the 1769-OA16 an AC or DC output module?
It is an AC digital output module.
5. What controllers are compatible with this module?
It is compatible with CompactLogix and MicroLogix 1500 systems.
6. What is the maximum current per output?
Each output supports up to 0.25 A continuous current.
7. Does the module provide electrical isolation?
Yes. It provides 1200V AC isolation between output groups and the backplane.
8. What mounting methods are supported?
The module supports both DIN rail and panel mounting.
9. Can it be used in OEM machinery?
Yes. It is commonly used in OEM equipment and industrial automation systems.
10. Why is the 1769-OA16 widely used in industrial applications?
Because it offers compact high-density AC output control, reliable industrial switching performance, strong electrical isolation, and seamless integration with CompactLogix automation platforms.
