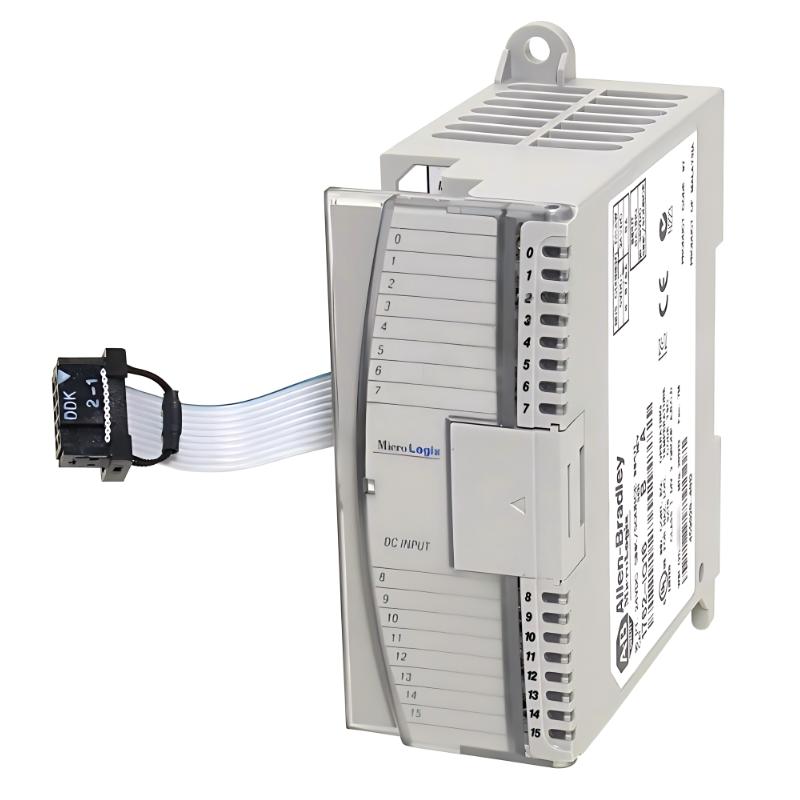

Allen Bradley 1762-IQ16 MicroLogix DC Input Module

The Allen Bradley 1762-IQ16 MicroLogix DC Input Module is engineered for compact industrial automation systems. Its applications include:

• Monitoring DC signals from switches, sensors, and industrial devices
• Expanding MicroLogix 1000 and 1200 controllers for additional digital inputs
• Integration with small machinery for precise control and monitoring
• Supporting automated manufacturing lines and process control systems
• Enabling real-time data acquisition for predictive maintenance initiatives

This module delivers reliable input acquisition, ensuring your systems maintain operational integrity.

• Precision Input Detection: Provides consistent and accurate DC digital signal reading
• Compact and Lightweight: 90 × 40.4 × 87 mm, weighing only 0.23 kg (0.507 lb) for easy installation
• Seamless Integration: Fully compatible with MicroLogix 1000 and 1200 controllers
• Industrial Durability: Designed to withstand voltage fluctuations, electrical noise, and harsh environments
• Enhanced System Flexibility: Expands existing controllers without adding complexity

1. Q: What type of signals can this module handle?
   A: 16 DC digital input channels for standard industrial sensors and switches.
2. Q: Is this module compatible with MicroLogix 1000 controllers?
   A: Yes, it works with MicroLogix 1000 and 1200 series controllers.
3. Q: Can it operate continuously in industrial environments?
   A: Yes, it is designed for 24/7 industrial operations.
4. Q: Does it support high-speed input scanning?
   A: Yes, it supports fast scanning compatible with MicroLogix controllers.
5. Q: How does it detect input faults or errors?
   A: Built-in diagnostics alert for wiring faults or signal errors.
6. Q: What is the typical operating voltage?
   A: Standard 24 VDC; consult the datasheet for precise ranges.
7. Q: How is the module mounted?
   A: Panel-mounted or installed in MicroLogix expansion slots.
8. Q: Can it be used in harsh industrial environments?
   A: Yes, it is engineered for noise tolerance and durability.
9. Q: Is programming required to use this module?
   A: It integrates directly with MicroLogix controllers without additional programming.
10. Q: What is the expected lifespan of the module?
    A: Over 10 years under normal industrial conditions.
