Brand:Allen Bradley PLC Item No.:Allen Bradley 1769-OB16 Product Origin:USA Product Dimensions:118 × 35 × 87 mm Product Weight:0.29 kg Payment:T/T, Western Union, Credit Card Goods_stock:15 Shipping Port:Xiamen, China Lead Time:1-3 Days Condition:Brand New And Original Warranty:1 Year Certificate:COO

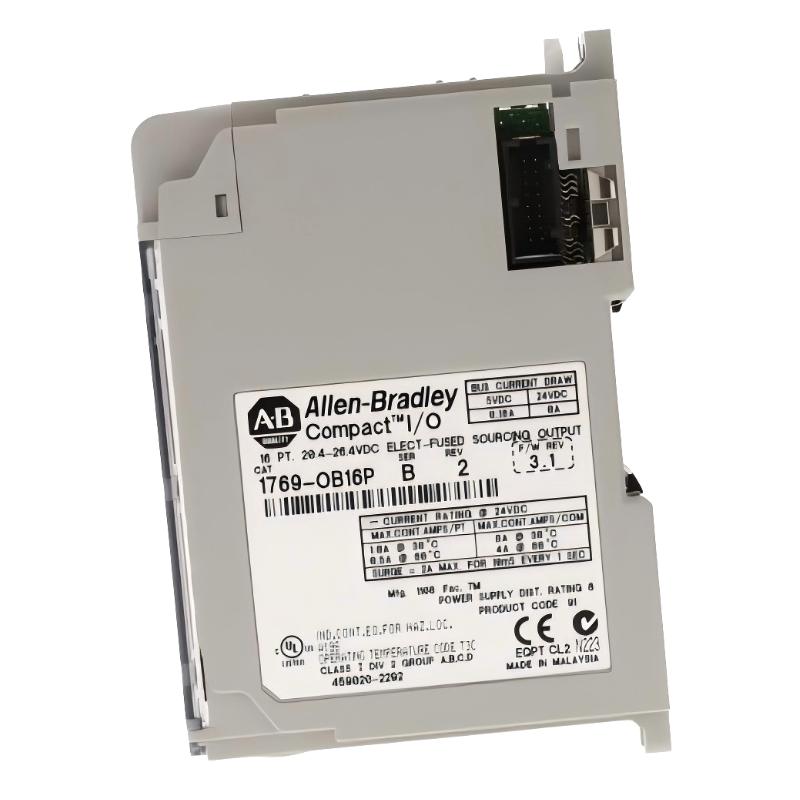

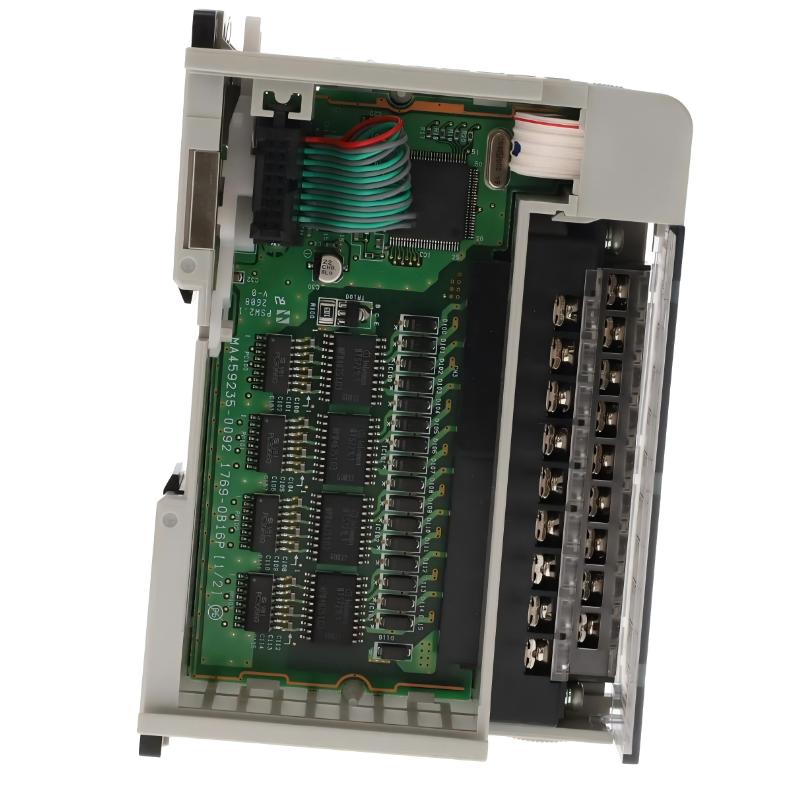

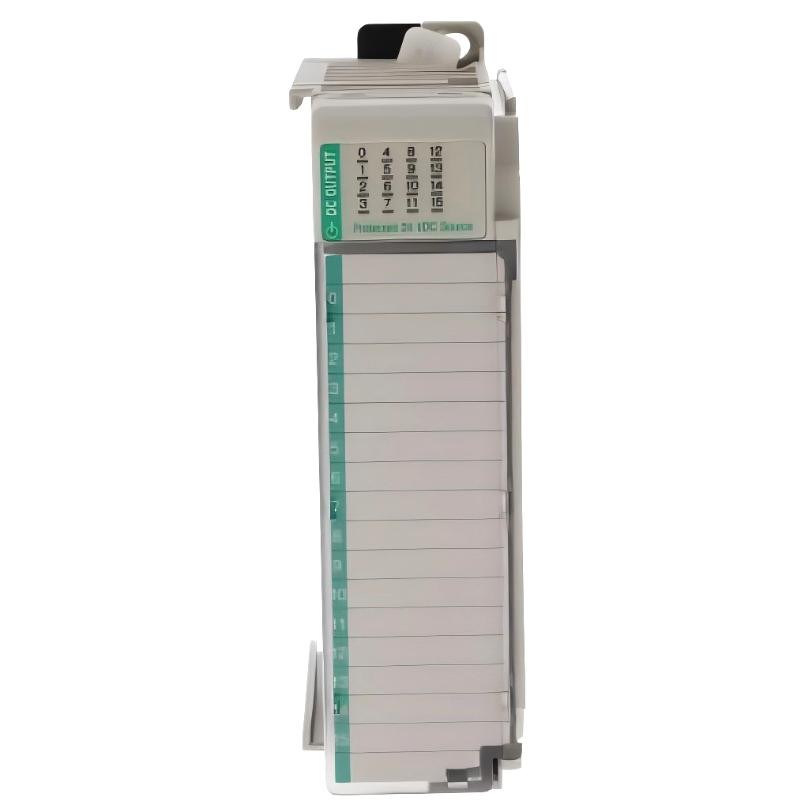

The Allen Bradley 1769-OB16 is a 16-point DC digital output module designed for CompactLogix and MicroLogix 1500 control systems. Built for high-speed switching and reliable industrial performance, this Compact I/O module provides efficient control of DC-powered field devices including relays, solenoids, motor starters, and indicator lights.
Its compact architecture, fast response time, and dependable output performance make the 1769-OB16 a popular choice for machine builders and industrial automation engineers seeking flexible and scalable digital output solutions.
Technical Specifications
Specification Item
Details
Manufacturer
Allen Bradley (Rockwell Automation)
Model Number
1769-OB16
Module Type
DC Digital Output Module
Product Family
1769 Compact I/O
Number of Outputs
16 outputs
Output Voltage Range
20.4–26.4V DC
Nominal Output Voltage
24V DC
Output Type
Sourcing outputs
Outputs per Group
16 outputs in 1 group
Maximum Current per Point
0.5 A
Maximum Current per Module
8 A
Surge Current
2 A for 10 ms
Signal Delay ON
Approx. 0.1 ms
Signal Delay OFF
Approx. 1 ms
Isolation Voltage
1200V AC between field side and backplane
Backplane Current Draw
Approx. 200 mA @ 5V DC
Heat Dissipation
Approx. 4.1 W
Short-Circuit Protection
Electronic protection included
Compatible Controllers
CompactLogix, MicroLogix 1500
Wiring Method
Removable terminal block

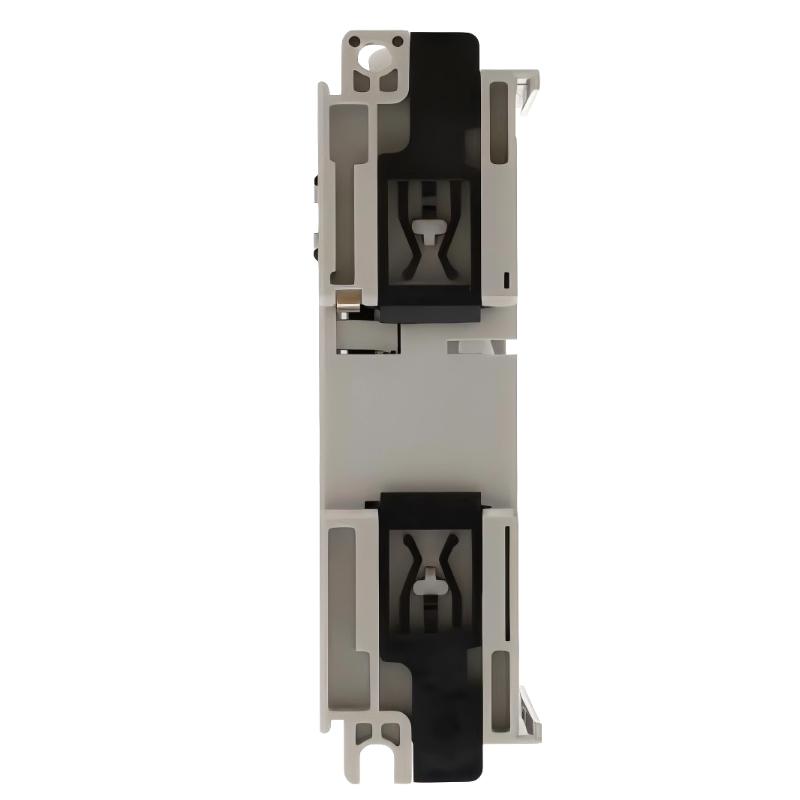

Mounting Type
DIN rail / panel mount
Operating Temperature
0°C to 60°C
Storage Temperature
-40°C to 85°C
Dimensions
Approx. 118 × 35 × 87 mm
Weight
Approx. 0.29 kg
Recommended Related Models
Related Model
Function
1769-OB8
8-point DC output module
1769-OA16
16-point AC output module
1769-OW16
Relay output module
1769-IQ16
Digital input module
1769-IF4
Analog input module
1769-L33ER
CompactLogix Ethernet controller
Popular Allen Bradley Models
Model
Category
1756-OB16E
ControlLogix DC output module
5069-OB16
Compact 5000 output module
1734-OB8
POINT I/O digital output module
PanelView Plus 7
Industrial HMI
Kinetix 5500
Servo drive system
Stratix 5700
Industrial Ethernet switch
Applications
The 1769-OB16 is widely used in industrial automation systems requiring fast and reliable DC output control.
Typical applications include:
Conveyor and material handling systems
Packaging machinery
Industrial motor control panels
Automated assembly equipment
OEM machine automation
Robotic system control
Industrial signaling systems
General-purpose digital switching applications
Its fast DC switching capability makes it ideal for modern high-speed machine control environments.
Advantages
High-Density Output Design
Provides 16 DC outputs within a compact module footprint to maximize cabinet space efficiency.
Fast Switching Response
Supports rapid ON/OFF switching for time-sensitive industrial automation processes.
Reliable Industrial Performance
Designed for stable operation in demanding manufacturing and process environments.
Simplified System Expansion
Integrates seamlessly into CompactLogix and MicroLogix architectures for scalable automation design.
Integrated Protection Features
Electronic short-circuit protection helps improve system safety and module reliability.
Technical FAQs
1. What is the 1769-OB16 used for?
It is used to control 24V DC industrial devices such as relays, solenoids, and motor starters.
2. How many outputs does the module provide?
The module provides 16 DC digital outputs.
3. What voltage does the module support?
It supports 20.4–26.4V DC operation with 24V DC nominal voltage.
4. Is the 1769-OB16 a sourcing or sinking output module?
It is a sourcing DC output module.
5. What is the maximum current per output?
Each output supports up to 0.5 A continuous current.
6. Does the module include short-circuit protection?
Yes. Electronic short-circuit protection is built into the module.
7. Which controllers are compatible with the 1769-OB16?
It is compatible with CompactLogix and MicroLogix 1500 systems.
8. What mounting options are supported?
The module supports DIN rail and panel mounting.
9. Can it be used in OEM machinery?
Yes. It is commonly used in OEM machine control panels and industrial automation systems.
10. Why is the 1769-OB16 widely used in automation systems?
Because it combines fast DC switching, reliable industrial performance, compact high-density output design, and seamless Compact I/O integration for flexible automation control.
