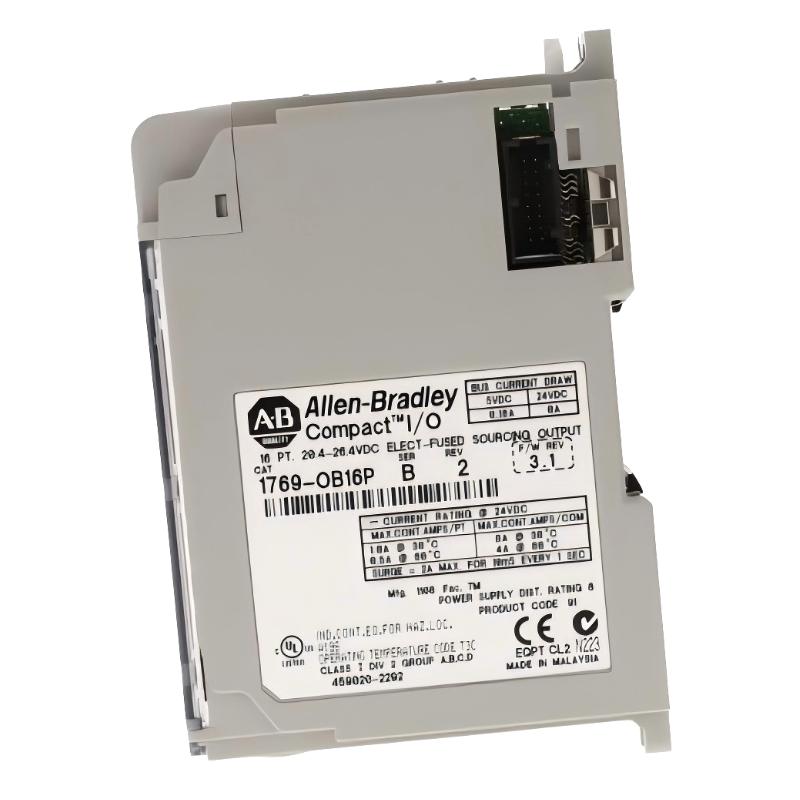

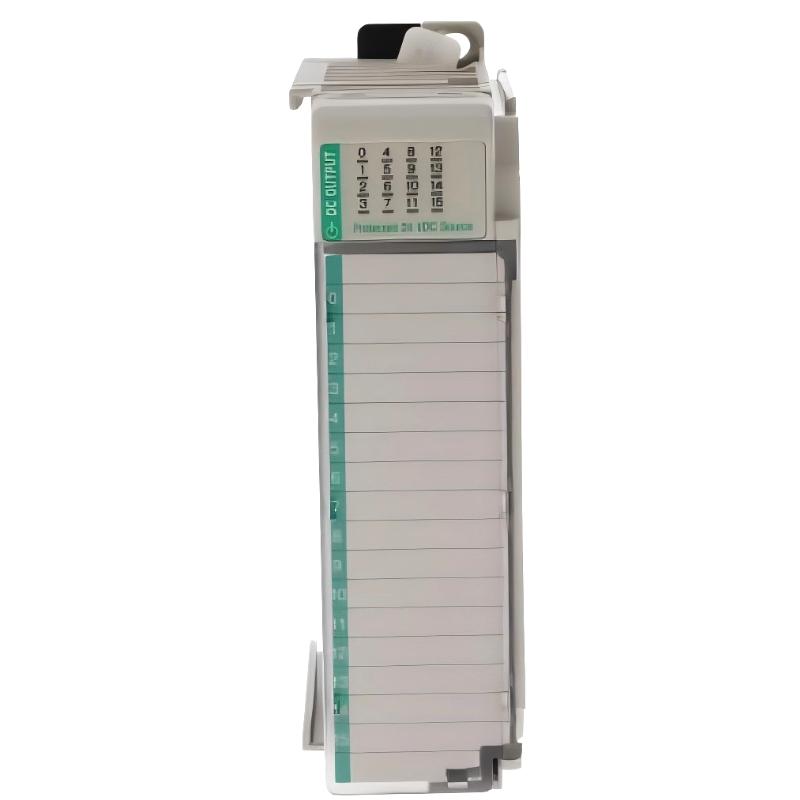

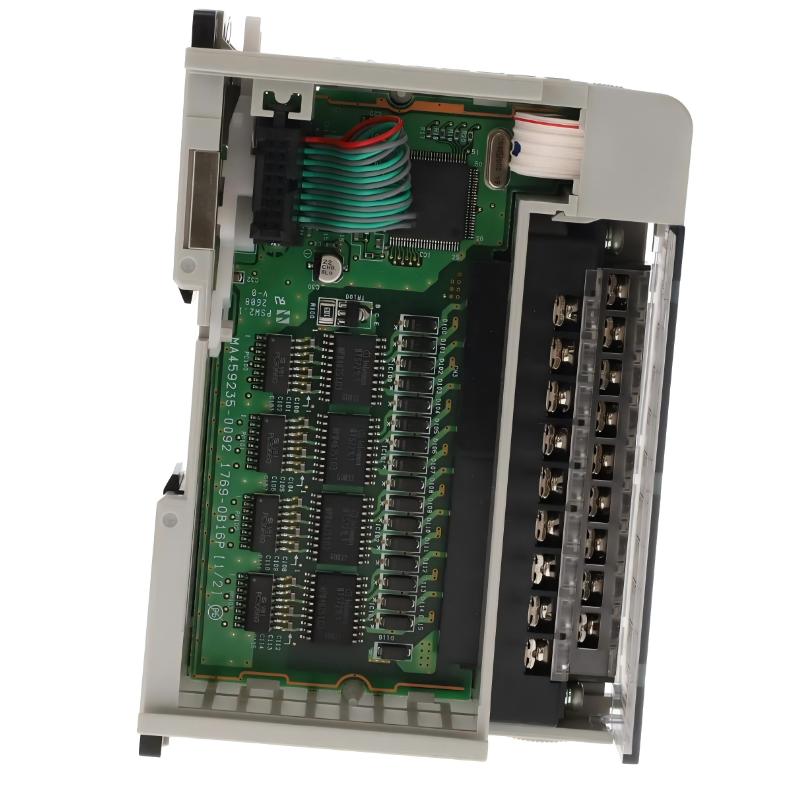

Allen Bradley 1769-OB16P CompactLogix Protected DC Output Module
Allen Bradley 1769-OB16P CompactLogix Protected DC Output Module
0.0
Points
Brand:Allen Bradley PLC Item No.:Allen Bradley 1769-OB16P Product Origin:USA Product Dimensions:118 × 35 × 87 mm Product Weight:0.30 kg Payment:T/T, Western Union, Credit Card Goods_stock:15 Shipping Port:Xiamen, China Lead Time:1-3 Days Condition:Brand New And Original Warranty:1 Year Certificate:COO
The Allen Bradley 1769-OB16P is a 16-point 24V DC electronically fused sourcing output module designed for CompactLogix and MicroLogix 1500 systems. Built for enhanced protection and high availability, this module provides stable DC output control with integrated electronic fusing that helps reduce downtime caused by overcurrent faults.
It is widely used in industrial automation environments where output protection, compact design, and reliable 24V DC switching are essential for continuous machine operation.
Technical Specifications
Specification Item
Details
Manufacturer
Allen Bradley (Rockwell Automation)
Model Number
1769-OB16P
Module Type
DC Digital Output Module (Protected)
Product Family
1769 Compact I/O
Number of Outputs
16 outputs
Output Voltage Range
20.4–26.4V DC
Nominal Voltage
24V DC
Output Type
Sourcing outputs
Protection Type
Electronic fuse per point/group
Maximum Current per Point
0.5 A
Output Groups
2 groups (8 points each)
Isolation Voltage
1200V AC / reinforced insulation
Switching Delay ON
Approx. 1 ms
Switching Delay OFF
Approx. 2 ms
Backplane Current Draw
Approx. 160–200 mA @ 5V DC
Heat Dissipation
Low–moderate industrial range
Short-Circuit Protection
Electronic, auto-reset or faulted channel control
Compatible Controllers
CompactLogix, MicroLogix 1500

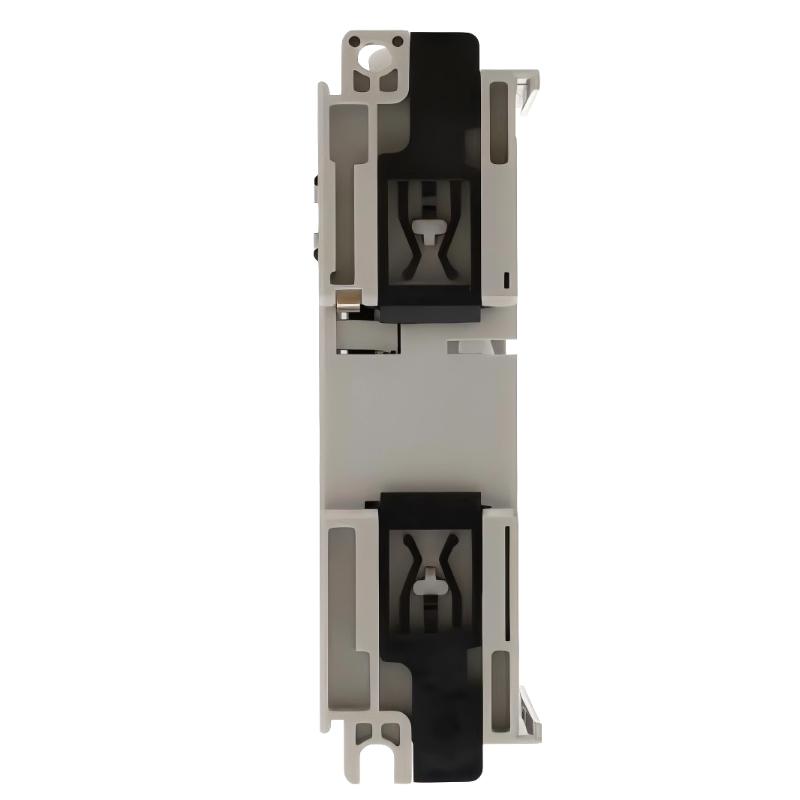

Mounting Type
DIN rail / panel mount
Wiring Method
Removable terminal block
Operating Temperature
0°C to 60°C
Storage Temperature
-40°C to 85°C
Dimensions
Approx. 118 × 35 × 87 mm
Weight
Approx. 0.27–0.30 kg
Recommended Related Models
Related Model
Function
1769-OB16
Standard 16-point DC output module
1769-OB8
8-point DC output module
1769-OA16
AC output module
1769-OW16
Relay output module
1769-IQ16
Digital input module
1769-L33ER
Ethernet CompactLogix controller
Popular Allen Bradley Automation Products
Model
Category
1756-OB16E
ControlLogix DC output module
5069-OB16
Compact 5000 output module
1734-OB8
POINT I/O DC output module
PanelView Plus 7
HMI operator interface
Kinetix 5500
Servo drive system
Stratix 5700
Industrial Ethernet switch
Applications
The 1769-OB16P is commonly used in industrial systems that require protected DC output switching with reduced risk of damage from overloads.
Typical applications include:
Packaging and labeling machines
Conveyor and material handling systems
OEM machine control panels
Industrial automation safety signaling
Motor starter and relay control circuits
Process automation systems
Factory production lines
General-purpose 24V DC switching applications
Its built-in electronic protection makes it especially suitable for applications where field wiring faults or overload conditions are likely.
Key Advantages
Electronically Fused Output Protection
Each output channel includes electronic protection that helps prevent permanent damage and reduces maintenance downtime.
High-Density Compact Design
Delivers 16 protected DC outputs in a slim module, optimizing control cabinet space.
Fast Switching Response
Supports rapid ON/OFF switching suitable for high-speed automation systems.
Strong Industrial Reliability
Designed for continuous operation in demanding manufacturing environments.
Seamless CompactLogix Integration
Works directly with Allen Bradley CompactLogix and MicroLogix systems for flexible automation design.
Technical FAQs
1. What is the 1769-OB16P used for?
It is used to control 24V DC industrial devices such as relays, solenoids, and actuators with built-in protection.
2. What makes the “P” version different?
The “P” indicates protected outputs with electronic fusing, which helps prevent damage from overloads or short circuits.
3. How many outputs does it have?
It provides 16 DC sourcing outputs.
4. What voltage does it support?
It operates in the 20.4–26.4V DC range, with 24V DC nominal.
5. Does it have short-circuit protection?
Yes. It includes electronic fuse-based protection per channel/group.
6. What controllers are compatible?
It is compatible with CompactLogix and MicroLogix 1500 platforms.
7. What is the output current rating?
Each channel supports up to 0.5 A continuous load.
8. Is it suitable for OEM machines?
Yes. It is widely used in OEM automation systems requiring protected DC outputs.
9. What mounting methods are supported?
It supports DIN rail and panel mounting.
10. Why is the 1769-OB16P widely used in industry?
Because it combines high-density DC outputs, built-in electronic protection, fast switching performance, and reliable integration into CompactLogix automation systems.
