Introduction

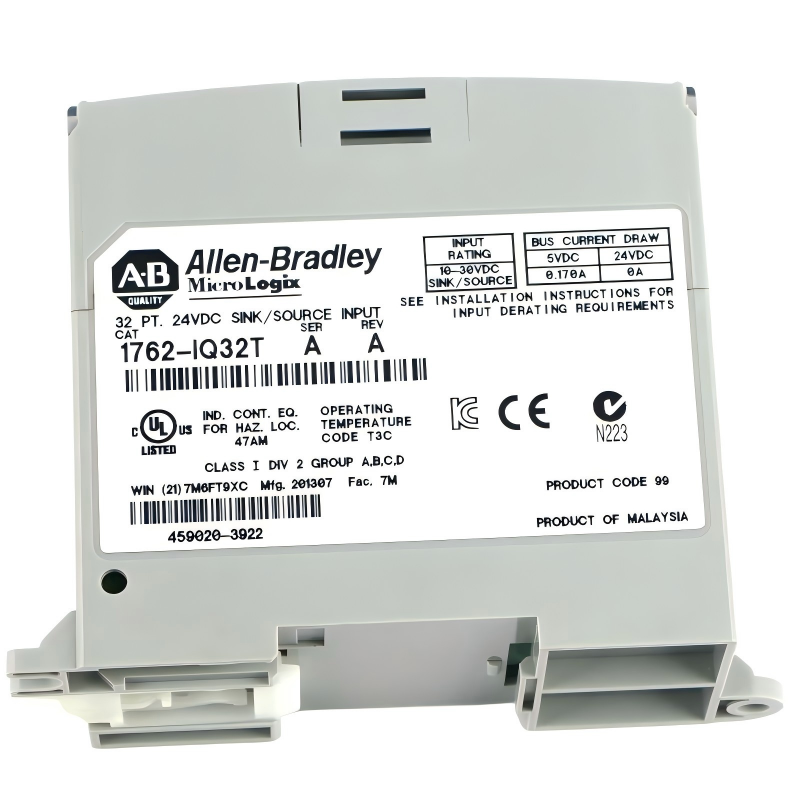

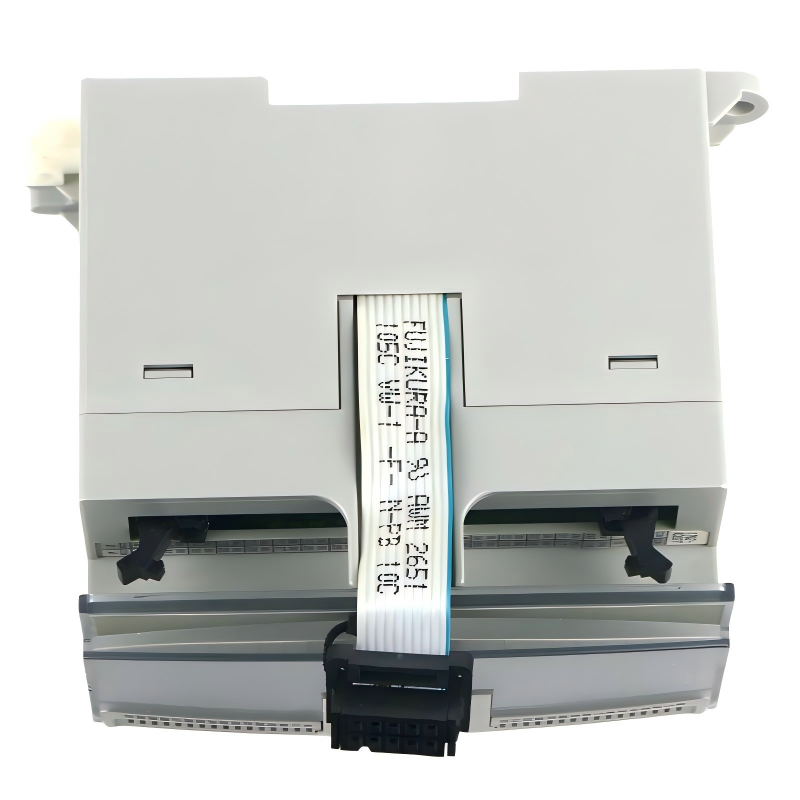

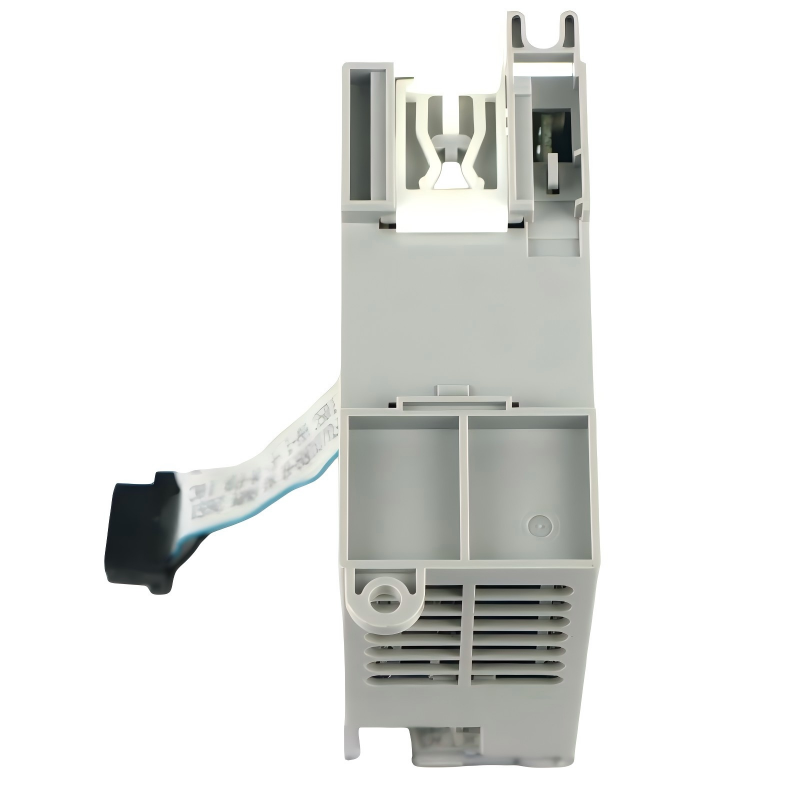

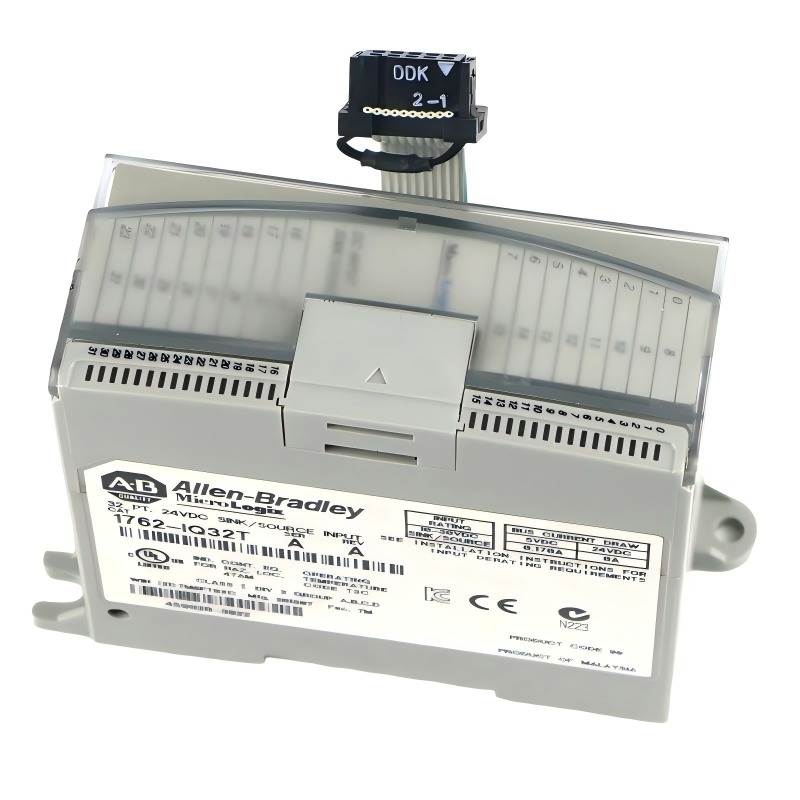

The Allen Bradley 1762-IQ32T MicroLogix DC Input Module offers a high-density, reliable solution for digital DC input expansion. Its compact footprint, lightweight design, and industrial-grade durability make it ideal for small to medium automation systems requiring precise and dependable DC signal monitoring.

Technical Specifications

Feature	Specification
Module Type	DC Input Module
Dimensions (L × W × H)	90 × 40.4 × 87 mm
Weight	0.2 kg (0.441 lb)
Input Channels	32 DC digital inputs
Compatibility	MicroLogix 1000 and 1200 controllers
Operating Environment	Industrial automation and machinery monitoring
Protection	Resistant to electrical noise and voltage fluctuations

Applications

The Allen Bradley 1762-IQ32T MicroLogix DC Input Module is designed for small to medium-scale automation projects where reliable DC signal acquisition is critical. Its primary applications include:

Capturing DC signals from industrial switches and sensors
Expanding MicroLogix 1000 and 1200 controllers for additional digital inputs
Monitoring machinery and process automation systems in real-time
Supporting small-scale automated equipment in manufacturing and production
Enabling data acquisition for operational analysis and preventative maintenance

This module is particularly suited for applications where high channel density and dependable input processing are required.

Advantages

High-Density Inputs: Provides 32 DC digital input channels in a compact module
Space-Saving Design: 90 × 40.4 × 87 mm, ideal for panels with limited space
Lightweight Construction: 0.2 kg (0.441 lb), easy to handle and install
Industrial-Grade Reliability: Designed to operate in environments with electrical noise and voltage variation
Seamless Controller Integration: Works with MicroLogix 1000 and 1200 series controllers without modification

Technical FAQs

Q: How many DC input channels does the 1762-IQ32T support?
A: It provides 32 DC digital input channels.
Q: Is it compatible with MicroLogix 1000 controllers?
A: Yes, it integrates fully with MicroLogix 1000 and 1200 controllers.
Q: What types of devices can be connected to this module?
A: Standard DC industrial switches, sensors, and other logic devices.
Q: Can it operate continuously in industrial settings?
A: Yes, it is engineered for 24/7 operation under industrial conditions.
Q: Does it offer diagnostics for input faults?
A: Yes, it can detect wiring errors and input signal faults.
Q: What is the operating voltage range?
A: Typically 24 VDC; check the datasheet for exact specifications.
Q: How is it mounted?
A: Panel-mounted or installed in MicroLogix expansion slots.
Q: Can it process high-speed DC input signals?
A: Yes, it supports fast scanning compatible with MicroLogix controllers.
Q: Does it require additional programming to function?
A: No, it integrates seamlessly with existing MicroLogix logic programs.
Q: What is the expected lifespan of the module?
A: Over 10 years under normal industrial conditions.
