Introduction

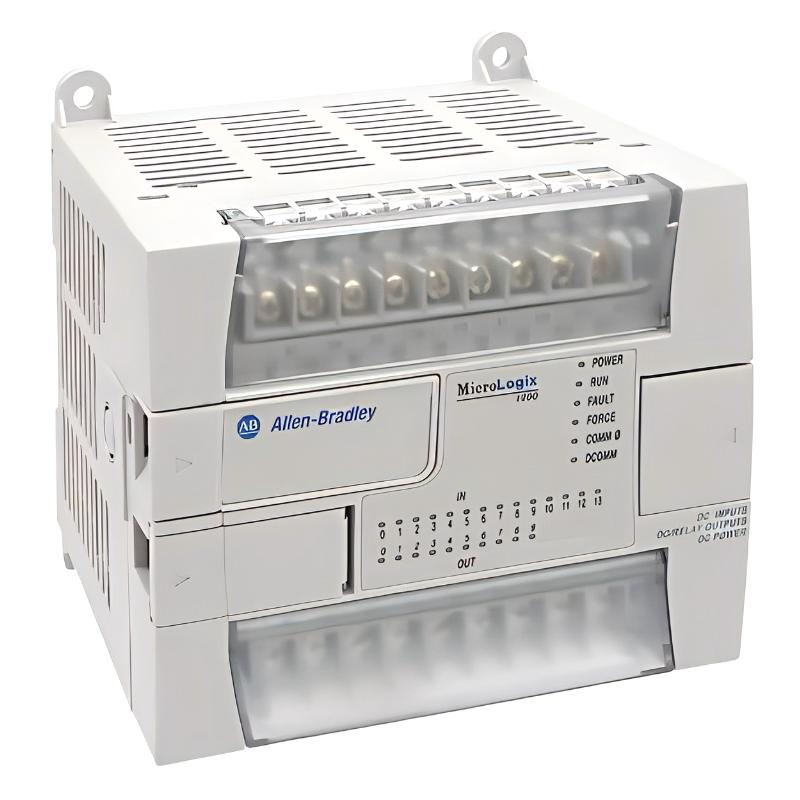

The Allen Bradley 1762-L24BXBR MicroLogix 1200 Programmable Controller offers a compact, reliable, and flexible solution for small-to-medium automation systems. Its lightweight construction and high-speed performance ensure precise control of machinery and industrial processes, making it a dependable choice for industrial automation.

Technical Specifications

Feature	Specification
Module Type	Programmable Controller
Dimensions (L × W × H)	110 × 87 × 90 mm
Weight	0.9 kg (1.984 lb)
Digital I/O Points	24 I/O points
Expandable Modules	Supports additional MicroLogix I/O modules
Programming Software	RSLogix 500
Communication	Modbus, DF1
Operating Environment	Industrial automation, machinery control
Protection	Industrial-grade durability

Applications

The Allen Bradley 1762-L24BXBR MicroLogix 1200 Programmable Controller is designed for reliable and compact industrial automation. Its applications include:

Controlling small and medium-scale industrial machinery
Automating processes such as conveyors, pumps, and motors
Integrating with DC/AC input and output modules for complete system control
Monitoring sensor data for real-time decision making
Implementing sequence control and safety logic in production environments

Its combination of compact size and high performance makes it ideal for efficient automation solutions.

Advantages

Compact and Efficient Design: 110 × 87 × 90 mm, ideal for panel-mount applications
Lightweight: 0.9 kg (1.984 lb) for effortless installation and handling
Expandable: Supports additional I/O modules for flexible system configuration
Fast and Reliable Operation: Optimized scan times for real-time monitoring and control
Industrial-Grade Durability: Resistant to electrical noise and harsh environmental conditions

Technical FAQs

Q: How many digital I/O points are available?
A: 24 digital I/O points, expandable with additional modules.
Q: What software is used for programming?
A: RSLogix 500 software is fully compatible for configuration and programming.
Q: Which communication protocols are supported?
A: Modbus and DF1 protocols for controller networking.
Q: Can this controller operate continuously in industrial settings?
A: Yes, designed for 24/7 operation in standard industrial environments.
Q: Is the controller compatible with MicroLogix 1200 series modules?
A: Yes, it integrates seamlessly with MicroLogix 1200 I/O and communication modules.
Q: Can it handle real-time signal processing and fast scanning?
A: Yes, optimized for high-speed scan cycles.
Q: What power supply is required?
A: Typically 24 VDC; verify the datasheet for precise voltage requirements.
Q: How is it mounted?
A: Panel-mounted or installed within standard industrial enclosures.
Q: Does it provide diagnostic capabilities?
A: Yes, it monitors input/output faults and operational errors.
Q: What is the expected operational lifespan?
A: Over 10 years under normal industrial operating conditions.
