Introduction

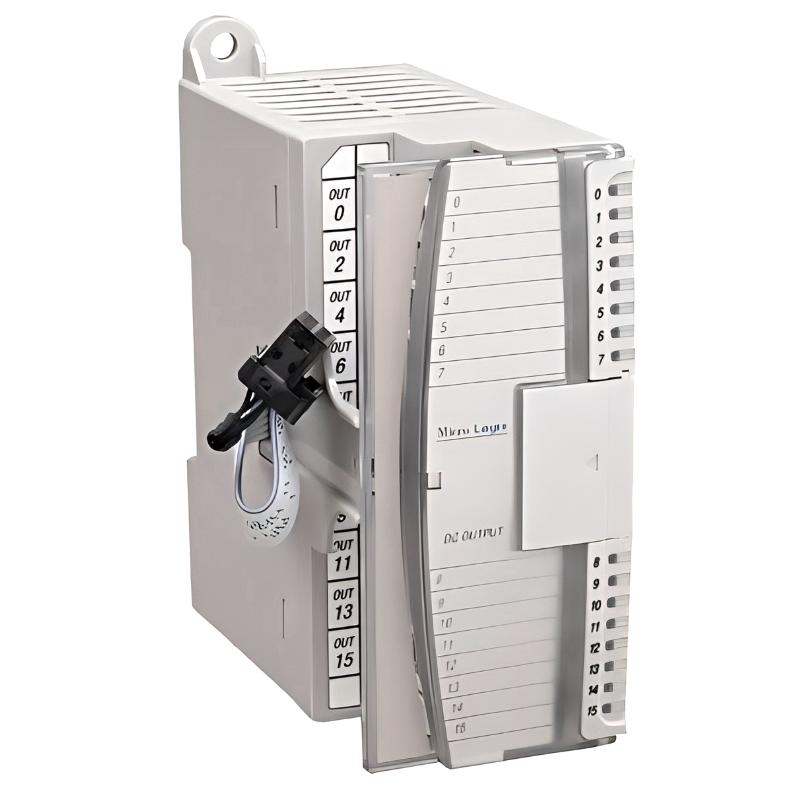

The Allen Bradley 1762-OB16 MicroLogix DC Power Output Module provides a robust solution for solid-state digital output control. Compact, lightweight, and highly reliable, this module is ideal for industrial automation applications requiring precise, high-speed switching and seamless integration with MicroLogix 1200 controllers.

Technical Specifications

Feature	Specification
Module Type	16-Point Solid-State DC Output Module
Dimensions (L × W × H)	90 × 40.4 × 87 mm
Weight	0.235 kg (0.518 lb)
Output Points	16 DC outputs
Output Type	Solid-state (sourcing)
Compatibility	MicroLogix 1200 controllers
Operating Environment	Industrial automation
Protection	Overload and short-circuit protection

Applications

The Allen Bradley 1762-OB16 DC Power Output Module is engineered to provide reliable solid-state switching for industrial automation systems. Typical applications include:

Controlling actuators, solenoids, and DC-powered relays
Driving small motors and conveyor systems with precise digital outputs
Integrating with MicroLogix 1200 controllers for automated process control
Implementing industrial logic sequences in manufacturing operations
Supporting repetitive switching tasks in machinery and assembly lines

This module delivers stable, fast-response output for accurate industrial control.

Advantages

Solid-State Reliability: No moving parts, reducing wear and maintenance
Compact Design: 90 × 40.4 × 87 mm for easy panel integration
Lightweight: 0.235 kg (0.518 lb), simplifies installation
High-Speed Switching: Fast response for precise digital control
Durable and Robust: Designed for harsh industrial environments
Seamless Compatibility: Fully integrates with MicroLogix 1200 controllers

Technical FAQs

Q: How many output points does the 1762-OB16 provide?
A: 16 DC solid-state output points.
Q: What type of outputs are supported?
A: Sourcing DC outputs for driving relays, solenoids, or small DC loads.
Q: Can this module handle high-frequency switching?
A: Yes, it is designed for rapid switching cycles with minimal delay.
Q: Is this module compatible with MicroLogix 1200 controllers?
A: Yes, fully compatible with all MicroLogix 1200 series controllers.
Q: What is the maximum current per output?
A: Each output can typically handle up to 0.5 A; consult the datasheet for exact ratings.
Q: Does it require external fusing?
A: Fusing may be recommended depending on application and load; refer to installation guidelines.
Q: How is the module mounted?
A: It mounts directly into MicroLogix 1200 controller racks.
Q: Can it operate continuously in industrial environments?
A: Yes, designed for continuous operation under standard industrial conditions.
Q: Is there built-in protection against overloads?
A: Yes, the module includes internal protective circuits for safe operation.
Q: What is the expected lifespan?
A: Over 10 years under typical operating conditions.
