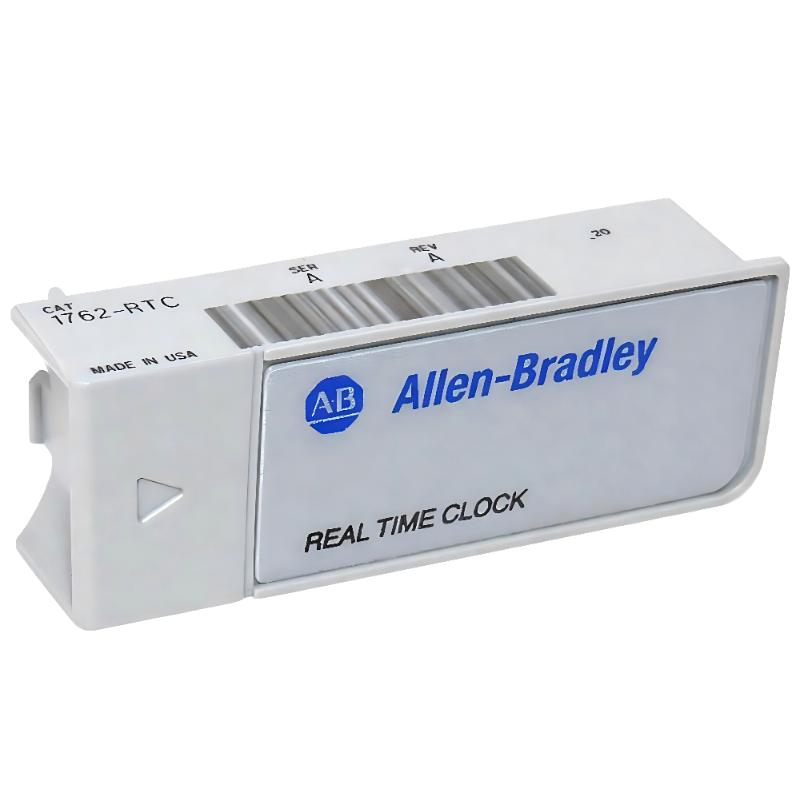

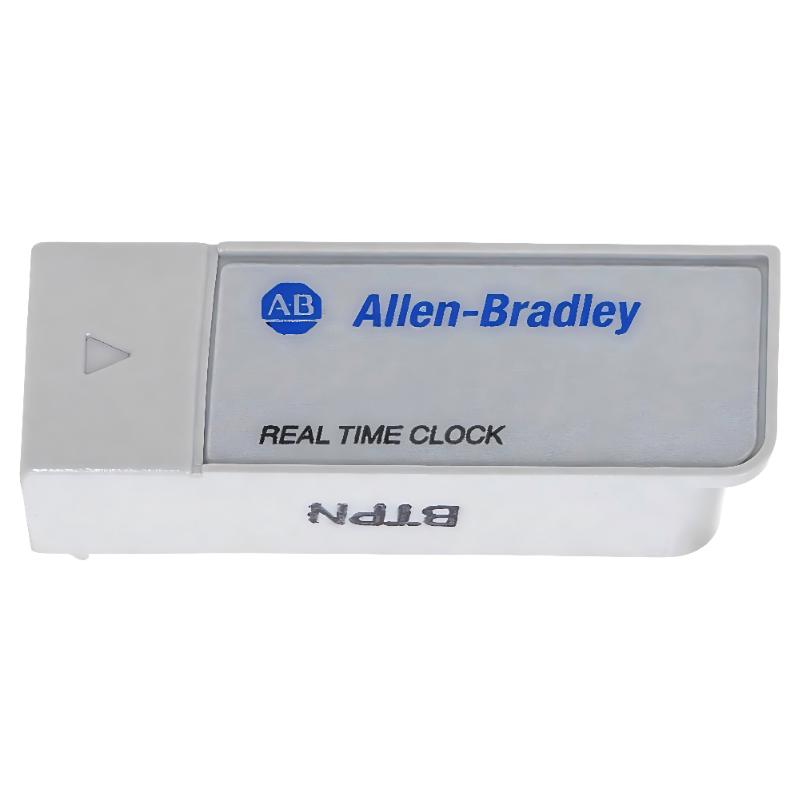

Allen Bradley 1762-RTC MicroLogix 1200 Real-Time Clock Module

Applications

The Allen Bradley 1762-RTC Real-Time Clock Module is designed to provide precise timekeeping for MicroLogix 1200 systems. Its typical applications include:

• Scheduling automated tasks based on real-time events
• Time-stamping process data for logging and diagnostics
• Coordinating time-dependent operations across multiple controllers
• Maintaining system events and alarm histories with accurate timestamps
• Supporting batch process control and production scheduling

This module ensures your automation system operates in perfect sync with real-world time.

Advantages

• Accurate Timekeeping: Ensures precise synchronization of all time-dependent processes
• Compact Design: 80 × 20 × 50 mm, suitable for tight control panel spaces
• Ultra-Lightweight: 0.05 kg (0.11 lb) for easy handling and installation
• Seamless Integration: Fully compatible with MicroLogix 1200 controllers
• Reliable and Durable: Designed for continuous operation in industrial environments
• Improved Data Logging: Facilitates accurate event and alarm logging

Technical FAQs

1. Q: What is the purpose of the 1762-RTC module?
   A: It provides real-time clock functionality for scheduling, logging, and time-stamping events in MicroLogix 1200 systems.
2. Q: Is the module compatible with all MicroLogix 1200 controllers?
   A: Yes, it integrates seamlessly with the MicroLogix 1200 series.
3. Q: How does it maintain time during power loss?
   A: It contains an internal battery that preserves the clock during power outages.
4. Q: Can it handle time-based I/O operations?
   A: Yes, it enables time-triggered tasks within automation programs.
5. Q: What programming software is required?
   A: RSLogix 500 is used to configure and utilize the RTC features.
6. Q: Can it be used for historical event logging?
   A: Yes, it timestamps events, alarms, and system data accurately.
7. Q: Does it require external power?
   A: It draws minimal power from the host MicroLogix 1200 controller.
8. Q: How is the module installed?
   A: It mounts directly onto the MicroLogix 1200 controller or its rack.
9. Q: Is the module maintenance-free?
   A: Yes, aside from periodic battery replacement, it requires no routine maintenance.
10. Q: What is the expected lifespan?
    A: Over 10 years under typical industrial conditions.
