Introduction

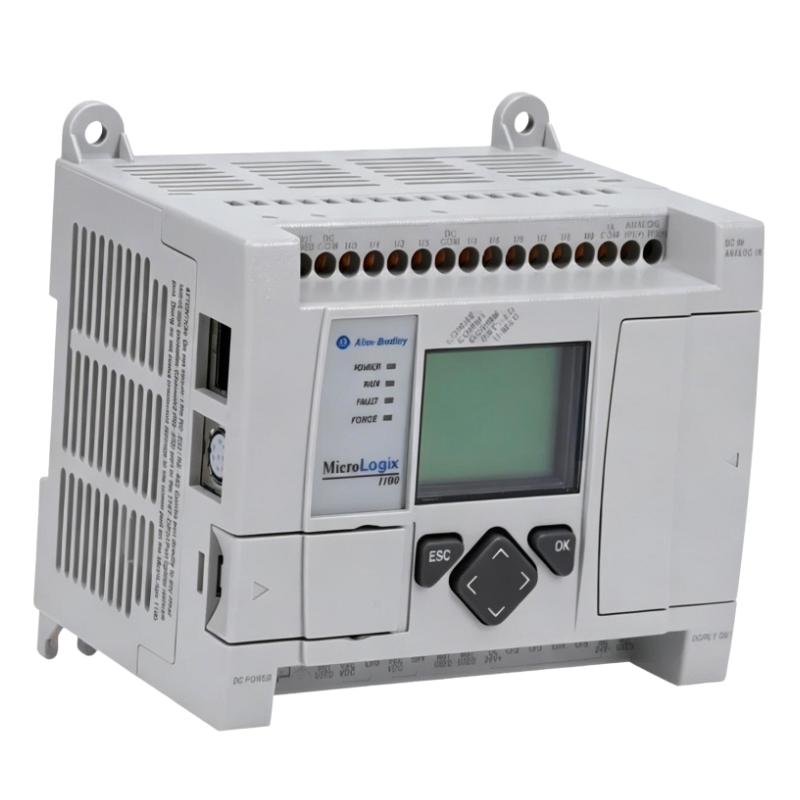

The Allen Bradley 1763-L16BBB MicroLogix 1100 Programmable Controller delivers reliable automation control in a compact footprint. Its robust performance, expandability, and fast processing make it suitable for small-scale manufacturing processes, machinery control, and timed sequence applications.

Technical Specifications

Feature	Specification
Module Type	Programmable Controller
Dimensions (L × W × H)	110 × 87 × 90 mm
Weight	0.9 kg (1.984 lb)
Digital I/O Points	16 points
Expandable Modules	MicroLogix 1100 I/O and communication modules
Programming Software	RSLogix 500
Communication	DF1, Modbus
Operating Environment	Industrial automation
Protection	Industrial-grade durability

Applications

The Allen Bradley 1763-L16BBB MicroLogix 1100 Programmable Controller is designed for small-scale automation systems requiring reliable performance and compact design. Typical applications include:

Controlling machinery and production line equipment
Automating conveyor systems, pumps, and motorized devices
Collecting digital and analog input data for process monitoring
Managing timed and sequential operations in manufacturing
Integrating with MicroLogix 1100 I/O and communication modules for flexible system expansion

This controller is perfect for situations where space is limited but reliability cannot be compromised.

Advantages

Compact and Efficient: 110 × 87 × 90 mm, lightweight at 0.9 kg (1.984 lb)
Reliable Control: Built to perform consistently in industrial environments
Expandable: Supports MicroLogix 1100 I/O and communication modules
Fast Processing: Ensures real-time scanning and responsive system control
Industrial-Grade Durability: Resistant to electrical noise and standard temperature ranges
User-Friendly Integration: Works seamlessly with RSLogix 500 programming software

Technical FAQs

Q: How many digital I/O points are supported?
A: This model supports 16 digital I/O points, expandable with additional modules.
Q: What programming software is compatible?
A: RSLogix 500 is used for configuration and programming.
Q: Which communication protocols are supported?
A: Supports DF1 and Modbus for networked automation.
Q: Can it handle analog modules?
A: Yes, compatible with MicroLogix 1100 analog input/output modules.
Q: Is it suitable for continuous operation?
A: Yes, designed for 24/7 industrial use.
Q: How is it mounted?
A: Panel-mounted using DIN rail or brackets.
Q: Does it provide diagnostics?
A: Yes, monitors I/O status, faults, and errors.
Q: Can it execute timed operations?
A: Yes, supports timers, counters, and time-based sequences.
Q: How fast is the scan time?
A: Optimized for fast scan cycles, typically under 2 ms per I/O point.
Q: What is the expected lifespan of the controller?
A: Over 10 years under standard industrial conditions.
