Introduction

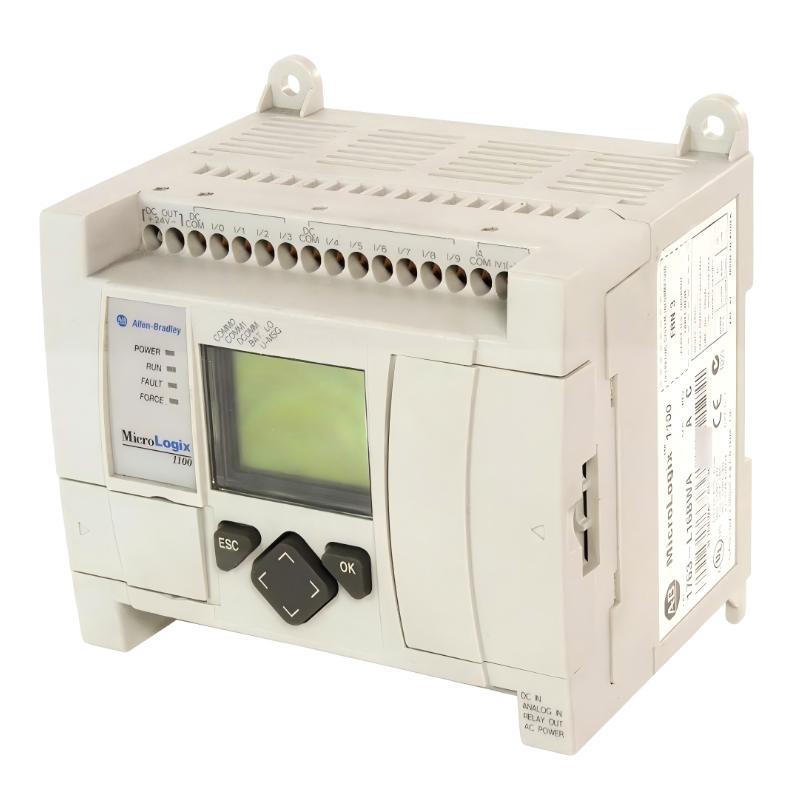

The Allen Bradley 1763-L16BWA MicroLogix 1100 Programmable Controller provides compact, high-performance automation control. Its reliable operation, fast processing, and expandability make it an excellent choice for small-scale manufacturing, machinery control, and automated process applications.

Technical Specifications

Feature	Specification
Module Type	Programmable Controller
Dimensions (L × W × H)	110 × 87 × 90 mm
Weight	0.9 kg (1.984 lb)
Digital I/O Points	16 points
Expandable Modules	MicroLogix 1100 I/O and communication modules
Programming Software	RSLogix 500
Communication	DF1, Modbus
Operating Environment	Industrial automation
Protection	Industrial-grade durability

Applications

The Allen Bradley 1763-L16BWA MicroLogix 1100 Controller is engineered for compact industrial automation systems that require reliable control and flexible expandability. Key applications include:

Controlling small machines, conveyors, pumps, and motors
Automating process sequences and repetitive industrial tasks
Collecting and processing digital and analog input data
Coordinating time-based operations in manufacturing lines
Integrating with MicroLogix 1100 I/O and communication modules for extended functionality

Its compact footprint makes it ideal for control panels with limited space while maintaining full automation capabilities.

Advantages

Compact and Lightweight: 110 × 87 × 90 mm, weighing 0.9 kg (1.984 lb)
Reliable Performance: Built for continuous industrial operation
Expandable: Easily integrates additional MicroLogix 1100 I/O and communication modules
Fast Response: Optimized scan times for real-time control
Industrial-Grade Durability: Resistant to electrical noise, vibration, and standard environmental conditions
Seamless Software Integration: Compatible with RSLogix 500 programming software for efficient setup

Technical FAQs

Q: How many I/O points does the 1763-L16BWA support?
A: 16 digital I/O points, with expandability through additional modules.
Q: Which programming software is required?
A: RSLogix 500 is used for configuration and program development.
Q: What communication protocols are supported?
A: Supports DF1 and Modbus for industrial networking.
Q: Can analog I/O modules be added?
A: Yes, compatible with MicroLogix 1100 analog input/output modules.
Q: Is this controller suitable for 24/7 operation?
A: Yes, designed for continuous industrial use.
Q: How is the controller mounted?
A: Panel-mounted using DIN rails or mounting brackets.
Q: Does it provide diagnostic capabilities?
A: Yes, it monitors I/O status, detects faults, and logs errors.
Q: Can it handle timed operations?
A: Yes, it supports timers, counters, and real-time scheduling.
Q: What is the typical scan time?
A: Optimized for fast scan cycles, typically under 2 ms per I/O point.
Q: What is the expected operational lifespan?
A: Over 10 years under standard industrial conditions.
