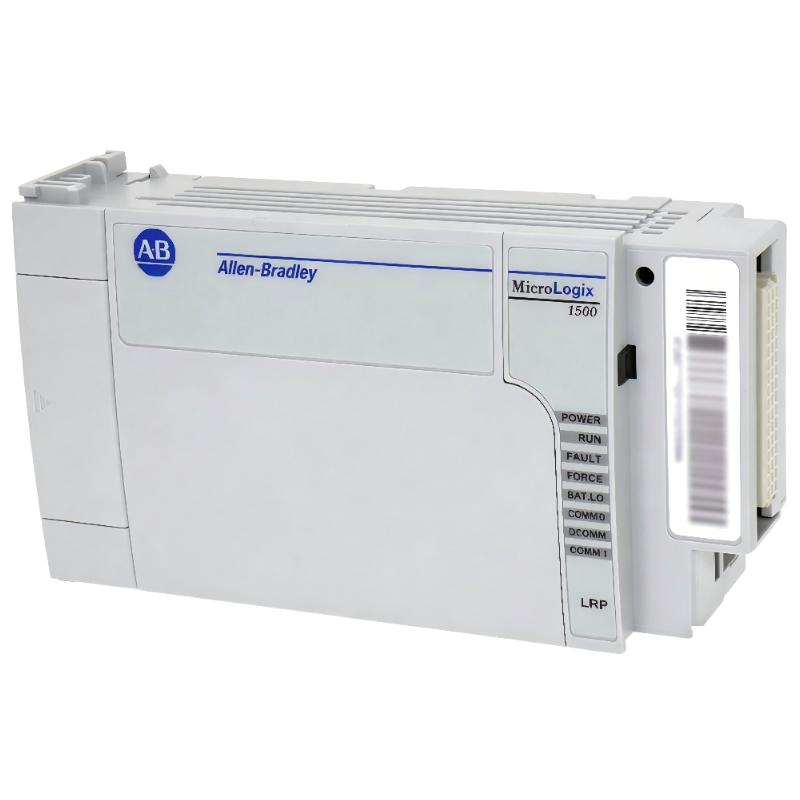

Allen Bradley 1764-LRP/C MicroLogix 1500 Processor Unit
Allen Bradley 1764-LRP/C MicroLogix 1500 Processor Unit
0.0
Points
Brand:Allen Bradley PLC Item No.:1764-LRP/C Product Origin:USA Product Dimensions:180 × 50 × 100 mm Product Weight:0.23 kg Payment:T/T, Western Union, Credit Card Goods_stock:15 Shipping Port:Xiamen, China Lead Time:1-3 Days Condition:Brand New And Original Warranty:1 Year Certificate:COO
The Allen Bradley 1764-LRP/C MicroLogix 1500 Processor Unit delivers reliable, high-speed control for mid-range automation systems. Its lightweight design and robust performance make it an ideal choice for machinery control, process automation, and integration with MicroLogix 1500 I/O and communication modules.
Technical Specifications
Feature
Specification
Module Type
Processor Unit
Dimensions (L × W × H)
180 × 50 × 100 mm
Weight
0.23 kg (0.507 lb)
I/O Support
Compatible with MicroLogix 1500 modules
Expandable Modules
MicroLogix 1500 I/O and communication modules
Programming Software
RSLogix 500
Communication
DF1, Modbus, optional Ethernet
Operating Environment
Industrial automation
Protection
Industrial-grade durability
Applications
The Allen Bradley 1764-LRP/C MicroLogix 1500 Processor Unit is designed for mid-range industrial automation where precise control and modular expansion are required. Common applications include:
Central processing for MicroLogix 1500 control systems
Coordinating complex sequences in machinery and conveyor operations
Supervising pumps, motors, and automated production equipment
Collecting and processing digital and analog signals for industrial monitoring
Integrating with I/O and communication modules for flexible system expansion
This processor unit acts as the core intelligence of MicroLogix 1500 systems, delivering reliable real-time control.
Advantages
Compact and Lightweight: 180 × 50 × 100 mm, weighing 0.23 kg (0.507 lb)
Reliable Industrial Performance: Designed for 24/7 operation under standard industrial conditions
Expandable: Works with MicroLogix 1500 I/O and communication modules
High-Speed Processing: Ensures responsive real-time control and fast scan times
Durable Design: Resistant to electrical noise, vibration, and temperature fluctuations
Seamless Software Integration: Fully compatible with RSLogix 500 for programming and diagnostics
Technical FAQs
Q: What role does this processor unit play in the system? A: It serves as the central processing unit, executing control logic and coordinating I/O operations.
Q: Which programming software is used? A: RSLogix 500 is fully compatible for programming and configuration.
Q: How does it communicate with other modules? A: Supports DF1, Modbus, and optional Ethernet modules for networked automation.
Q: Can it handle both digital and analog I/O modules? A: Yes, compatible with MicroLogix 1500 digital and analog modules.
Q: Is this processor unit suitable for continuous operation? A: Yes, it is designed for uninterrupted industrial use.
Q: How is it mounted? A: Easily installed in a control panel with DIN rails or brackets.
Q: Does it offer diagnostic capabilities? A: Yes, it monitors system faults, I/O status, and provides error logging.
Q: Can it execute timed or sequential operations? A: Yes, supports timers, counters, and real-time program sequences.
Q: What is the typical scan time? A: Optimized for fast scan cycles to ensure real-time responsiveness.
Q: What is the expected operational lifespan? A: Over 10 years under standard industrial conditions.
