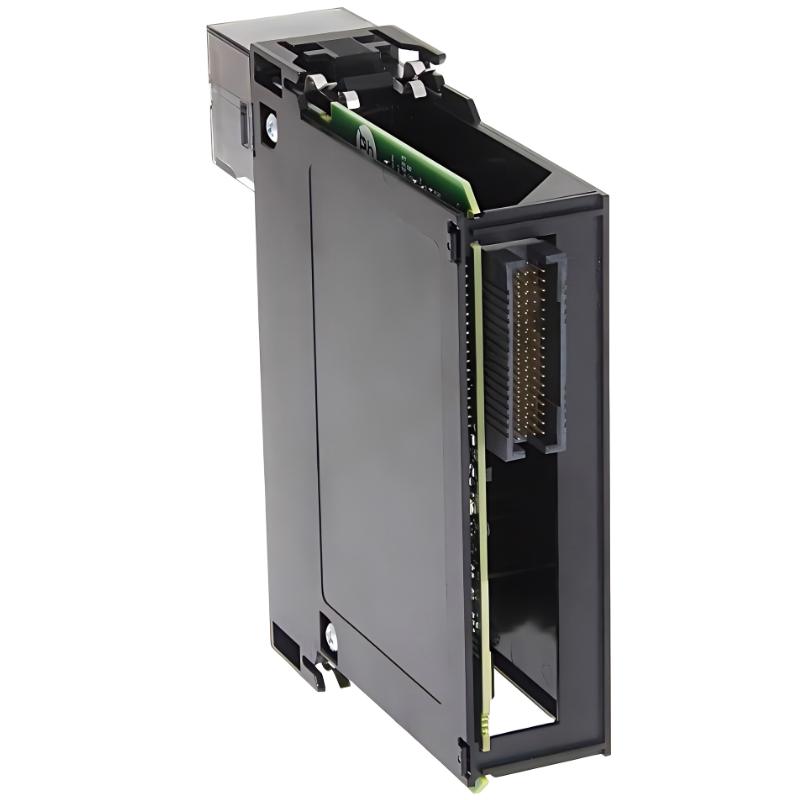

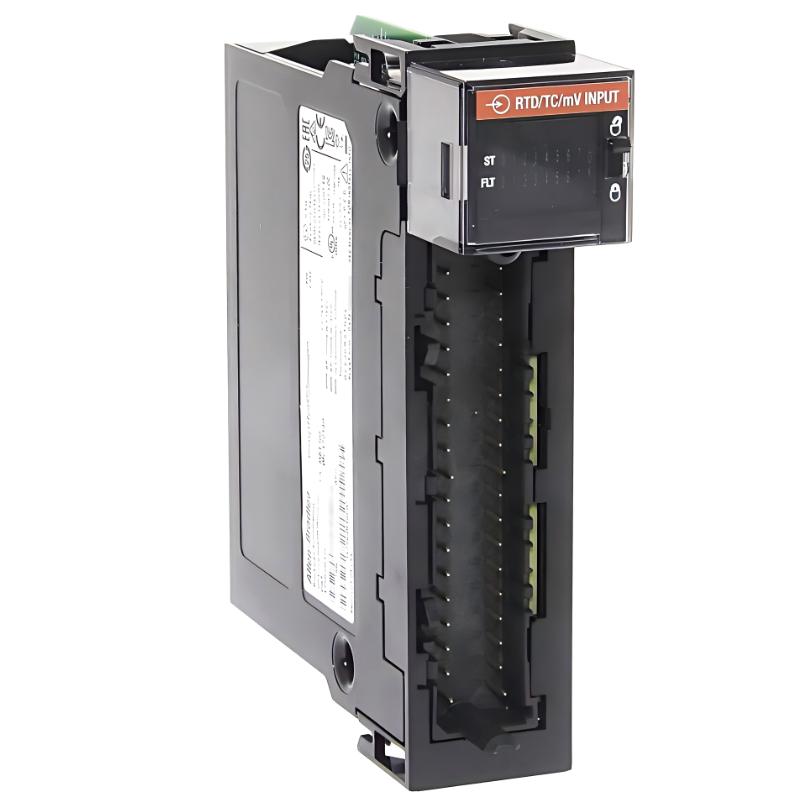

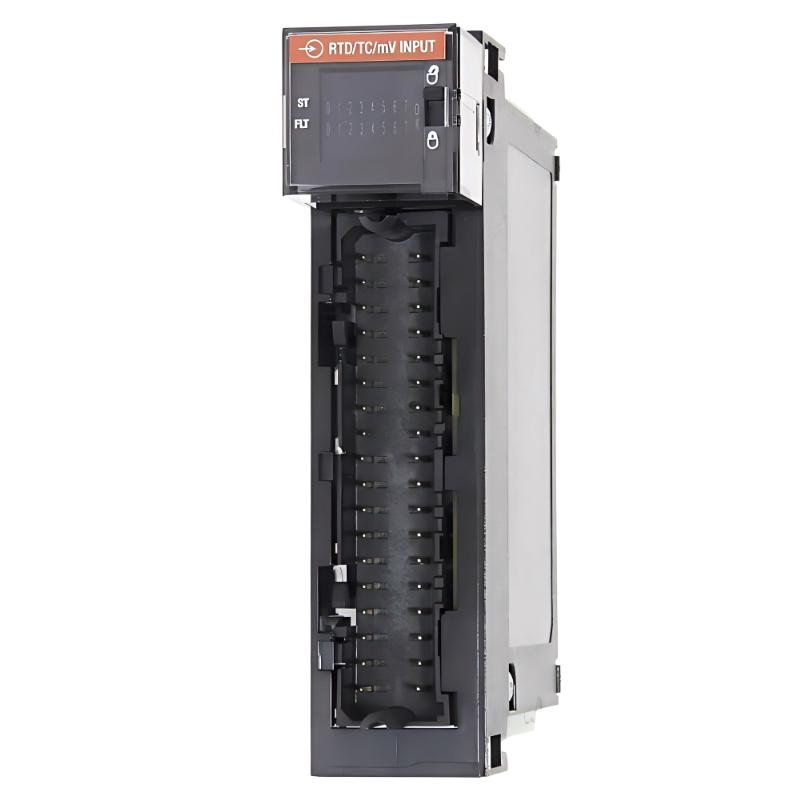

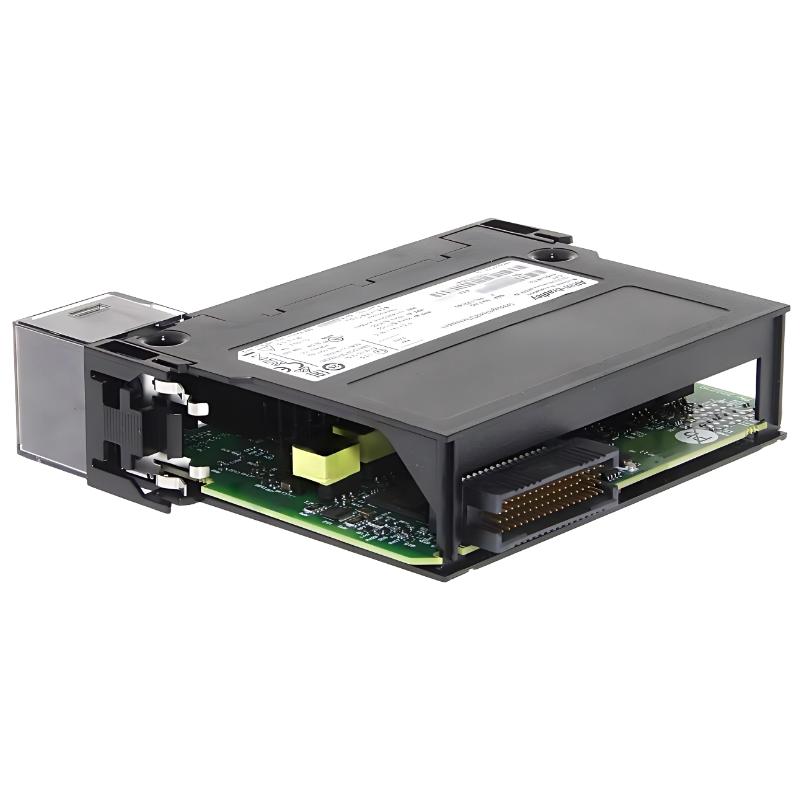

Allen Bradley 1756-IRT8I ControlLogix RTD/Thermocouple Input Module
Allen Bradley 1756-IRT8I ControlLogix RTD/Thermocouple Input Module
0.0
Points
Brand:Allen Bradley PLC Item No.:1756-IRT8I Product Origin:USA Product Dimensions:144.57 x 22 x 105.42 mm Product Weight:0.45 kg Payment:T/T, Western Union, Credit Card Goods_stock:15 Shipping Port:Xiamen, China Lead Time:1-3 Days Condition:Brand New And Original Warranty:1 Year Certificate:COO
The Allen Bradley 1756-IRT8I ControlLogix RTD/Thermocouple Input Module is designed for high-accuracy temperature measurement in industrial automation systems. Supporting both RTD and thermocouple inputs, it enables reliable thermal monitoring across a wide range of process applications. Integrated within the ControlLogix platform, the module delivers stable performance, fast response, and dependable operation for industries requiring precise temperature control and equipment protection.
Technical Specifications
Parameter
Specification
Product Model
1756-IRT8I
Product Type
RTD/Thermocouple Input Module
Series
ControlLogix
Number of Channels
8 Inputs
Supported Signals
RTD / Thermocouple
Dimensions
144.57 × 22 × 105.42 mm
Weight
0.45 kg
System Compatibility
Allen Bradley ControlLogix
Installation Type
Chassis Mount Module
Application
Industrial Temperature Monitoring
Recommended Related Models
Model Number
Product Name
1756-IF8I
Analog Input Module
1756-OF8I
Analog Output Module
1756-L81E
ControlLogix Controller
1756-EN2TR
Ethernet Communication Module
Popular Related Models
Model Number
Product Name
1756-IB16I
DC Digital Input Module
1756-OB16E
DC Output Module
1756-PA75
AC Power Supply
1756-TBCH
Removable Terminal Block
Applications
• Temperature monitoring in industrial automation and process control systems.
• RTD and thermocouple signal acquisition in ControlLogix platforms.
• Heat treatment, furnace, and thermal process automation applications.
• Power generation temperature monitoring and equipment protection systems.
• Oil and gas process temperature measurement and control.
• Chemical and pharmaceutical production requiring precise thermal monitoring.
• Food and beverage processing systems with multi-point temperature sensing.
• Manufacturing environments requiring accurate thermal data acquisition.
Key Advantages
• Supports both RTD and thermocouple temperature input signals.
• High-precision temperature measurement for critical industrial processes.
• Seamless integration with Allen Bradley ControlLogix systems.
• Fast response performance for real-time temperature monitoring.
• Improves process stability and operational safety.
• Industrial-grade reliability for harsh operating environments.
• Enhances control accuracy in thermal management applications.
Technical FAQs
Q1: What is the primary function of the 1756-IRT8I module?
A1: It acquires and processes RTD and thermocouple temperature signals in ControlLogix systems.
Q2: What types of sensors are supported?
A2: It supports RTD and thermocouple temperature sensors.
Q3: How many input channels does this module provide?
A3: It provides 8 temperature input channels.
Q4: Which systems is this module compatible with?
A4: It is compatible with Allen Bradley ControlLogix PLC systems.
Q5: Where is this module commonly used?
A5: It is used in manufacturing, process industries, and power generation applications.
Q6: Does it support accurate temperature measurement?
A6: Yes, it is designed for high-precision thermal signal processing.
Q7: Can it operate continuously in industrial environments?
A7: Yes, it is built for stable 24/7 industrial operation.
Q8: What is the advantage of RTD and thermocouple compatibility?
A8: It provides flexibility for different temperature sensing applications.
Q9: Does it improve process control stability?
A9: Yes, accurate temperature monitoring enhances process consistency and safety.
Q10: Why are temperature input modules important in automation systems?
A10: They provide essential thermal data for monitoring, protection, and process optimization.
