Product Introduction

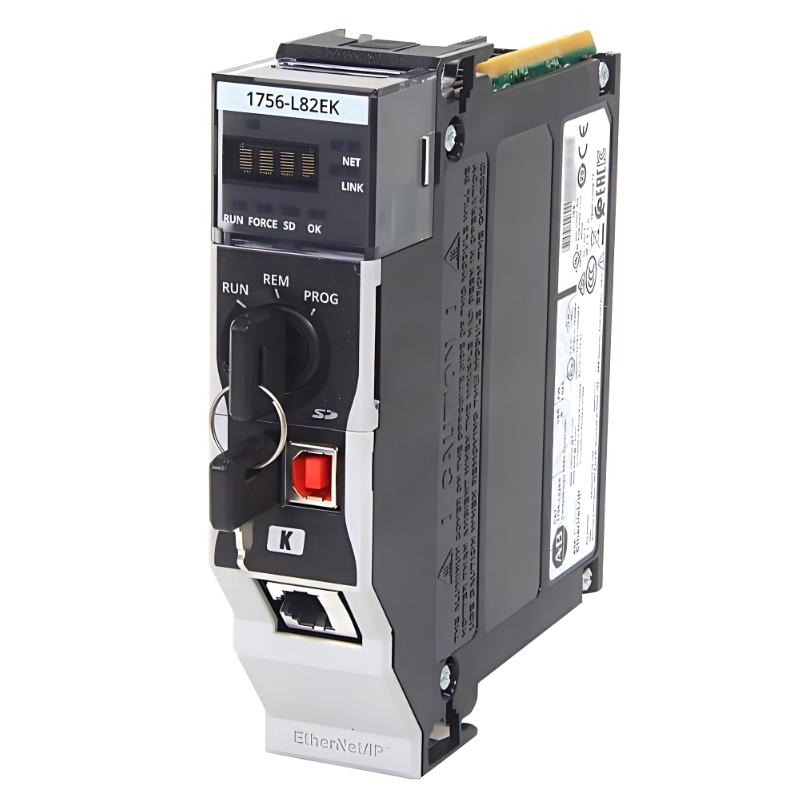

The Allen Bradley 1756-L82EK ControlLogix Logix5580 Processor is engineered for high-performance industrial automation systems requiring advanced control capabilities, integrated networking, and exceptional processing speed. Designed for modern smart manufacturing environments, this processor provides reliable operation, enhanced security features, and scalable architecture for complex industrial applications. Its powerful Logix5580 platform helps improve operational efficiency while supporting future-ready automation expansion.

Technical Specifications

Specification	Details
Product Series	ControlLogix
Model Number	1756-L82EK
Processor Family	Logix5580
Communication Port	Integrated Ethernet/IP
Programming Software	Studio 5000 Logix Designer
Installation Type	Chassis Mount
System Architecture	Modular Control System
Industrial Application	Factory & Process Automation
Dimensions	145.2 × 34.6 × 139.6 mm
Weight	0.394 kg

Recommended Related Models

Model Number	Product Name
1756-EN4TR	Dual-port Ethernet/IP Communication Module
1756-IB16D	Digital Input Diagnostic Module
1756-OF8H	High-Speed Analog Output Module
1756-PA75	Standard Power Supply Module

Popular Related Models

Model Number	Product Name
1756-L81E	ControlLogix Logix5580 Processor
1756-L83E	ControlLogix Logix5580 Processor
1756-L84E	ControlLogix Logix5580 Processor
1756-RM2	Redundancy Module

Core Applications

• Advanced factory automation systems requiring high-speed data processing and integrated motion control.

• Large-scale process control environments with distributed I/O and network communication requirements.

• Automotive production lines supporting robotics, assembly coordination, and real-time diagnostics.

• Packaging and material handling systems demanding reliable multi-axis synchronization performance.

• Energy, utility, and infrastructure facilities requiring secure and scalable industrial control solutions.

Key Advantages

• High-performance Logix5580 architecture optimized for demanding industrial automation applications.

• Enhanced security and network communication capabilities for modern connected production systems.

• Fast processing speed for complex control algorithms and large automation projects.

• Flexible modular platform supporting seamless future expansion and system upgrades.

• Reliable industrial-grade design suitable for continuous 24/7 manufacturing environments.

Technical FAQs

1. Which software is used to program the 1756-L82EK processor?
The processor is configured and programmed using Studio 5000 Logix Designer software.

2. Does the 1756-L82EK support Ethernet/IP communication?
Yes, the processor includes integrated Ethernet/IP communication capabilities.

3. Is this controller suitable for motion control applications?
Yes, it supports integrated motion control for advanced automation systems.

4. Can the processor be used in redundant systems?
Yes, redundancy configurations are supported when combined with compatible system modules.

5. What industries commonly use the 1756-L82EK?
It is widely used in automotive, manufacturing, energy, packaging, and process automation industries.

6. Does the processor support remote diagnostics?
Yes, advanced diagnostics and remote monitoring functions are supported through network integration.

7. Can firmware updates be performed without replacing hardware?
Yes, firmware upgrades can be completed using Rockwell Automation software tools.

8. What communication networks are supported?
The controller supports Ethernet/IP and additional industrial protocols through ControlLogix modules.

9. Is the processor compatible with distributed I/O architectures?
Yes, it fully supports distributed I/O and scalable ControlLogix system configurations.

10. What is the main benefit of the Logix5580 platform?
The platform delivers higher processing performance, enhanced security, and improved system scalability.
