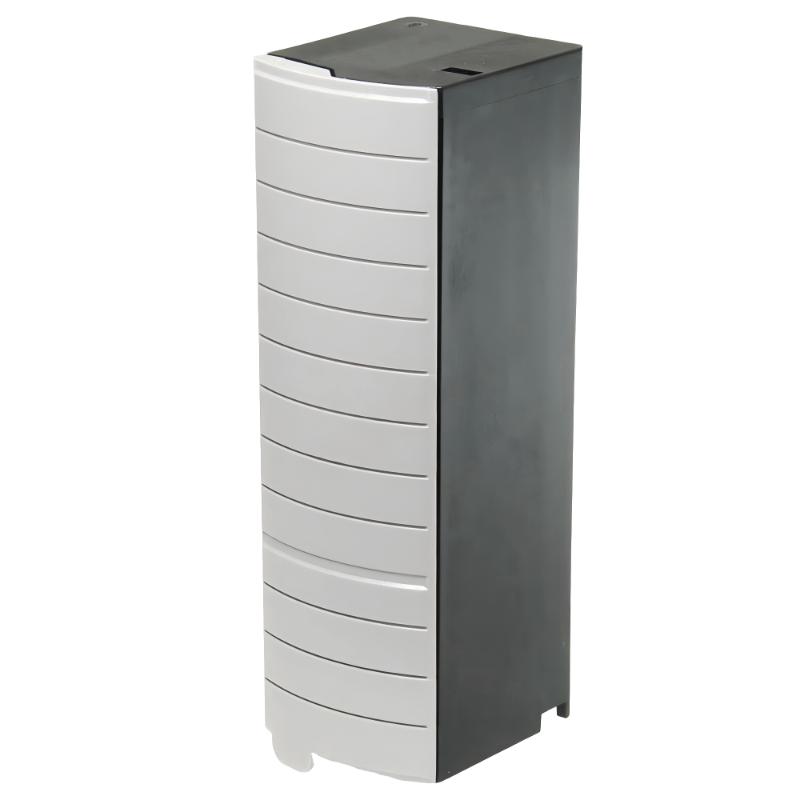

Allen Bradley 1756-TBE ControlLogix Deep Terminal Block Housing
Allen Bradley 1756-TBE ControlLogix Deep Terminal Block Housing
0.0
Points
Brand:Allen Bradley PLC Item No.:1756-TBE Product Origin:USA Product Dimensions:132 x 54 x 110 mm Product Weight:0.1 kg Payment:T/T, Western Union, Credit Card Goods_stock:15 Shipping Port:Xiamen, China Lead Time:1-3 Days Condition:Brand New And Original Warranty:1 Year Certificate:COO
The Allen Bradley 1756-TBE ControlLogix Deep Terminal Block Housing is designed to provide secure and organized wiring termination for ControlLogix automation systems. Its deep housing structure improves wiring space management, making installation and maintenance more efficient in complex industrial control cabinets. Built for reliability and ease of use, it supports clean panel design and helps reduce wiring errors in demanding automation environments.
Technical Specifications
Specification
Details
Product Series
ControlLogix
Model Number
1756-TBE
Product Type
Deep Terminal Block Housing
Function
Wiring Termination Housing
Installation Type
ControlLogix Chassis Mount
Material Type
Industrial Grade Housing
Application
Electrical Panel Wiring
Environmental Suitability
Industrial Automation Systems
Dimensions
132 × 54 × 110 mm
Weight
0.1 kg
Recommended Related Models
Model Number
Product Name
1756-TBNH
ControlLogix Standard Terminal Block Housing
1756-IB16
Digital Input Module
1756-OB16E
Digital Output Module
1756-A7
7-Slot ControlLogix Chassis
Popular Related Models
Model Number
Product Name
1756-TBS6H
Standard Terminal Base Module
1756-IF16
Analog Input Module
1756-OF8
Analog Output Module
1756-PA75
ControlLogix AC Power Supply
Core Applications
• Secure wiring termination for ControlLogix I/O and communication modules in industrial control cabinets.
• Industrial automation systems needing stable signal distribution and reduced wiring errors.
• Maintenance-friendly installations where quick module replacement and wiring clarity are essential.
• Large-scale PLC systems requiring standardized terminal block housing for consistent cabinet design.
Key Advantages
• Provides secure and structured wiring termination for ControlLogix modules.
• Deep housing design improves wiring space and reduces installation congestion.
• Enhances system reliability by minimizing loose connections and wiring faults.
• Simplifies maintenance and module replacement in industrial control panels.
• Compact and lightweight design suitable for high-density cabinet layouts.
