Brand:Allen Bradley PLC Item No.:Allen Bradley 1769-OF8V Product Origin:USA Product Dimensions:118 x 35 x 87 mm Product Weight:0.32 kg Payment:T/T, Western Union, Credit Card Goods_stock:15 Shipping Port:Xiamen, China Lead Time:1-3 Days Condition:Brand New And Original Warranty:1 Year Certificate:COO

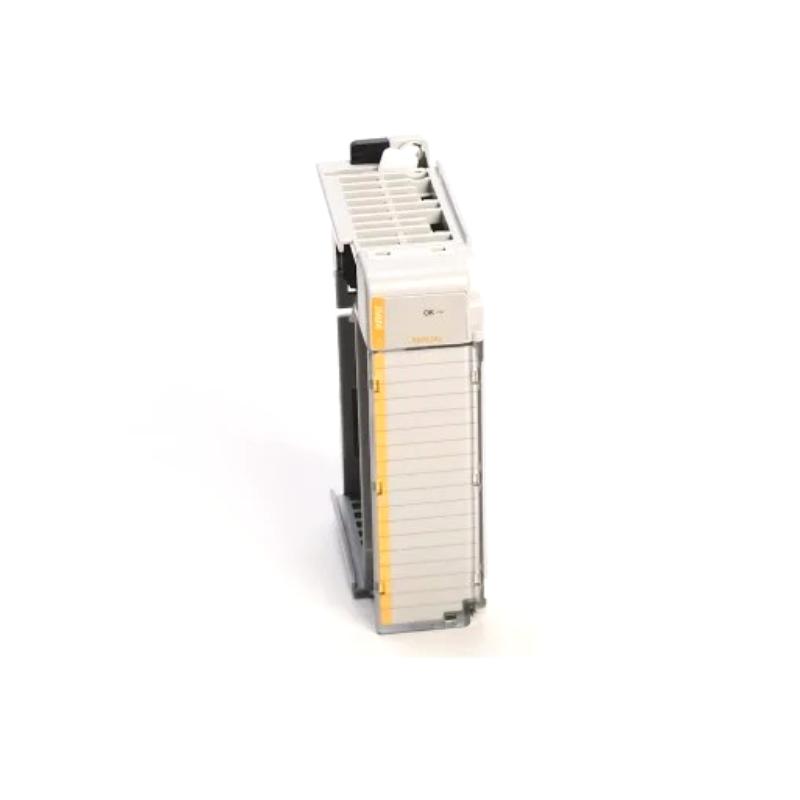

The Allen Bradley 1769-OF8V is an eight-channel analog output module designed for Compact I/O platforms. It is used in automation systems that require stable voltage output signals for process control, machine regulation, and field device operation.
The module supports CompactLogix controllers and integrates into distributed control architectures where accurate analog signal transmission is required. Its compact structure allows efficient installation inside control cabinets with limited panel space.
Module Specifications and Hardware Details
Parameter
Specification
Manufacturer
Allen Bradley
Catalog Number
1769-OF8V
Module Type
Analog Output Module
Series
Compact I/O
Output Channels
8
Signal Type
Voltage Output
Output Range
0 to 10V DC
Resolution
16-bit
Current Draw
145 mA at 5.1V DC
Bus Current Draw
120 mA at 24V DC
Mounting Method
DIN Rail / Panel Mount
Wiring Category
Category 2
Operating Temperature
0°C to 60°C
Storage Temperature
-40°C to 85°C
Dimensions
Approx. 118 x 35 x 87 mm
Weight
Approx. 0.32 kg
Compatible Platforms
CompactLogix, MicroLogix 1500
Related Modules Often Used Together
Model
Description
1769-IF8
Analog Input Module
1769-OF4VI
Analog Voltage/Current Output Module
1769-PA2
Compact I/O Power Supply
1769-ECR
End Cap Module
1769-OB16
Digital Output Module
1769-IA16
Digital Input Module
Common Allen Bradley Modules in Automation Projects
Model
Module Function
1756-L81E
ControlLogix Controller
1756-EN2T
EtherNet/IP Communication Module
1734-AENT
POINT I/O Ethernet Adapter
5069-IB16
Compact 5000 Digital Input Module
2711P-T10C4D8
PanelView Plus Terminal
2080-LC50-48QWB
Micro850 Controller
Typical Industrial Applications
The 1769-OF8V module is commonly installed in systems requiring analog voltage control and signal transmission. It is suitable for both standalone equipment and integrated production lines.
Typical application areas include:
Conveyor systems
Packaging equipment
HVAC control systems
Water treatment systems
Pump and fan control
Process automation
Material handling systems
Industrial machine control
Its multi-channel design allows multiple field devices to be controlled from a single module.
Operational Features and Benefits
The 1769-OF8V is designed for compact automation systems where stable analog output performance and straightforward integration are required.
Key features include:
Eight independent voltage output channels
Compact I/O platform compatibility
DIN rail and panel mounting support
High-resolution analog signal handling
Flexible integration with CompactLogix systems
Suitable for distributed I/O architectures
Simplified wiring structure for control panels
The module is widely used in applications where voltage-based control signals are required for industrial devices and process equipment.
Technical FAQs
1. What does the 1769-OF8V module do?
It provides eight analog voltage output channels for industrial control applications.
2. What output signal range does the module support?
The module supports 0 to 10V DC voltage outputs.
3. How many output channels are available?
The module includes eight analog output channels.
4. Which controllers are compatible with the 1769-OF8V?
It is commonly used with CompactLogix and MicroLogix 1500 systems.
5. Can the module output current signals?
No. This model is designed for voltage output only.
6. What mounting options are supported?
The module can be mounted on a DIN rail or directly on a panel.
7. What industries use this module?
It is used in manufacturing, water treatment, HVAC, packaging, and process automation systems.
8. Is the module suitable for compact control cabinets?
Yes. Its compact size allows installation in limited cabinet space.
9. What is the operating temperature range?
The operating temperature range is 0°C to 60°C.
10. Does the module require a separate power supply?
The module operates within the Compact I/O system and is typically used with compatible Compact I/O power supplies.
