Brand:Allen Bradley PLC Item No.:Allen Bradley 1769-OG16 Product Origin:USA Product Dimensions:118 x 35 x 87 mm Product Weight:0.30 kg Payment:T/T, Western Union, Credit Card Goods_stock:15 Shipping Port:Xiamen, China Lead Time:1-3 Days Condition:Brand New And Original Warranty:1 Year Certificate:COO

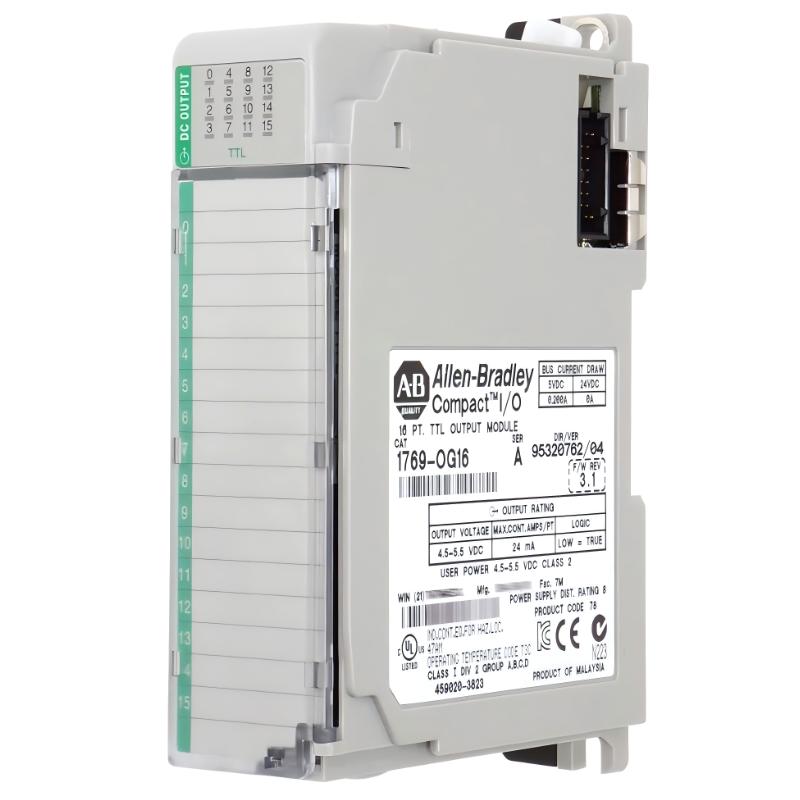

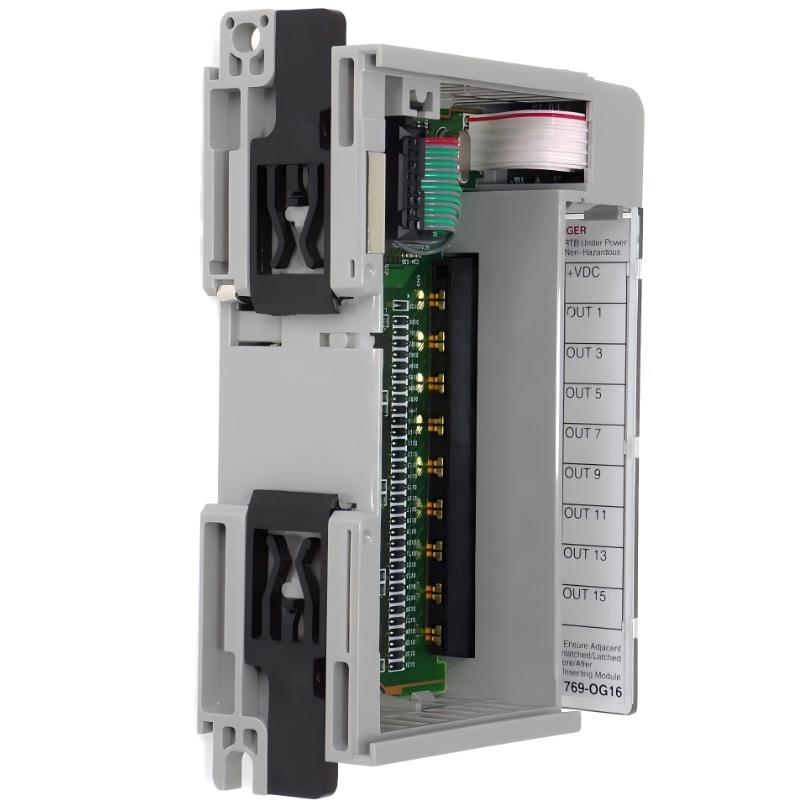

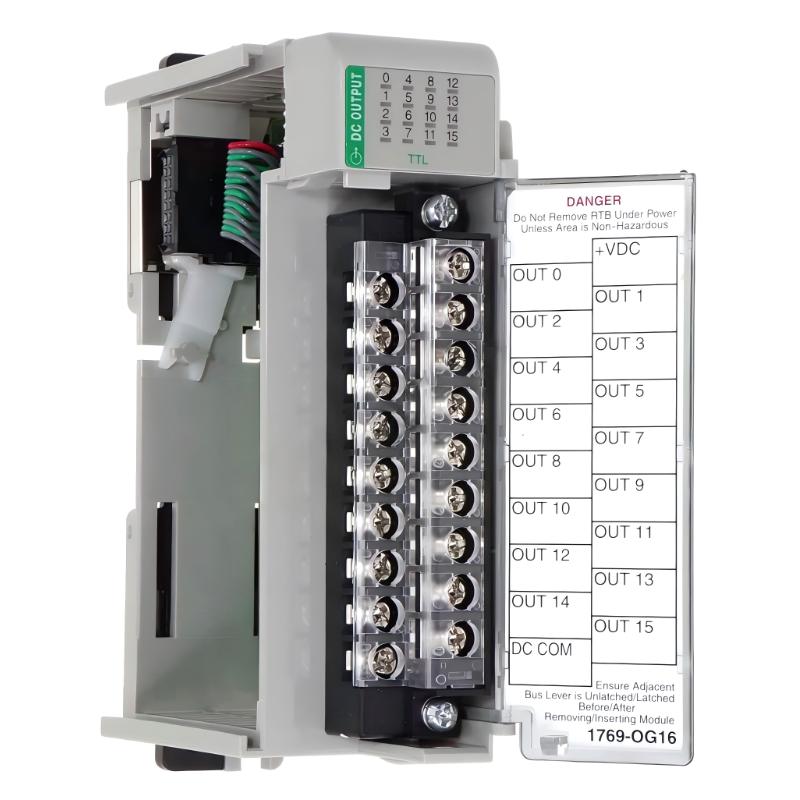

The Allen Bradley 1769-OG16 is a 16-point digital output module developed for Compact I/O control platforms. The module is designed for applications requiring TTL-compatible output signals in compact automation environments.
Its high-density channel configuration allows efficient control of external devices while reducing panel space requirements. The module is commonly integrated into CompactLogix and distributed I/O systems where reliable digital signal switching is required.
Electrical Specifications and Physical Data
Specification
Details
Manufacturer
Allen Bradley
Catalog Number
1769-OG16
Module Type
Digital Output Module
Product Family
Compact I/O
Number of Outputs
16
Output Type
TTL Sourcing Outputs
Voltage Category
5V DC
Backplane Current Draw
150 mA at 5.1V DC
Signal Delay
Typical industrial switching response
Isolation
Group Isolated
Mounting Options
DIN Rail / Panel Mount
Operating Temperature
0°C to 60°C
Storage Temperature
-40°C to 85°C
Dimensions
Approx. 118 x 35 x 87 mm
Weight
Approx. 0.30 kg
Compatible Controllers
CompactLogix Controllers
Related Compact I/O Modules
Model
Description
1769-IG16
Digital Input Module
1769-OB16
16-Point Digital Output Module
1769-IA16
AC Digital Input Module
1769-PA2
Compact I/O Power Supply
1769-ECR
End Cap Terminator
1769-IF4
Analog Input Module
Frequently Used Allen Bradley Modules
Model
Function
1756-EN2T
EtherNet/IP Communication Module
1756-L72
ControlLogix Processor
1734-AENT
Ethernet I/O Adapter
5069-OB16
Digital Output Module
2711P-K10C4D8
PanelView Operator Terminal
2080-LC50-24QWB
Micro850 Controller
Industrial Application Areas
The 1769-OG16 module is used in automation systems that require compact digital output control with TTL-level signaling. It is suitable for machine-level applications where fast and consistent digital switching is necessary.
Common applications include:
Packaging machinery
Electronic assembly systems
Conveyor control
Automated testing equipment
Material handling systems
Production line control
OEM machine integration
Industrial process equipment
The module can be installed as part of local or distributed Compact I/O configurations.
Functional Characteristics
The 1769-OG16 combines compact installation dimensions with high channel density, making it suitable for systems with multiple digital output requirements.
Main characteristics include:
Sixteen TTL-compatible output channels
Compact housing for reduced cabinet usage
Integration with CompactLogix architectures
DIN rail and panel mounting flexibility
Group-isolated output structure
Suitable for machine control environments
Simplified wiring organization
Its design supports stable operation in industrial automation panels where efficient digital output management is required.
Technical FAQs
1. What is the primary function of the 1769-OG16?
The module provides 16 TTL digital output channels for industrial control systems.
2. Which control platforms support this module?
It is designed for Compact I/O and CompactLogix systems.
3. What type of outputs does the module use?
The module uses TTL sourcing digital outputs.
4. How many outputs are available on the module?
The 1769-OG16 includes 16 output points.
5. Can the module be DIN rail mounted?
Yes. Both DIN rail and panel mounting are supported.
6. What industries commonly use this module?
It is commonly used in manufacturing, machine automation, assembly systems, and industrial equipment control.
7. What is the operating temperature range?
The operating range is 0°C to 60°C.
8. Is the module suitable for compact cabinets?
Yes. The compact structure helps reduce required installation space.
9. Does the module support distributed I/O systems?
Yes. It can be integrated into distributed Compact I/O architectures.
10. What is the voltage category of the outputs?
The module is designed for 5V DC TTL output applications.
