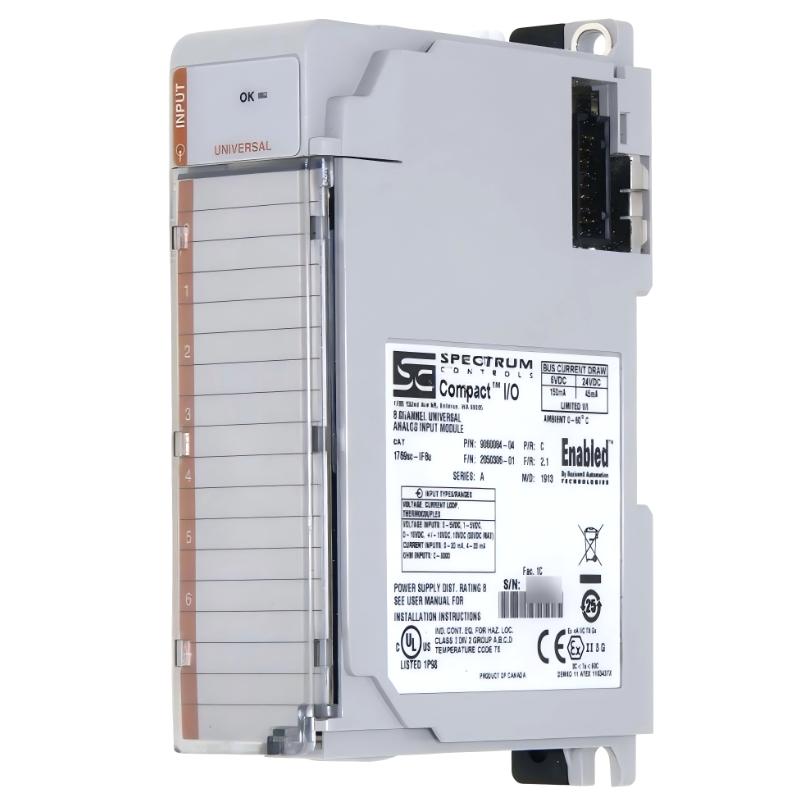

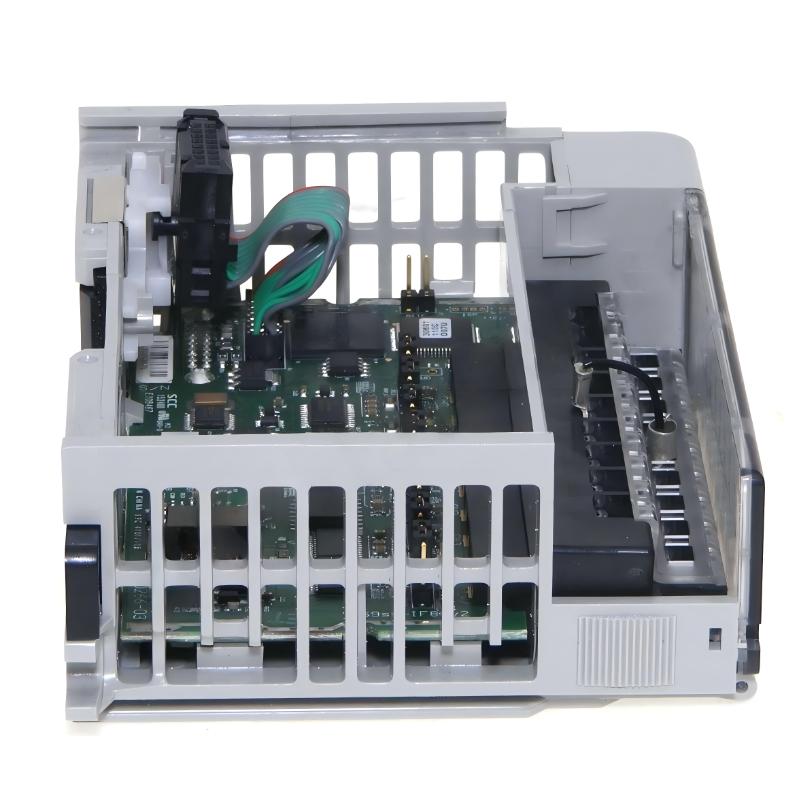

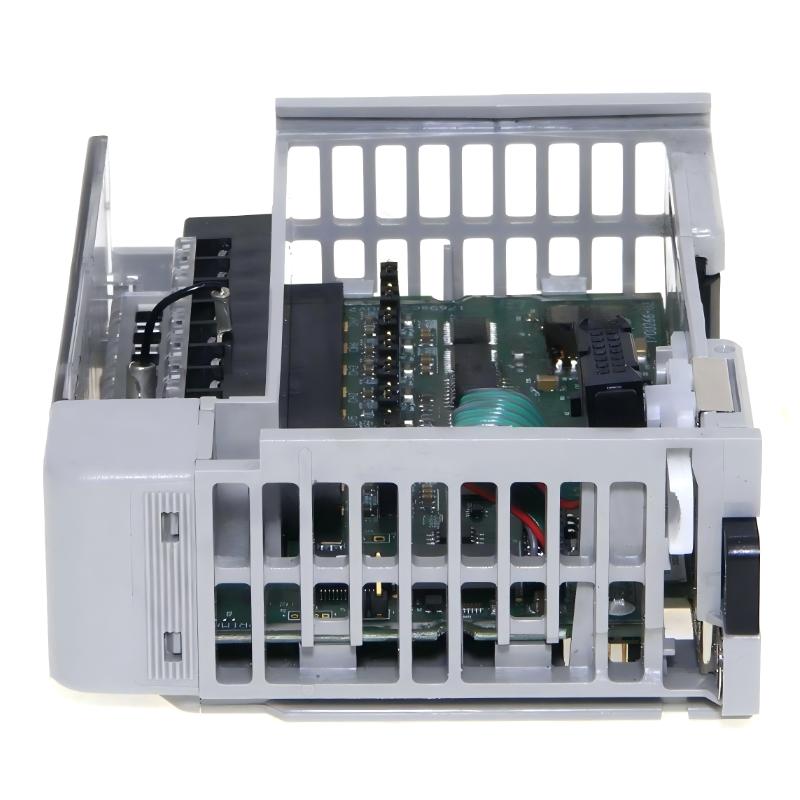

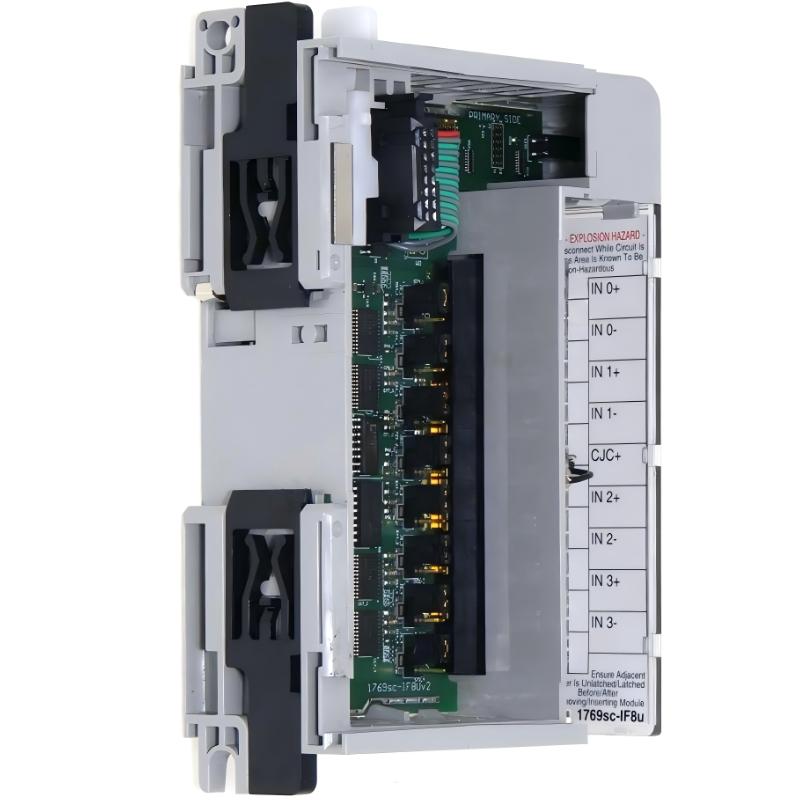

The Allen Bradley 1769SC-IF8U is a Spectrum Controls “Encompass Partner” universal analog input module designed for use with CompactLogix and MicroLogix 1500 platforms. It is engineered for applications requiring flexible signal acquisition across multiple sensor types within a single module.
Unlike standard analog input modules, the 1769SC-IF8U supports mixed signal configurations including voltage, current, thermocouple, RTD, and resistance inputs, allowing engineers to consolidate multiple measurement functions into one I/O slot.
Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | Spectrum Controls (for Allen-Bradley platform) |
| Catalog Number | 1769SC-IF8U |
| Module Type | Universal Analog Input Module |
| Supported Platforms | CompactLogix / MicroLogix 1500 |
| Number of Channels | 8 (configurable) |
| Input Types | Voltage, Current, Thermocouple, RTD, Resistance |
| Voltage Range | ±50 mV, ±100 mV, 0–5V, 1–5V, 0–10V, ±10V |
| Current Input | 0–20 mA / 4–20 mA |
| RTD Types | PT385/3916, Ni, Cu-based RTDs |
| Thermocouple Types | J, K, T, E, R, S, B, N, C |
| Resolution | 16-bit |
| Channel Flexibility | Mixed configuration supported |
| Update Rate | Configurable (down to high-speed sampling range) |
| Isolation | Channel-to-channel and system isolation |
| Mounting | 1769 Compact I/O chassis |
| Operating Temperature | 0°C to 60°C |
| Storage Temperature | -40°C to 85°C |
| Dimensions | Approx. 118 × 35 × 87 mm |
| Weight | Approx. 0.33–0.84 kg (variant dependent) |
System Role in CompactLogix Architecture
The 1769SC-IF8U is typically used in applications where multiple signal types must be collected without installing separate dedicated modules. It reduces rack space requirements and simplifies I/O architecture in process-heavy systems.
It is commonly deployed when:
- Multiple sensor technologies coexist in one machine
- Space optimization in Compact I/O racks is required
- High-mix process data acquisition is needed
- Engineers want to reduce module variety in spare parts inventory
