Introduction

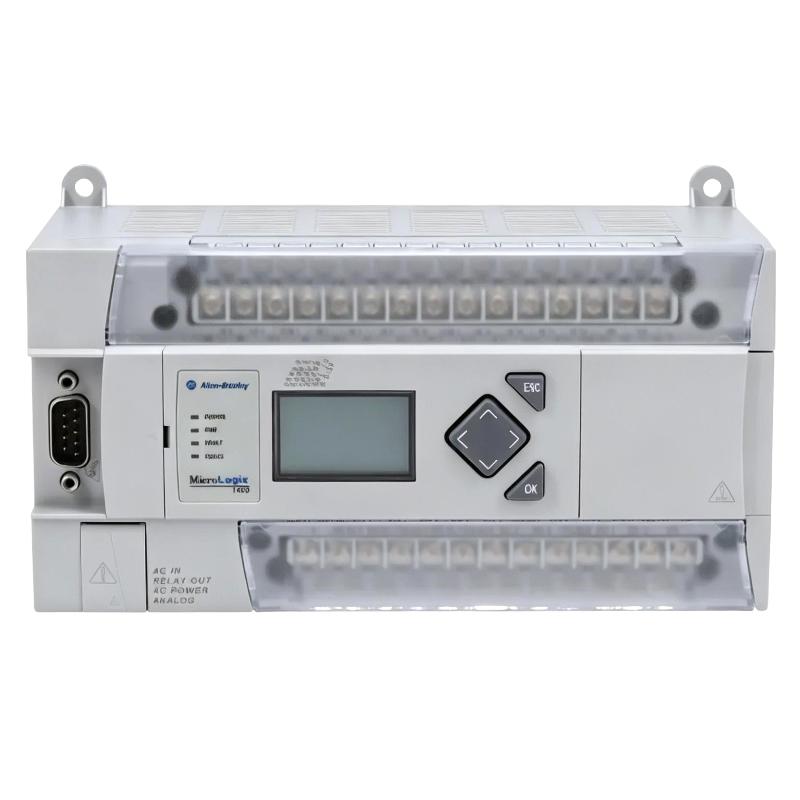

The Allen-Bradley 1766-L32AWAA MicroLogix 1400 Programmable Controller delivers reliable performance, flexible connectivity, and scalable I/O options for industrial automation. Its compact footprint, industrial-grade durability, and ease of programming make it a dependable solution for machine control, process automation, and supervisory applications.

Technical Specifications

Feature	Specification
Model Number	1766-L32AWAA
Module Type	MicroLogix 1400 Programmable Controller
Dimensions (L x W x H)	180 × 87 × 90 mm
Weight	0.9 kg (1.98 lb)
Operating Temperature	0°C to 55°C
Communication Ports	Ethernet, RS-232/RS-485
Memory	Onboard non-volatile program storage
I/O Expansion	Local and remote I/O modules

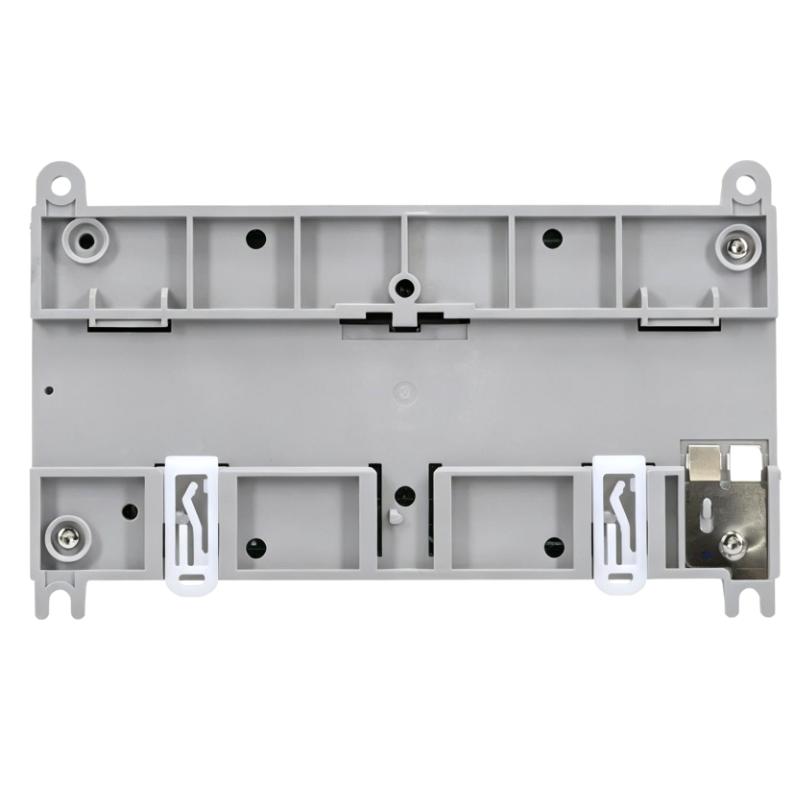

Mounting	DIN rail or panel mounting

Applications

The Allen-Bradley 1766-L32AWAA MicroLogix 1400 is a reliable, compact programmable controller designed for industrial automation. Typical applications include:

Automated process control in manufacturing lines
Machine monitoring and equipment management
Data acquisition and supervisory control systems
Integration into small- to medium-sized industrial plants for efficient control

This controller is perfect for engineers and technicians who need a scalable, dependable solution for a wide range of automation tasks.

Advantages

Flexible Communication: Built-in Ethernet and serial ports for seamless network integration.
User-Friendly Programming: Compatible with RSLogix 500, simplifying configuration and program updates.
Reliable Performance: Industrial-grade construction ensures stable operation in demanding environments.
Expandable I/O: Supports both local and remote I/O modules for enhanced flexibility.
Compact Design: Small footprint allows easy integration into control panels or tight spaces.

Technical FAQs

Which software is used for programming?
RSLogix 500 is required to program and configure the controller.
Does it support Ethernet communication?
Yes, it features built-in Ethernet for networked automation systems.
Can it interface with remote I/O modules?
Yes, it supports both local and remote I/O for scalable applications.
What is the operating temperature range?
0°C to 55°C (32°F to 131°F).
Is it suitable for continuous industrial operation?
Yes, it is rated for 24/7 industrial use under standard conditions.
Does it include onboard memory for program storage?
Yes, it has non-volatile memory to retain programs and system data.
Can it handle analog signals?
Yes, with compatible I/O modules, it can process analog inputs and outputs.
Is it compatible with other MicroLogix 1400 devices?
Yes, it works with both current and legacy MicroLogix 1400 controllers.
Does it provide diagnostic indicators?
Yes, LEDs indicate CPU status, I/O activity, and communication status.
Can it be used in safety-critical applications?
It is intended for standard automation; not certified for SIL-rated safety applications.
