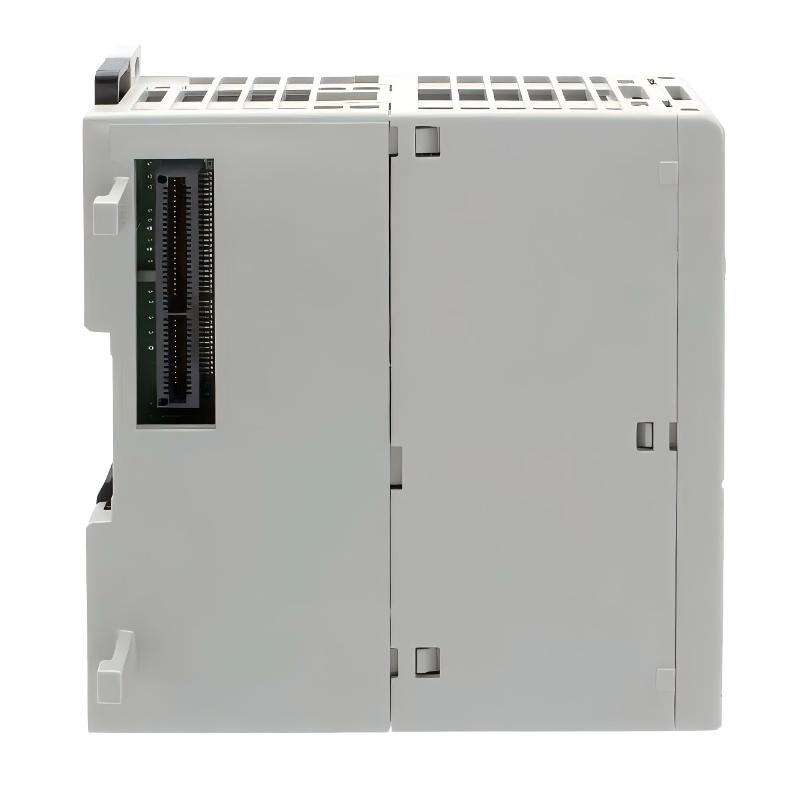

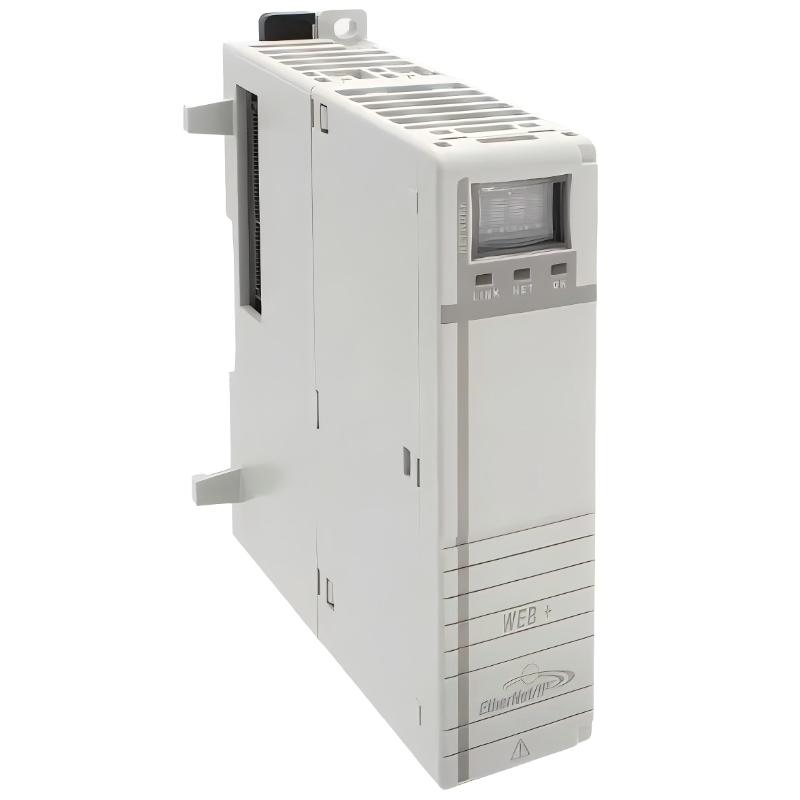

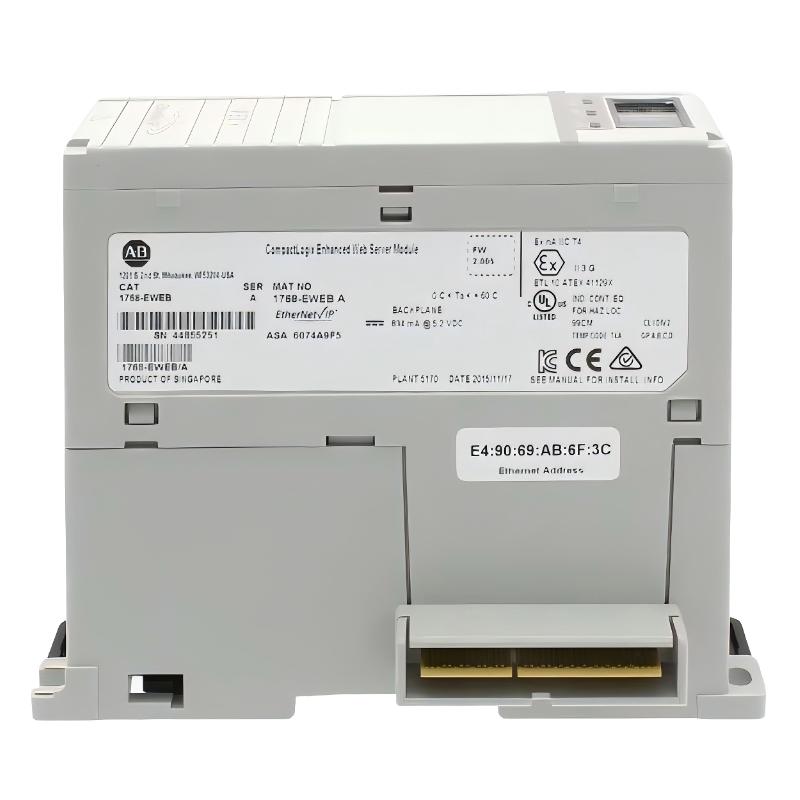

Allen Bradley 1768-EWEB CompactLogix EtherNet/IP Enhanced Web Server Module
Allen Bradley 1768-EWEB CompactLogix EtherNet/IP Enhanced Web Server Module
0.0
Points
Brand:Allen Bradley PLC Item No.:1768-EWEB Product Origin:USA Product Dimensions:132 x 56.7 x 105.1 mm Product Weight:0.23 kg Payment:T/T, Western Union, Credit Card Goods_stock:15 Shipping Port:Xiamen, China Lead Time:1-3 Days Condition:Brand New And Original Warranty:1 Year Certificate:COO
The Allen-Bradley 1768-EWEB CompactLogix EtherNet/IP Enhanced Web Server Module provides web-based access to CompactLogix controller data, enabling real-time monitoring and diagnostics. Its compact design, industrial-grade reliability, and seamless integration with existing 1768 systems make it an essential module for remote system management and visualization.
Technical Specifications
Feature
Specification
Model Number
1768-EWEB
Module Type
CompactLogix EtherNet/IP Enhanced Web Server Module
Dimensions (L x W x H)
132 × 56.7 × 105.1 mm
Weight
0.23 kg (0.51 lb)
Operating Temperature
0°C to 60°C
Network Protocol
EtherNet/IP
Mounting
CompactLogix rack or panel
Indicators
Status, network, web server LEDs
Applications
The Allen-Bradley 1768-EWEB module provides embedded web server capabilities for CompactLogix controllers, allowing users to monitor and control systems via standard web browsers. Key applications include:
Remote monitoring of CompactLogix controllers over Ethernet/IP networks
Real-time data visualization for machine performance and diagnostics
Integration into SCADA or industrial IoT systems for remote access
Providing web-based HMI dashboards without additional software
This module streamlines system management by delivering web-based access to critical automation data anywhere on the network.
Advantages
Web-Based Monitoring: Access controller data and system status from any standard web browser.
Enhanced Security: Supports user authentication and secure web access for industrial networks.
Compact Design: Easily integrates into 1768 CompactLogix racks without taking up additional space.
Reliable Industrial Performance: Built for vibration, temperature, and electrical noise resistance.
Simplified Integration: Works seamlessly with existing CompactLogix systems for minimal setup time.
Technical FAQs
Which controllers is this module compatible with?
It is designed for Allen-Bradley CompactLogix 1768 series controllers.
Does it support standard web browsers?
Yes, it allows secure monitoring using standard web browsers such as Chrome, Edge, and Firefox.
Is configuration software required?
Yes, Studio 5000 Logix Designer is recommended for initial setup and configuration.
Can it handle real-time monitoring?
Yes, it provides near real-time updates of system data and diagnostics.
What is the operating temperature range?
0°C to 60°C (32°F to 140°F).
Does it include network security features?
Yes, it supports authentication, HTTPS, and secure web access protocols.
Can multiple users access the web server simultaneously?
Yes, it supports multiple concurrent web connections.
Is it compatible with legacy CompactLogix devices?
Yes, it integrates with existing 1768 CompactLogix controllers.

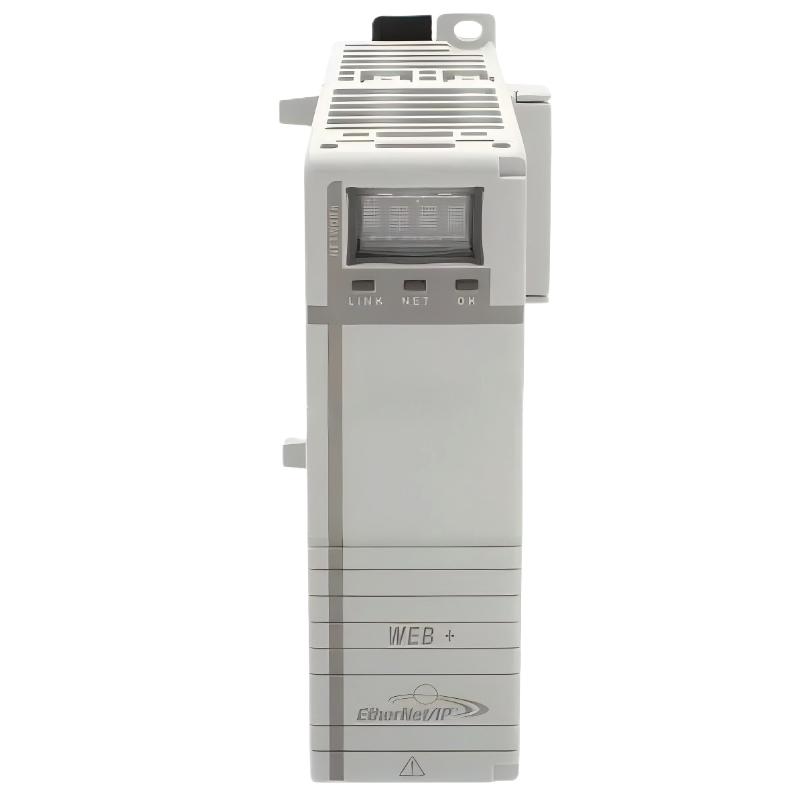

Does it provide LED indicators for status?
Yes, LEDs indicate module status, network activity, and web server activity.
Is it suitable for industrial environments?
Yes, it is built to operate reliably in industrial conditions including vibration and electrical noise.
