Introduction

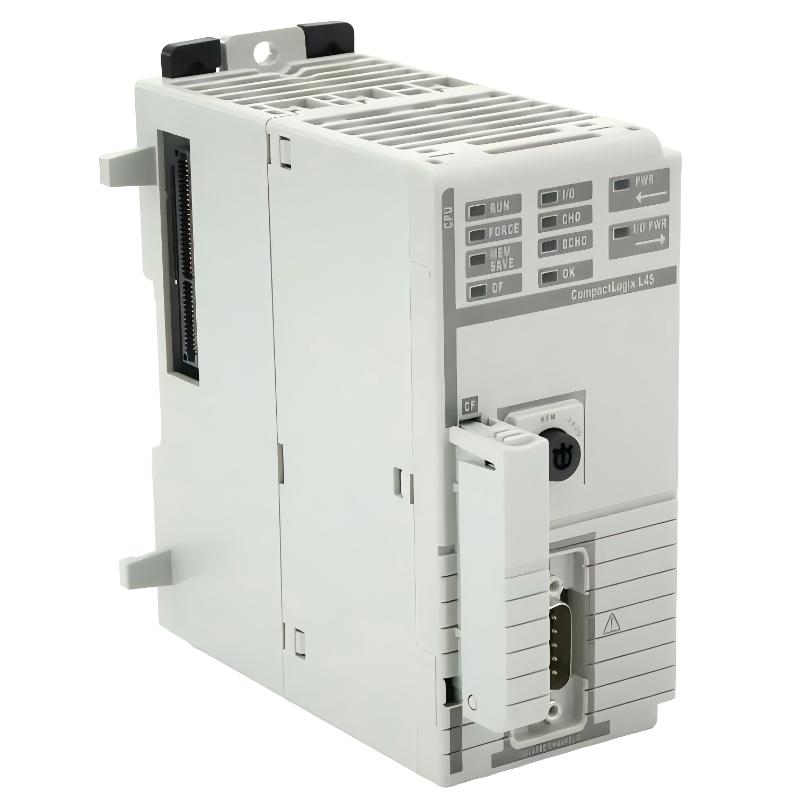

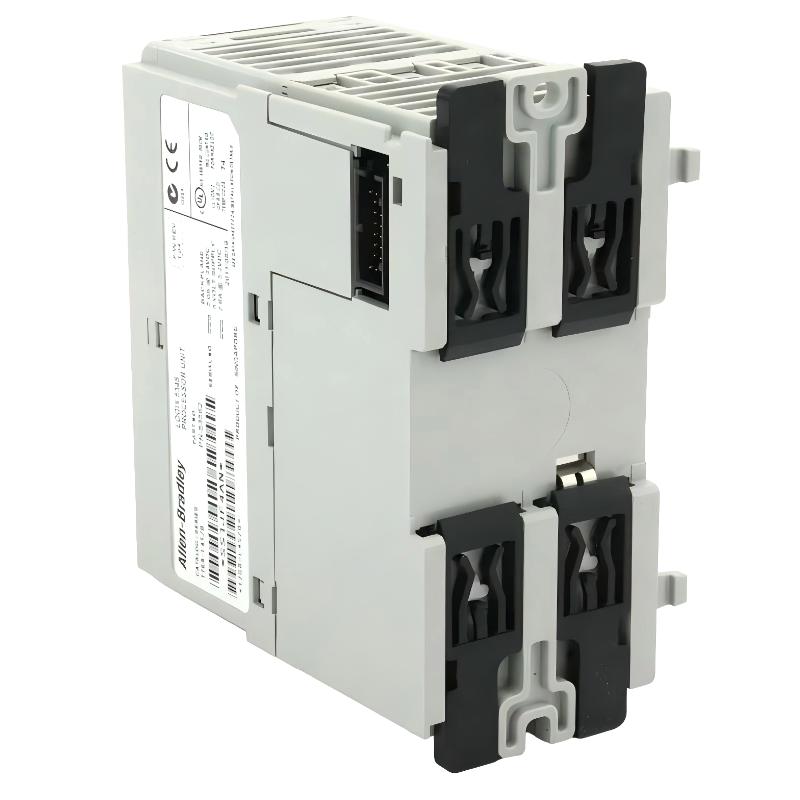

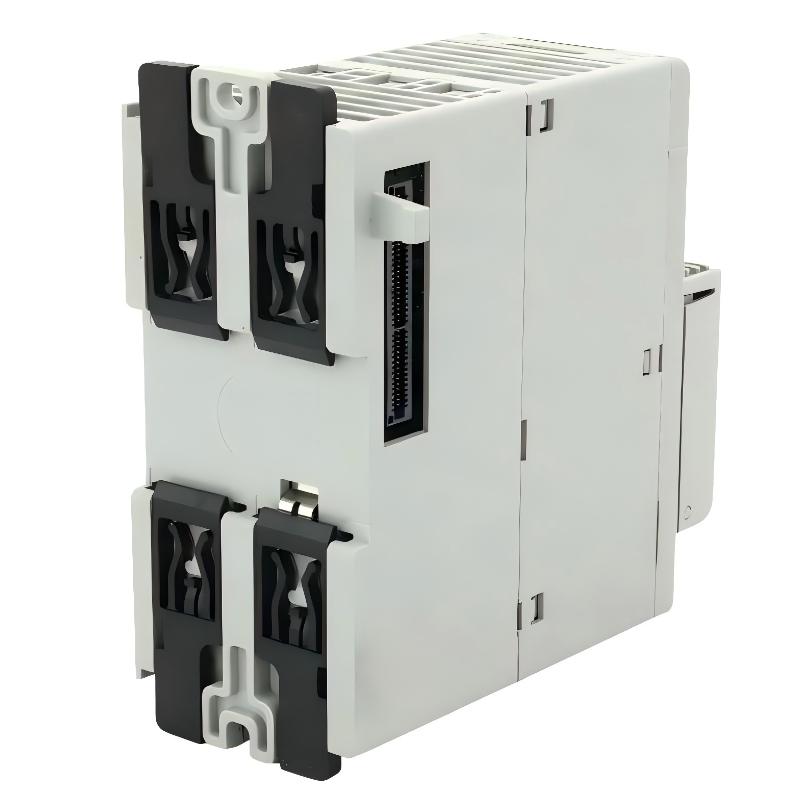

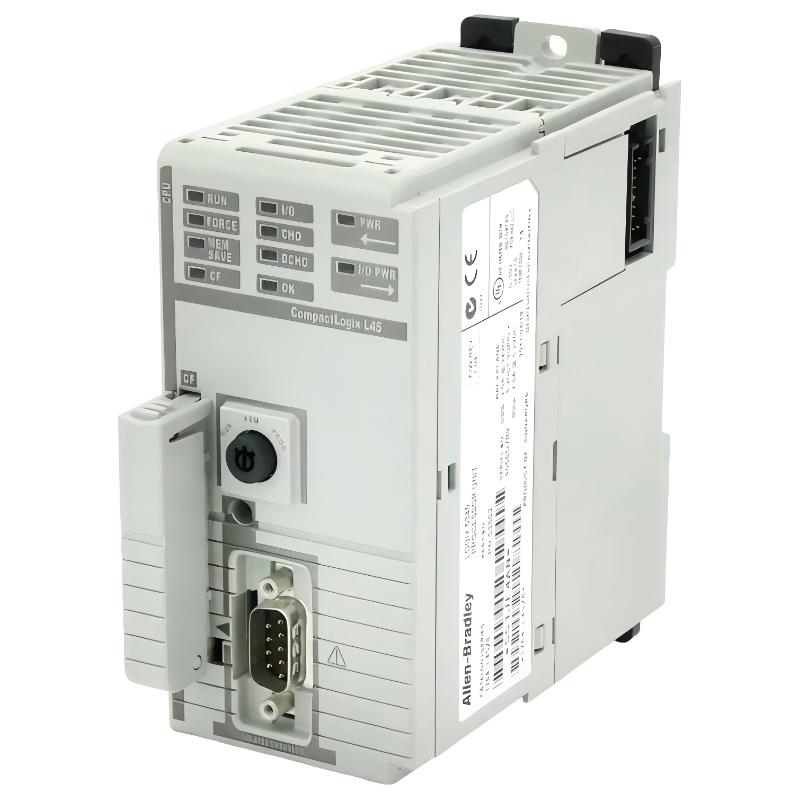

The Allen-Bradley 1768-L45 CompactLogix L45 Processor provides robust performance for industrial automation applications, combining reliable processing power, flexible communication, and scalable I/O expansion. Its compact design and industrial-grade reliability make it ideal for machine control, process automation, and supervisory integration, ensuring efficient and stable operation in demanding environments.

Technical Specifications

Feature	Specification
Model Number	1768-L45
Module Type	CompactLogix L45 Processor
Dimensions (L x W x H)	131.6 × 67.4 × 121.8 mm
Weight	0.34 kg (0.75 lb)
Operating Temperature	0°C to 60°C
Communication Ports	EtherNet/IP, Serial
Memory	Onboard non-volatile storage
I/O Expansion	Local and remote I/O modules
Mounting	DIN rail or panel mounting

Applications

The Allen-Bradley 1768-L45 CompactLogix L45 Processor is engineered for medium- to high-complexity industrial automation systems. Its primary applications include:

Machine and process automation in industrial environments
Data acquisition and control in manufacturing lines
Supervisory integration with HMIs and SCADA systems
Networked control using EtherNet/IP for real-time monitoring and diagnostics

This processor is ideal for engineers seeking reliable performance, scalable I/O support, and efficient network integration.

Advantages

High-Performance Processing: Handles medium-complexity automation tasks with speed and accuracy.
Flexible Communication: Built-in EtherNet/IP and serial ports for seamless integration into industrial networks.
Compact Footprint: Small size allows integration into space-constrained panels or CompactLogix racks.
Expandable I/O: Compatible with local and remote I/O modules for scalable system design.
Industrial-Grade Reliability: Designed for continuous operation under challenging industrial conditions.

Technical FAQs

Which software is used for programming?
Studio 5000 Logix Designer is required for programming the L45 processor.
Does it support EtherNet/IP?
Yes, it features an integrated EtherNet/IP port for network connectivity.
Can it handle both local and remote I/O modules?
Yes, it supports scalable I/O expansion for complex automation systems.
What is the operating temperature range?
0°C to 60°C (32°F to 140°F).
Does it have onboard memory?
Yes, it includes non-volatile memory for program and data storage.
Is it suitable for continuous industrial operation?
Yes, rated for 24/7 operation under standard industrial conditions.
Can it process analog and digital signals?
Yes, with appropriate I/O modules, both analog and digital signals are supported.
Does it provide diagnostic status indicators?
Yes, LEDs indicate CPU status, I/O activity, and communication status.
Is it compatible with other 1768-series modules?
Yes, it integrates seamlessly with other CompactLogix modules.
Can it be used in high-availability systems?
Yes, it supports redundant network architectures and critical industrial applications.
