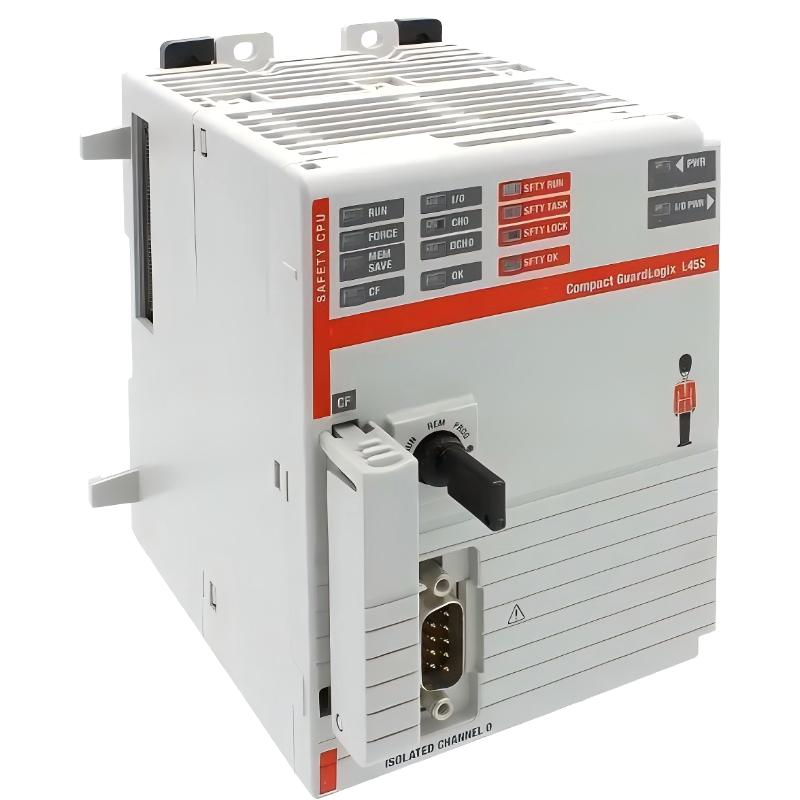

Allen Bradley 1768-L45S Compact GuardLogix Security Processor

Applications

The Allen-Bradley 1768-L45S Compact GuardLogix Security Processor is designed for industrial automation systems requiring both high-performance control and integrated safety functionality. Typical applications include:

• Safety-critical machine and process control
• Integration with CompactLogix systems for secure, SIL3-compliant operations
• Supervisory control with GuardLogix safety logic
• Industrial environments requiring personnel protection and reliable process safety

This processor combines standard automation logic with advanced safety monitoring to ensure both operational efficiency and protection.

Advantages

• Integrated Safety and Control: Supports standard automation and SIL3-rated safety logic in a single processor.
• High Reliability: Industrial-grade design built for continuous operation in demanding environments.
• Flexible Communication: EtherNet/IP connectivity allows seamless network integration.
• Compact Design: Fits easily into 1768 CompactLogix racks or control panels.
• Real-Time Diagnostics: Monitors safety and standard system parameters for proactive maintenance and control.

Technical FAQs

1. Which programming software is required?
   Studio 5000 Logix Designer with GuardLogix Safety add-on is required.
2. What safety certification does it have?
   Certified for SIL3 (Safety Integrity Level 3) applications.
3. Does it support EtherNet/IP communication?
   Yes, it includes an EtherNet/IP port for networked control and diagnostics.
4. Can it handle both standard and safety I/O simultaneously?
   Yes, the processor supports integrated safety and standard I/O modules.
5. What is the operating temperature range?
   0°C to 60°C (32°F to 140°F).
6. Does it include onboard memory?
   Yes, non-volatile memory stores both safety and standard programs.
7. Can it be used for machine safety applications?
   Yes, it is specifically designed for machine and process safety control.
8. Does it provide diagnostic indicators?
   Yes, LEDs indicate CPU status, I/O activity, safety status, and network activity.
9. Is it compatible with other 1768-series modules?
   Yes, it integrates seamlessly with other CompactLogix modules.
10. Can it be deployed in high-availability safety systems?
    Yes, it supports redundant networks and critical industrial safety applications.
