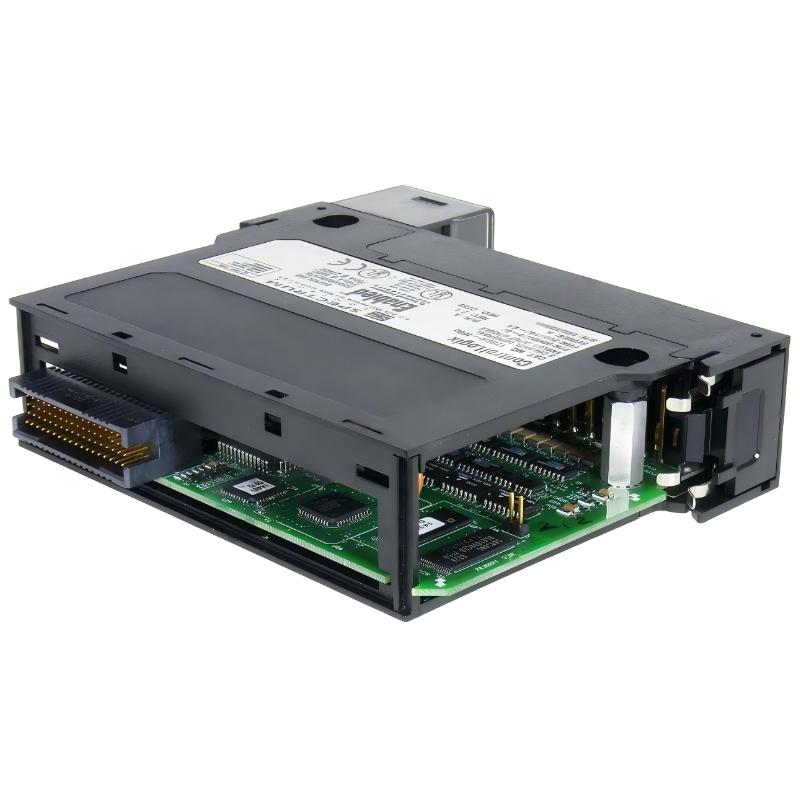

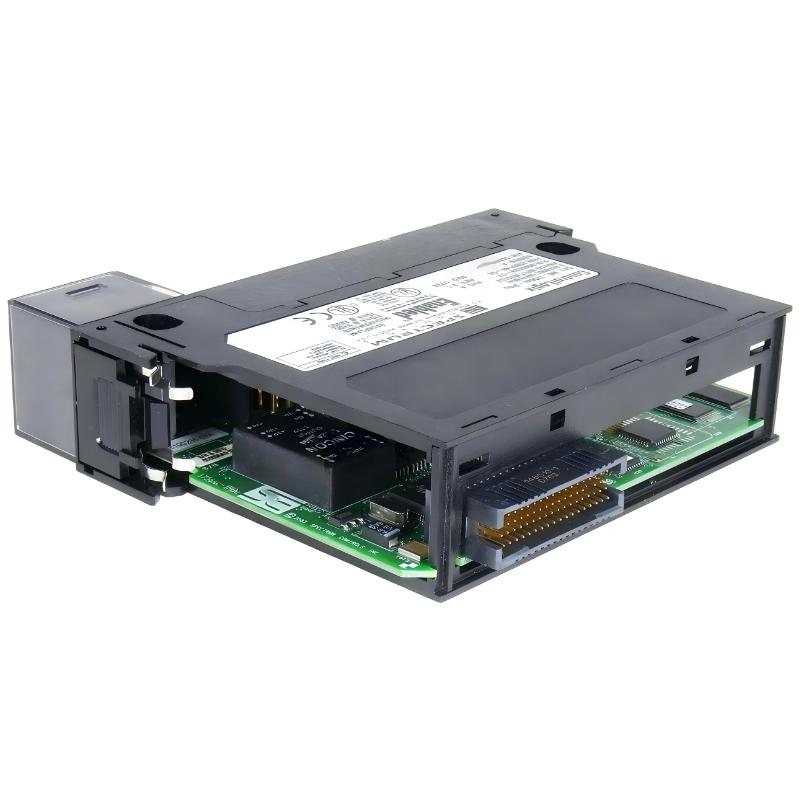

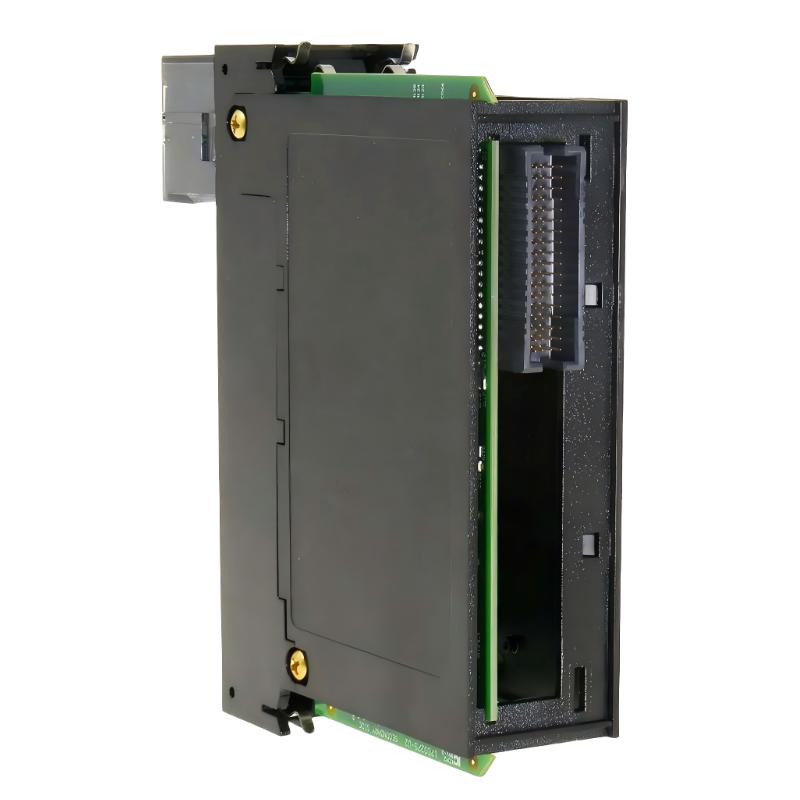

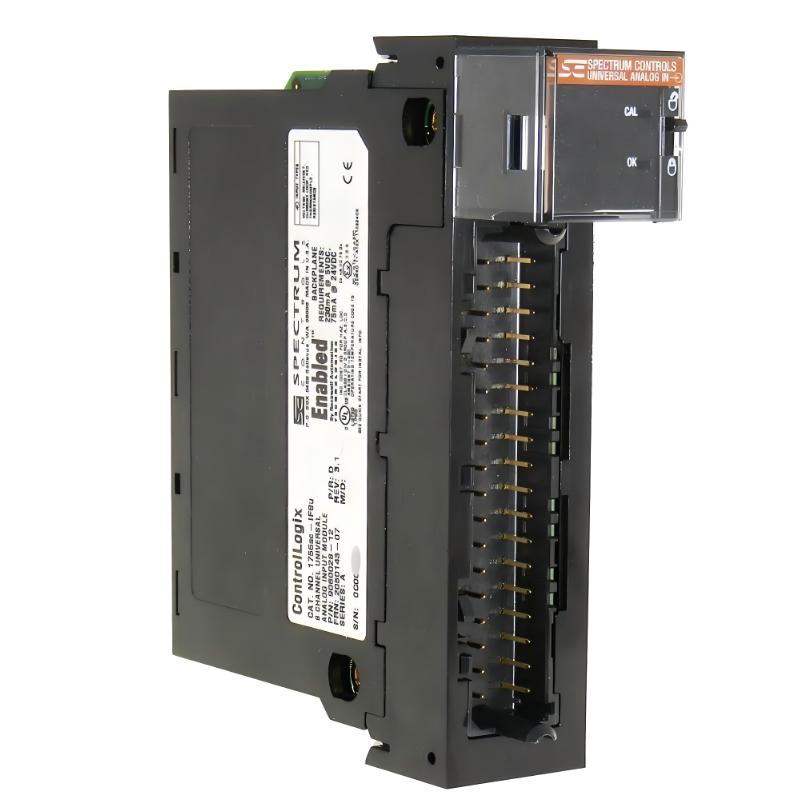

Allen Bradley 1756SC-IF8U ControlLogix Analog General Input Module
Allen Bradley 1756SC-IF8U ControlLogix Analog General Input Module
0.0
Points
Brand:Allen Bradley PLC Item No.:1756SC-IF8U Product Origin:USA Product Dimensions:145.2 x 34.6 x 139.6 mm Product Weight:0.848 kg Payment:T/T, Western Union, Credit Card Goods_stock:15 Shipping Port:Xiamen, China Lead Time:1-3 Days Condition:Brand New And Original Warranty:1 Year Certificate:COO
The Allen-Bradley 1756SC-IF8U ControlLogix Analog General Input Module is a high-performance universal analog input solution designed for ControlLogix systems. It consolidates multiple signal types into a single modular design, allowing engineers to handle diverse field inputs such as current, voltage, temperature, and resistance signals. Built for demanding industrial environments, it delivers high resolution, strong diagnostic capability, and flexible configuration, making it ideal for complex process automation, power generation, and industrial instrumentation systems.
Technical Specifications
Parameter
Specification
Product Model
1756SC-IF8U
Function
Universal Analog Input Module
System
ControlLogix
Input Channels
8
Input Types
Voltage, Current, RTD, Thermocouple, Resistance
Resolution
High-resolution class
Configuration
Channel-by-channel independent setup
Mounting Type
ControlLogix chassis installation
Operating Environment
Industrial-grade conditions
Housing
Rugged industrial module
Dimensions
145.2 × 34.6 × 139.6 mm
Weight
0.848 kg
Diagnostics
Self-diagnostics and fault detection
Calibration
Auto-calibration supported
Recommended Related Models
Model
Product Name
1756-IF8
Analog Input Module
1756-IF16
High-Density Analog Input Module
1756-IF8H
High-Resolution Analog Input Module
1756-IRT8I
Temperature Input Module
Popular Related Models
Model
Product Name
1756SC-IF8U
Analog General Input Module
1756-IF8
Analog Input Module
1756-OF8I
Analog Output Module
1756-L73
Processor Module
Applications
• ControlLogix distributed analog signal acquisition systems
Provides flexible multi-signal input processing for industrial automation and process monitoring applications.
• Power generation monitoring and control systems
Used for collecting analog process variables such as temperature, pressure, flow, and level in plant operations.
• Industrial process automation environments
Supports mixed-signal data acquisition for continuous manufacturing and process control systems.
• Oil & gas and petrochemical facilities
Enables reliable multi-type analog signal handling in harsh and safety-critical environments.
• Advanced industrial instrumentation integration
Acts as a universal interface between field instruments and ControlLogix control systems.
Key Advantages
• Universal multi-signal input capability
Supports voltage, current, RTD, thermocouple, and resistance inputs within a single module.
• High-resolution analog processing
Delivers precise and stable signal conversion for industrial control applications.
• Channel-by-channel configuration flexibility
Each input channel can be independently configured for different signal types.
• Advanced diagnostics and auto-calibration
Includes self-diagnostics and automatic calibration for improved reliability and stability.
• Strong integration with ControlLogix architecture
Designed for seamless compatibility within Allen-Bradley ControlLogix systems.
Technical FAQs
1. What is the main function of the 1756SC-IF8U module?
It is a universal analog input module used to collect and process multiple types of analog signals in ControlLogix systems.
2. What types of signals does it support?
It supports voltage, current (4–20 mA / 0–20 mA), RTD, thermocouple, and resistance inputs.
3. How many input channels are available?
It provides 8 independently configurable analog input channels.
4. Can each channel be configured differently?
Yes, each channel can be set to different signal types simultaneously.
5. Is it suitable for power plant applications?
Yes, it is commonly used in power generation monitoring and process control systems.
6. Does it support automatic calibration?
Yes, it includes built-in auto-calibration features.
7. Does it provide diagnostic functions?
Yes, it supports module-level fault detection and self-diagnostics.
8. Is it compatible with standard ControlLogix racks?
Yes, it is designed for 1756 ControlLogix chassis systems.
9. Does it support RTD and thermocouple inputs?
Yes, it supports multiple RTD and thermocouple types with cold junction compensation.
10. What makes it different from standard analog input modules?
It combines multiple signal types into one module, reducing the need for separate dedicated input cards.
