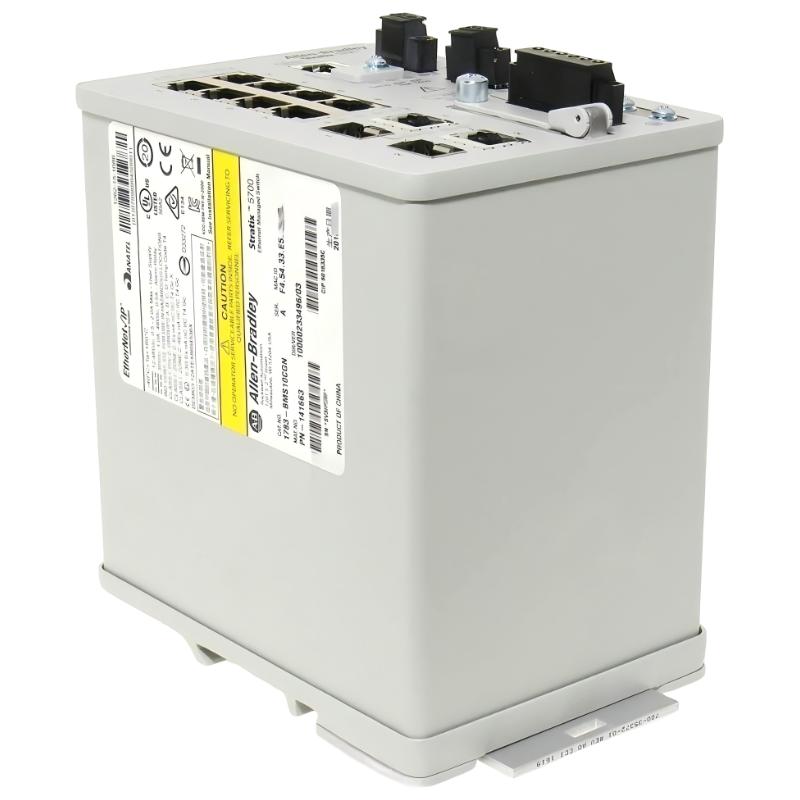

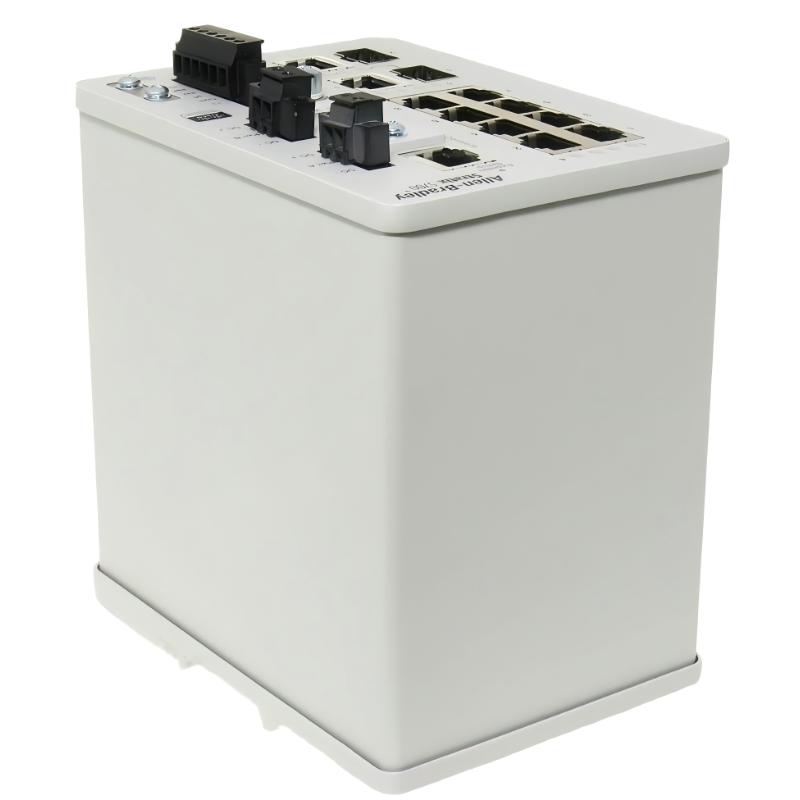

The Allen Bradley 1783-BMS10CGN is a Stratix 5700 industrial managed Ethernet switch engineered for high-performance industrial networking and secure automation communication. Designed for modern EtherNet/IP infrastructures, this switch combines advanced traffic management, network resiliency, and rugged industrial durability for demanding manufacturing environments.
With ten total Ethernet ports, Gigabit uplink capability, and full firmware functionality, the 1783-BMS10CGN is ideal for connecting PLCs, HMIs, drives, remote I/O systems, industrial PCs, and enterprise-level automation networks.
Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | Allen Bradley (Rockwell Automation) |
| Catalog Number | 1783-BMS10CGN |
| Module Type | Managed Industrial Ethernet Switch |
| Product Series | Stratix 5700 |
| Firmware Type | Full Firmware |

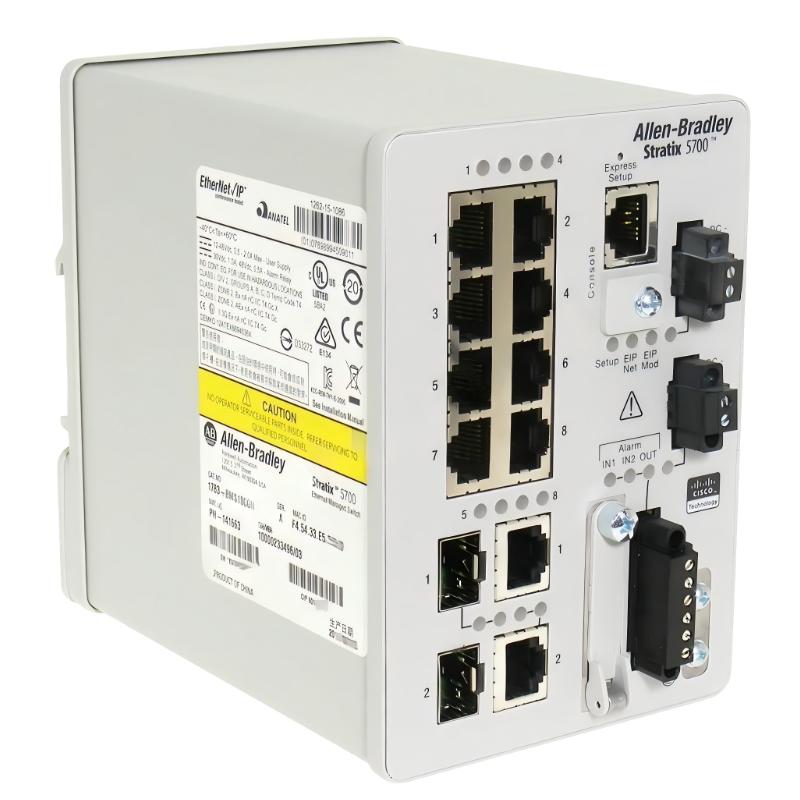

| Total Ethernet Ports | 10 ports |
| Fast Ethernet Ports | 8 × 10/100 Mbps RJ45 |
| Gigabit Combo Ports | 2 × 10/100/1000 Mbps RJ45/SFP combo |
| Network Protocol | EtherNet/IP |
| Managed Switch | Yes |
| NAT Support | Yes |
| DLR Support | Yes |
| CIP Sync (IEEE 1588) | Supported |
| Input Voltage | 12–48V DC |
| Power Consumption | Typical 15 W / Max 20 W |
| Power Dissipation | 20 W |
| Alarm Relay | 1 A @ 30V DC / 0.5 A @ 48V DC |

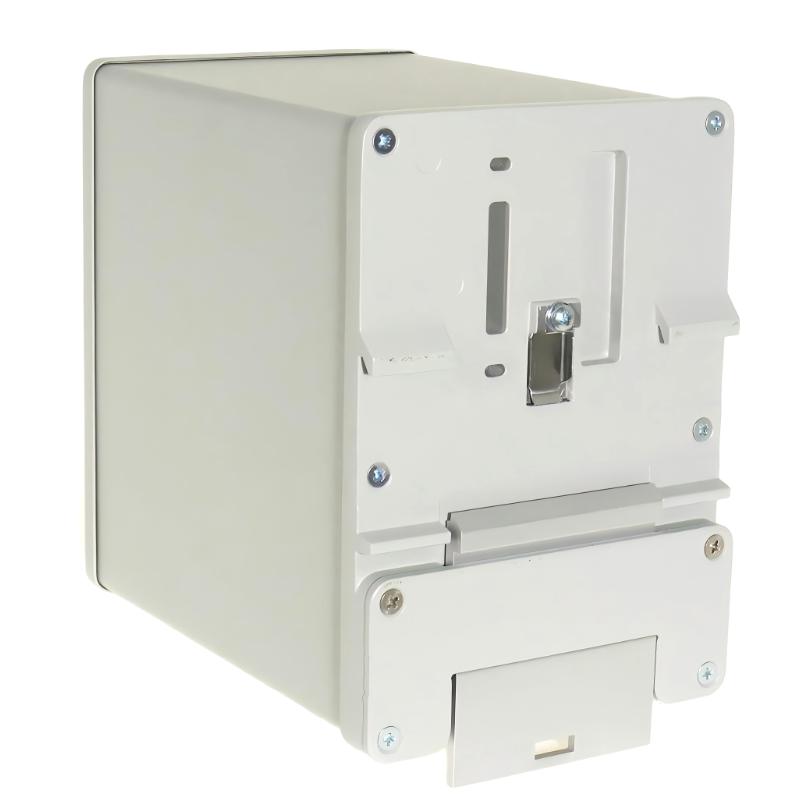

| Mounting Method | DIN rail mounting |
| Protection Rating | IP30 |
| Enclosure Type | Open-style industrial housing |
| Operating Temperature | -40°C to 60°C |
| Storage Temperature | -40°C to 85°C |
| Relative Humidity | 5–95% non-condensing |
| Weight | ~1.38 kg |
| Dimensions (L×W×H) | 135.8 mm × 91.4 mm × 129.5 mm |
Industrial Network Overview
The 1783-BMS10CGN is designed to provide secure, resilient, and manageable industrial Ethernet communication for integrated automation systems.
Core networking functions include:
- Industrial EtherNet/IP traffic management
- Device Level Ring (DLR) network resiliency
- Network Address Translation (NAT) support
- Gigabit uplink connectivity for backbone networks
- Real-time industrial communication optimization
- Advanced diagnostics and network monitoring
Its full firmware feature set makes it suitable for complex industrial architectures requiring enhanced security and advanced network control.
