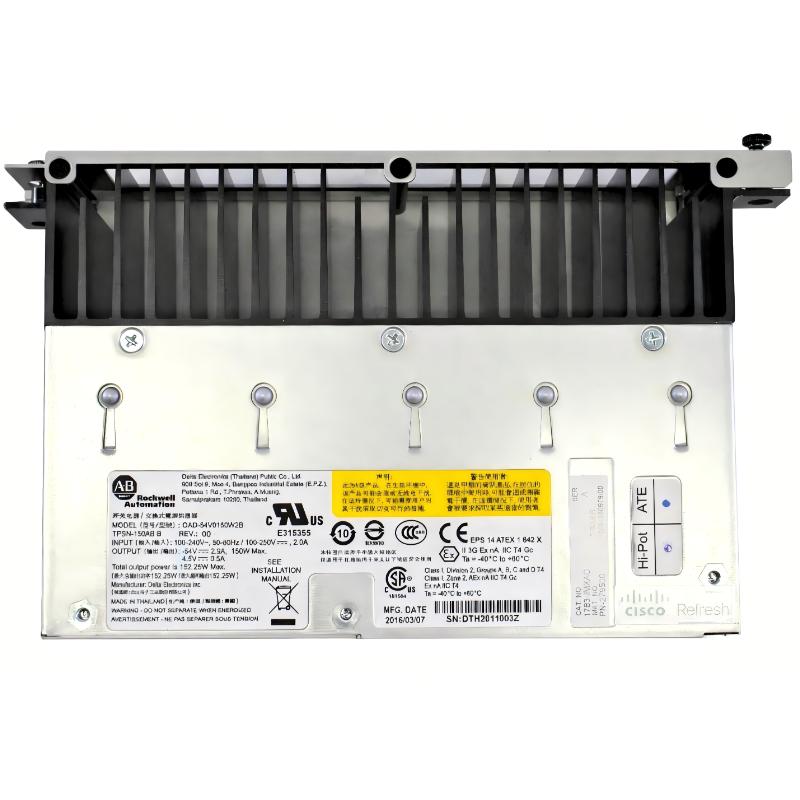

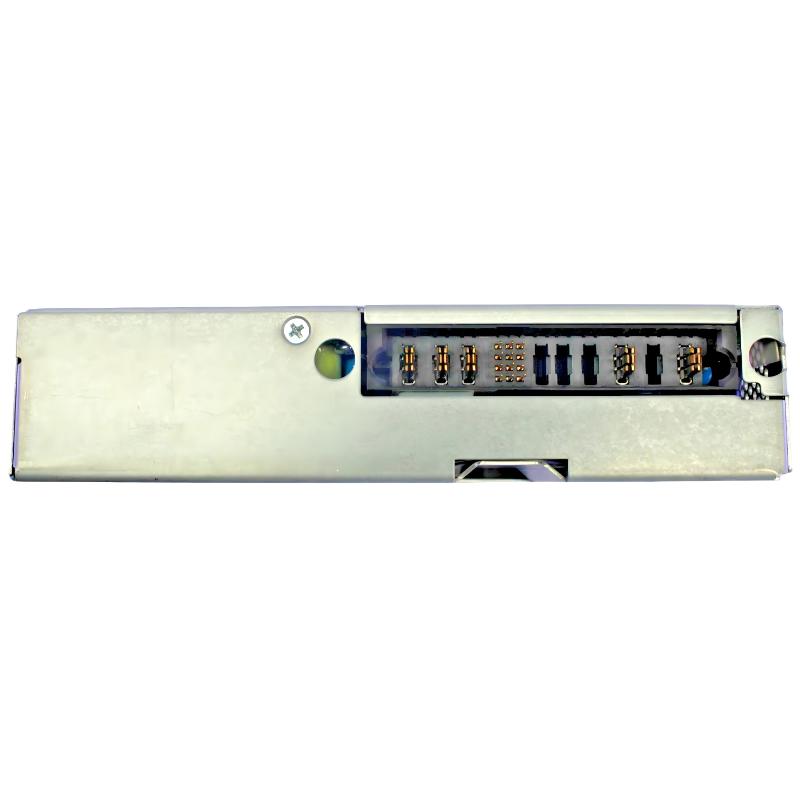

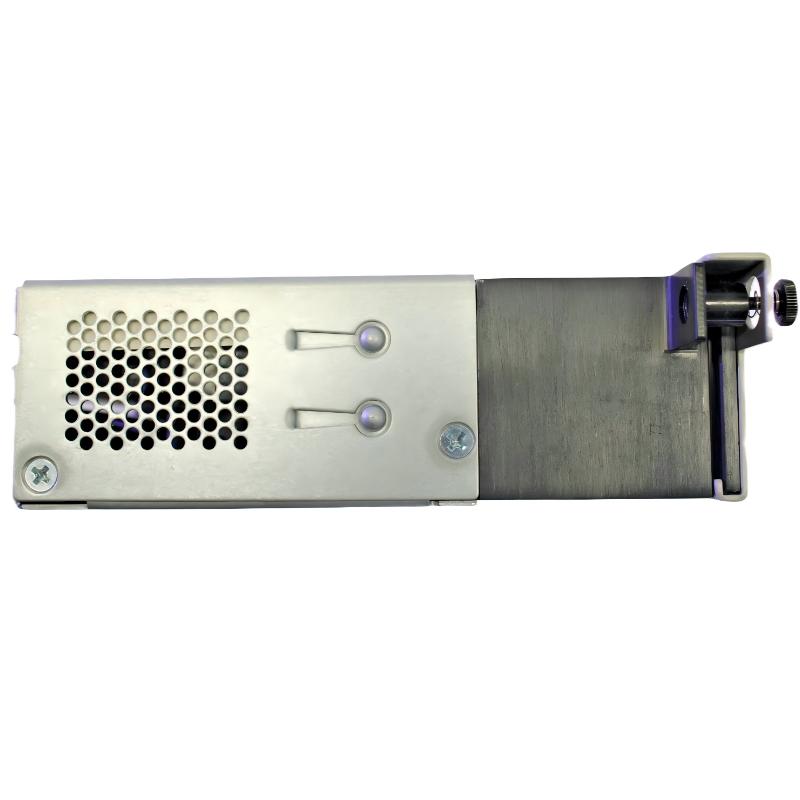

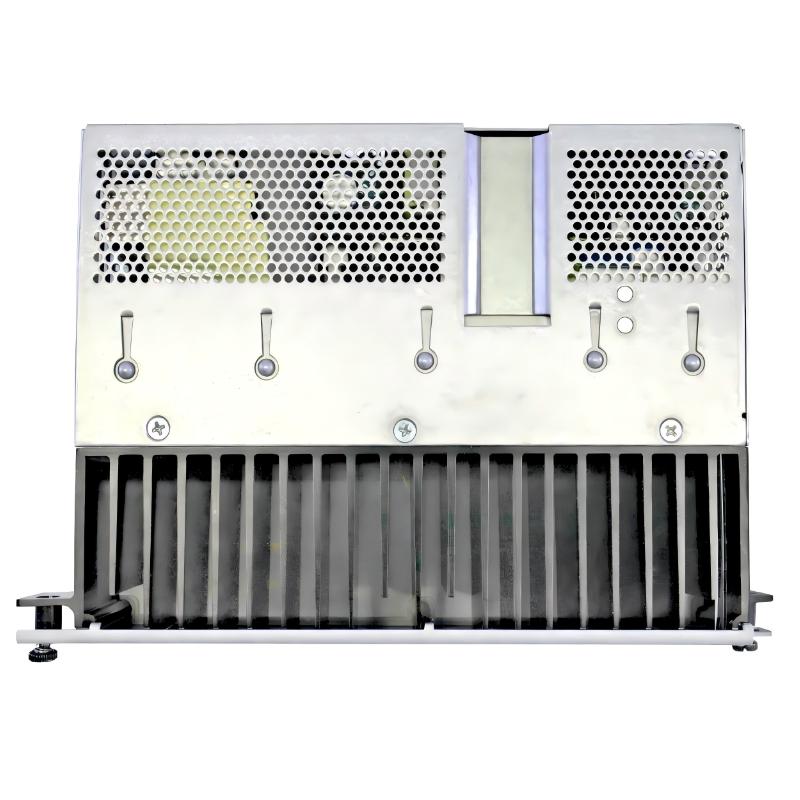

The Allen Bradley 1783-IMXAC is a Stratix 5410 industrial power supply module designed to deliver stable AC and high-voltage DC power for Stratix managed Ethernet switch platforms. It is engineered for demanding industrial network environments where continuous uptime, electrical stability, and rugged performance are critical.
This module is commonly used in Rockwell Automation Stratix 5410 systems, providing reliable power conversion and distribution for industrial Ethernet switching infrastructure.
Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | Allen Bradley (Rockwell Automation) |
| Catalog Number | 1783-IMXAC |
| Product Type | Industrial Power Supply Module |
| System Series | Stratix 5410 |
| Input Voltage (AC) | 100–240V AC |
| Input Voltage (DC) | 24–60V DC (high-voltage DC compatible) |
| Input Frequency | 50/60 Hz |
| Output Type | DC power for switch backplane |
| Output Voltage | -54 V / 4.5 V auxiliary outputs |
| Output Current | up to 2.9 A (main rail) |
| Power Consumption | up to ~20 W system load |
| Protection Features | Overload, short-circuit protection |
| Isolation | Industrial-grade electrical isolation |
| Mounting Type | Rack / chassis integration |
| Cooling Method | Passive convection |
| Operating Temperature | -40°C to 60°C |
| Storage Temperature | -40°C to 85°C |
| Weight | ~1.38 kg |
| Dimensions (L×W×H) | 315 mm × 235 mm × 103 mm |
System Role Overview
The 1783-IMXAC is designed to serve as the core power conversion unit for Stratix 5410 Ethernet switching systems. It ensures stable electrical delivery to high-density industrial network hardware operating in mission-critical environments.
Core functions include:
- AC/DC power conversion for Stratix 5410 switches
- Stable energy supply for high-density Ethernet architectures
- Industrial-grade voltage regulation for network reliability
- Support for harsh electrical environments and fluctuations
- Continuous operation for mission-critical communication systems
It plays a critical role in maintaining uptime for factory-wide Ethernet communication infrastructure.
Recommended Related Models
| Model | Function |
|---|---|
| 1783-IMXDC | DC input power supply variant |
| 1783-CMS series | Stratix managed Ethernet switches |
| 1783-ETAP | EtherNet/IP tap module |
| 1756-EN2TR | ControlLogix Ethernet communication module |
| 1783-NATR | Network address translation router |
| 5069-AEN2TR | Compact I/O Ethernet adapter |
