Brand:Allen Bradley PLC Item No.:Allen-Bradley 1783-US06T01F Product Origin:USA Product Dimensions:76.8 × 29.6 × 114.5 mm Product Weight:0.40 kg Payment:T/T, Western Union, Credit Card Goods_stock:15 Shipping Port:Xiamen, China Lead Time:1-3 Days Condition:Brand New And Original Warranty:1 Year Certificate:COO

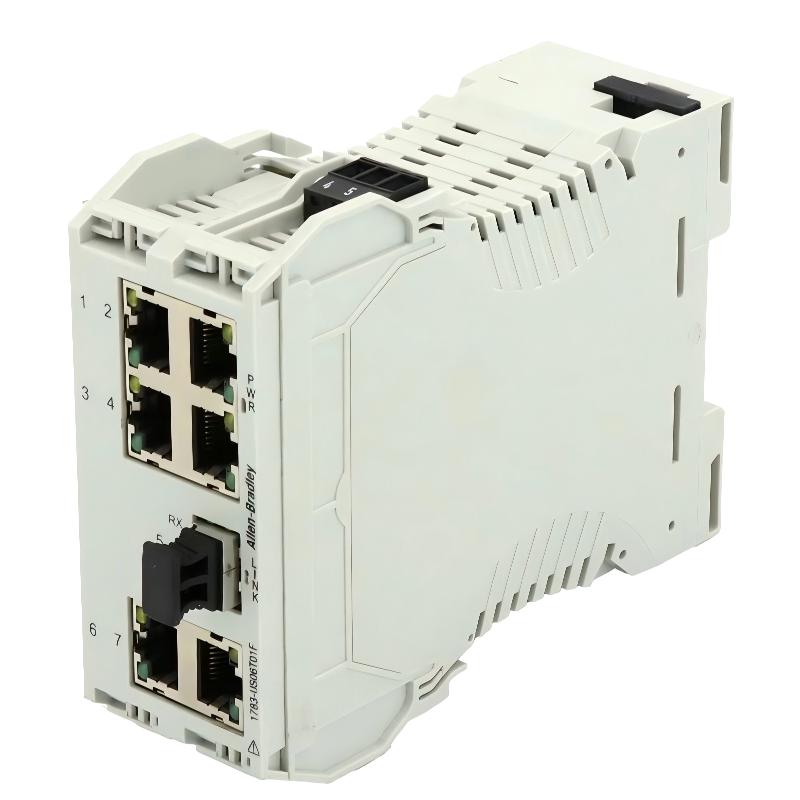

The Allen-Bradley 1783-US06T01F is a robust Stratix 2000 unmanaged industrial Ethernet switch module designed for reliable, maintenance-free network distribution in automation systems. Built by Rockwell Automation, it delivers stable Fast Ethernet performance in demanding industrial environments where simplicity, durability, and uptime are critical.
With its plug-and-play architecture, this model is ideal for machine-level networking, helping engineers quickly connect PLCs, drives, HMIs, and distributed I/O without complex configuration or IT dependency.
1783-EMS08T – managed Stratix 2000 switch for advanced control
1783-ETAP – EtherNet/IP diagnostic tap module
Popular Allen-Bradley Models
1756-L81E ControlLogix Controller Module
1769-L33ER CompactLogix Processor
1756-EN2T EtherNet/IP Communication Module
1734-IB8 POINT I/O Input Module
1794-ACN Flex I/O Adapter Module
Applications
The 1783-US06T01F is widely used in:
Industrial machine Ethernet networking
Factory automation control systems
Packaging and material handling lines
OEM machinery communication backbones
PLC, HMI, and drive interconnection systems
Small to mid-size distributed control networks
Its 6-port configuration makes it especially suitable for slightly larger machine architectures requiring more device connectivity without moving to managed switching.
Advantages
Simple plug-and-play deployment with zero configuration
Reliable 6-port connectivity for expanded machine networks
Compact DIN rail design for control cabinet optimization
Industrial ruggedness for vibration and temperature resistance
Low power consumption for continuous 24/7 operation
Automatic network optimization via auto-negotiation
Seamless integration within Rockwell Automation ecosystems
Reduced engineering time and maintenance cost
Technical FAQs
1. Is the 1783-US06T01F a managed switch?
No, it is an unmanaged industrial Ethernet switch.
2. How many ports does it provide?
It includes 6 RJ45 Fast Ethernet ports (10/100 Mbps).
3. Does it support fiber connections?
No, this model is copper-only; fiber variants exist in other Stratix models.
4. What is the power input range?
It supports 10–24V AC or 10–35V DC input.
5. What is its installation method?
DIN rail mounting inside industrial control cabinets.
6. Does it require configuration?
No, it is plug-and-play with automatic network settings.
7. What is the operating temperature range?
0°C to 60°C for standard industrial environments.
8. Can it be used in enterprise IT networks?
It is designed for industrial machine-level networks, not core IT infrastructure.
9. What makes it suitable for industrial use?
Rugged housing, electrical tolerance, and stable operation under harsh conditions.
10. What is its main benefit over managed switches?
Faster deployment and simpler operation without configuration overhead.
