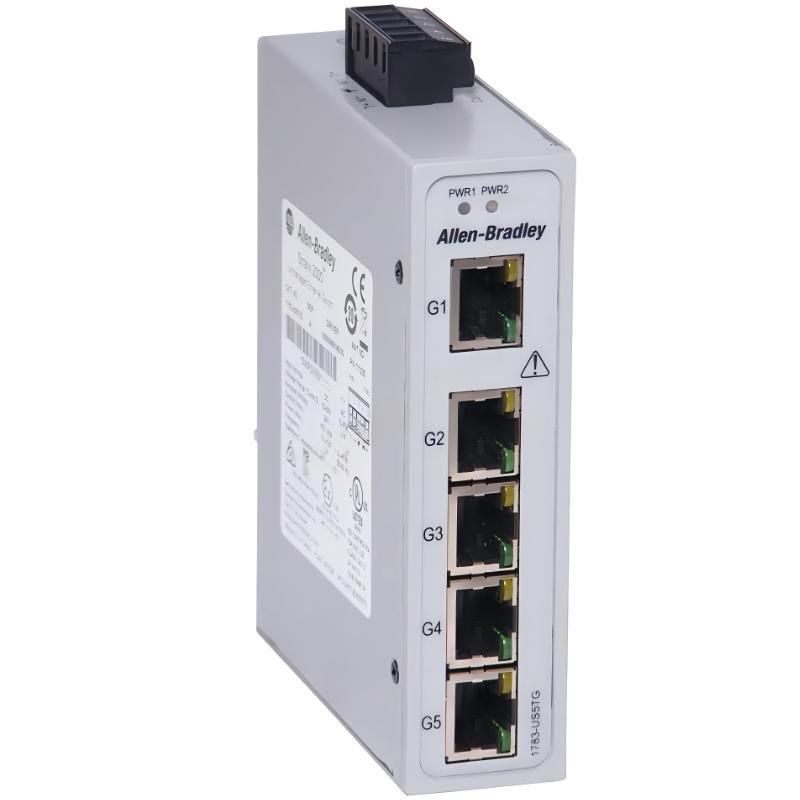

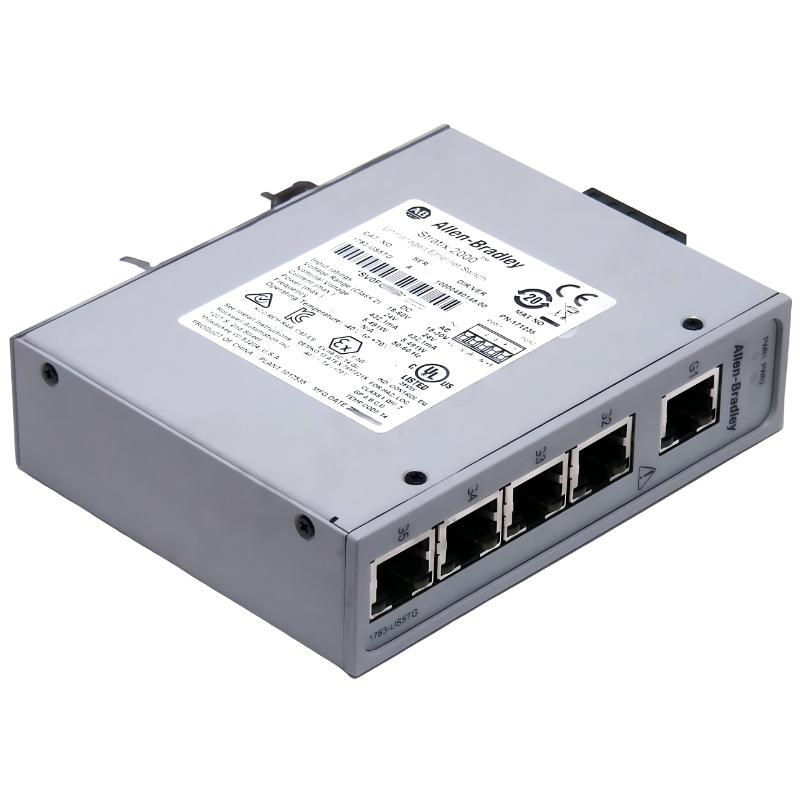

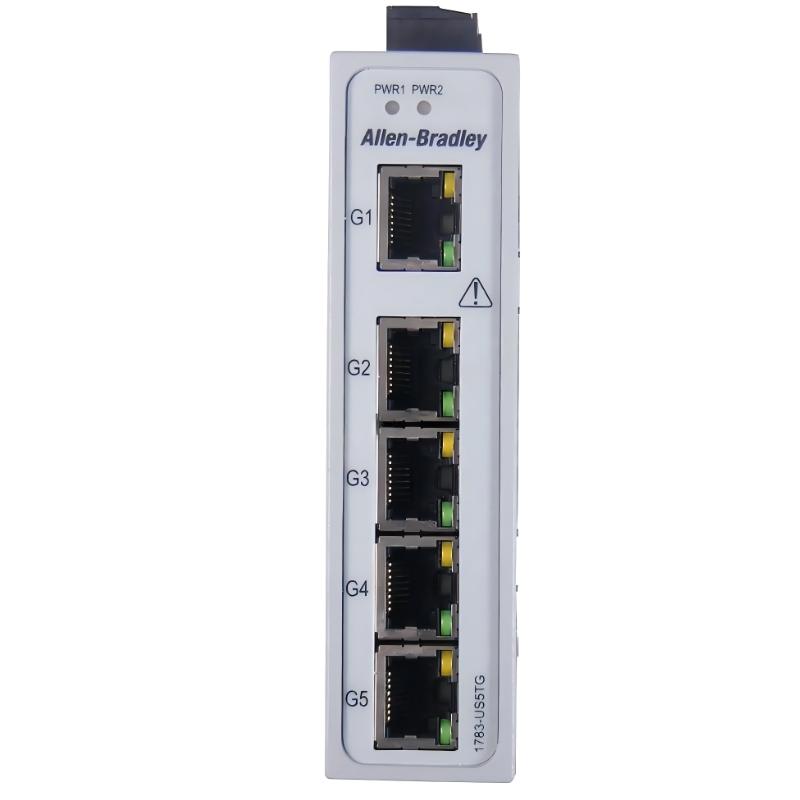

The Allen-Bradley 1783-US5TG is a Stratix 2000 unmanaged industrial Ethernet switch module designed for high-performance machine-level networking in automation systems. Produced by Rockwell Automation, it delivers reliable plug-and-play connectivity for industrial environments where stable communication, rugged construction, and minimal configuration are essential.

This model is part of the Stratix 2000 series and is widely used in factory automation, OEM machinery, and control cabinet applications requiring Fast Ethernet or Gigabit connectivity in a compact footprint.

Technical Specifications (including Dimensions & Weight)

Parameter	Specification
Product Type	Unmanaged Industrial Ethernet Switch
Series	Stratix 2000
Ports	5 × 10/100/1000 Mbps RJ45
Switching Mode	Store-and-forward
Network Standard	IEEE 802.3 / 802.3u / 802.3ab
Power Input	12–48V DC or 18–30V AC (SELV/Class 2)
Power Consumption	~4–5 W

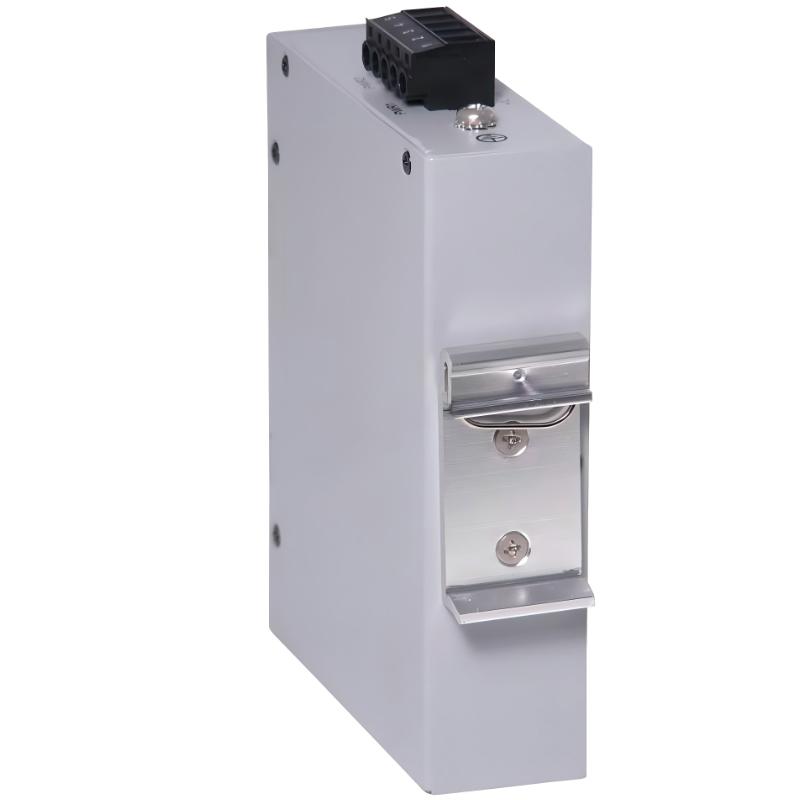

Mounting	DIN Rail
Enclosure	Industrial IP20 housing
Operating Temperature	-40°C to 85°C

Physical Dimensions & Weight

Item	Value
Size (L × W × H)	157 × 89 × 44 mm
Weight	~0.38 kg

Recommended Related Models

1783-US08T – 8-port unmanaged Fast Ethernet switch
1783-US06T01F – 6-port copper unmanaged switch
1783-US5T – 5-port Fast Ethernet unmanaged switch
1783-US4T1F – 4 copper + 1 fiber hybrid switch
1783-EMS08T – managed Stratix switch for advanced control

Popular Allen-Bradley Models

1756-L81E ControlLogix Processor Module
1769-L33ER CompactLogix Controller
1756-EN2T EtherNet/IP Communication Module
1734-IB8 POINT I/O Input Module
1794-ACN Flex I/O Adapter Module

Applications

The 1783-US5TG is commonly deployed in:

Industrial automation Ethernet networks
Factory-floor machine communication systems
High-speed PLC and HMI integration
OEM equipment requiring Gigabit backbone connectivity
Packaging, assembly, and material handling systems
Distributed control architectures in smart factories

Its Gigabit capability makes it suitable for modern automation networks where higher bandwidth and future scalability are required.

Advantages

Full Gigabit Ethernet (10/100/1000 Mbps) for high-speed industrial communication
Plug-and-play unmanaged design with zero configuration
Rugged industrial-grade construction for harsh environments
Wide operating temperature range for demanding applications
DIN rail mounting for efficient control cabinet installation
Low power consumption with stable 24/7 operation
Seamless integration within Rockwell Automation ecosystem
Ideal upgrade path from Fast Ethernet Stratix 2000 models

Technical FAQs

1. Is the 1783-US5TG a managed switch?
No, it is an unmanaged industrial Ethernet switch.

2. What is the port configuration?
It has 5 RJ45 Gigabit Ethernet ports (10/100/1000 Mbps).

3. Does it support fiber connections?
No, this model is copper-only (no SFP slots).

4. What is the main difference from other US5 models?
It supports full Gigabit Ethernet instead of only Fast Ethernet.

5. What is the power input range?
12–48V DC or 18–30V AC SELV/Class 2.

6. What is the operating temperature range?
-40°C to 85°C industrial-grade range.

7. Does it require configuration?
No configuration is required; it is plug-and-play.

8. Can it be used in IT enterprise networks?
It is designed primarily for industrial automation networks.

9. What is its main advantage?
Higher bandwidth capability for modern automation systems.

10. Is it compatible with older Stratix 2000 models?
Yes, it is backward compatible at Ethernet protocol level, but provides higher performance.
