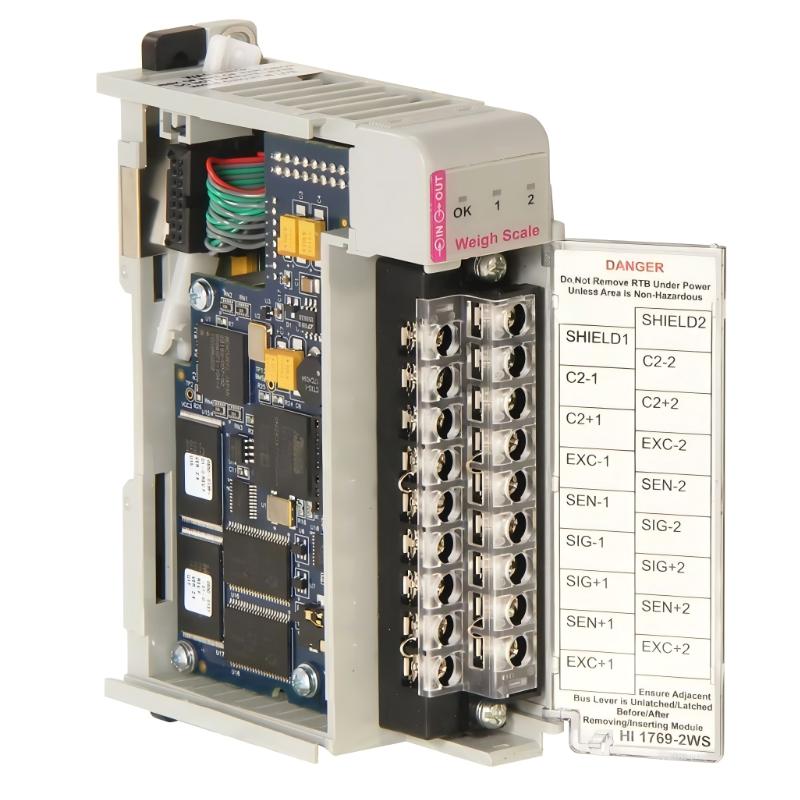

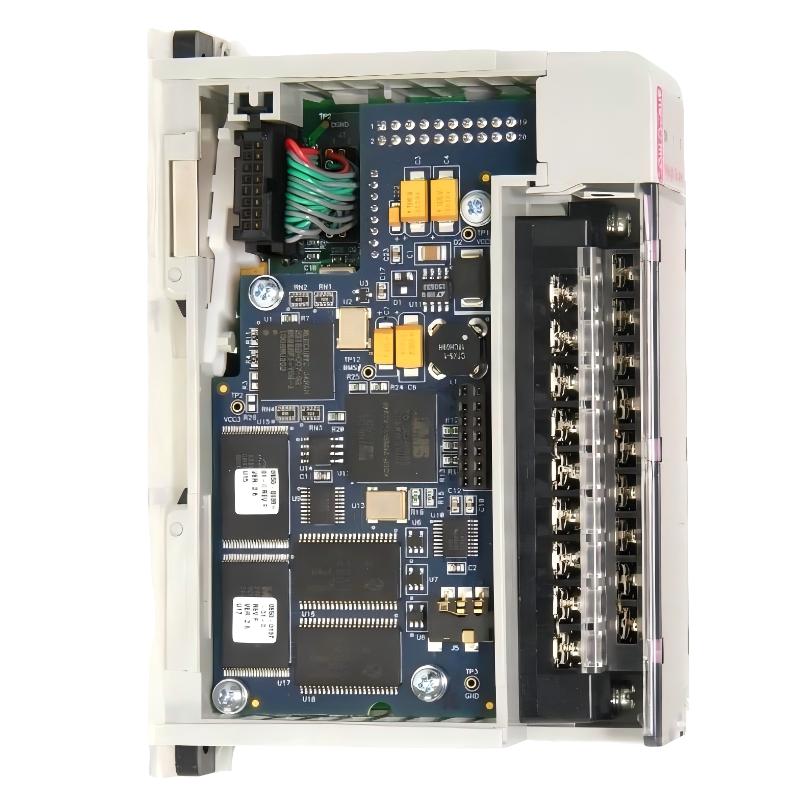

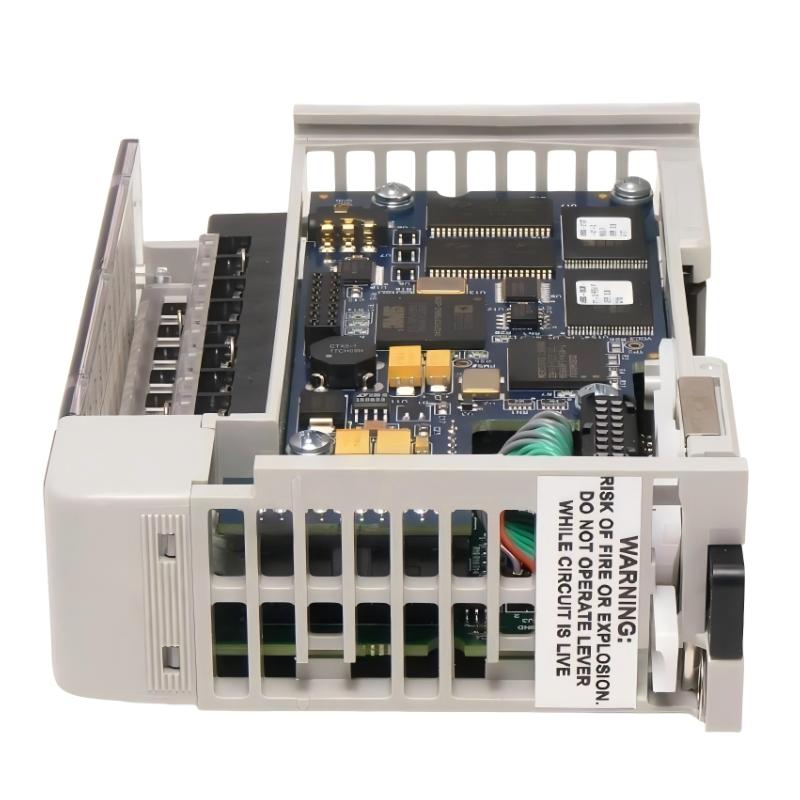

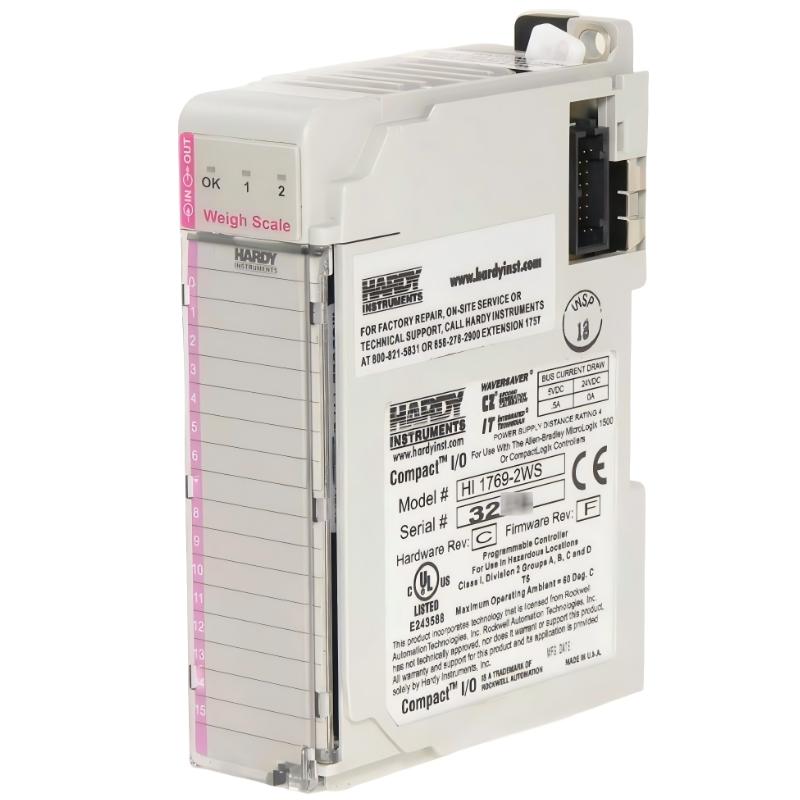

Allen Bradley 1769-2WS CompactLogix Weighing Module

Applications

The Allen Bradley 1769-2WS CompactLogix Weighing Module is designed for precise weight measurement and control in industrial automation systems. Typical applications include:

• Integrating with CompactLogix systems for load cell monitoring
• Industrial batching, packaging, and material handling systems
• Process control requiring accurate weight acquisition and signal processing
• Environments where real-time weighing and diagnostics improve operational efficiency

This module ensures accurate, reliable weight measurements for critical automation processes.

Advantages

• High-Precision Measurement: Supports accurate load cell input and weight calculations
• Compact Form Factor: 118 × 35 × 87 mm design fits efficiently into control panels
• Seamless Integration: Works directly with CompactLogix PLCs for smooth system expansion
• Reliable Performance: Industrial-grade construction for continuous 24/7 operation
• Real-Time Monitoring: Provides immediate weight data for process control and automation feedback

Technical FAQs

1. What is the primary function of this module?
   It collects and processes weight signals from load cells for industrial control applications.
2. Which PLC systems is it compatible with?
   CompactLogix controllers and related Allen Bradley automation systems.
3. How many load cells can it support?
   Typically supports multiple load cells depending on system configuration.
4. What type of input signals does it accept?
   Standard analog signals from strain gauge load cells (mV/V).
5. Can it operate in harsh industrial environments?
   Yes, it is built to withstand vibration, temperature fluctuations, and standard industrial stress.
6. Does it require programming?
   Yes, configured via RSLogix 5000 or Studio 5000 for integration with PLC logic.
7. Is it suitable for continuous operation?
   Yes, engineered for 24/7 industrial use.
8. Does it provide diagnostics?
   Yes, includes status and fault diagnostics for weight channels.
9. Can it be used in retrofit systems?
   Yes, compatible with existing CompactLogix installations.
10. What maintenance is required?
    Minimal; ensure load cell connections and module integrity are periodically inspected.
