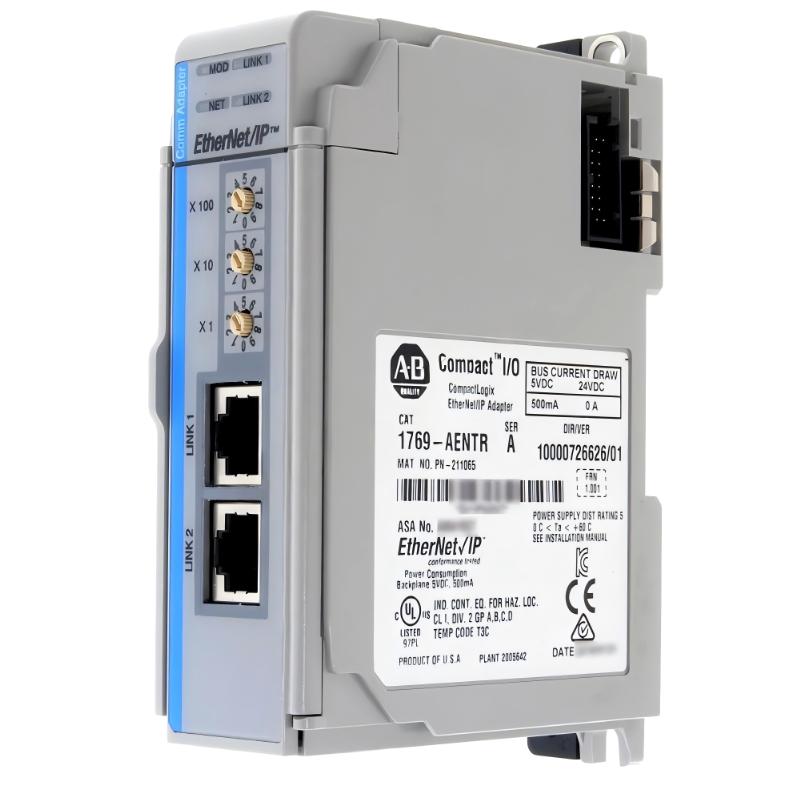

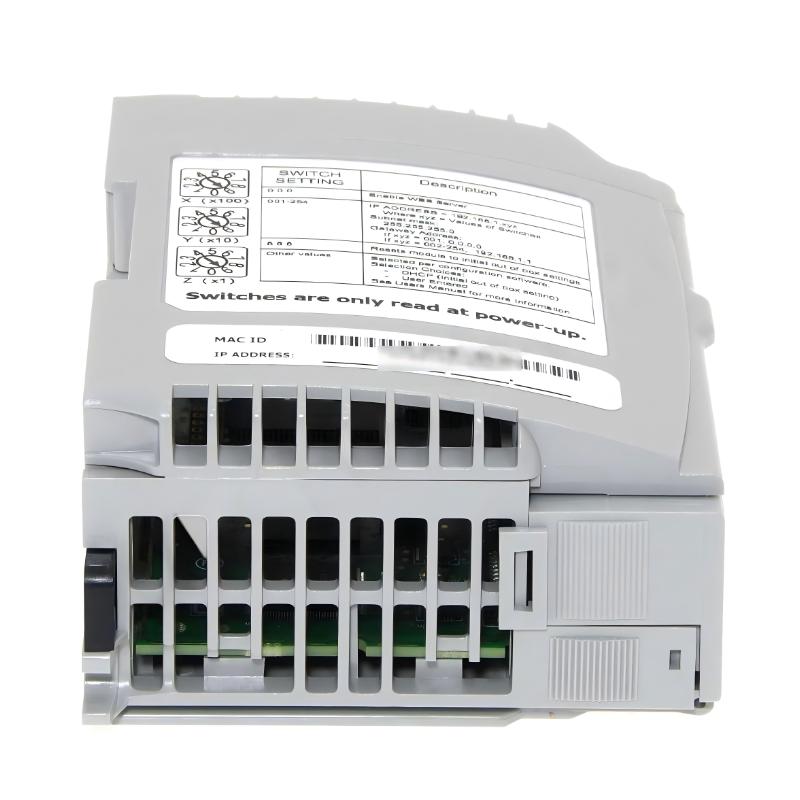

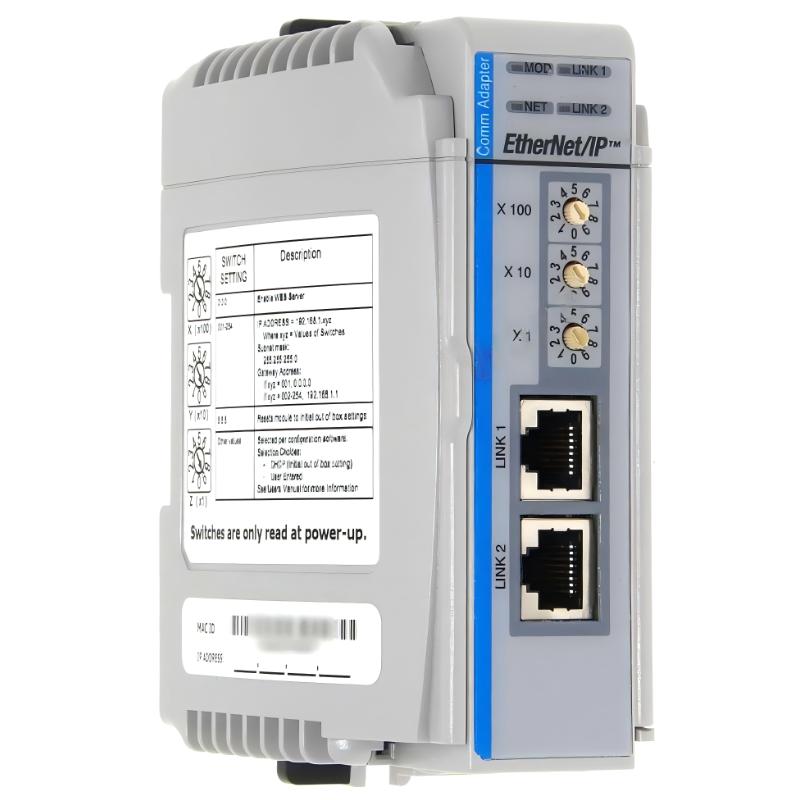

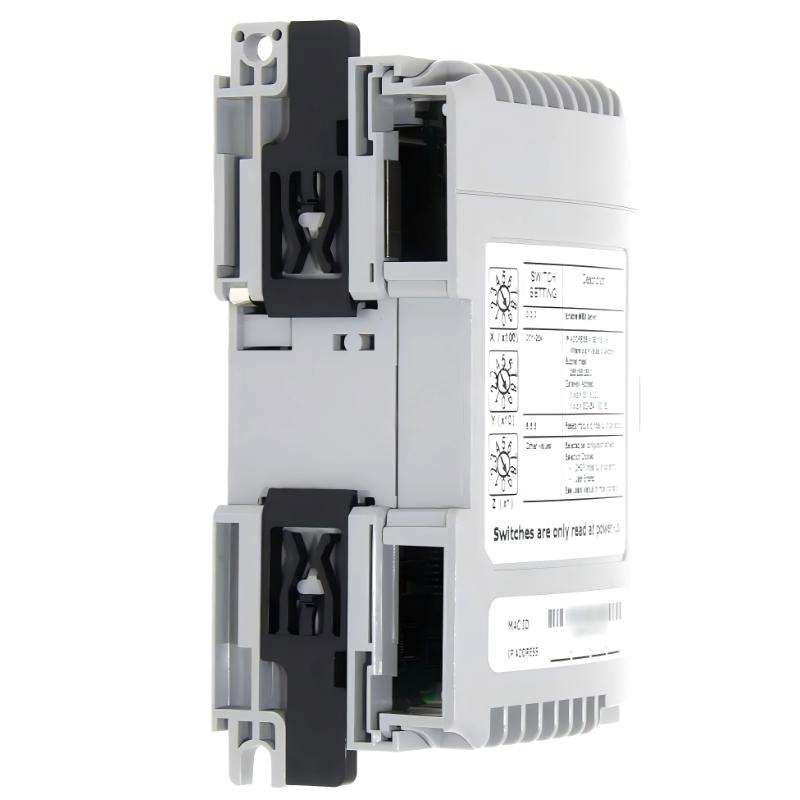

Allen Bradley 1769-AENTR CompactLogix EtherNet/IP Adapter Module

Applications

The Allen Bradley 1769-AENTR EtherNet/IP Adapter Module is designed to provide reliable network connectivity for CompactLogix I/O systems. Typical applications include:

• Connecting Compact I/O modules to EtherNet/IP networks in industrial automation systems
• Factory automation, process control, and distributed I/O systems
• Integration of CompactLogix I/O modules into larger networked control systems
• Environments requiring high-speed, real-time communication between controllers and I/O devices

This module ensures efficient and dependable network integration for automation systems.

Advantages

• High-Speed Communication: Supports real-time data exchange via EtherNet/IP
• Compact Design: 118 × 50 × 87 mm form factor for flexible panel installation
• Seamless Integration: Fully compatible with CompactLogix controllers and EtherNet/IP networks
• Industrial Reliability: Built for 24/7 operation in demanding industrial conditions
• Simplified Networking: Reduces wiring complexity and streamlines network architecture

Technical FAQs

1. What is the primary function of this module?
   It connects CompactLogix I/O devices to EtherNet/IP networks for real-time communication.
2. Which PLC systems is it compatible with?
   Allen Bradley CompactLogix controllers.
3. Does it support high-speed data transfer?
   Yes, designed for real-time EtherNet/IP messaging.
4. Can it operate in harsh industrial environments?
   Yes, it is resistant to vibration, temperature variations, and industrial stress.
5. How is it mounted?
   Installed directly on DIN rails or standard control cabinets.
6. Does it require programming?
   Yes, configured via RSLogix 5000 or Studio 5000 software.
7. Is it suitable for continuous operation?
   Yes, designed for 24/7 industrial use.
8. Can it be used in retrofit systems?
   Yes, compatible with existing CompactLogix and EtherNet/IP networks.
9. How many modules can it support?
   It supports multiple Compact I/O modules depending on network configuration.
10. Does it provide diagnostics?
    Yes, includes status LEDs for network communication and module health.
