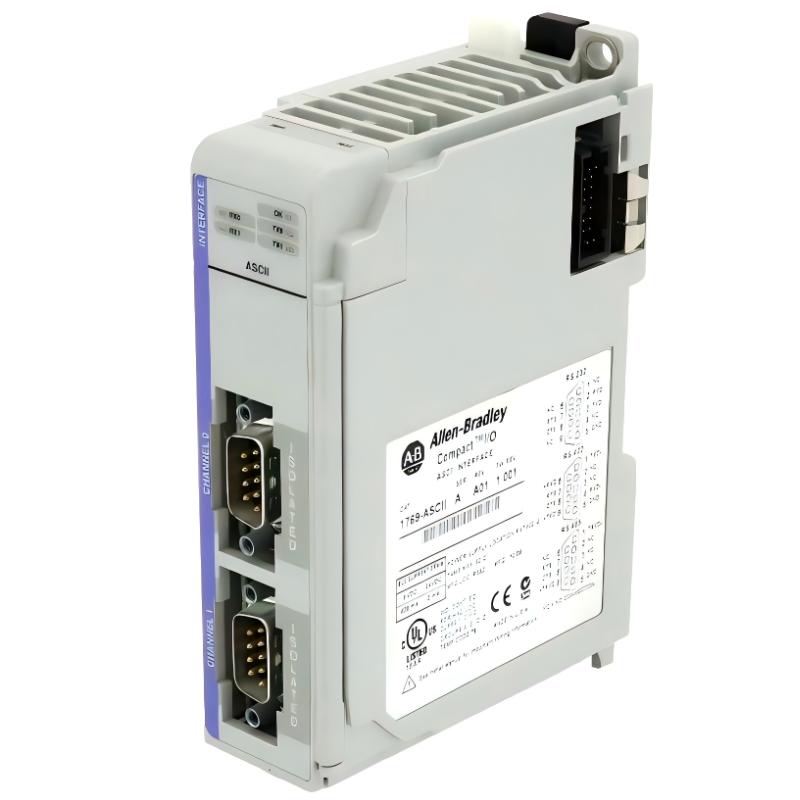

Allen Bradley 1769-ASCII CompactLogix ASCII Interface Module

Applications

The Allen Bradley 1769-ASCII Module is designed for seamless ASCII communication with CompactLogix controllers. Typical applications include:

• Connecting PLC systems to ASCII-compatible devices such as sensors, scales, and barcode readers
• Industrial automation requiring serial communication for data exchange
• Process control, material handling, and machine monitoring systems
• Environments where reliable serial interface ensures real-time data acquisition

This module enables efficient and reliable ASCII communication in industrial automation networks.

Advantages

• Seamless ASCII Communication: Supports standard ASCII protocols for a wide range of devices
• Compact Form Factor: 87 × 34 × 118 mm design allows flexible installation in control panels
• Plug-and-Play Integration: Works directly with CompactLogix controllers for streamlined deployment
• Industrial-Grade Reliability: Designed for 24/7 operation in demanding environments
• Real-Time Data Handling: Provides fast and accurate serial data communication for critical processes

Technical FAQs

1. What is the primary function of this module?
   It enables ASCII-based serial communication between CompactLogix controllers and external devices.
2. Which PLC systems is it compatible with?
   Allen Bradley CompactLogix controllers.
3. Does it support multiple devices on one network?
   Yes, multiple ASCII devices can be connected depending on configuration.
4. What type of communication ports does it have?
   Standard RS-232 or RS-422/485 serial interfaces.
5. Can it operate in industrial environments?
   Yes, designed for vibration, temperature variations, and continuous operation.
6. Is programming required?
   Yes, communication settings are configured via RSLogix 5000 or Studio 5000.
7. Can it be used in retrofit systems?
   Yes, compatible with existing CompactLogix installations.
8. Does it provide diagnostics?
   Yes, status LEDs indicate communication health and activity.
9. Is it suitable for continuous operation?
   Yes, engineered for 24/7 industrial use.
10. How is it mounted?
    It can be mounted on DIN rails or inside control panels for compact installations.
