Introduction

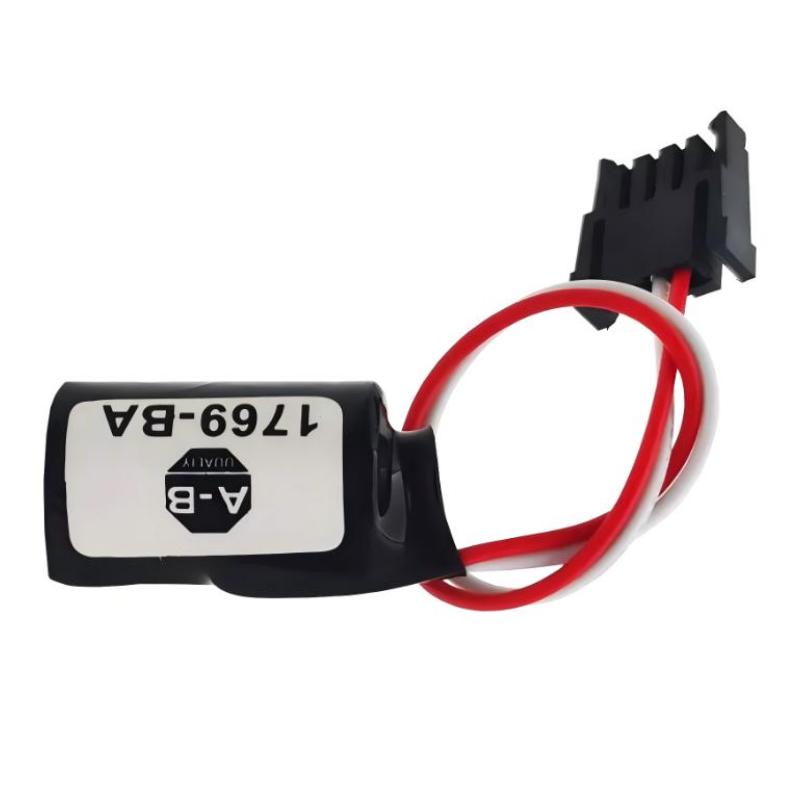

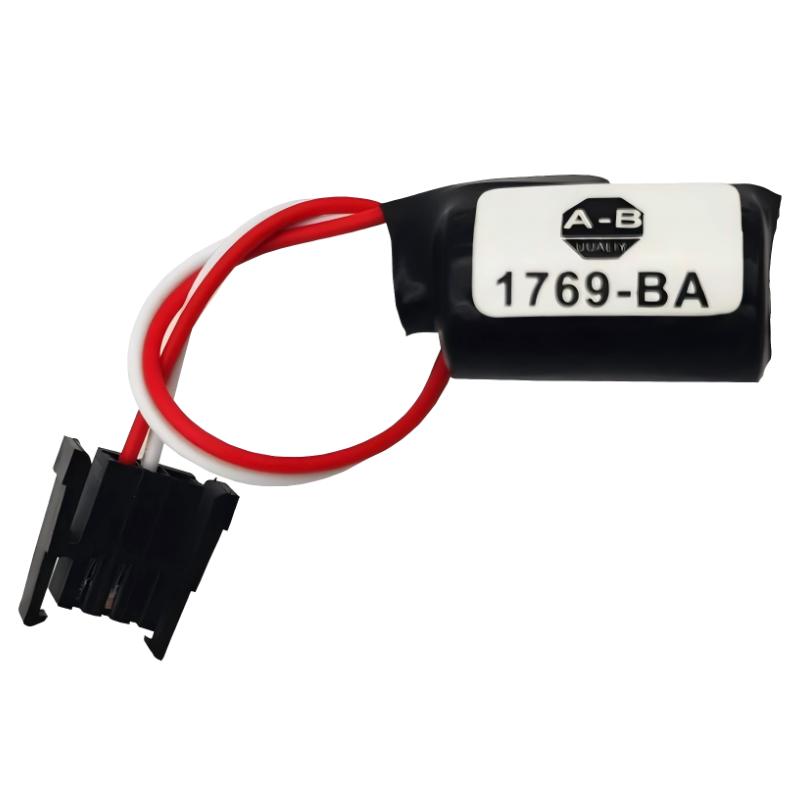

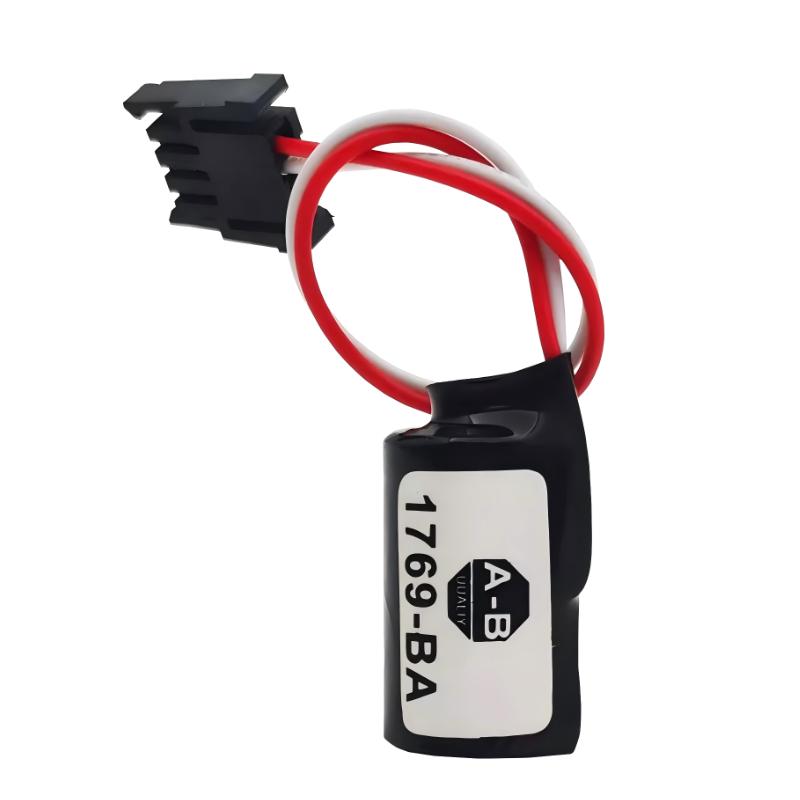

The Allen Bradley 1769-BA CompactLogix Lithium Battery Components are essential for maintaining memory retention in PLC systems during power outages. Designed for industrial environments, they offer reliable, long-life backup power in a compact form factor.

Technical Specifications

Feature	Specification
Model Number	1769-BA
Module Type	CompactLogix Lithium Battery Components
Dimensions	50 × 20 × 35 mm
Weight	0.05 kg (0.11 lb)
Material	Industrial-grade lithium cell
Compatibility	CompactLogix PLC systems
Indicators	Monitored via PLC diagnostics
Mounting	Internal to PLC module
Environment	Industrial, 24/7 operation
Protection	Vibration and shock resistant

Applications

The Allen Bradley 1769-BA Lithium Battery Components are designed to provide reliable backup power for CompactLogix controllers. Typical applications include:

Retaining program memory and data in CompactLogix PLCs during power loss
Industrial automation systems requiring uninterrupted operation
Process control, material handling, and machine monitoring applications
Environments where backup power ensures system integrity and data retention

These battery components are critical for maintaining controller memory and ensuring smooth operation during power interruptions.

Advantages

Reliable Backup Power: Ensures memory retention during power outages
Compact Form Factor: 50 × 20 × 35 mm size fits efficiently inside CompactLogix controllers
Long-Life Lithium Chemistry: Extended operational lifespan for industrial applications
Easy Replacement: Designed for simple installation and maintenance
Industrial-Grade Reliability: Engineered for continuous operation in harsh environments

Technical FAQs

What is the primary function of this component?
It provides backup power to retain memory and data in CompactLogix PLCs.
Which PLC systems is it compatible with?
Allen Bradley CompactLogix controllers.
How long does the battery last under normal operation?
Typically, several years depending on system usage and temperature conditions.
Can it operate in industrial environments?
Yes, designed for vibration, temperature fluctuations, and 24/7 operation.
Is replacement easy?
Yes, designed for simple installation and maintenance without disrupting PLC operation.
Does it require charging?
No, it is a primary lithium battery designed for long-term use.
Is it safe for high-temperature environments?
Yes, rated for standard industrial operating temperatures.
Can it be used in retrofit systems?
Yes, compatible with existing CompactLogix installations.
Does it provide indicators for battery health?
Battery health is monitored via the PLC diagnostics interface.
What is the expected service life?
Typically 5–7 years under normal operating conditions, depending on usage and environment.
