Introduction

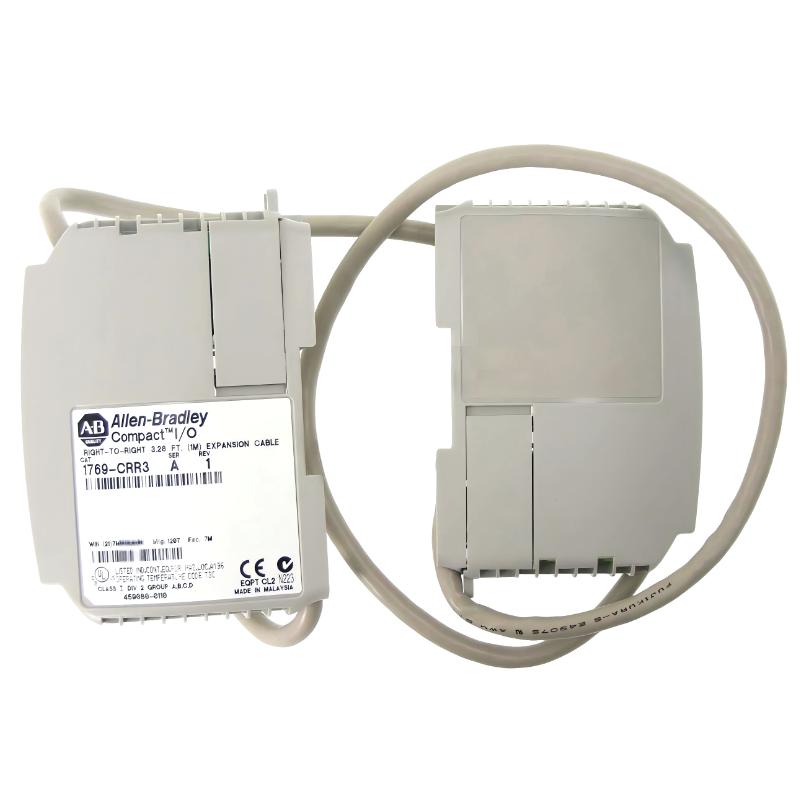

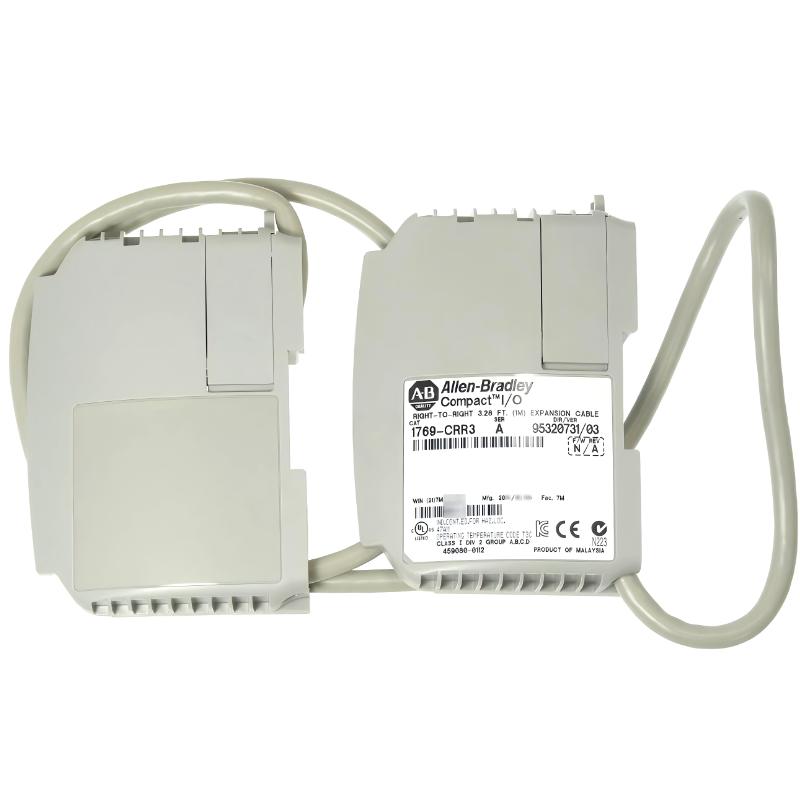

The Allen Bradley 1769-CRR3 Compact I/O Right-to-Right Bus Extension Cable is an industrial-grade solution for expanding CompactLogix I/O systems. With a 1-meter length and durable construction, it ensures reliable communication between right-side I/O modules while supporting modular growth of automation systems.

Technical Specifications

Feature	Specification
Model Number	1769-CRR3
Module Type	Compact I/O Right-to-Right Bus Extension Cable
Cable Length	1 meter
Weight	0.35 kg (0.77 lb)
Material	Industrial-grade cable & connectors
Compatibility	CompactLogix I/O modules
Indicators	N/A
Mounting	Inline between right-side modules
Environment	Industrial, 24/7 operation
Protection	Shielded for EMI/RFI resistance

Applications

The Allen Bradley 1769-CRR3 Bus Extension Cable provides a reliable connection for right-to-right Compact I/O module communication. Typical applications include:

Extending right-side connections in modular CompactLogix I/O systems
Industrial automation, process control, and distributed I/O systems
Factory automation requiring secure, high-speed communication between modules
Seamless integration of additional I/O modules without complex rewiring

This cable ensures fast and stable communication between connected CompactLogix I/O modules.

Advantages

Reliable Connectivity: Maintains stable communication between right-side connected modules
Flexible Length: 1-meter cable provides installation flexibility in control panels
Easy Installation: Plug-and-play design simplifies integration
Industrial-Grade Durability: Withstands vibration, temperature changes, and 24/7 operation
Modular Expansion: Supports growth of CompactLogix I/O systems efficiently

Technical FAQs

What is the main function of this cable?
It extends right-to-right connections between Compact I/O modules to ensure reliable data transfer.
Which modules is it compatible with?
Allen Bradley CompactLogix I/O modules.
What is the cable length?
1 meter.
Is it shielded for noise protection?
Yes, designed to minimize EMI/RFI interference for reliable communication.
Can it operate in harsh industrial conditions?
Yes, built for vibration, temperature variations, and continuous operation.
Does it require tools for installation?
No, plug-and-play connection for easy deployment.
Can it be used in retrofit systems?
Yes, compatible with existing CompactLogix I/O installations.
Does it support high-speed data transfer?
Yes, engineered for real-time communication between modules.
Is maintenance required?
Minimal; periodic inspection for wear or loose connections is recommended.
Is it suitable for 24/7 operation?
Yes, designed for continuous industrial use.
