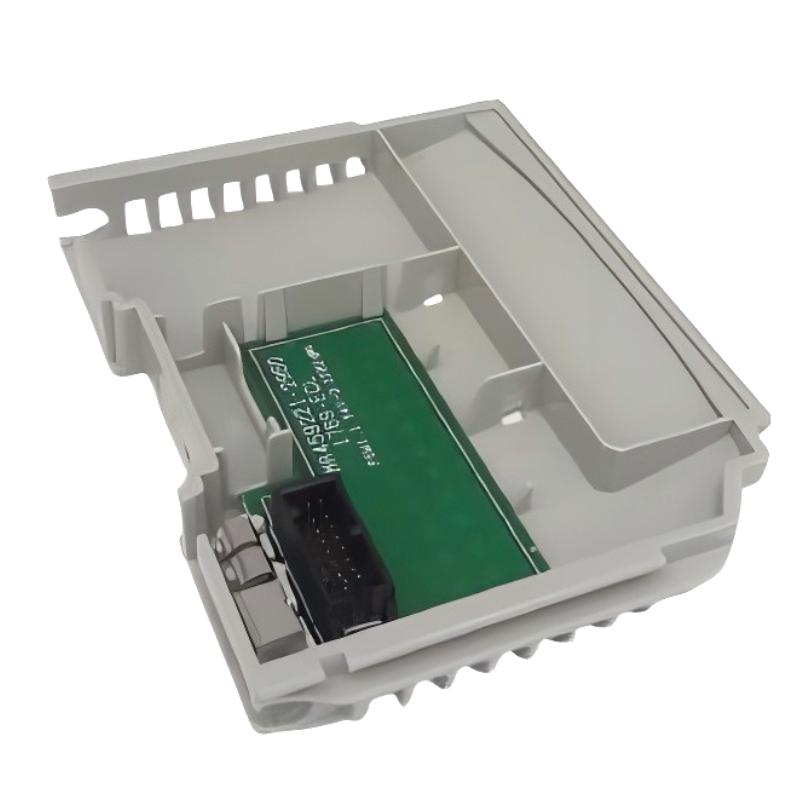

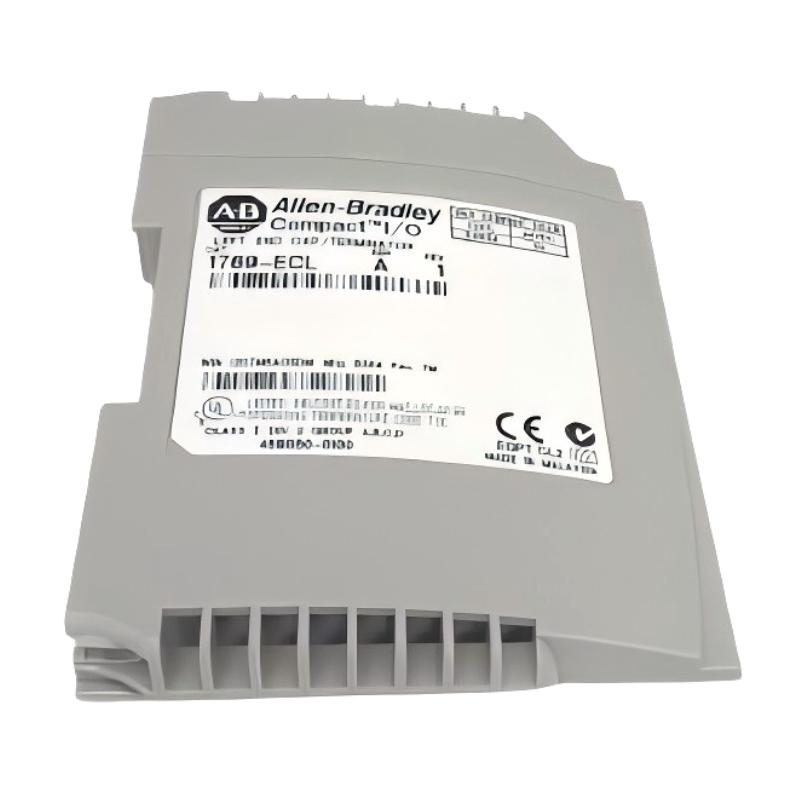

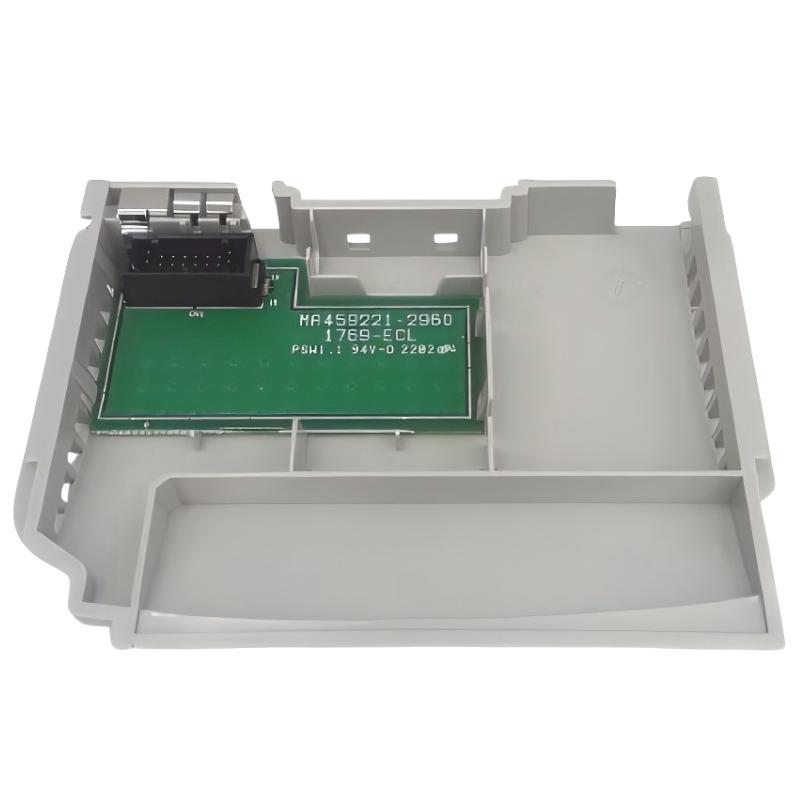

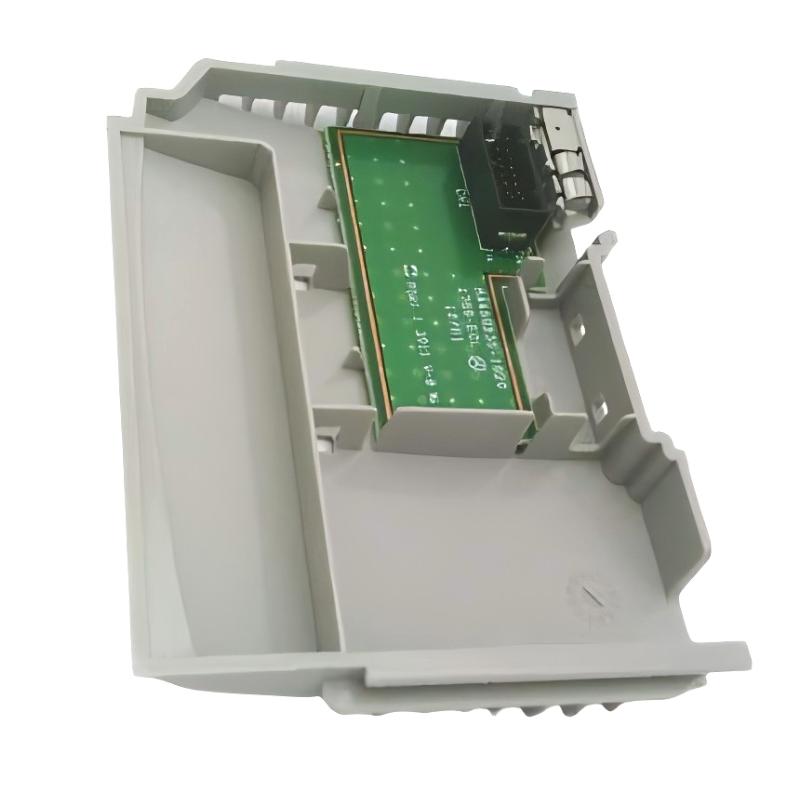

Allen Bradley 1769-ECL CompactLogix Left End Cap/Terminal

Applications

The Allen Bradley 1769-ECL Left End Cap is designed to complete and protect the left end of CompactLogix I/O module assemblies. Typical applications include:

• Securing the left side of Compact I/O module racks in automation systems
• Ensuring proper termination and protection of electrical contacts
• Factory and process automation requiring robust and safe module enclosures
• Preventing dust, debris, and accidental contact within control panels

This end cap ensures safe, reliable operation and maintains proper alignment of I/O modules.

Advantages

• Secure Termination: Protects the left side of I/O modules for reliable operation
• Compact Design: 118 × 15 × 87 mm size fits seamlessly on CompactLogix assemblies
• Easy Installation: Snap-on design for fast and secure mounting
• Industrial-Grade Durability: Withstands vibration, temperature changes, and 24/7 operation
• Maintains Module Alignment: Keeps I/O modules properly positioned and organized

Technical FAQs

1. What is the primary purpose of this component?
   To serve as a left-side end cap for CompactLogix I/O modules, providing protection and proper termination.
2. Which modules is it compatible with?
   Allen Bradley CompactLogix I/O modules.
3. Does it provide electrical connectivity?
   No, it is a protective termination piece, not an active electronic component.
4. Can it operate in industrial environments?
   Yes, built for standard industrial operating conditions including vibration and temperature variations.
5. Is it easy to install?
   Yes, designed for snap-on mounting without tools.
6. Does it require maintenance?
   No regular maintenance is needed; inspect for physical damage occasionally.
7. Can it be used in retrofit systems?
   Yes, compatible with existing CompactLogix I/O racks.
8. Is it compatible with bus extension cables?
   Yes, it does not interfere with left-to-left bus extensions.
9. Does it provide any shielding?
   It offers physical protection but does not provide EMI/RFI shielding.
10. Is it suitable for continuous operation?
    Yes, designed to remain installed for 24/7 industrial use.
