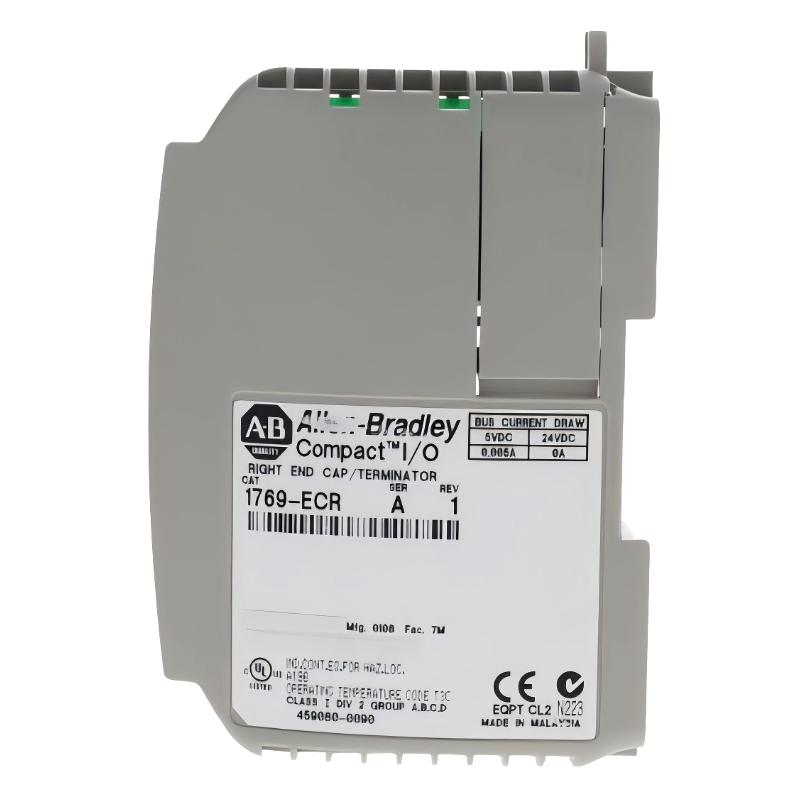

Allen Bradley 1769-ECR CompactLogix Right End Cap/terminal

Applications

The Allen Bradley 1769-ECR Right End Cap is designed to complete and protect the right side of CompactLogix I/O module assemblies. Typical applications include:

• Securing the right end of Compact I/O module racks in industrial control systems
• Providing safe termination for electrical contacts and module edges
• Protecting control panels from dust, debris, and accidental contact
• Industrial automation systems where reliable module alignment is required

This end cap ensures safe and organized operation of CompactLogix I/O assemblies.

Advantages

• Secure Termination: Protects the right side of I/O modules for reliable operation
• Compact and Lightweight: 118 × 18 × 85 mm, weighing only 0.05 kg (0.11 lb)
• Easy Snap-On Installation: Quick, tool-free mounting on the right side of module racks
• Industrial-Grade Durability: Designed for continuous operation in harsh environments
• Maintains Module Alignment: Keeps I/O modules properly positioned and organized

Technical FAQs

1. What is the primary function of this component?
   To act as a protective right-side end cap for CompactLogix I/O modules, ensuring safe termination.
2. Which modules is it compatible with?
   Allen Bradley CompactLogix I/O modules.
3. Does it provide any electrical functionality?
   No, it serves as a protective and alignment component only.
4. Can it be used in industrial environments?
   Yes, it withstands vibration, temperature variations, and 24/7 operation.
5. Is installation complicated?
   No, it snaps into place easily without any tools.
6. Is maintenance required?
   No regular maintenance; inspect occasionally for physical damage.
7. Can it be used in existing installations?
   Yes, compatible with existing CompactLogix module racks.
8. Does it interfere with bus extension cables?
   No, it is designed to allow seamless bus connections.
9. Does it provide EMI or RFI shielding?
   No, it provides physical protection but no electrical shielding.
10. Is it suitable for continuous operation?
    Yes, designed for long-term, 24/7 industrial use.
